Electrolux EJF4440AOW Manuel utilisateur

EJF4440AOW

No frost Freezer-Fridge

............................................................. .......................................

EN Instruction booklet 1

RO  Manual de utilizare si

intretinere

UK   31

ES  Manual de Instrucciones 46

AL No frost Frigoriferi Manual perdorimi 64

  78



No frost  94

  107

CZ  119

EN - 1 -

Index

BEFORE USING THE APPLIANCE ........................................................................2

Safety Instructions ........................................................................................................ 2

Recommendations....................................................................................................... 3

Installation and Switching On The Appliance .............................................................. 4

Before Switching On ..................................................................................................... 4

THE VARIOUS FUNCTION AND POSSIBILITIES..................................................5

Thermostat Setting ....................................................................................................... 5

Accessories .................................................................................................................. 6

Magic Shelf ............................................................................................................................ 6

Making Ice Cubes ..................................................................................................................6

Fast Freezing Shelf ...............................................................................................................6

Chiller Shelves ....................................................................................................................... 7

Crisper and Crisper Shelf ..................................................................................................... 7

REMOVINGTHE CRISPERCOVER ......................................................................................... 8

ARRANGING FOOD IN THE APPLIANCE..............................................................9

Refrigerator Compartment ........................................................................................... 9

Freezer Compartment .................................................................................................. 9

CLEANING AND MAINTENANCE ......................................................................... 11

Defrosting .................................................................................................................. 11

Replacing The Refrigerator and Freezer Light Bulb ................................................. 12

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION .............. 12

Changing of Door Opening Direction ........................................................................ 12

BEFORE CALLING YOUR AFTER SALES SERVICE .......................................... 13

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ........................ 15

Tips For Saving Energy .............................................................................................. 16

EN - 2 -

Safety Instructions

• If the model contains R600a-see name plate under refrigerant (the coolant isobutane),

naturals gas that, is very environmentally friendly but also combustible. When

transporting and installing the unit care must be taken to ensure that none of the

refrigeration circuit components become damaged. In the event of damage avoid

naked flames or ignition sources and ventilate the room in which the unit is placed

for a few minutes.

Warning: Keep ventilation openings in appliance enclosure or in structure for building

in, clear of obstruction.

• Do not use mechanical devices or other artificial means to accelerate the defrosting

process.

• Do not use electrical appliances in the refrigerator or freezer compartment of the

appliance.

• If this appliance is to replace an old refrigerator with a lock; break or remove the lock

as a safety measure before storing it, to protect children while playing might lock

themselves inside.

• Old refrigerators and freezers contain insulation gases and refrigerant, which must

be disposed of properly. Entrust the disposal of a scrap unit categorically to

competence of your local waste disposal service and contact your local authority or

your dealer if you have any questions. Please ensure that the pipe of work of your

refrigerating unit does not get damaged prior to being picked-up by the relevant waste

disposal service.

Important note:

Please read this booklet before installing and switching on this appliance. The

manufacturer assumes no responsibility for incorrect installation and usage as described

in this booklet.

BEFORE USING THE APPLIANCE

PART- 1.

EN - 3 -

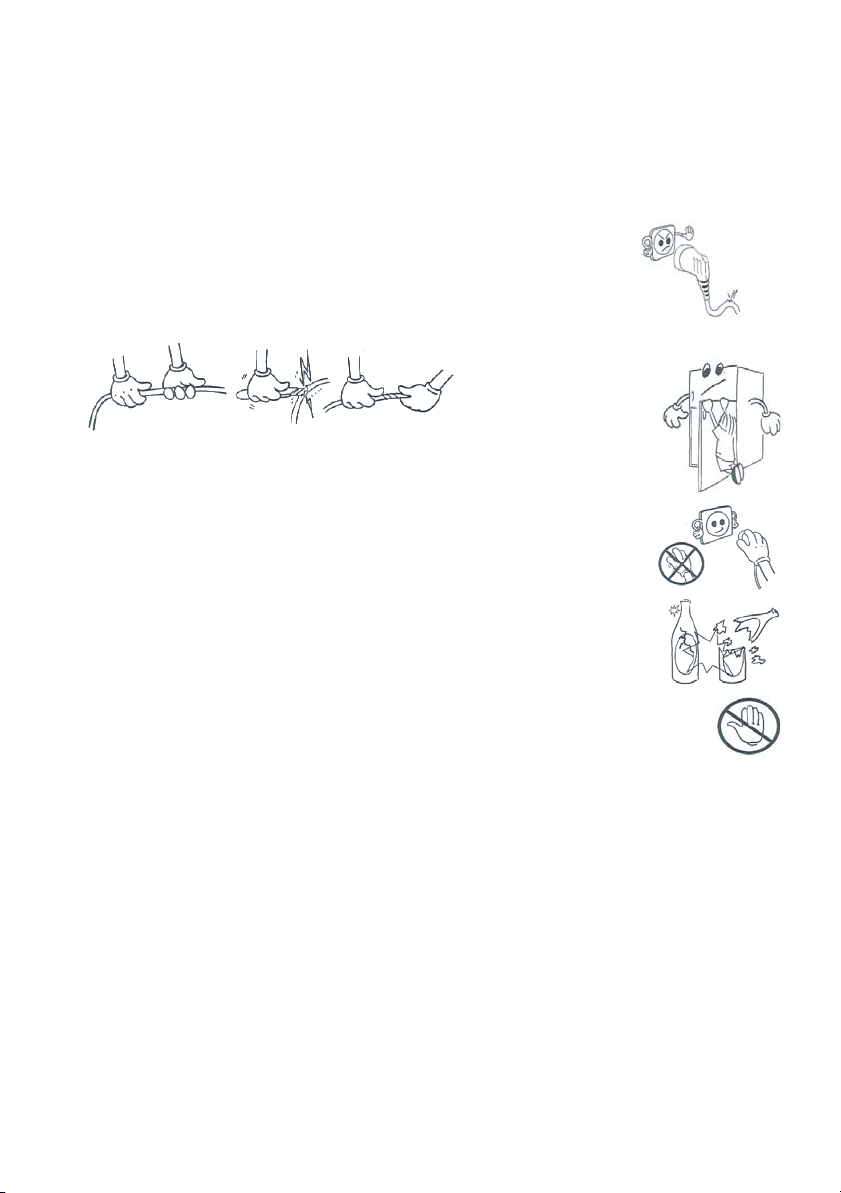

Recommendations

Warning: Do not use mechanical devices or other means to accelerate the defrosting

process, other than those recommended by the manufacturer. Do not use electrical

appliances inside the food storage compartments of the appliance, unless they are of

the type recommended by the manufacturer. Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction. Do not damage the refrigerant

circuit.

• Do not use adopters or shunts which could cause overheating

or burning.

• Do not plug old, warped power supply cables.

• Do not twist and bend the cables.

• Do not allow children to play with the appliance. Children must

NEVER sit on drawers/shelves or hang from the door.

• Do not plug the power supply with wet hands.

• Do not place containers (glass bottles or tin containers) of liquids

into the freezer especially gassy liquids as they could cause

the container to burst during freezing.

• Bottles, which contain a high percentage of alcohol must be

sealed well and placed vertically in the refrigerator.

• Do not touch the cooling surfaces, especially with wet hands as

you could be burnt or hurt.

• Do not eat ice, which have just been removed from the freezer.

• If the supply cord is damaged it must be replaced by the

manufacturer or service agent or appointed qualified person.

• The appliance is not intended for use by people (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by

a person responsible for their safety. Children should be supervised to ensure that

they don’t play with the appliance.

• If the supply cord is damaged it must be replaced by the manufacturer or service

agent or similary qualified people in order to avoid a hazard.

EN - 4 -

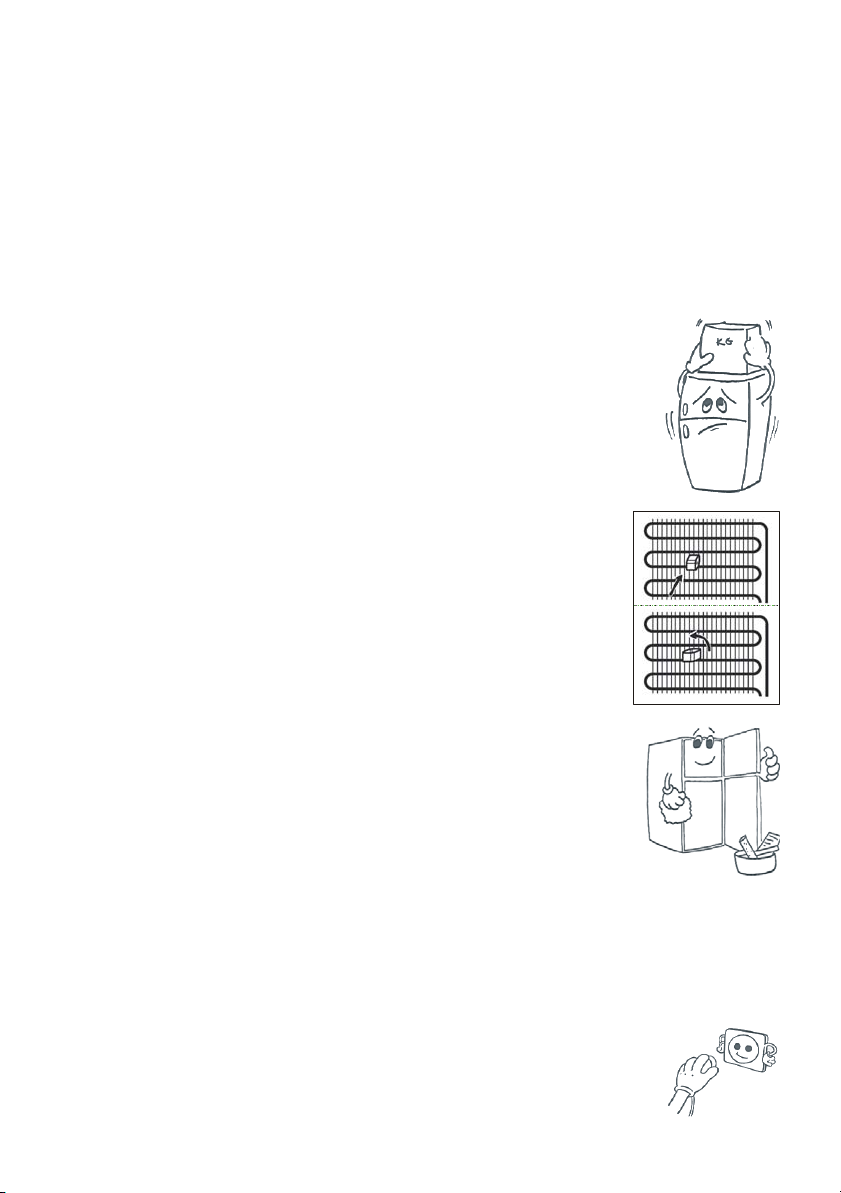

Installation and Switching On The Appliance

• This appliance is connecting to 220-240V and 50 Hz.

• Before making the connection to the power supply, ensure that the voltage on the

nameplate corresponds to the voltage of electrical system in your home.

• If the socket does not match the refrigerator plug, replace the plug with a suitable

one (at least 16 A)

• Insert the plug into a socket with an efficient ground connection. If the socket has no

ground contact, we suggest you call an electrician for assistance.

•Manufacturer is not responsible for failure to complete the ground connection as

described in this booklet.

• Do not place the appliance in direct sunlight.

• Do not use in open air and shall not be exposed to the rain.

• Place the refrigerator far from heat sources and in a

well-ventilated position. The refrigerator should be at least 50

cm from radiators, gas or coal stoves and 5 cm far from electrical

stoves.

• Keep the top free for at least 15 cm.

• Do not place heavy and lots of things on the appliance.

• If the appliance is installed next to another refrigerator or freezer,

observe a minimum distance of 2 cm to prevent condensation.

• Install the distance adjustment plastic (the part with black vanes

at the rear) by turning it 90° to prevent the condenser from

touching the wall.

• The appliance must be stand firmly and level on the floor Use

the two front levelling-feet to compensate for an even floor.

• In order to have air circulation under the appliance, the space

under the appliance must be open. Don’t close it with carpet,

etc.

• The outside of the appliance and the accessories inside should

be cleaned with a solution of water and liquid soap; the inside

of the appliance with sodium bicarbonate dissolved in lukewarm

water. After drying replace all the accessories.

Before Switching On

• Wait after 3 hours before plugging the appliance in to the main power

to ensure proper performance.

• There can be an odour when you first switch on the appliance. It will

disappear after the appliance starts to cool.

EN - 5 -

THE VARIOUS FUNCTION AND POSSIBILITIES

Thermostat Setting

FREEZER THERMOSTAT REFRIGERATOR THERMOSTAT

Freezer and refrigerator thermostat automatically regulates the inside temperature of the

compartments. By rotating the knob from position 1 to 5, colder temperatures can be

obtained. In cold seasons, you can set lower positions in order to decrease the energy

consumption.

Freezer Thermostat Setting;

1 – 2 : For short-term storage of food in the freezer compartment, you can set the

knob between minimum and medium position.

3 – 4 : For long-term storage of food in the freezer compartment, you can set knob

medium position.

5 : For freezing the fresh food. The appliance will work longer. After you get the

cold condition you must position to its original position.

Refrigerator Thermostat Setting;

1 – 2 : For less coldly conditions.

3 – 4 : For normal conditions.

5 : For colder conditions.

•Note that; the ambient temperature, temperature of the freshly stored food and how

often the door is opened, affects the temperature in the refrigerator and freezer

compartment. If required, change the temperature setting.

• When you first switch on the appliance, for starting a suitable cooling, the appliance

should work 24 hours continuously until it cools down to sufficient temperature.

• In this time do not open the door so often and place a lot of food inside the appliance.

• If the unit is switched off or unplugged, you must allow at least 5 minutes before

restarting or re-plugged the unit in order not to damage the compressor.

PART- 2.

EN - 6 -

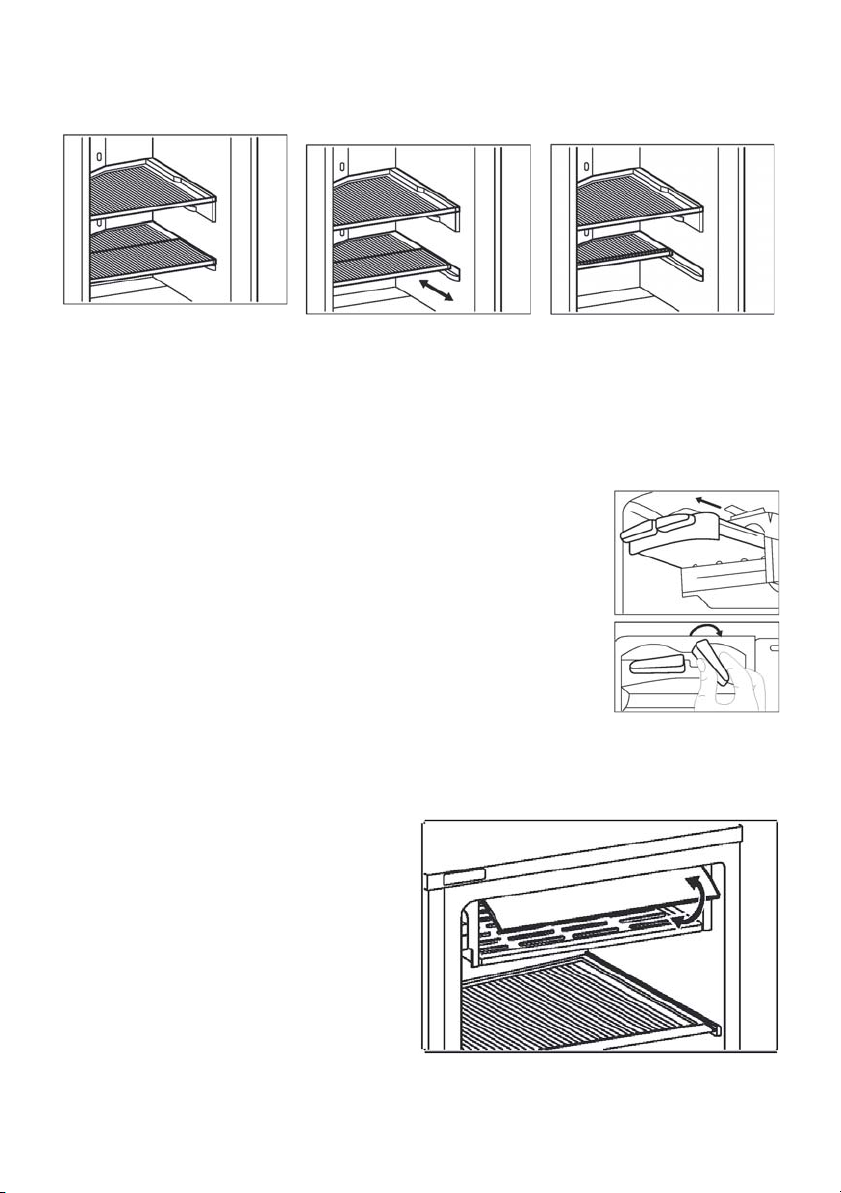

Accessories

Making Ice Cubes

• Take out the ice making tray

• Fill the water in level of line.

• Place the ice making tray in its original position

• When ice cubes are formed, twist the lever to drop off ice

cubes into the icebox.

Do not fill the icebox with water in order to make ice. It

can be broken.

Fast Freezing Shelf

• Use the fast freezing shelf to freeze

home cooking (and fresh foods

whichiswantedtofreeze)more

quickly because of the freezing

room’s greater freezing power.

• For opening the shelf pull the cover

up, and slide it in to the shelf. You

can close it in the same way

Note that;be sure that the cover of fast freezing shelf is closed before closing the

compartment door. If not, it can not show its fast freezing power.

Magic Shelf

Magic shelf, which is on the crisper cover, was designed to give you more place and

comfort placing the things in the appliance. This shelf is mobile so you can arrange long

or big containers on the crisper cover.

(In some models)

EN - 7 -

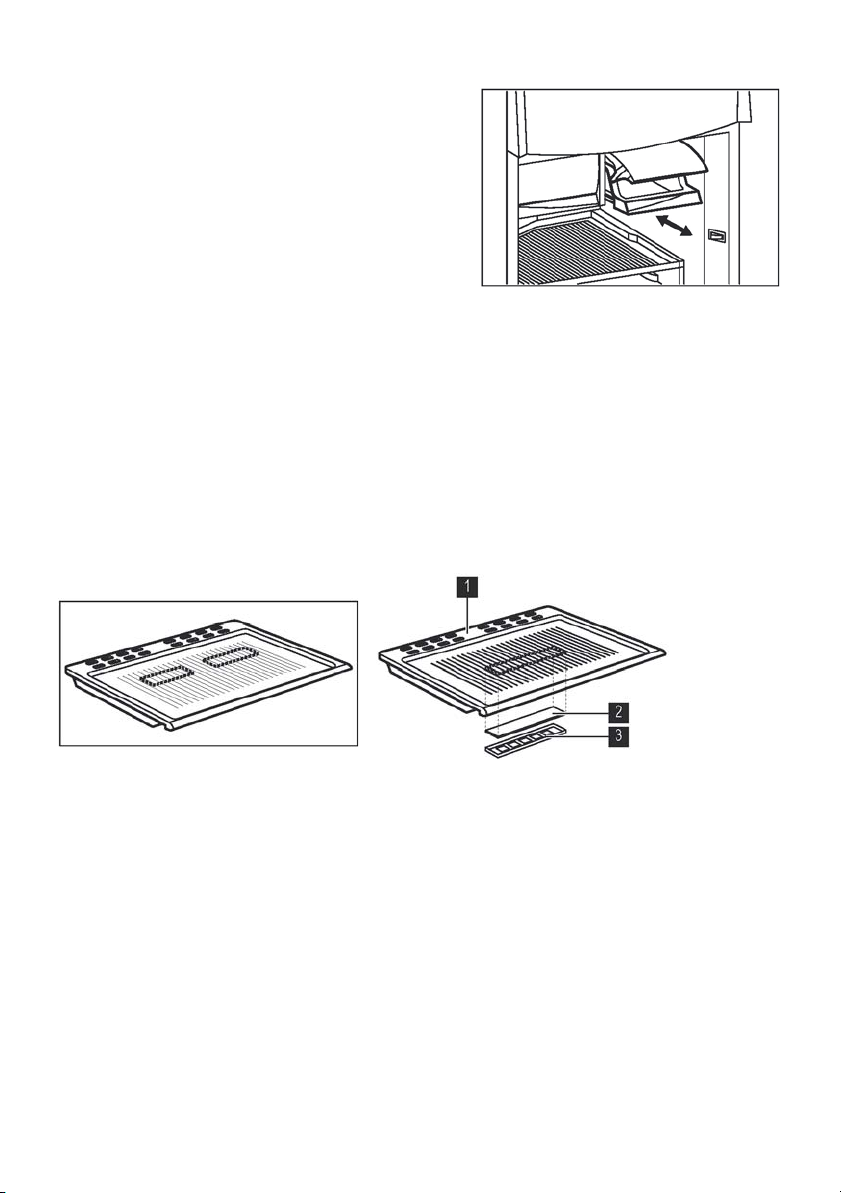

Crisper and Crisper Shelf

The crisper compartment absorbs and decomposes ethylene gas (*) emitted from fruits

and vegetables with a “FILTER” in the crisper shelf, keeping fruits and vegetables fresh.

The filter also eliminates unpleasant odours from inside the crisper, and control the excess

water released by the vegetables, maintaining a high humidity environment inside the

crisper. When the crisper shelf become dirty, remove the filter by taking out the filter cover

and wash the crisper cover with water.

! Do not wash the “Humidity-Control Filter” with water.

(*)NOTE;Ethylene gas is a gas, produced from fruits and vegetables, which accelerates

the ageing of fruits and vegetables. For example, spinach and broccoli turn to yellow

colour easily in places where ethylene gas is abundant.

Chiller Shelves

Keeping food in the Chiller compartment

instead of the freezer or refrigerator

compartment allows food retain freshness and

flavour longer, while preserving its fresh

appearance. When chiller tray becomes dirty,

remove it and wash it with water.

(Water freezes at 0°C, but foods containing salt

or sugar freeze at temperature lower than that)

Normally people use the chiller compartment

for raw fish, lightly pickled, rice, etc...

Do not put foods you want to freeze or ice trays in order to make ice.

(In some models)

Crisper Cover

Filter

Filter cover

EN - 8 -

REMOVING THE CRISPER COVER

First Step : Removing the crispers

• It is easy to pull out the crisper because

of the crisper has rollers.

• Pull the crisper out as far as possible

and pull the front part up and out

Second Step: Taking out the partition

crisper center between the crispers.

• Bend the Partition toward left from the

bottom of the part

• Take out the Partition crisper

Third Step: Taking out the crisper cover

• Pull out the crisper cover until the nails

of the cover come on the cavities (right

and left side) of the cabinet.

• When the nails comes into the cavities

pull up and take out the crisper cover

NOTE: Make the inverse of the same operation for the resetting the crisper cover.

All written and visual descriptions in the accessories

may vary according to the appliance model.

(In some models)

Table des matières

Autres manuels Electrolux Réfrigérateur

Electrolux

Electrolux ERN 16300 Manuel utilisateur

Electrolux

Electrolux Juno JCF84181 Manuel utilisateur

Electrolux

Electrolux ERA 39391 X8 Manuel utilisateur

Electrolux

Electrolux FRS20QRC Manuel utilisateur

Electrolux

Electrolux ER2835I Guide rapide

Electrolux

Electrolux ERB5004A Manuel utilisateur

Electrolux

Electrolux ER 8215B Manuel utilisateur

Electrolux

Electrolux ERG1901BOW Manuel utilisateur

Electrolux

Electrolux Icon 242000100 Manuel utilisateur

Electrolux

Electrolux ENZ34700X Manuel utilisateur

Electrolux

Electrolux French Door Bottom Freezer Manuel utilisateur

Electrolux

Electrolux ELECTROLUX WAVE-TOUCH EW23CS70IS Manuel utilisateur

Electrolux

Electrolux A Guide de démarrage rapide

Electrolux

Electrolux ERC33230W Manuel utilisateur

Electrolux

Electrolux ER 1148T Guide rapide

Electrolux

Electrolux ERB 3026 Manuel utilisateur

Electrolux

Electrolux Ecostore 727273 Comment utiliser

Electrolux

Electrolux STM3900 Manuel utilisateur

Electrolux

Electrolux EI24RD65HS1 Manuel utilisateur

Electrolux

Electrolux ER 7926B Manuel utilisateur

Electrolux

Electrolux Kelvinator KRS220RGW Manuel utilisateur

Electrolux

Electrolux ERT 1646 Manuel utilisateur

Electrolux

Electrolux TK139 Manuel utilisateur

Electrolux

Electrolux ER9098BSAN Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur

Teledyne

Teledyne 6712FR and Mode d'emploi
