Electrolux 253.60722005 Manuel

P08F0077.eps P08D0542.eps P08C1117.eps P08S0470.eps

REPAIR

PARTS

LIST

253.60722005

For Parts or Service:

Call

1-800-4-MY-HOME®

(1-800-469-4663)

Or Visit

www.sears.com

REFRIGERATOR

In all orders or correspondence, avoid delays and misunderstandings

by always giving the complete model number shown on the left side of

the access panel.

All repair parts listed are available for immediate purchase or special

order when you visit your nearest Sears Parts & Repair Center, or the

Service Department at most Sears stores. To order parts by phone, call

the toll-free number listed to the left or visit sears.com.

When requesting service or ordering parts, always provide the following

information:

• Product Type • Part Number

• Model Number • Part Description

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Publication number 5995535738

253.60722005

03/09 2

DOOR

CAUTION: Use the Kenmore part number to order part, not the illustration number.

253.60722005

# Functional Parts 3 03/09

* Non-Illustrated Parts

DOOR

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

1 216522309 Gasket-door, white

9 216527813 Panel-inner door

11 297245214 Panel-outer door, white

12A 216885200 Nameplate

13 297257000 Door Stop, chrome, RH/LH

18 218803901 Handle-door, white

21A 297197500 Screw, door stop mtg, FH38-16X.750, P Twin

22 216970800 Bearing, hinge w/o'ring, top

22A 297006800 Bearing-hinge, btm, w/o'ring

26 216524201 Gasket, secondary

27 F5304472186Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

28 216951600 Rack-door, (5)

32 5309950074 Valve, breather

37 218771201 Trim-handle, 1.34", white

58 218252201 Screw, #8 truss hd, 10-32CA x 0.500

64 216403700 Plug-button, hole filler, door base

72 218397000 Button-handle mtg, dovetail

73 218396700 Block-handle mtg, dovetail

74 240521303 Screw, #10-16 x 1/2

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

253.60722005

03/09 4

CABINET

CAUTION: Use the Kenmore part number to order part, not the illustration number.

132

71A 21

93B

42A

22A

P08C1117

10A

93A

169

41 28

253.60722005

# Functional Parts 5 03/09

* Non-Illustrated Parts

CABINET

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 297200600 Breaker Kit w/corners, no lock slot

9 297200100 Breaker Kit w/corners, 32", top and bottom

10 # 297175600 Heater-Drain Pan

10A 297177400 Bracket, (2), drain pan

13 # 297250000 Motor, fan, 115 V

14 216998000 Switch, light/lamp, ramp

15 216846400 Light Bulb/Lamp

16 297139500 Socket, light/lamp

18 216707200 Knob, temp control

19 216204900 Gasket, evap cover

20 216230300 Cover, temp control

21 # 216807800 Control-temperature

22 216823500 Clamp, cap tube, cold control

22A 5303916855 Tube, sensor sleeve, plastic, clear

24 5304460604 Screw, type A, 10-24 x 3/8

25 297098850 Cover-evaporator

26 216503300 Ramp, door closer

28 297283900 Hinge-bottom, stepped pin

29 216313501 Hose-drain

31 297165800 Pan-drain

32 5308005500 Drain

34 216816200 Shield-light

35 216273000 Clip, drain hose

37 241611301 Trim-cabinet corner, white, (2)

38 297283800 Hinge-upper

40 297164400 Cover-hinge

41 240578902 Screw, hex head, 1/4-20 x 5/8

42 297119600 Shelf, 14.50x27.88, (3)

42A 297119500 Shelf, 12.50x27.88, white

* 216502400 Grommet-shelf mtg

47 216661601 Baffle-plate

49 216937700 Trivet

50 216394050 Bracket, fan motor mount

63 216396900 Screw, leveling foot, plastic, adjustable

63* 297164600 Bracket, LH leg levelor

63* 297164601 Bracket, RH leg levelor

71A 297146800 Screw, 8-18AB x 0.470

72 297036900 Grille/Kickplate, 32", white

80 06594601 Bracket, control

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

93A 216629601 Screw, hex washer head, 10-16 x 0.500, tapping

93B 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA

132 5304460601 Screw, 6-20AB x 3/8

169 216912401 Screw, hex washer head, 8-32 x 0.500, bracket fan mtr, (2)

* 216946200 Service Data Sheet

* 297088200 Owners Guide

* 216697901 Energy Guide

* 5995535738 Repair Parts List

* 297001704 Insulation, 24", drain tube

253.60722005

03/09 6

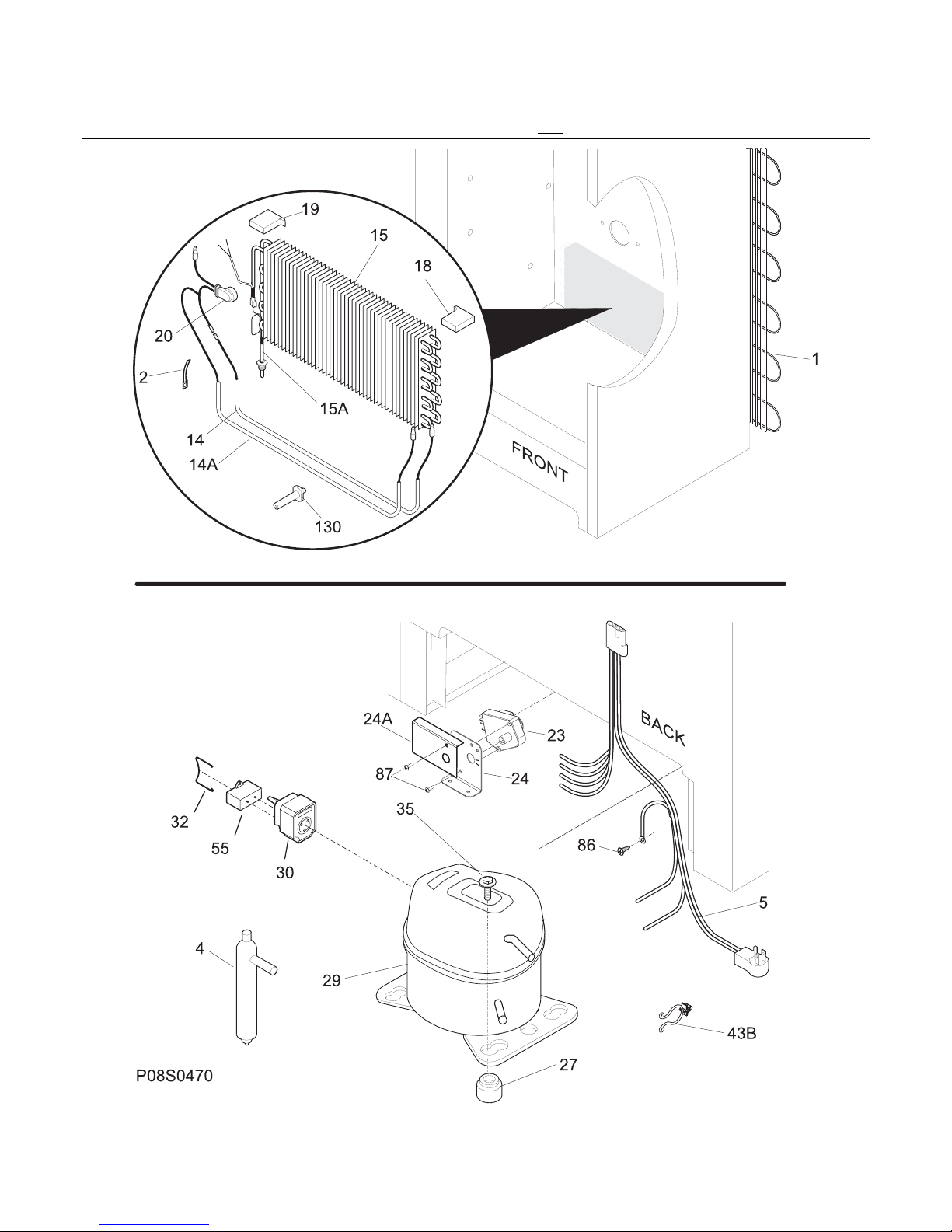

SYSTEM

CAUTION: Use the Kenmore part number to order part, not the illustration number.

253.60722005

# Functional Parts 7 03/09

* Non-Illustrated Parts

SYSTEM

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater, aluminum, (2)

4 # 216938600 Drier-filter

5 # 297244600 Harness-main

5* 216695300 Relay

14 297216100 Heater-defrost

14A# 297222900 Heater

15 # 216997300 Evaporator

15A 297231800 Heat Exchanger

18 297078701 Insulator-evap, styrofoam, RH

19 297078801 Insulator-evap, styrofoam, LH

20 216731001 Thermostat, defrost

23 # 216744500 Timer-defrost

24 216968501 Bracket-timer

24A 297207900 Guard, timer

27 5308002681 Grommet, compressor

29 # 297224800 Compressor, w/o electricals

30 216954208 Controller, compressor, 5 speed

32 297030500 Clip, controller

35 297177200 Bolt, compressor

43B 297048400 Clip

55 218909911 Capacitor, run

86 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA

87 5304463290 Screw, hi-lo blunt, #8-18X1/2

130 297244700 Support, evaporator mtg

* 216502500 Sleeve, suction line

* 216683900 Thermostat, Service part

* 240555002 Screw-#8-32 X 3/8

* 297174300 Screw, #8, 18x.63, self pierce

*# 297169904 Cord-power
