Electrolux 39452391M93S1 Manuel utilisateur

FPGS3085KF.jpg CFPGS3085KFA.eps BRFPGS3085KFA.eps BCPGS3085KF1.eps

TFPGS3085KFA.eps DFPGS3085KFA.eps 318550111.eps

Product No. CPGS3085KF1

39452391M93S1

Series 30" slide-in

Color stainless

Market Canada

Wiring Diagram 318550111

Owner's Guide 318205852

Installation Instructions 318201680

Service Data Sheet 318127064

Electrolux Major Appliances

North & Latin America

5855 TERRY FOX WAY

MISSISSAUGA, ONTARIO, CANADA L5V

3E4 Publication No.

5995545224

09/07/08

(EN/SERVICE/ECL)

377

30-INCH SLIDE-IN GAS

RANGE

Model No.

CPGS3085K

Publication No: 5995545224 CPGS3085KF1

07/09 2

BACKGUARD

CFPGS3085KFA

CPGS3085KF1 Publication No: 5995545224

# Functional Parts 3 07/09

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

19 # 318922146 Panel Assembly, control, black/stainless

20 # 316462863 Controller, electronic, ES530

23 318921300 Bracket, control mtg, (2)

24 318913101 Trim, vent, black, upper

30 318928500 Bracket, control panel, rear, (2)

31 316564411 Knob, control, stainless

40 318912907 Panel, service, silver

40* 5303300265 Screw, 8-18 X 1/2, silver, (4)

* # 318224852 Harness, wiring, timer

* 08016432 Screw, truss head, 8-18 x 0.375

* 5304453707 Screw, 8-18 X 1/2

* 5304454881 Screw, #8-18 x 3/8

Publication No: 5995545224 CPGS3085KF1

07/09 4

BURNER

11A

44A

10C

11C

12C

12D

77A

10B

11B

12B

12A

11A

10A

25 21

18 26

BRFPGS3085KFA

11B

44B

11C

44A

44C

CPGS3085KF1 Publication No: 5995545224

# Functional Parts 5 07/09

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 # 318913400 Manifold, right side

1A # 318907200 Manifold, pipe, LH

1B # 318913500 Tube, connection, manifold

2 # 318915700 Valve, top burner, 5K

2A # 318915701 Valve, top burner, 9.5K

2B # 318915703 Valve, top burner, 14K

2C # 316412513 Valve, top burner, 18K

3 # 318232659 Wiring Harness, w/igntr switch

4 5304472956 Screw, hex wash, 6-32 x .485

10 # 316438200 Burner, sealed, 5K

10A# 316558300 Burner, sealed, 9.5K

10B# 316438600 Burner, sealed, 14K

10C# 318567000 Burner Assembly, twin

11 # 316540800 Ignitor/orifice assy., top burner, 5K, w/holder

11A# 316540700 Ignitor/orifice assy., top burner, 9.5K, w/holder

11B# 316543206 Ignitor/orifice assy., top burner, 14K, w/holder

11C# 316440100 Ignitor/orifice assy., top burner, twin, 17K, w/holder

12 # 318916800 Tube, burner supply, RH rear

12A# 318916500 Tube, burner supply, LH front

12B# 318916600 Tube, burner supply, LH rear

12C# 318928100 Tube, twin burner, inside

12D# 318928200 Tube, twin burner, outside

13 # 318913600 Tube, rgltr to manf

14 # 316416705 Regulator, pressure

* 5303311306 Screw, 8-18 x 0.375, (6)

15 318262810 Bracket, regulator

16 # 318289500 Tube, regulator valve

17 # 316404901 Valve, safety

17*# 318268600 Harness, wiring, valve

18 # 318292200 Burner, oven, 18000

20 318290400 Baffle, bake burner

21 3201885 Nut, Keps, 10-24

22 # 318305203 Tube, broil supply

23 # 318292300 Burner, broil, 14000

24 # 316409703 Elbow, mixer

* 5304463705 Screw, 8-18 X 1/2, (4)

25 316401301 Baffle, broil burner

26 # 318177710 Ignitor, oven burner

* 5303300195 Screw, 10-32 x 0.375, (2)

37 316240600 Screw, assy mtg, (8), ignitor/orifice

44 # 316527504 Orifice, top burner, 5K

44A# 316527500 Orifice, top burner, 9.5K

44B# 316527513 Orifice, top burner, 14K

44C# 316527514 Orifice, top burner, simmer

47 # 318565406 Conversion Kit, LP

72 316215600 Screw, valve mtg., 1/4 - 20

76 318906702 Bracket, manifold, (2)

77 318920300 Bracket, burner mtg, (4)

77A 318384103 Bracket, burner, dual

* # 318199776 Wiring Harness, ignitor

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

* 5303325980 Screw, 10-32 x 0.437

* 5304454881 Screw, #8-18 x 3/8

Publication No: 5995545224 CPGS3085KF1

07/09 6

BODY

200

201

166A

166

166A

166

272

107

161

111

109

125

284

108

58C

58A

102

58B

BCPGS3085KF1

83 90

90A

108A

219

170

CPGS3085KF1 Publication No: 5995545224

# Functional Parts 7 07/09

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259220 Back, main

1A 318225110 Panel, main back, upper

* 5303324184 Screw, 8-18 x 5/16, black, (4)

2 318258902 Shield, insulation, upper

3 318225210 Panel, bodyside, upper RH

3A 318225211 Panel, bodyside, upper LH

4 318920200 Support, deflector

5 318175508 Screw, leveling

6 318922301 Rack, oven

6A 318926803 Rack, half, oven

6B 318921600 Rack, oven, auto

6C 318929702 Insert, half rack

7 318927600 Support, auto rack, (2)

8 318290501 Panel, oven, bottom

8A 318367401 Bracket, retainer, (2)

9 316081900 Pan, broiler, OPTIONAL ACCESS0RY

10 316082000 Insert, broiler pan, OPTIONAL ACCESS0RY

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

16 318406100 Lens, oven light, glass

17 5304400195 Retainer, light cover

18 318222400 Housing, oven light

25 318291900 Bracket, shield, lower

29 316517600 Spacer, oven door

33 318287800 Panel, valve mtg.

34 318289400 Panel, valve filler

35 318291300 Seal, flue cavity

36 318288801 Box, flue assy.

37 # 316217002 Probe, oven temp

39 # 318144008 Cord, service

* 5303323136 Screw ground

40 318291800 Box, oven burner

42 318288701 Bracket, body, middle

57 318268300 Cover, burner opening

* 5303307980 Screw, 8-32 x 0.437, (8)

58A 318285084 Insulation, oven wrapper

58B 318285085 Insulation, oven back

58C 318285097 Insulation, flue

70 318259105 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

76 318056292 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

* 5303323129 Screw, 8 X 0.750

83 318327030 Liner, oven

86 318561100 Receptacle, hinge, (2)

* 5304461333 Screw, 10-32 x 17/32

* 3051050 Screw, shoulder

87 318260624 Bracket, cable mtg.

89 # 318261215 Motor, latch assy

Publication No: 5995545224 CPGS3085KF1

07/09 8

BODY

200

201

166A

166

166A

166

272

107

161

111

109

125

284

108

58C

58A

102

58B

BCPGS3085KF1

83 90

90A

108A

219

170

CPGS3085KF1 Publication No: 5995545224

# Functional Parts 9 07/09

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

90 318296904 Panel, filler, black, RH

90A 318296905 Panel, filler, black, LH

102 318327500 Panel, reinforcement

107 318219405 Cover, fan

108# 318073028 Motor, blower

* 318165800 Spacer

108A 318251300 Bracket, fan support

109 318398300 Fan Blade

111 318399800 Nut, fan retainer

125# 318398201 Motor, fan

125* 318142100 Washer, motor, convection

161# 318255504 Element, convection, 350 W

166 318298410 Bracket, base support, (2)

166A 318298403 Bracket, base support, lower, (2)

170 318335500 Anti-tip & accessories

200 318298226 Frame, drawer, front

201 318298230 Frame, drawer, black

* 318531701 Spacer, (2)

* 5303323139 Screw, 10-24 x 0.906

219# 318003633 Thermostat, safety

272 318249409 Tube, protector

284 316536100 Transformer

* # 318306638 Harness, wiring, main

* 5304400192 Retainer, wiring

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

* 5303325980 Screw, 10-32 x 0.437

* 5304415832 Screw, 8-18 x 0.406

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995545224 CPGS3085KF1

07/09 10

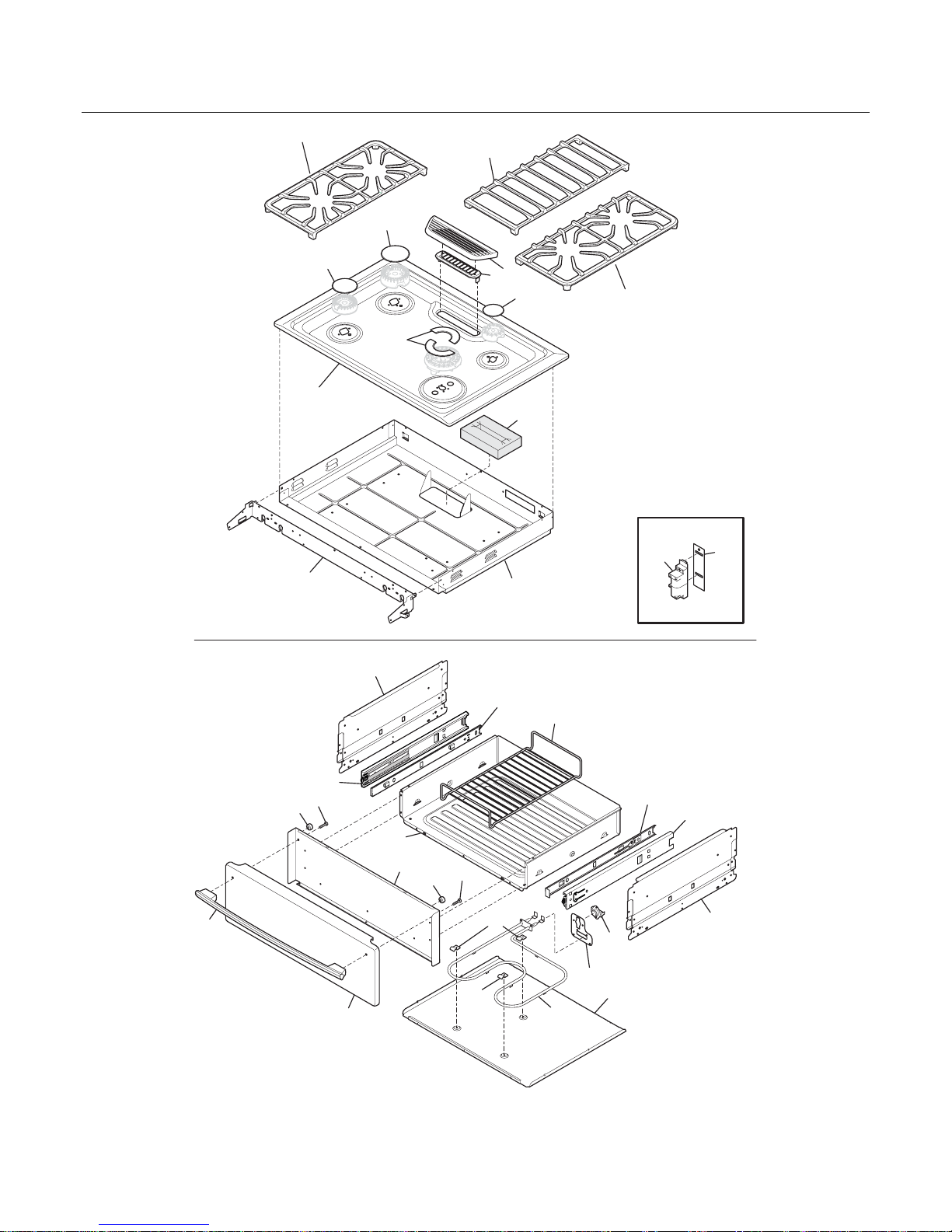

TOP

165

124

13A

29 60

TFPGS3085KFA

58C

22A

22B

22C

20A

857
