GLMV169 cover.eps GLMV169G_A cab.eps GLMV169G-A controlsr.eps

GLMV169D-D wiring.eps

Product No. GLMV169GBA GLMV169GQA GLMV169GSA PLMVZ169GCA

Market North America North America North America North America

Color black bisque white stainless steel

Volts 120 120 120 120

Watts 1000 1000 1000 1000

Wiring Diagram 5995489696 5995489696 5995489696 5995489696

Owner's Guide 316137231 316137231 316137231 316137231

Installation Instructions 316137234 316137234 316137234 316137234

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995489696

07/04/27

(EN/SERVICE/WTC)

099

OVER-RANGE

MICROWAVE

Model No.

GLMV169G /

PLMVZ169G

Publication No: 5995489696 GLMV169G / PLMVZ169G

04/07 2

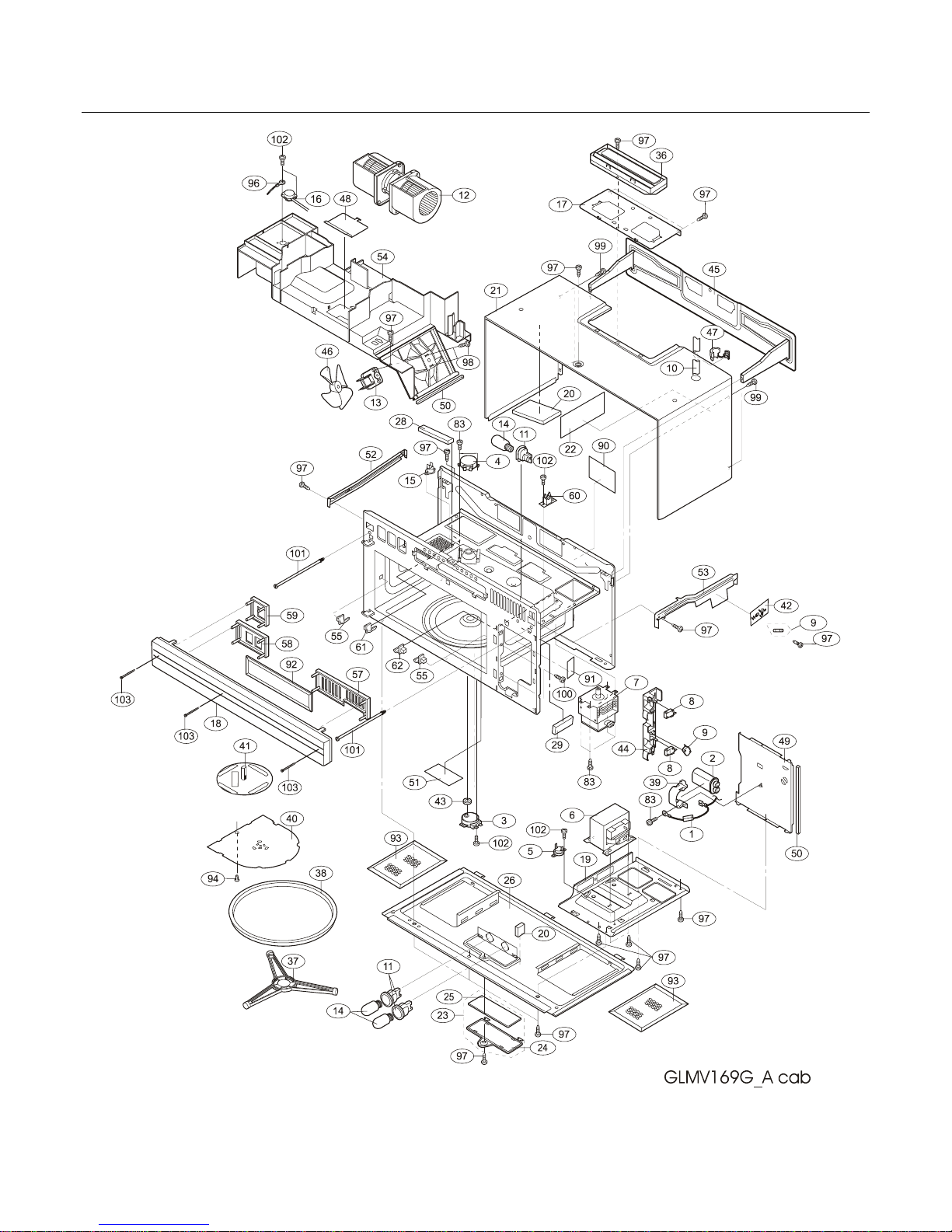

OVEN,CABINET

GLMV169G / PLMVZ169G Publication No: 5995489696

# Functional Parts 3 04/07

* Non-Illustrated Parts

OVEN,CABINET

Model Index: AGLMV169G (GLMV169GBA)

BGLMV169G (GLMV169GQA)

CGLMV169G (GLMV169GSA)

DPLMVZ169G (PLMVZ169GCA)

POS. NO PART NO. DESCRIPTION

1 # 5304461352 A B C D Rectifier, high voltage

2 # 5304440020 A B C D Capacitor, high voltage

3 # 5304448488 A B C D Motor, turntable

4 # 5304448489 A B C D Motor, stirrer fan

5 # 5304440023 A B C D Thermal Cutout, hood

6 # 5304456053 A B C D Transformer, power

7 # 5304461353 A B C D Magnetron

8 # 5304440026 A B C D Switch, interlock, door sensor

9 # 5303319559 A B C D Switch, monitor, w/ceramic fuse

10 # 5304440028 A B C D Power Cord, electric

11 # 5303319561 A B C D Receptacle, lamp socket, oven

12 # 5304440029 A B C D Motor, hood fan

13 # 5304448490 A B C D Motor, cooling fan

14 5304440031 A B C D Lamp, incandescent, 20 W, (3)

15 # 5304440032 A B C D Thermal Cutout, oven cavity

16 # 5304440033 A B C D Sensor, humidity, cook control

17 5304440232 A B C D Plate, rear stay

18 5304461354 A - - - Grille, exhaust, black

18 5304461355 - B - - Grille, exhaust, bisque

18 5304461356 - - C - Grille, exhaust, white

18 5304461357 - - - D Grille, exhaust, stainless steel

19 5304440236 A B C D Base, transformer mtg, right side

20 5304440237 A B C D Cushion, cabinet

21 5304445465 A - - D Cabinet, outer casing, black

21 5304445467 - B - - Cabinet, outer casing, bisque

21 5304445466 - - C - Cabinet, outer casing, white

22 5304451803 A B C D Wiring Diagram, schematic, label

23 5303319573 A - - D Lens/Frame Assy, lamp

23 5304451821 - B - - Lens/Frame Assy, lamp, bisque

23 5304458209 - - C - Lens/Frame Assy, lamp, white

24 5303319574 A - - D Frame, lens holder

24 5304451822 - B - - Frame, lens holder, bisque

24 5304458210 - - C - Frame, lens holder, white

25 5303319575 A B C D Lens, cooktop lamp, glass

26 5304451823 A - - D Cover, unit base

26 5304451825 - B - - Cover, unit base, bisque

26 5304451824 - - C - Cover, unit base, white

28 5304441369 A B C D Cushion, cavity top pnl

29 5304441370 A B C D Cushion, magnetron pad

36 5304440283 A B C D Damper Assy, exhaust

37 5304440284 A B C D Support Assy, turntable

38 5304440285 A B C D Tray, turntable, glass

39 5303319587 A B C D Retainer, capacitor strap

40 5304440286 A B C D Cover, stirrer fan

41 # 5304440287 A B C D Stirrer Assembly

42 # 5304451818 A B C D Filter, noise, electronic

43 5304440288 A B C D Bushing, motor shaft, turntable

Publication No: 5995489696 GLMV169G / PLMVZ169G

04/07 4

OVEN,CABINET

GLMV169G / PLMVZ169G Publication No: 5995489696

# Functional Parts 5 04/07

* Non-Illustrated Parts

OVEN,CABINET

Model Index: AGLMV169G (GLMV169GBA)

BGLMV169G (GLMV169GQA)

CGLMV169G (GLMV169GSA)

DPLMVZ169G (PLMVZ169GCA)

POS. NO PART NO. DESCRIPTION

44 5304440289 A B C D Latch Hook

45 5304440290 A B C D Bracket, unit mtg plate, rear

46 # 5304440291 A B C D Fan Blade, mag cooling fan

47 5303319605 A B C D Bushing, grommet, power cord

48 5304440292 A B C D Cover, oven lamp

49 5304440293 A B C D Duct, hood intake, right side

50 5304440294 A B C D Cushion, intake duct

51 5304440295 A B C D Lens, lamp filter

52 5304461366 A B C D Support, chassis, left side

53 5304461367 A B C D Support, chassis, right side

54 5304451828 A B C D Duct, exhaust hood

55 5304440299 A B C D Support, rack, front

57 5304440301 A - - D Cover A, grille louver

58 5304440302 A - - D Cover B, grille louver

59 5304440303 A - - D Cover C, grille louver

60 # 5304458211 A B C D Fuse, magnetron

61 5304441371 A B C D Support, rack, left rear

62 5304441372 A B C D Support, rack, right rear

83 5303319636 A B C D Screw

90 5304440333 A B C D Label, Caution-DHHS

91 5304440334 A B C D Label, Caution-monitor

92 5304440335 A B C D Filter, inside exhaust, charcoal

93 5303319568 A B C D Filter, grease, (2)

94 5304440337 A B C D Clip, canoe type, stirrer cover

96 # 5304440339 A B C D Wire, sensor ground

97 5304451553 A B C D Screw, 4 mm x 12 mm

98 5304461379 A B C D Screw, 4mm x 8mm

99 5303319639 A B C D Screw, wrapper, back

100 5303319641 A B C D Screw

101 5304440341 A B C D Screw, unit mounting

102 5304453725 A B C D Screw, 3mm x 8mm

103 5303319640 A - - D Screw, black

103 5303319652 - B - - Screw, vent grille, bisque

103 5303319663 - - C - Screw, vent grille, white

Publication No: 5995489696 GLMV169G / PLMVZ169G

04/07 6

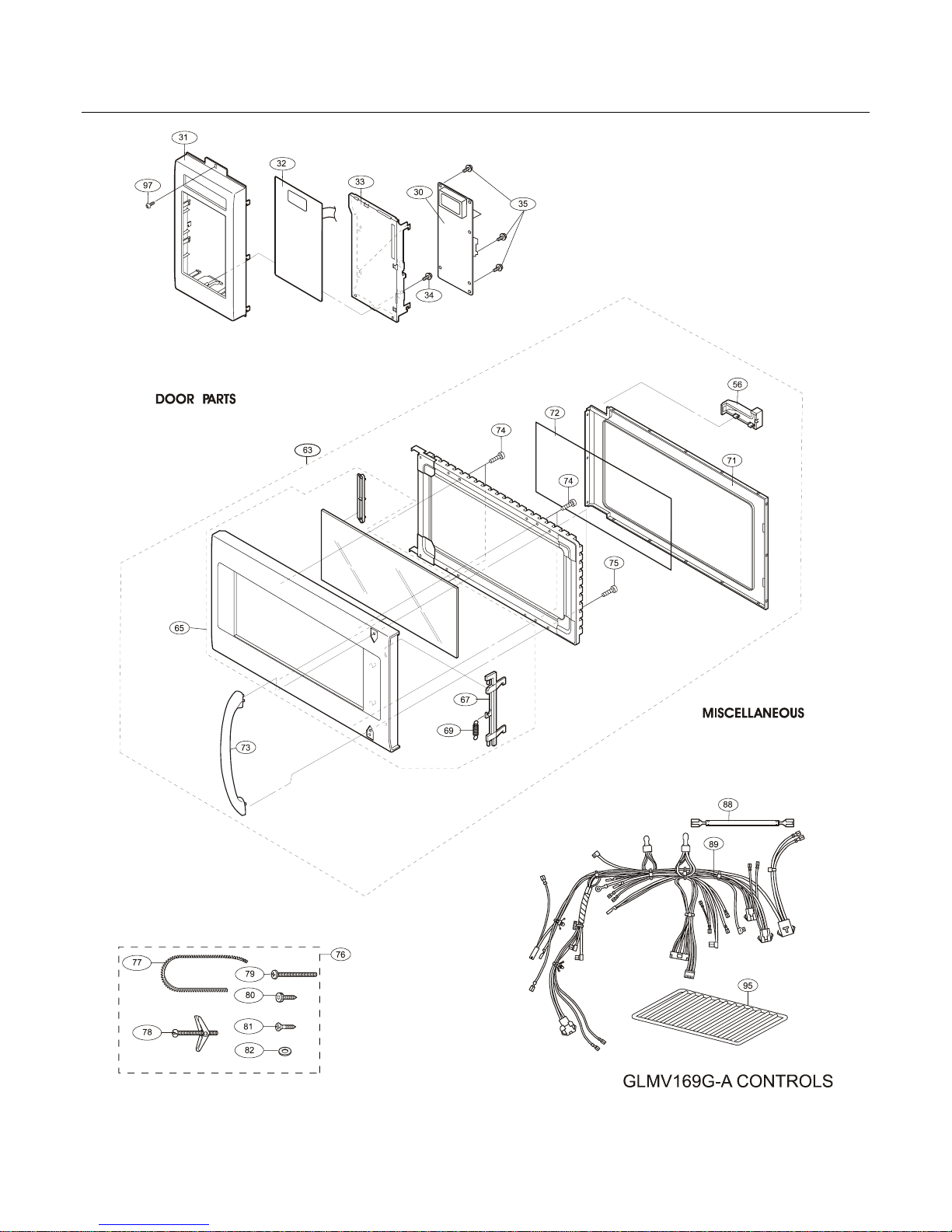

CONTROL PANEL,DOOR,MISC.

GLMV169G / PLMVZ169G Publication No: 5995489696

# Functional Parts 7 04/07

* Non-Illustrated Parts

CONTROL PANEL,DOOR,MISC.

Model Index: AGLMV169G (GLMV169GBA)

BGLMV169G (GLMV169GQA)

CGLMV169G (GLMV169GSA)

DPLMVZ169G (PLMVZ169GCA)

POS. NO PART NO. DESCRIPTION

30 # 5304440245 A B C D Control Board, printed circuit

31 5304461358 A - - - Frame, control panel, black

31 5304461359 - B - - Frame, control panel, bisque

31 5304461360 - - C - Frame, control panel, white

31 5304461361 - - - D Frame, control panel, stainless steel

32 # 5304461362 A - - D Touch Control, key pad, black

32 # 5304461363 - B - - Touch Control, key pad, bisque

32 # 5304461364 - - C - Touch Control, key pad, white

33 5304461365 A B C D Panel, control mount

34 5304458568 A B C D Screw

35 5304456930 A B C D Screw

56 5304440300 A B C D Door Stop

63 # 5304461368 A - - - Door Assy, black, w/handle

63 # 5304461369 - B - - Door Assy, bisque, w/handle

63 # 5304461370 - - C - Door Assy, white, w/handle

63 # 5304461371 - - - D Door Assy, stainless, w/handle

65 5304461372 A - - - Panel Assy, outer door, black, w/glass & latch

65 5304461373 - B - - Panel Assy, outer door, bisque, w/glass & latch

65 5304461374 - - C - PanelAssy, outer door, white, w/glass & latch

65 5304440308 - - - D Panel Assy, outer door, black, w/glass & latch

67 5304440314 A B C D Latch, door

69 5304440316 A B C D Spring, door latch

71 5304440320 A B C D Frame, choke cover, inner door

72 5304440321 A B C D Seal, door, film

73 5304461375 A - - - Handle, door, black

73 5304461376 - B - - Handle, door, bisque

73 5304461377 - - C - Handle, door, white

73 5304456145 - - - D Handle, door, stainless steel

74 5304451561 A B C D Screw, 4 mm x 8 mm

75 5304458213 A B C D Screw, 4 mm x 12 mm

76 5303319625 A B C D Hardware, installation, kit

77 5303318761 A B C D Sleeve, power cord, grommet

78 5303318762 A B C D Screw, toggle

79 5303318764 A B C D Screw, 5mm x 60mm

80 5303318767 A B C D Screw, 4mm x 12mm

81 5303318765 A B C D Screw, wood, 5mm x 35 mm, (6)

82 5303318766 A B C D Washer, flat, 30mm, (2)

88 # 5304440331 A B C D Wire, high voltage-A

89 # 5304461378 A B C D Wiring Harness, main-A

95 5304440338 A B C D Rack, microwave oven, wire

97 5304451553 A B C D Screw, 4 mm x 12 mm

* 5304451830 A B C D Template, installation, top

* 5304451831 A B C D Template, installation, wall

Publication No: 5995489696 GLMV169G / PLMVZ169G

04/07 8

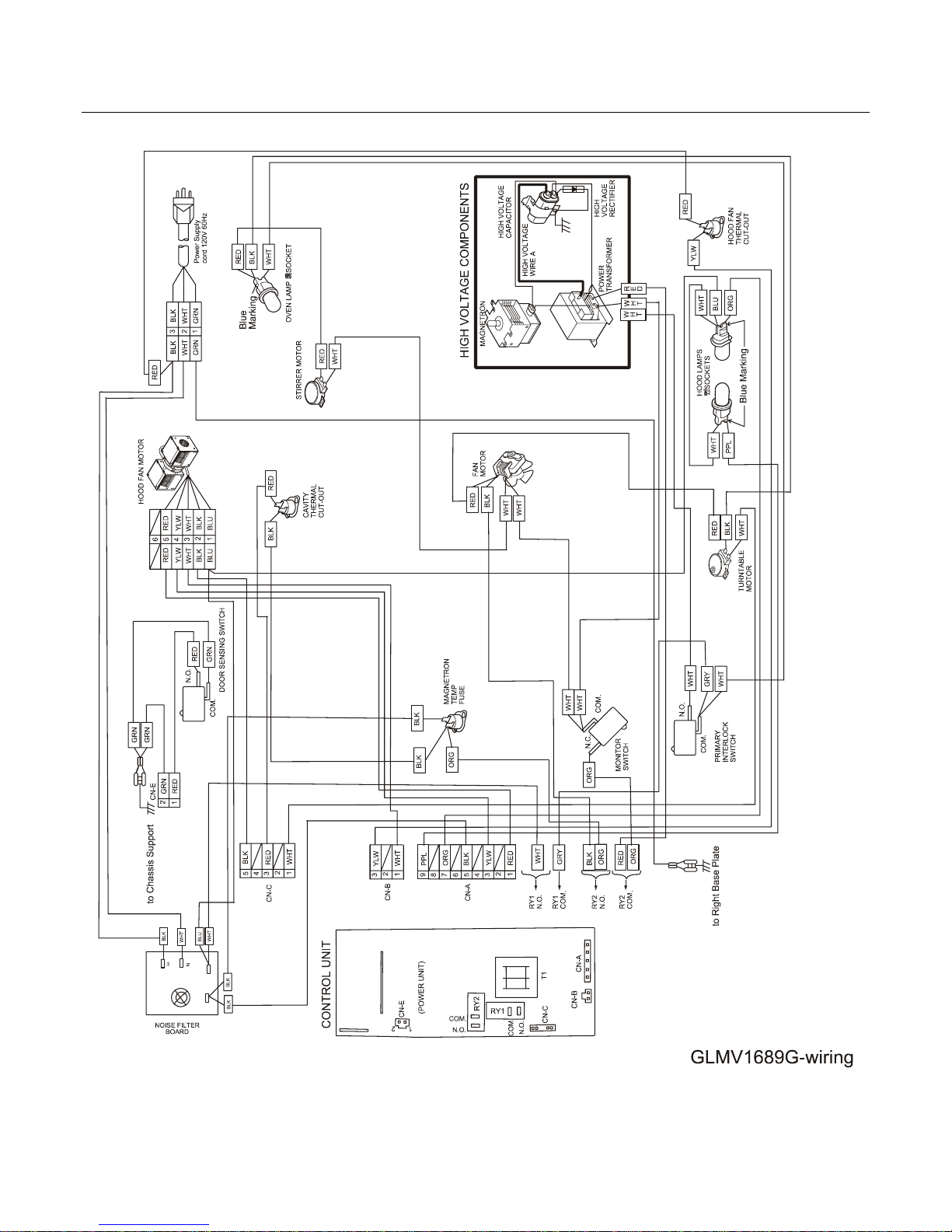

WIRING SCHEMATIC
