Electrolux EW27MO55HSA Manuel utilisateur

Product No. EW27MO55HSA EW30MO55HSA

Market North America North America

Color stainless steel stainless steel

Volts 120 120

Watts 900 900

Wiring Diagram 5995553707 5995553707

Owner's Guide TINSEB491MRR0 TINSEB491MRR0

Installation Instructions TINSEB504MRR0 TINSEB504MRR0

EW27MO55H_Cover.eps EW27MO55HSA-2 Cabinet.eps EW27MO55HSA Controls.eps

EW27MO55HSA Wiring.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995553707

09/10/16

(EN/SERVICE/KC)

099

BUILT-IN MICROWAVE

Model No.

EW27MO55H /

EW30MO55H

Publication No: 5995553707 EW27MO55H / EW30MO55H

10/09 2

OVEN,CABINET

162

EW27MO55HSA-2 Cabinet

EW27MO55H / EW30MO55H Publication No: 5995553707

# Functional Parts 3 10/09

* Non-Illustrated Parts

OVEN,CABINET

Model Index: AEW27MO55H (EW27MO55HSA)

BEW30MO55H (EW30MO55HSA)

POS. NO PART NO. DESCRIPTION

1 # 75304470537 A B Power Cord, electric

2 # 75304461109 A B Assembly, fuse & switch, monitor

3 # 75304461110 A B Filter, noise

4 # 75304440026 A B Switch, interlock, door sensor

5 # 75304461113 A B Thermal Cut-Out, magnetron

6 # 75304461114 A B Thermal Cut-Out, convection/oven, (2)

7 75304464198 A B Lamp, oven light

8 # 75304463785 A B Lampholder, socket

9 # 75304461119 A B Motor, fan

10 # 75304470538 A B Transformer, power

11 # 75304470539 A B Capacitor, high voltage

12 # 75304461122 A B Rectifier, high voltage

13 # 75304470540 A B Magnetron

14 # 75304461124 A B Motor, turntable

15 # 75304470541 A B Transformer, low voltage

16 # 75304461125 A B Sensor Assembly, AH

17 75304470542 A B Cabinet, outer casing

18 75304470734 A B Base, chassis, w/motor cover

19 75304461127 A B Foot, cabinet, (4)

20 75304470544 A B Panel, cabinet back

21 75304461129 A B Holder, capacitor

22 75304470545 A B Hinge, oven door, left

23 75304470546 A B Hinge, oven door, right

24 75304470547 A B Latch Hook, right side

25 75304470548 A B Latch Hook, left side

26 75304470549 A B Cam, door, left

27 75304470550 A B Cam, door, right

29 75304470552 A B Cover, front

30 75304470553 A B Duct, B

31 75304470554 A B Duct, C

40 75304470562 A B Support, turntable, with rollers

41 75304470563 A B Tray, turntable, glass

42 75304461155 A B Frame, light lens

43 75304470564 A B Bracket, mounting, transformer

44 75304461157 A B Cushion

45 75304461158 A B Duct Assembly, steam release

46 75304451450 A B Coupler, turntable/motor

47 75304461165 A B Cover, waveguide

48 75304461167 A B Lens, light

49 # 75304461173 A B Blade, fan

50 75304461174 A B Duct, cooling fan

51 75304461175 A B Support, chassis

52 75304461178 A B Angle, noise filter

53 75304461156 A B Cushion

54 75304461181 A B Guide, air, magnetron

55 75304461182 A B Sheet, thermal, protection

56 75304461183 A B Cover, thermal sheet, panel

57 75304461162 A B Duct, damper

58 75304470565 A B Trim, left side

Publication No: 5995553707 EW27MO55H / EW30MO55H

10/09 4

OVEN,CABINET

162

EW27MO55HSA-2 Cabinet

EW27MO55H / EW30MO55H Publication No: 5995553707

# Functional Parts 5 10/09

* Non-Illustrated Parts

OVEN,CABINET

Model Index: AEW27MO55H (EW27MO55HSA)

BEW30MO55H (EW30MO55HSA)

POS. NO PART NO. DESCRIPTION

59 75304470566 A B Trim, right side

60 75304470569 A B Duct, exhaust

61 75304470570 A B Angle, bottom

62 75304470571 A B Louver, inlet

63 75304470572 A B Angle, shipping

64 75304451459 A B Bracket, turntable mount

65 75304470574 A - Spring, door, right side

65 75304470573 - B Spring, door, right side

66 75304470575 A B Spring, door, left side

67 75304470576 A B Insulator, thermal barrier

79 75304440334 A B Label, Caution-monitor

80 75304465314 A B Label, NHW caution

82 75304461202 A B Label, User Caution

83 75304470585 A B Label, height caution

84 75304440333 A B Label, Caution-DHHS

86 75304470586 A B Label, menu

87 75303319636 A B Screw

88 75304451550 A B Screw, 4 mm x 8 mm

89 75304451555 A B Screw, 4 mm x 8 mm

90 75304451553 A B Screw, 4 mm x 12 mm

91 75304461203 A B Screw, 4mm x 10mm, (14)

92 75303319641 A B Screw

93 75304461209 A B Screw, 4mm x 25mm, (2)

94 75304470587 A B Screw

95 75304461215 A B Screw, 4mm x 8mm, (6)

96 75304470588 A B Screw

97 75304461221 A B Screw, 6mm x 14mm, (2)

98 75304470589 A B Screw

99 75304470590 A B Nut, special

100 75304450253 A B Screw, 4 mm x 8 mm

101 75304461210 A B Screw, 4mm x 6mm, (7)

102 75304470591 A B Lever, switch actuator, left

103 75304470592 A B Lever, switch actuator, right

104 75304461171 A B Guide, air, RH

105 75304451470 A B Packing, silicon

106 75304461166 A B Cushion, (4)

107 75304470593 A B Trim, decorative, left side

108 75304470594 A B Trim, decorative, right side

109 75304470735 A B Holder, power board

110# 75304470596 A B Power Board, printed circuit

162 75304451562 A B Bracket, oven retainer, anti-tip

163 75304451563 A B Anti-tip Kit, w/brackets, tools, screws

311 7318246000 A B Bracket, cabinet, anti-tip

311* 75304438005 A B Screw, 6 x 1, black

311* 75303211311 A B Screw, 8-18 x 0.500

312 7318246702 A B Tool, oven release, RH key

312 7318246703 A B Tool, oven release, LH key

Publication No: 5995553707 EW27MO55H / EW30MO55H

10/09 6

CONTROL PANEL,DOOR,MISC.

EW27MO55H / EW30MO55H Publication No: 5995553707

# Functional Parts 7 10/09

* Non-Illustrated Parts

CONTROL PANEL,DOOR,MISC.

Model Index: AEW27MO55H (EW27MO55HSA)

BEW30MO55H (EW30MO55HSA)

POS. NO PART NO. DESCRIPTION

32 # 75304470555 A - Touch Control, key pad

32 # 75304470556 - B Touch Control, key pad

33 # 75304470557 A B Display Board, CPU

34 75304470559 A - Bracket, control mount

34 75304470558 - B Bracket, control mount

35 75304470560 A B Spring, grounding

36 # 75304470561 A B Wiring Harness, power supply

37 75304456930 A B Screw, 3 mm x 10 mm

38 75304451517 A B Screw, 4 mm x 8 mm

68 75304470577 A - Frame, outer door, with handle

68 75304475189 - B Frame, outer door, with handle

69 75304470578 A B Panel, inner door

70 75304470579 A B Frame, inner door, choke cover

71 75304470580 A B Latch Head, right side

72 75304470581 A B Latch Head, left side

73 75304470582 A B Spring, latch head

74 75304451561 A B Screw, 4 mm x 8 mm

75 75304470583 A B Screw

76 # 75304470584 A B Wiring Harness, main

77 # 75304461198 A B Wire, high voltage, B

78 # 75304461199 A B Wire, ground, cooling fan

111 75304461261 A B Rack, bacon

Publication No: 5995553707 EW27MO55H / EW30MO55H

10/09 8

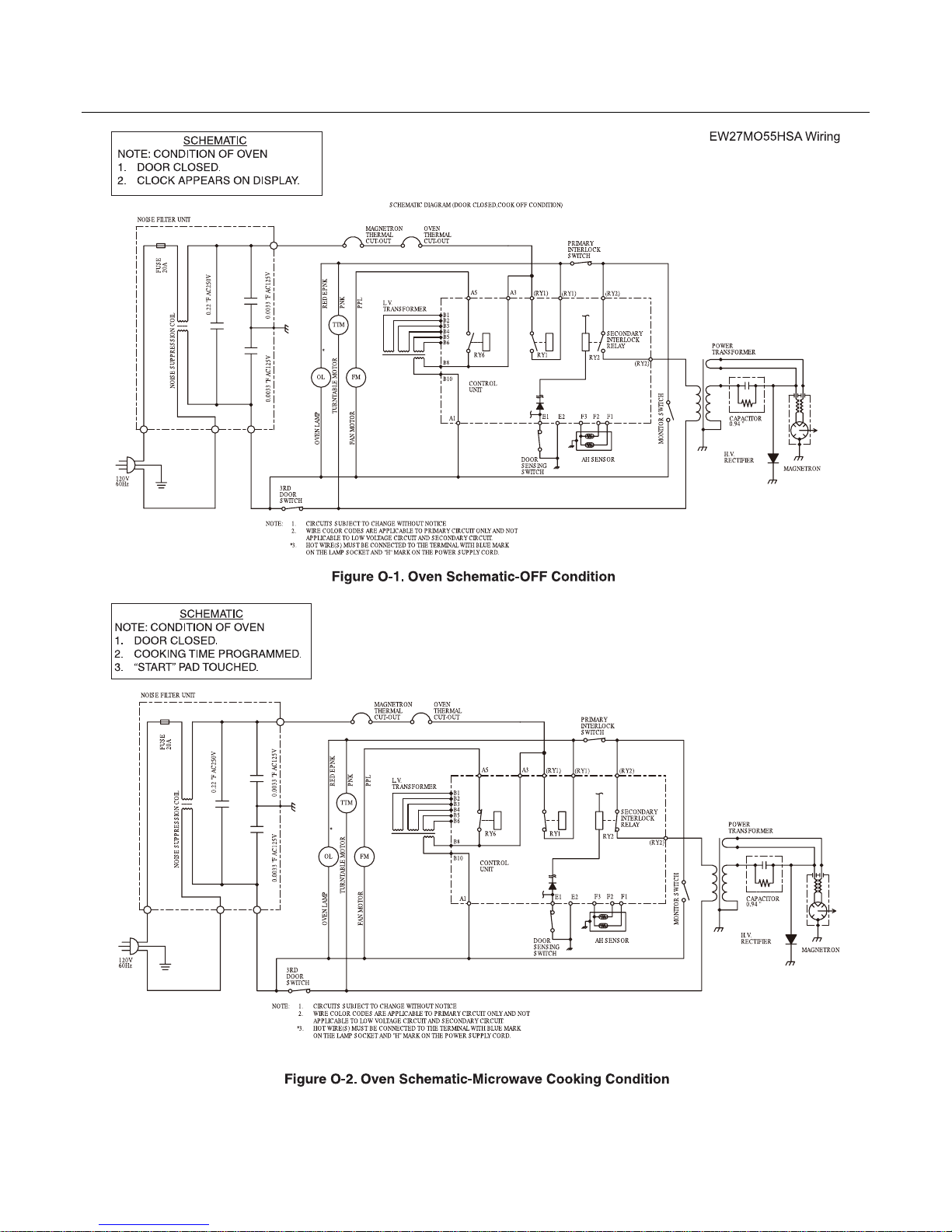

WIRING DIAGRAM
