Electrolux E30MO65GSSB Manuel utilisateur

Product No. E30MO65GSSB

Market North America

Color black/stainless

Volts 120

Watts 900

Wiring Diagram 5995549135

Owner's Guide TINSEB471MRR0

Installation Instructions TINSEB472MRR0

E30M065GSS cover.eps E30MO65GSSB-cabinet.eps E30M065GSS controls.eps

E30MO65GSSB-Wiring-1.eps E30MO65GSSB-Wiring-2.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995549135

09/08/14

(EN/SERVICE/KC)

099

BUILT-IN MICROWAVE

Model No.

E30MO65GS

Publication No: 5995549135 E30MO65GSSB

08/09 2

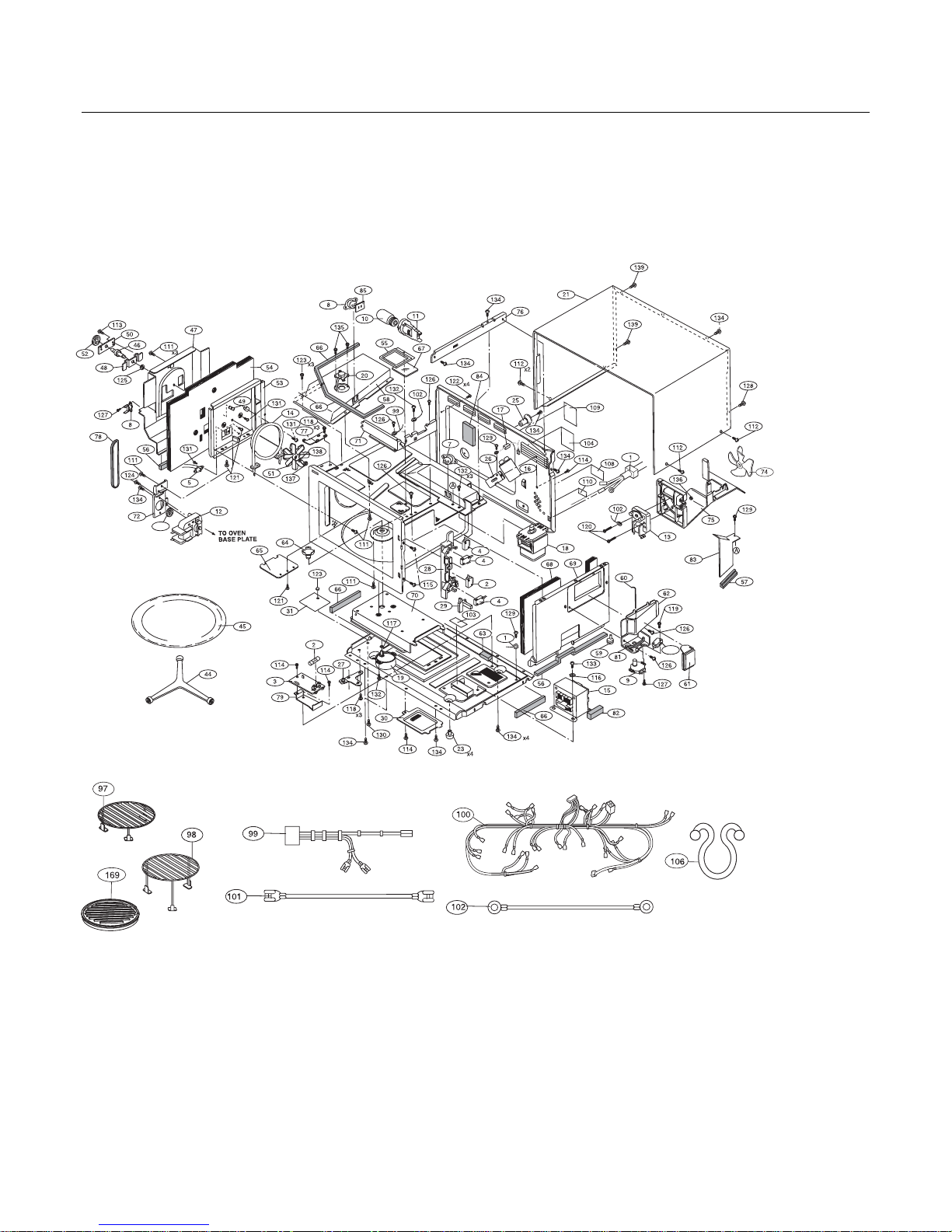

OVEN, CABINET

E30MO65GSSB Cabinet

E30MO65GSSB Publication No: 5995549135

# Functional Parts 3 08/09

* Non-Illustrated Parts

OVEN, CABINET

POS. NO PART NO. DESCRIPTION

1 # 5304461108 Power Cord, electric

2 # 5304461109 Assembly, fuse & switch, monitor

3 # 5304461110 Filter, noise

4 # 5304461111 Switch, micro

5 # 5304461112 Thermistor

7 # 5304461113 Thermal Cut-Out, magnetron

8 # 5304461114 Thermal Cut-Out, convection/oven, (2)

9 # 5304461115 Motor, damper

10 # 5304461116 Lamp, oven light

11 # 5304461117 Socket, oven lamp

12 # 5304461118 Motor, convection fan

13 # 5304461119 Motor, fan

14 # 5304474695 Element, heating, convection

15 # 5304461121 Transformer, power

16 # 5304470539 Capacitor, high voltage

17 # 5304474696 Rectifier, high voltage

18 # 5304470540 Magnetron

19 # 5304461124 Motor, turntable

20 # 5304461125 Sensor Assembly, AH

21 5304461126 Cabinet, outer casing, black

23 5304461127 Foot, cabinet, (4)

25 5304461128 Holder, power cord

26 5304461129 Holder, capacitor

27 5304461130 Hinge, door, lower

28 5304461131 Hook, latch

29 5304461132 Lever, switch

30 5304461133 Cover, turntable motor

31 5304461134 Barrier, CSA

44 5304461144 Support, turntable

45 5304461145 Tray, turntable

46 5304461146 Bearing Assembly

47 5304461147 Plate, thermal protect, LH

48 5304461148 Plate, bearing mtg

49 5304461149 Holder, element

50 5304461150 Plate, bearing holder

51 5304461151 Fan Blade, convection

52 # 5304471508 Pulley, convection fan

53 5304461153 Duct Assembly, heater

54 5304461154 Sheet, thermal protect, LH

55 5304461155 Frame, light lens

56 5304461156 Cushion

57 5304461157 Cushion

58 5304461158 Duct Assembly, steam release

59 5304461159 Cam, damper

60 5304461160 Shaft, damper

61 5304461161 Door Assembly, damper

62 5304461162 Duct, damper

63 5304461163 Cushion

64 5304469899 Coupler, turntable/motor

65 5304461165 Cover, waveguide

66 5304461166 Cushion, (4)

Publication No: 5995549135 E30MO65GSSB

08/09 4

OVEN, CABINET

E30MO65GSSB Cabinet

E30MO65GSSB Publication No: 5995549135

# Functional Parts 5 08/09

* Non-Illustrated Parts

OVEN, CABINET

POS. NO PART NO. DESCRIPTION

67 5304461167 Lens, light

68 5304461168 Sheet, thermal protect, RH

69 5304461169 Plate, thermal protect, RH

70 5304461170 Guide, air, bottom

71 5304461171 Guide, air, RH

72 5304461172 Plate, motor mtg, convection

73 # 5304461152 Pulley, motor, convection fan

74 # 5304461173 Blade, fan

75 5304461174 Duct, cooling fan

76 5304461175 Support, chassis

77 5304461176 Hinge, door, upper

78 # 5304461177 Belt, convection fan

79 5304461178 Angle, noise filter

81 5304461179 Cushion, damper duct

82 5304461180 Cushion

83 5304461181 Guide, air, magnetron

84 5304461182 Sheet, thermal, protection

85 5304461183 Cover, thermal sheet, panel

97 5304461194 Rack Assembly, broiling trivit, low

98 5304461195 Rack Assembly, baking, high

99 # 5304461196 Wiring Harness, thermistor

100# 5304461197 Harness, wiring, main

101# 5304461198 Wire, high voltage, B

102# 5304461199 Wire, ground, cooling fan

103 5304461200 Label, monitor caution

104 5304451533 Label, NHW caution

106 5304451529 Clip, wire harness, plastic, LL

108 5304451535 Label, height caution

109 5304440333 Label, Caution-DHHS

110 5304453941 Label, caution, UL screw

111 5304461203 Screw, 4mm x 10mm, (14)

112 5304440340 Screw, 4mm x 12mm

113 5304461204 Screw, 4mm x 8mm, (2)

114 5304440872 Screw, 4mm x 8mm

115 5303319641 Screw

116 5304461205 Washer, 6mm x .7mm

117 5304461206 Washer

118 5304461207 Screw, special, (6)

119 5304461208 Screw, 3mm x 14mm

120 5304461209 Screw, 4mm x 25mm, (2)

121 5304461210 Screw, 4mm x 6mm, (7)

122 5304461211 Screw, 4mm x 8mm, (7)

123 5304461212 Nut, special

124 5304461213 Screw, 4mm x 6mm, (2)

125 5304461214 Washer

126 5304461215 Screw, 4mm x 8mm, (6)

127 5304461216 Screw, 3mm x 6mm

128 5303319639 Screw, wrapper, back

129 5304461217 Screw, 4mm x 8mm, (3)

130 5304461218 Screw, 4mm x 6mm

131 5304461219 Screw, 3mm x 6mm, (4)

132 5304461220 Screw, 4mm x 8mm, (6)

133 5304461221 Screw, 6mm x 14mm, (2)

134 5303318767 Screw, 4mm x 12mm

135 5304461222 Screw, 3mm x 8mm, (2)

136 5304461223 Nut, 4mm x 3.2mm, (2)

137 5304451547 Nut, element, 4 mm x 3.2 mm, (4)

138 5304461224 Washer, 4mm x 1mm

139 5304440873 Screw, Torx, T20H/GTXH20-100

169 5304461261 Rack, bacon

* 5304461201 Owners Manual

Publication No: 5995549135 E30MO65GSSB

08/09 6

CONTROL PANEL, DOOR, MISC.

E30MO65GSSB Publication No: 5995549135

# Functional Parts 7 08/09

* Non-Illustrated Parts

CONTROL PANEL, DOOR, MISC.

POS. NO PART NO. DESCRIPTION

32 # 5304461135 Control Board

33 # 5304461136 Control Panel Assy, black

34 # 5304461137 Touch Control, key pad, black

35 5304461138 Button, door

36 5304440831 Spring, door button

37 5304461139 Plate, control panel, back

38 5304461140 Lever, door button

39 5304461141 Shaft, door button

40 5303319584 Screw, control panel, 3 mm x 10 mm

41 5304461142 Screw, back plate mtg, (5)

42 5304461143 Screw, cntl panel mtg, (2)

86 5304461184 Panel, outer door, black, frame

87 5304461185 Panel, inner door, black

88 5304461186 Cover, choke

89 5304461187 Angle, latch

90 5304461188 Head, latch

91 5304461189 Spring, latch head

92 5304461190 Plate, thermal, upper

93 5304461191 Plate, thermal, RH

94 5304451561 Screw, 4 mm x 8 mm

95 5304461192 Screw, 3mm x 8mm, (12)

96 5304461193 Cushion

107 5304461202 Label, User Caution

114 5304440872 Screw, 4mm x 8mm

134 5303318767 Screw, 4mm x 12mm

Publication No: 5995549135 E30MO65GSSB

08/09 8

WIRING SCHEMATIC

Figure O-2. Oven Schematic-Microwave Cooking Condition

SCHEMA TIC

NOTE: CONDITION OFOVEN

1. DOORCLOSED .

2. COOKING TIMEPROGRAMMED .

3. “START” PAD TOUCHED.

SCHEMATIC

NOTE: CONDITION OFOVEN

1. DOORCLOSED.

2. CLOCKAPPEARSON DISPLAY.

Figure O-1. Oven Schematic-OFFCondition

CONV .

THERMAL

CUT-OUT

NOISEFILTER

MONITORSWITCH

PRIMARYINTERLOCKSWITCH

OVEN LAMP

FAN MOTO R

E- 6

CONTROL UNIT

DAMPER

SWITCH

THER-

MISTOR

DOOR

SENSING

SWITCH AHSENSOR

DAMPERMOTOR

CONVECTION MOTOR

TURNTABLEMOTOR

0.0033µ/AC125V

0.022µ/AC250V

0.0033µ/AC125V

NOI SE SUPPRESSION COI L

HEATIMG ELEMEN T

MAGNETRON

POWER

TRANSFORMER

H.V. RECTIFIER

CAPACITO R

0.94µ

RY 4

RY 5

RY 6

RY 1

THIRD DOOR

SWITCH

MAGNETRON

THERMAL

CUT-OUT

OVEN

THERMAL

CUT-OUT

117V

60Hz

COM.

(RY1)

E- 5E- 4E-3E- 2E- 1 F-3 F-2 F-1

RY 3

SECONDARY

INTERLOCK

RERAY

N.O.

(RY1 )

COM.

(RY3)

COM.

(RY2)

N.O.

(RY2)

N.O.

(RY3)

A-9

A-7

FUSE

RY2

TT M

CONV .

THERMA L

CUT-OUT

NOISEFILTER

MONITORSWITCH

PRIMARYINTERLOCKSWITCH

OVEN LAMP

FAN MOTO R

E- 6

CONTROL UNIT

DAMPER

SWITCH

THER -

MISTOR

DOOR

SENSIN G

SWITC H AHSENSOR

DAMPERMOTOR

CONVECTION MOTOR

TURNTABLEMOTOR

0.0033µ/AC125V0.0033µ/AC125V

NOISESUPPRESSIONCOIL

HEATIMG ELEMEN T

MAGNETRON

POWER

TRANSFORMER

H.V. RECTIFIER

CAPACITOR

0.94µ

RY4

RY5

RY 6

RY1

THIRD DOOR

SWITCH

MAGNETRON

THERMAL

CUT-OUT

OVEN

THERMAL

CUT-OUT

117V

60Hz

COM.

(RY1 )

E- 5E- 4E- 3E- 2E- 1 F- 3 F-2 F- 1

RY 3

SECONDARY

INTERLOC K

RERAY

N.O.

(RY1 )

COM.

(RY3 )

COM.

(RY2)

N.O.

(RY2)

N.O.

(RY3)

A-9

A-7

FUSE

RY 2

TTM

0.022µ/AC250V

E30MO65GSSB-WIRING-1

E30MO65GSSB Publication No: 5995549135

# Functional Parts 9 08/09

* Non-Illustrated Parts

WIRING SCHEMATIC

SCHEMATIC

NOTE: CONDITION OFOVEN

1. DOORCLOSED.

2. CONVECTIONPAD TOUCHED.

3. DESIRED

TEMP. TOUCHED.

4. COOKING TIME

PROGRAMMED.

5. “START” PAD TOUCHED.

SCHEMATIC

NOTE: CONDITIONOFOVEN.

1. DOORCLOSED .

2. MIXCOOKINGPAD TOUCHED.

3. COOKINGTIMEPROGRAMED.

4. “START” PAD TOUCHED .

5. RY2 AND RY3 WILLALTERNATELYCLOSE

DURING COOK CYCLE.

Figure O-4. Oven Schematic-Convection Cooking Condition

Figure O-3. Oven Schematic-Automatic Mix Cooking Condition

CONV .

THERMAL

CUT-OUT

NOISEFILTER

MONITORSWITCH

PRIMARYINTERLOCKSWITCH

OVEN LAMP

FAN MOTOR

E- 6

CONTROL UNIT

DAMPER

SWITCH

THER -

MISTOR

DOOR

SENSING

SWITC H AHSENSOR

DAMPERMOTOR

CONVECTION MOTOR

TURNTABLEMOTOR

0.0033µ/AC125V0.0033µ/AC125V

NOI SE SUPPRESSION COI L

HEATIMG ELEMENT

MAGNETRON

POWER

TRANSFORMER

H.V.RECTIFIER

CAPACITOR

0.94µ

RY4

RY 5

RY 6

RY 1

THIRD DOOR

SWITCH

MAGNETRON

THERMAL

CUT-OUT

OVEN

THERMAL

CUT-OUT

117V

60Hz

COM.

(RY1 )

E- 5E- 4E- 3E- 2E- 1 F- 3 F-2 F- 1

RY 3

SECONDARY

INTERLOCK

RERAY

N.O.

(RY1)

COM.

(RY3 )

COM .

(RY2 )

N.O.

(RY2 )

N.O.

(RY3 )

A-9

A-7

FUSE

RY 2

TTM

0.022µ/AC250V

CONV.

THERMAL

CUT-OUT

NOI SE FILTER

MONITORSWITCH

PRIMARYINTERLOCKSWITCH

OVEN LAMP

FAN MOTOR

E-6

CONTROL UNIT

DAMPER

SWITCH

THER-

MISTOR

DOOR

SENSING

SWITCH AH SENSOR

DAMPERMOTOR

CONVECTION MOTOR

TURNTABLEMOTOR

0.0033µ/AC125V0.0033µ/AC125V

NOISESUPPRESSIONCOIL

HEATIMG ELEMENT

MAGNETRON

POWER

TRANSFORMER

H.V.RECTIFIER

CAPACITOR

0.94µ

RY 4

RY 5

RY6

RY 1

THIRD DOOR

SWITCH

MAGNETRON

THERMAL

CUT-OUT

OVEN

THERMAL

CUT-OUT

117V

60Hz

COM.

(RY1)

E-5E-4E-3E- 2E-1 F- 3 F-2 F-1

RY 3

SECONDARY

INTERLOCK

RERAY

N.O.

(RY1 )

COM.

(RY3)

COM.

(RY2)

N.O.

(RY2)

N.O.

(RY3)

A-9

A-7

FUSE

RY 2

TTM

0.022µ/AC250V

E30MO65GSSB-WIRING-2

Autres manuels pour E30MO65GSSB

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Electrolux Four à micro-ondes

Electrolux

Electrolux EMS17216 Manuel utilisateur

Electrolux

Electrolux EMS20402 Manuel utilisateur

Electrolux

Electrolux EVEM677SC Manuel utilisateur

Electrolux

Electrolux EMC3065 Manuel utilisateur

Electrolux

Electrolux EI30BM55HBC Manuel utilisateur

Electrolux

Electrolux EMG20K22B Mode d’emploi

Electrolux

Electrolux EMM20K18GW Mode d’emploi

Electrolux

Electrolux EI30SM55JWA Manuel utilisateur

Electrolux

Electrolux EVY7600AOX Manuel utilisateur

Electrolux

Electrolux OCB450NX Manuel utilisateur

Electrolux

Electrolux EMM20D22B Mode d’emploi

Electrolux

Electrolux Over the Range Microwave Oven Manuel utilisateur

Electrolux

Electrolux EW30MO55HS - 30" Drop Down Door Microwave... Instructions d'installation

Electrolux

Electrolux GLMB209DBB Manuel utilisateur

Electrolux

Electrolux EMS2348X Manuel utilisateur

Electrolux

Electrolux EI30BM55HB - 30" Microwave Oven Manuel d'utilisation

Electrolux

Electrolux FRIGIDAIRE PMOS198CAF Manuel du propriétaire

Electrolux

Electrolux EW30MC65JS Manuel de service

Electrolux

Electrolux EMM23K22B Mode d’emploi

Electrolux

Electrolux MQ818GXE Manuel utilisateur

Electrolux

Electrolux EI30SM55JW Guide de démarrage rapide

Electrolux

Electrolux EMS21400 Manuel utilisateur

Electrolux

Electrolux Frigidaire FMV158FM Manuel utilisateur

Electrolux

Electrolux FMV156DB Manuel utilisateur

Manuels Four à micro-ondes populaires d'autres marques

Daewoo

Daewoo KOG-574R0S Manuel utilisateur

LG MH7040SS Manuel utilisateur

Sharp

Sharp R-895(AL)M Manuel utilisateur

Dometic

Dometic DOTRM13W Manuel utilisateur

Sanyo

Sanyo EM-X680 Manuel utilisateur

Sharp

Sharp R-393M Manuel utilisateur

KitchenAid

KitchenAid KMCX4510 Instructions d'installation

Smeg

Smeg S45MCX1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHM2044 Manuel utilisateur

Sunbeam

Sunbeam SMW759 Manuel utilisateur

Gallet

Gallet FMOE230S Manuel utilisateur

Bosch

Bosch CEG732X.1B Manuel utilisateur

Dometic

Dometic Roadmate 230 Manuel utilisateur

Samsung

Samsung SJ0396W Manuel utilisateur

Sanyo

Sanyo EM-P494WS Manuel utilisateur

Sharp

Sharp R-240 Manuel utilisateur

Daewoo

Daewoo KOC-984T2S13 Manuel utilisateur

Impecca

Impecca CM07M2 Manuel utilisateur
