Electrolux E30MO65GSSA Manuel utilisateur

iNSTALLATiONANDSERVICEMUSTBEPERFORMEDBYAQUALiFiEDiNSTALLER.

iMPORTANT:SAVEFORLOCALELECTRICALiNSPECTOR'SUSE.

READANDSAVETHESEiNSTRUCTiONSFORFUTUREREFERENCE.

The electrical requirementsfer this evenare 115-120 voltsAC,15 amps or larger.

iMPORTANT-PLEASEREADANDFOLLOW

Before beginning, please read these instructions completely and carefully.

Be sure to DISCONNECT THE PLUG of the microwave oven from the electrical outlet before installing the built-in trim kit.

Remove the turntable from the oven cavity.

Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.

Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.

Please observe all local and national codes and ordinances.

The installer should leave these instructions with the consumer who should retain for local inspector's use and for

future reference.

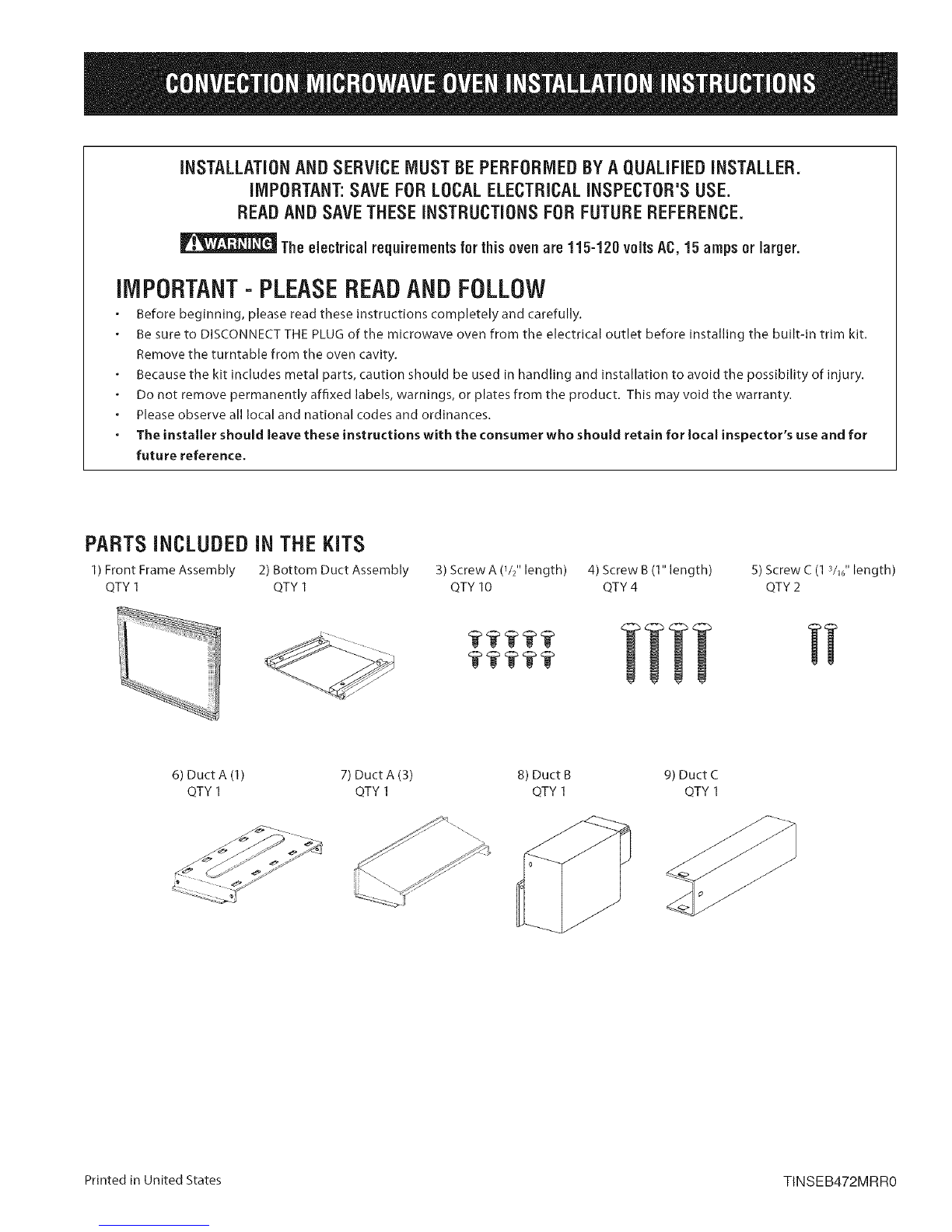

PARTS INCLUDED IN THE KITS

1) Front Frame Assembly 2) Bottom Duct Assembly

QTY 1 QTY 1 3) Screw A (V2" length) 4) Screw B(1" length) 5) Screw C (1 V_6"length)

QTY lO QTY 4 QTY 2

6) Duct A (1) 7) Duct A (3) 8) Duct B 9) Duct C

QTY 1 QTY 1 QTY 1 QTY 1

Printed in United States TINSEB472MRRO

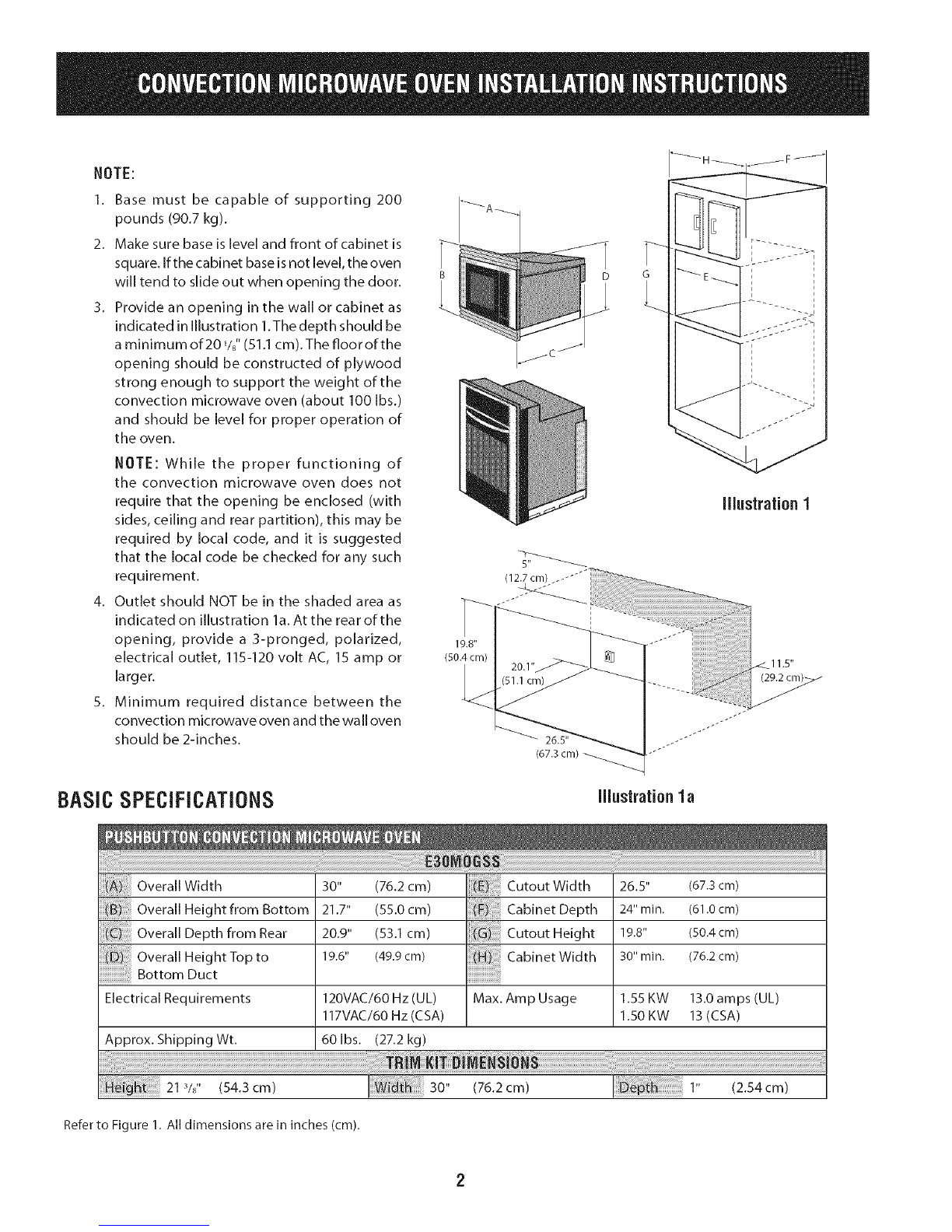

NOTE:

1. Base must be capable of supporting 200

pounds (90.7 kg).

2. Make sure base is level and front of cabinet is

square. Ifthe cabinet base isnot level, the oven

will tend to slide out when opening the door.

3. Provide an opening in the wall or cabinet as

indicated in Illustration 1.The depth should be

a minimum of 20 VB"(51.1 cm).The floorofthe

opening should be constructed of plywood

strong enough to support the weight of the

convection microwave oven (about 100 Ibs.)

and should be level for proper operation of

the oven.

NOTE: While the proper functioning of

the convection microwave oven does not

require that the opening be enclosed (with

sides, ceiling and rear partition), this may be

required by local code, and it is suggested

that the local code be checked for any such

requirement.

4. Outlet should NOT be in the shaded area as

indicated on illustration la. At the rear of the

opening, provide a 3-pronged, polarized,

electrical outlet, 115-120 volt AC, 15 amp or

larger.

5. Minimum required distance between the

convection microwave oven and the wa IIoven

should be 2-inches.

19.8"

(50.4 cm)

Illustration 1

BASIC SPECIFICATIONS Illustration 1a

Overall Width

Overall Height from Bottom

Overall Depth from Rear

Overall Height Top to

BottomDuct

Electdca[ Requirements

30" (76.2 cm)

21.7" (55.0 cm)

20.9" (53.1 cm)

19.6" (49.9cm)

CutoutWidth

CabinetDepth

CutoutHe ght

CabinetWidth

Max. Amp Usage

26.5" (67.3 cm)

24" min. (61.0 cm)

19.8" (50.4 cm)

30" min. (76.2 cm)

120VAC/60 Hz (UL) 1.55 KW 13.0amps (UL)

117VAC/60 Hz (CSA) 1.50 KW 13(CSA)

Approx. Shipping Wt. 60 Ibs. (27.2 kg)

21%" (54.3 cm) ': 30" (76.2 cm)

Referto Figure 1. All dimensions are in inches (cm).

J 1" (2.54cm)

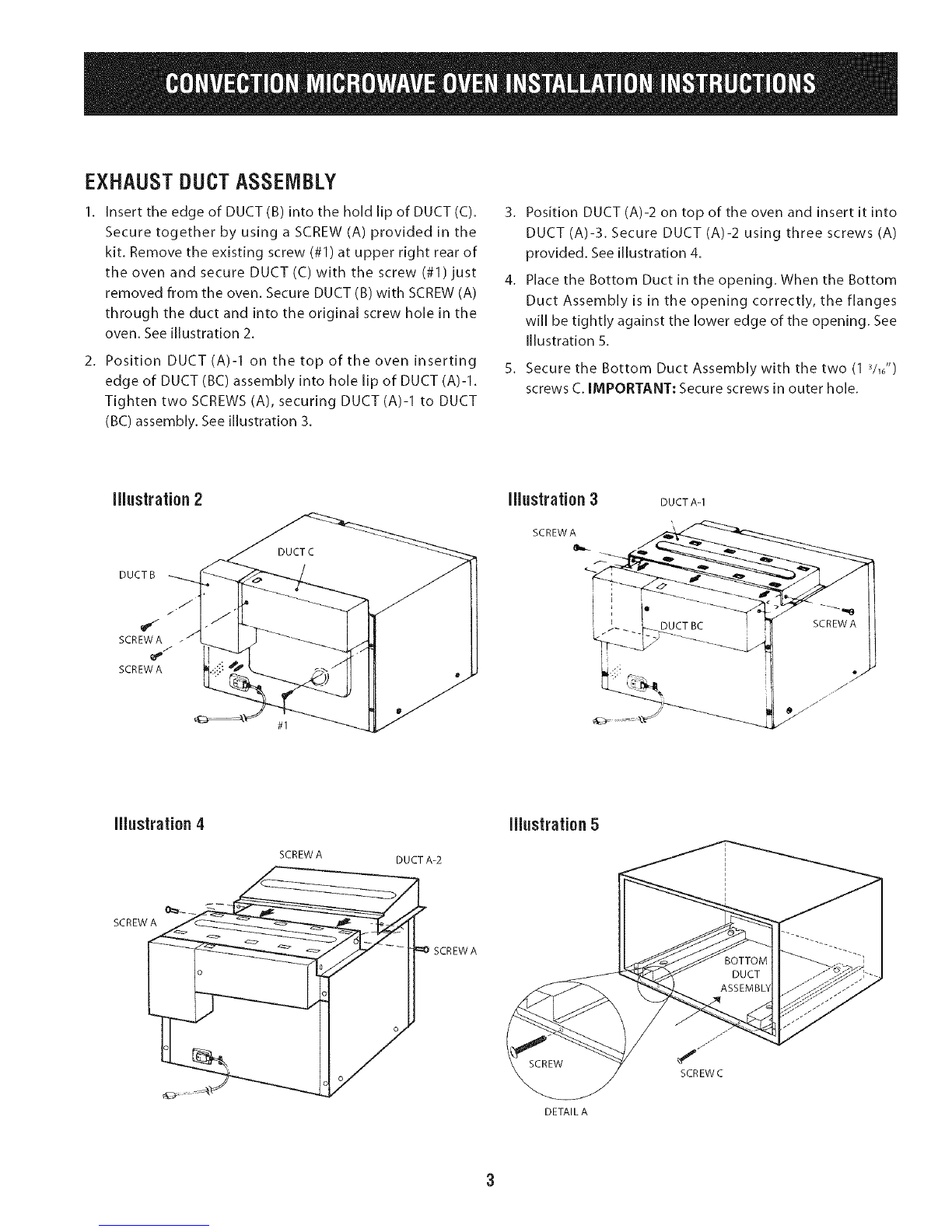

EXHAUSTDUCTASSEMBLY

1. Insert the edge of DUCT(B) into the hold lip of DUCT(C).

Secure together by using a SCREW (A) provided in the

kit. Remove the existing screw (#1) at upper right rear of

the oven and secure DUCT (C) with the screw (#1) just

removed from the oven. Secure DUCT (B) with SCREW (A)

through the duct and into the original screw hole in the

oven. See illustration 2.

2. Position DUCT (A)-I on the top of the oven inserting

edge of DUCT (BC) assembly into hole lip of DUCT (A)-I.

Tighten two SCREWS (A), securing DUCT(A)-1 to DUCT

(BC) assembly. See illustration 3.

3. Position DUCT (A)-2 on top of the oven and insert it into

DUCT (A)-3. Secure DUCT (A)-2 using three screws (A)

provided. See illustration 4.

4. Place the Bottom Duct in the opening. When the Bottom

Duct Assembly is in the opening correctly, the flanges

will be tightly against the lower edge of the opening. See

Illustration 5.

5. Secure the Bottom Duct Assembly with the two (1 VJ)

screws C. IMPORTANT: Secure screws in outer hole.

Illustration 2

DUCTB

SCREWA

Illustration 3

SCREWA

DUCTA-1

oDUCT BC

Illustration 4

SCREW A DUCT A-2

SCREW -- _--

==OSCREWA

Illustration 5

///"

SCREWC

DETAIL A

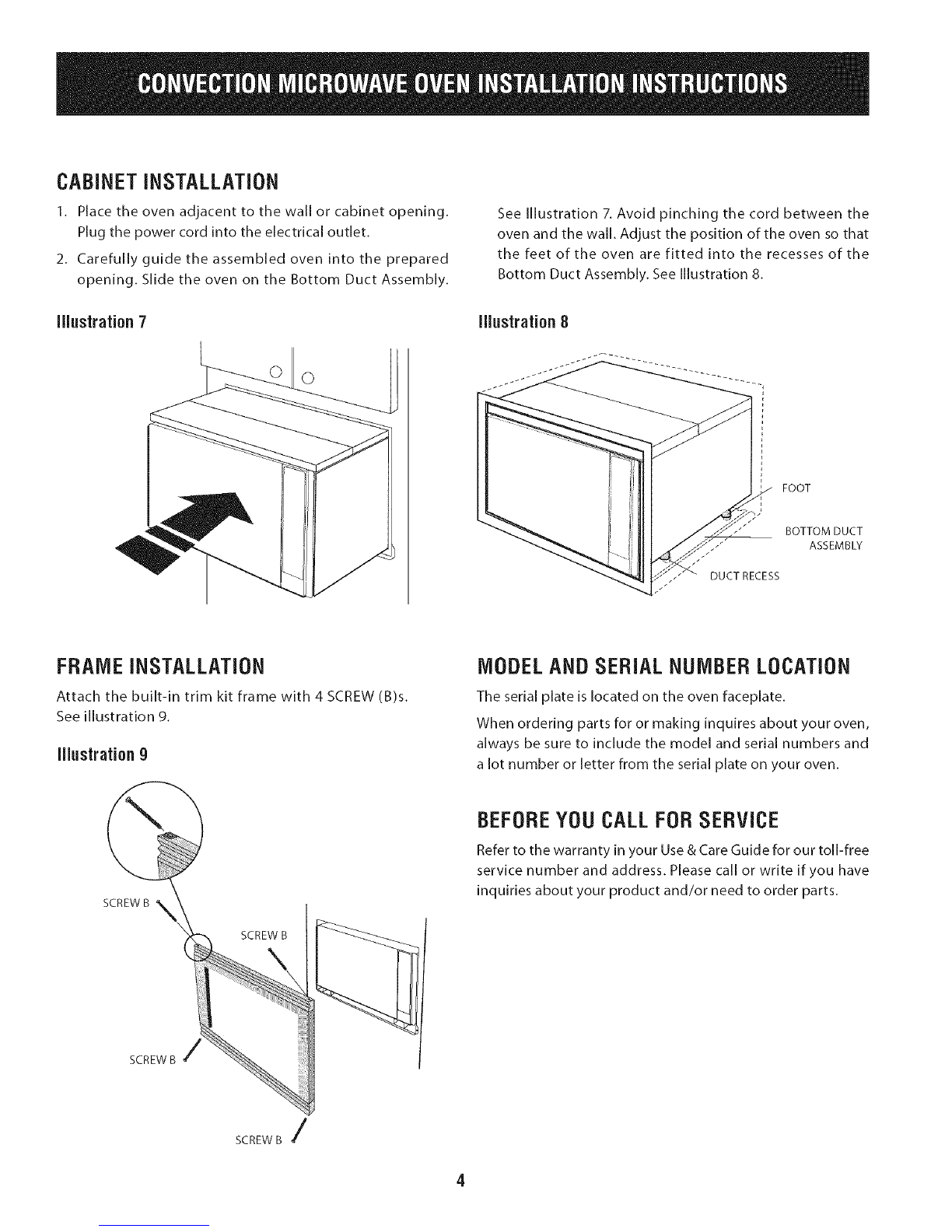

CABINET iNSTALLATiON

1. Place the oven adjacent to the wall or cabinet opening.

Plug the power cord into the electrical outlet.

2. Carefully guide the assembled oven into the prepared

opening. Slide the oven on the Bottom Duct Assembly.

Illustration 7

See Illustration 7. Avoid pinching the cord between the

oven and the wall. Adjust the position of the oven so that

the feet of the oven are fitted into the recesses of the

Bottom Duct Assembly. See Illustration 8.

Illustration 8

FOOT

/BOTTOM DUCT

ASSEMBLY

DUCT RECESS

FRAME INSTALLATION

Attach the built-in trim kit frame with 4 SCREW (B)s.

See illustration 9.

Illustration 9

MODELAND SERIAL NUMBER LOCATION

The serial plate islocated on the oven faceplate.

When ordering parts for or making inquires about your oven,

always be sure to include the model and serial numbers and

a lot number or letter from the serial plate on your oven.

SCREW B

SCREW B /

SCREW B

BEFOREYOU CALL FOR SERVICE

Refer to the warranty in your Use & Care Guide for our toll-free

service number and address. Please call or write if you have

inquiries about your product and/or need to order parts.

SCREW B /
