ILLUSTRATED PARTS BREAKDOWN

ELECTROLUX

6.0 HORSEPOWER

21" MULTI-CUT LAWN MOWER

MODEL NO. 6053SD (PM6053HW3A)

964 77 05-00

ROTARY LAWN MOWER - - MODEL NUMBER 6053SD (PM6053HW3A) PRODUCT NUMBER 964 77 05-00

KEY PART

NO. NO. DESCRIPTION

1 532 17 80-67 Upper Handle

2 532 15 36-05 Lower Handle

3 532 17 02-87 Control Bar

532 13 31-07

Engine Zone Control Cable

5 532 13 19-59 Handle Bolt

6 532 17 01-46 Handle Knob

7 532 05 17-93 HairpinCotter

8 532 06 64-26 Wire Tie

9 532 18 04-79 Rear Door Kit (Incl. Key #16 & 17)

10 532 12 84-15 Pop Rivet

11 532 18 25-38 Support Bracket LH

12 532 18 25-39 Support Bracket RH

13 817 06 04-10 Screw 14-20 x 5/8

14 532 12 25-43 Handle Bracket Assembly (Left)

15 532 18 25-44 Handle Bracket Assembly (Right)

16 532 18 00-71 Spring LH

17 532 18 00-72 SpringRH

18 532 13 20-04 Keps Locknut 1/4-20

19 532 17 95-85 Rope Guide

20 532 17 92-05 Foot Guard, C.E.

21 532 05 45-83 Screw, Tapping 1/4-20 x 1/2

22 532 08 45-96 Engine Pulley

23 532 08 76-77 Hi-Pro Key #505

24- - - Engine,Briggs & Stratton Model No. 121602

(order parts from engine manufacturer)

25 532 15 04-06 Hex Head Thread Rolling Srew 3/8-16 x 1-1/8

26 532 08 39-23 Hex Flange Nut

27 532 18 17-85 Wheel

28 532 16 08-28 Shoulder Bolt 5/16-18 x .33

29 532 05 71-43 Wave Washer

KEY PART

NO. NO. DESCRIPTION

30 532 18 25-41 Axle Arm Assembly RR

31 532 17 54-78 Selector Knob

32 532 18 25-37 Selector Spring

33 532 06 31-24 Nut 5/16-18

34 532 18 25-42 Axle Arm Assembly LR

35 532 18 06-24 Hubcap

36 532 16 59-12 Bolt

37 532 15 00-78 Thread Cutting Screw w/Sems 5/16-18 x 3/4

38 819 11 22-06 Washer

532 11 11-90

Clamp, Cable

532 08 38-16

Screw

43 532 17 50-83 Bottom Belt Cover

44 532 18 17-97 Lawn Mower Housing (Incl. Key #10, 11, 12& 45)

45 532 18 21-66 Danger Deal

46 532 18 00-69 Blade Adapter

47 532 17 50-52 Blade 21"

48 532 85 10-74 Hardened Washer

49 532 85 02-63 Helical Washer 3/8-24 x 1-3/8 Gr. 8

50 532 85 10-84 Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8

83 532 17 50-66 Mulch Door

84 532 17 57-35 Hinge Bracket Assembly

85 532 17 52-85 Spring

86 532 17 56-50 Rod, Hinge

87 532 06 36-01 Nut

88 532 17 50-71 ClippingDeflector

89532 18 21-60 Throttle Control

90 532 14 49-29 Screw

- -532 16 10-57 Decal, Self-Propelled, Internal (not shown)

- -532 18 18-50 Operator’s Manual, Euro

- -532 18 18-52 Operator’s Manual, Scan

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

ROTARY LAWN MOWER - - MODEL NUMBER 6053SD (PM6053HW3A) PRODUCT NUMBER 964 77 05-00

KEY PART

NO. NO. DESCRIPTION

1 532 17 43-18 Control Cable Assembly

3 532 75 11-52 Locknut #10-24

4 532 15 87-55 Hex Washer Head Screw 1/4-20 x 2.12

5 532 17 54-36 V-Belt

6 532 15 04-95 SpringRetainer

8 532 16 43-78 Hubcap

9 532 14 52-12 Locknut

11 532 18 07-67 Wheel & Tire Assembly

12 812 00 00-58 E-Ring

13 532 13 70-54 Pinion

14 532 18 05-04 Dust Cover

16 532 06 77-25 Washer 1/2 x 1-1/2 x .134

18 532 17 01-43 Selector Knob

26 532 17 52-62 Pan Head Tapping Screw #10-24 x 2-3/4

KEY PART

NO. NO. DESCRIPTION

28 532 18 03-29 Drive Cover

31 532 13 20-10 Hex Flange Nut

32 532 13 70-52 Drive Pulley

35 532 15 15-21 Wheel Adjuster Assembly (Left)

36 532 17 52-58 Gear Case Assembly

37 532 13 70-90 Spring

38 532 06 36-01 Locknut 1/4-20

40 532 07 51-92 Spring

41 532 1515-20 Wheel Adjuster Assembly (Right)

54 532 18 17-94 Grassbag Assembly

55 532 17 57-39 Driveshaft Cover

57 532 17 50-58 Frame

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

ROTARY LAWN MOWER - - MODEL NUMBER 6053SD (PM6053HW3A)

PRODUCT NUMBER 964 77 05-00

GEARCASE ASSEMBLY - PART NUMBER 532 17 52-58

KEY PART

NO. NO. DESCRIPTION

1 817 49 04-16 Tapping Screw 1/4-20 x 1-1/4

2 532 18 25-40 Engagement Bracket

3 532 13 70-53 Shifter

4 532 05 70-72 Seal

6 532 04 83-73 Gear Case Halves Kit

(Includes Key Numbers 4 and 7)

7 532 07 78-81 Bearing

8 532 13 70-51 Worm Shaft

9 532 17 52-57 Drive Shaft

10 532 05 70-79 Hardened Washer

11 532 13 14-84 Clutch Yoke

12 532 70 03-43 Bushing

13 532 08 64-47 Plug

14 532 13 70-50 Helical Gear

15 532 75 04-36 Clutch Jaw

16 532 75 03-69 Grease

17 812 00 00-03 E-Ring

18 532 85 08-48 Hi-Pro Key

19 532 12 54-41 Spring Bracket

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

Autres manuels pour 6053SD

Table des matières

Autres manuels Electrolux Tondeuse à gazon

Electrolux

Electrolux 6Speed - 96012008900 42" 16.5HP Riding Mower Guide de configuration

Electrolux

Electrolux FLYMO RE320 Manuel d'utilisation

Electrolux

Electrolux Lawn Mower Manuel utilisateur

Electrolux

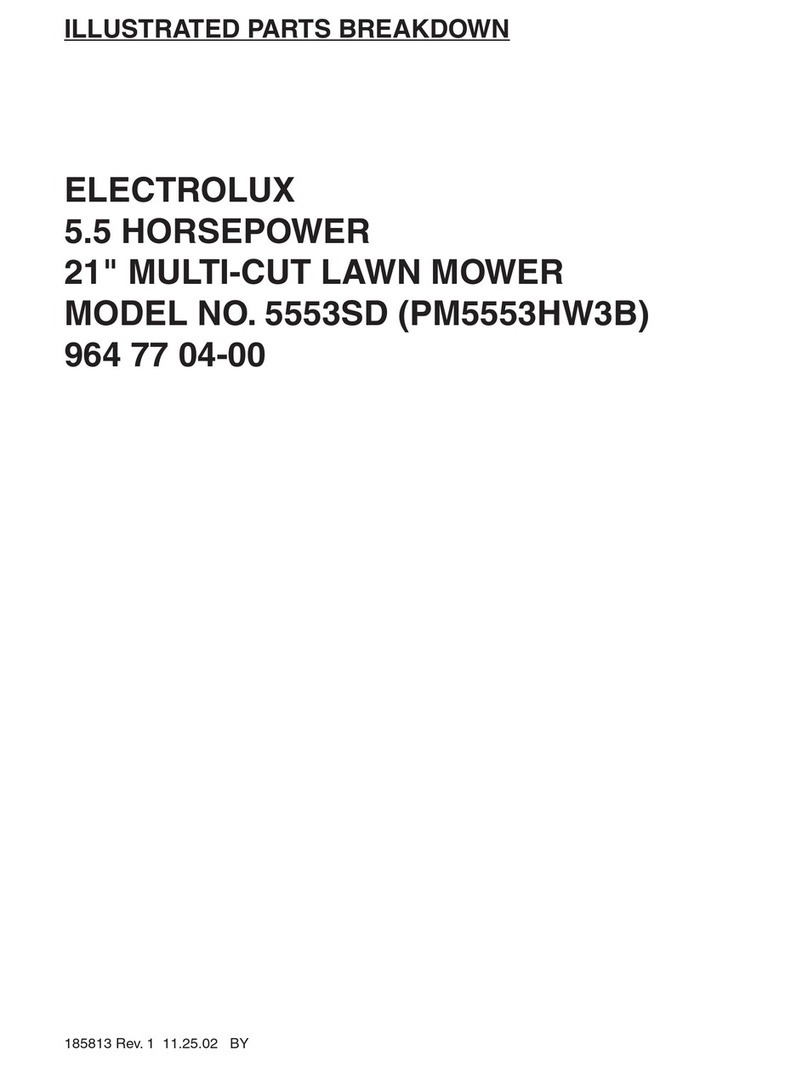

Electrolux 5553SD Guide de configuration
