14. INSTALLATION

WARNING!

Refer to Safety chapters.

14.1 Location of the appliance

You can install your freestanding

appliance with cabinets on one or two

sides and in the corner.

Keep a distance of about 1

cm between the appliance

and the back wall to make

sure that the lid opens.

For minimal distances for fitting check

the table.

Minimum distances

Dimension mm

A400

B650

C150

14.2 Technical data

Voltage 220 - 240 V

Frequency 50 / 60 Hz

Appliance class 1

Dimension mm

Height 855

Width 600

Depth 600

14.3 Levelling of the appliance

Use small feet on the bottom of

appliance to set the appliance top

surface level with other surfaces.

14.4 Anti-tilt protection

Set the correct height and area for the

appliance before you attach the anti-tilt

protection.

CAUTION!

Make sure you install the

anti-tilt protection at the

correct height.

Make sure that the surface

behind the appliance is

smooth.

www.electrolux.com22

You must install the anti-tilt protection. If

you do not install it, the appliance can tilt.

Your appliance has the symbol shown on

the picture (if applicable) to remind you

about the installation of the anti-tilt

protection.

1. Install the anti-tilt protection 232 -

237 mm down from the top surface of

the appliance and 110 - 115 mm from

the side of the appliance into the

circular hole on a bracket. Screw it

into the solid material or use

applicable reinforcement (wall).

110-115

232- 237

2. You can find the hole on the left side

at the back of the appliance. Lift the

front of the appliance and put it in the

middle of the space between the

cupboards. If the space between the

bench cupboards is larger than the

width of the appliance, you must

adjust the side measurement to

centre the appliance.

If you changed the

dimensions of the cooker,

you must align the non-tip

device correctly.

CAUTION!

If the space between the

bench cupboards is larger

than the width of the

appliance, you must adjust

the side measurement to the

centre of the appliance.

14.5 Electrical installation

WARNING!

The manufacturer is not

responsible if you do not

follow the safety precautions

from Safety chapters.

This appliance is supplied without a main

plug or a main cable.

Applicable cable type: H05 RR-F with

adequate cross-section.

WARNING!

Before you connect the

mains cable to the terminal,

measure the voltage

between phases in the

house network. Then, refer

to the connection label at the

back of the appliance to use

the correct electrical

installation. This order of

steps prevents from

installation errors and

damage to the electrical

components of the

appliance.

WARNING!

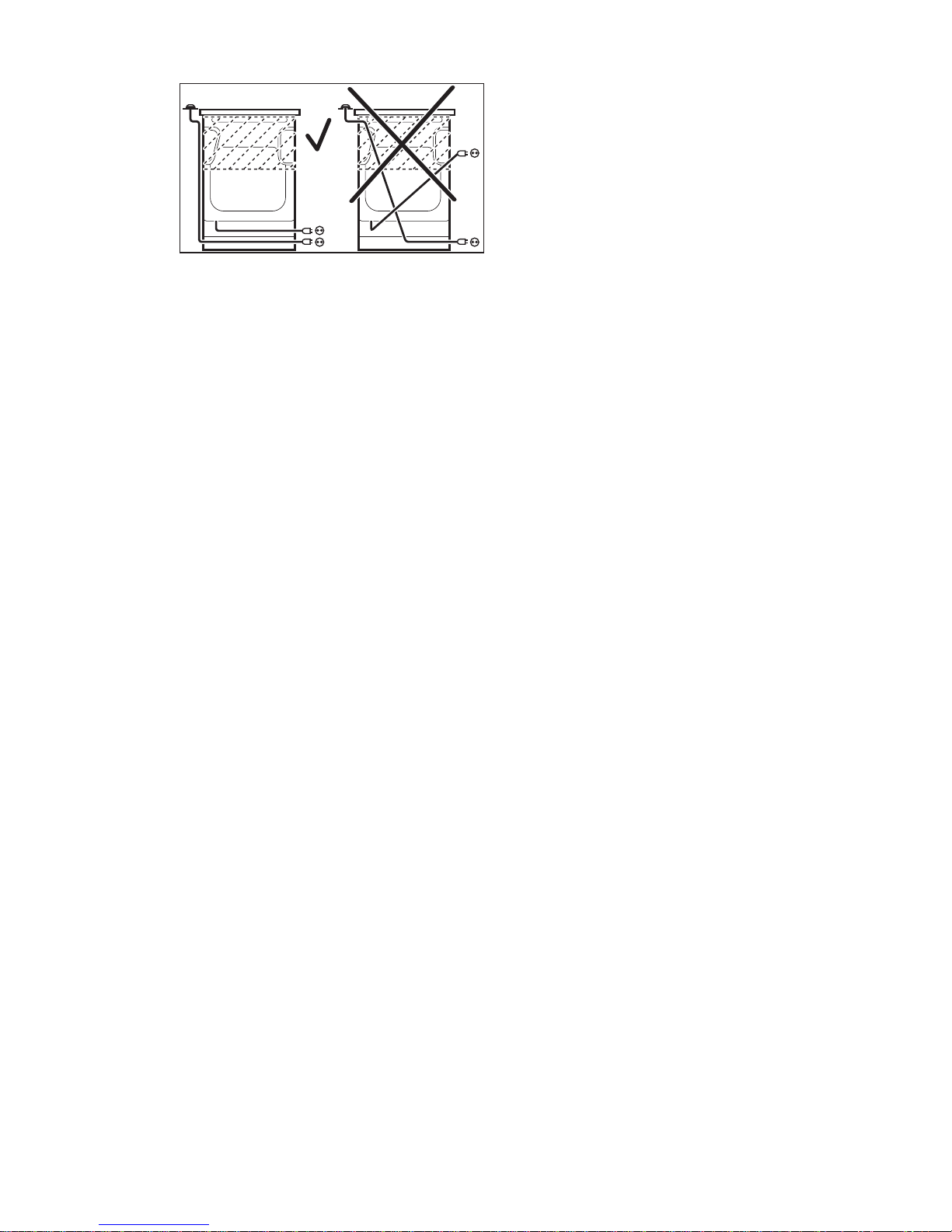

The power cable must not

touch the part of the

appliance shown in the

illustration.

ENGLISH 23

15. ENERGY EFFICIENCY

15.1 Product information for hob according to EU 66/2014

Model identifi‐

cation

EKS61300OX

Type of hob Hob inside Freestanding Cooker

Number of

cooking zones

Heating tech‐

nology

Solid Hot Plate

Diameter of

circular cook‐

ing zones (Ø)

Left rear

Right rear

Right front

Left front

14.5 cm

18.0 cm

14.5 cm

18.0 cm

Energy con‐

sumption per

cooking zone

(EC electric

cooking)

Left rear

Right rear

Right front

Left front

197.6 Wh/kg

206.1 Wh/kg

203.3 Wh/kg

191.1 Wh/kg

Energy consumption of the hob (EC electric hob) 199.5 Wh/kg

EN 60350-2 - Household electric cooking

appliances - Part 2: Hobs - Methods for

measuring performance.

15.2 Hob - Energy saving

You can save energy during everyday

cooking if you follow below hints.

• When you heat up water, use only the

amount you need.

•If it is possible, always put the lids on

the cookware.

• Before you activate the cooking zone

put the cookware on it.

• The cookware bottom should have the

same diameter as the cooking zone.

•Put the smaller cookware on the

smaller cooking zones.

• Put the cookware directly in the centre

of the cooking zone.

• Use the residual heat to keep the food

warm or to melt it.

www.electrolux.com24
