Electrolux EHY58040U Manuel utilisateur

user manual

Gas cooking surface

EHY58040U

We were thinking of you

when we made this product

electrolux 3

Welcome to the world of Electrolux

Thank you for choosing a first class

product from Electrolux, which hopefully

will provide you with lots of pleasure in

the future. The Electrolux ambition is to

offer a wide variety of quality products

that make your life more comfortable.

You will find some examples on the cov-

er in this manual. Please take a few min-

utes to study this manual so that you

can take advantage of the benefits of

your new machine. We promise that it

will provide a superior User Experience

delivering Ease-of-Mind. Good luck!

4electrolux contents

Contents

Safety instructions 5

Before using for the first time 7

Description of the Appliance 8

Operating the appliance 10

Tips on Cooking and Frying 13

Cleaning and Care 14

What to do if … 16

Disposal 17

Installation Instructions 18

Assembly 20

Installing more than one Frontline

hob 23

Guarantee/Customer Service 27

Service 29

he following symbols are used in this user manual:

Important information concerning your personal safety and information on

how to avoid damaging the appliance.

3General information and tips

2Environmental information

safety instructions electrolux 5

Safety instructions

Please comply with these instruc-

tions. If you do not, any damage re-

sulting is not covered by the

warranty.

This appliance conforms with the

following EU Directives:

–73/23/EEC dated 19.02.1973 Low

Voltage Directive

–89/336/EEC dated 03.05.1989 EMC

Directive inclusive of Amending Di-

rective 92/31/EEC

–93/68/EEC dated 22.07.1993 CE

Marking Directive

–90/396 EEC dated 29.06.1990 Gas

Appliances Directive

Correct use

•This appliance should be used only

for normal domestic cooking and fry-

ing of food.

•The appliance must not be used as a

work surface or as a storage surface.

•Additions or modifications to the ap-

pliance are not permitted.

Gas/electrical safety

•This appliance must only be con-

nected by a qualified installation

engineer. Before installation and us-

ing for the first time, the operating

and installation instructions are to be

followed.

•The appliance must only be installed

in accordance with the regulations in

force and only in a well ventilated,

sufficiently large room. If in doubt,

speak to your installer.

•In the event of faults with the appli-

ance or damage to the burner or the

glass ceramic (cracks, scratches,

splits), switch off the appliance, shut

off gas supply. Do not use the appli-

ance if damaged!

•If away from home for a long time:

shut off mains gas supply.

•Repairs to the appliance must only

be carried out by qualified service

engineers. Considerable danger may

result from improper repairs. If re-

pairs become necessary, please

contact our Customer Care Depart-

ment or your dealer.

•Using a gas cooking appliance leads

to a build up of heat and humidity in

the room in which it is installed. Make

sure there is good ventilation in the

kitchen: Open the windows or vents

or install an extractor hood.

•If the appliance is used intensively or

for a long time, provide additional

ventilation: Open window or operate

cooker hood on a high setting.

Children’s safety

•Small children must be kept away

from the appliance.

•Only let bigger children work on the

appliance under supervision.

6electrolux safety instructions

Safety during use

Warning in the event of a smell of

gas:

•Do not activate any electrical switch-

es.

•Do not light matches or lighters, do

not smoke.

•Open windows and doors, ventilate

very well.

•Shut off gas supply to the appliance

and mains gas supply.

•Contact your gas company’s emer-

gency service or the servicedepart-

ment.

•Do not do anything to the appliance.

In addition follow the safety instruc-

tions of your local gas supplier.

•Be careful if connecting electrical ap-

pliances to sockets near to this ap-

pliance. Electrical leads must not be

allowed to come near hot rings.

Warning: Risk of burns!

•During operation the rings become

hot.

•Overheated fats and oils can ignite

very quickly. When cooking with fat

or oil (e.g. chips) do not leave the ap-

pliance unattended.

•Do not place or store flammable liq-

uids, highly inflammable materials or

fusible objects (e.g. plastic film, plas-

tic, aluminium) on or near the appli-

ance.

Safety when cleaning

•For cleaning, the appliance must be

switched off and cooled down.

•For safety reasons, the cleaning of

the appliance with steam jet or high-

pressure cleaning equipment is not

permitted.

How to avoid damage to the appli-

ance

•The glass ceramic can be damaged

by objects falling onto it.

•Objects that melt and things that boil

over can burn onto the glass ceramic

and should be removed straighta-

way.

before using for the first time electrolux 7

Before using for the first time

•Remove burner cap.

•Remove any stickers that are on the

glass ceramic.

•Put a few drops of glass ceramic

cleaner on the glass ceramic and rub

with a cloth or kitchen paper.

•Wipe glass ceramic dry.

•Wash the burner cap with hot water

and washing up liquid. Dry off.

•Replace burner cap and pan stand.

8electrolux description of the appliance

Description of the Appliance

Built-in Gas Hob Class 3

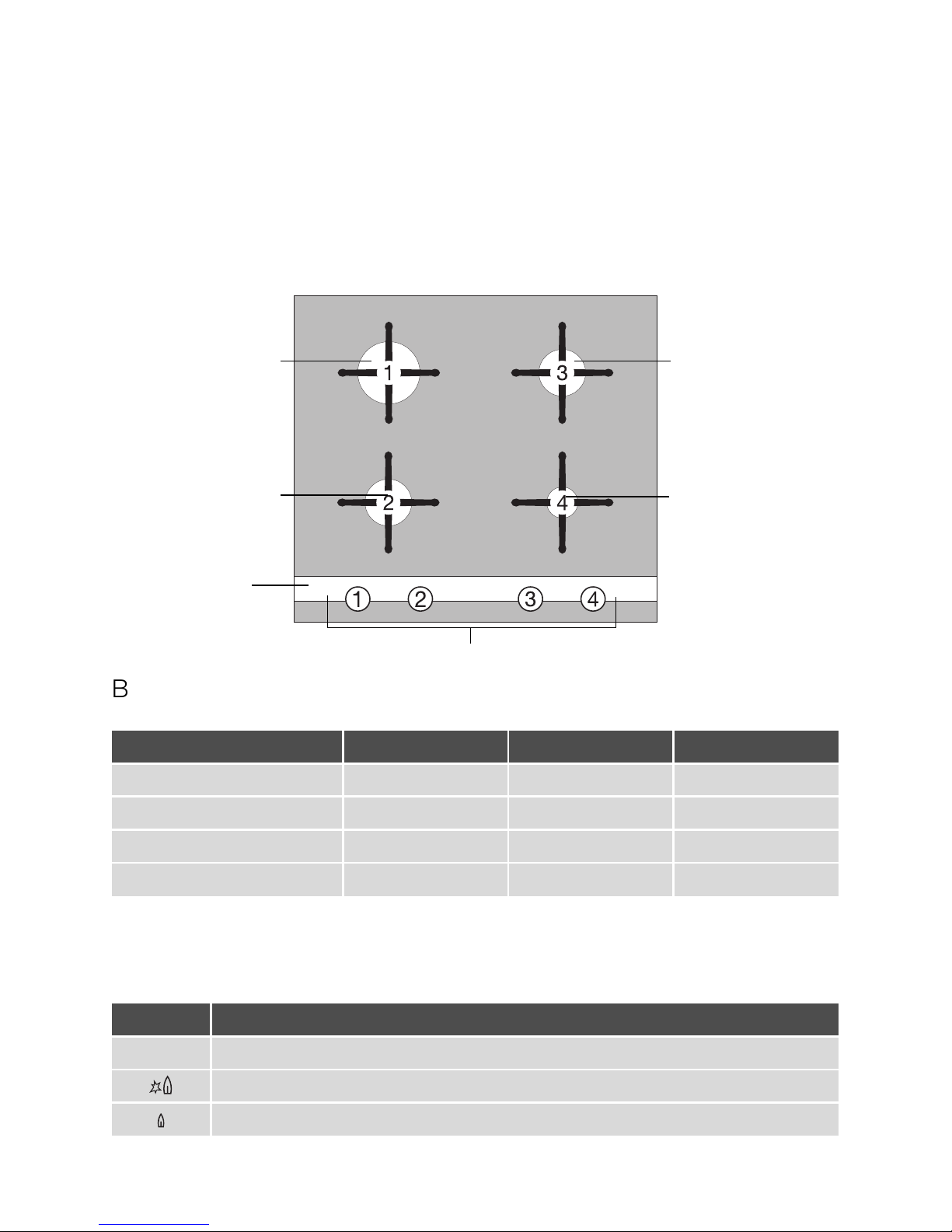

Cooking surface layout

Burner powers related to Hs

Ring switch settings

Normal burner

Frontline strip

Ring switch

Low capacity burner

High capacity burner

Burner / Type of gas Natural gas Town g a s Liquid gas

High capacity burner 3,0 kW 2,8 kW 2,8 kW

Normal burner 1,9 kW 2,0 kW 1,9 kW

Low capacity burner 1,0 kW 1,0 kW 1,0 kW

To t a l p o w e r 7,8 kW 7,8 kW 7,6 kW/553g/h

Symbol Description

•Off position

max. power, ignition position

minimum power

description of the appliance electrolux 9

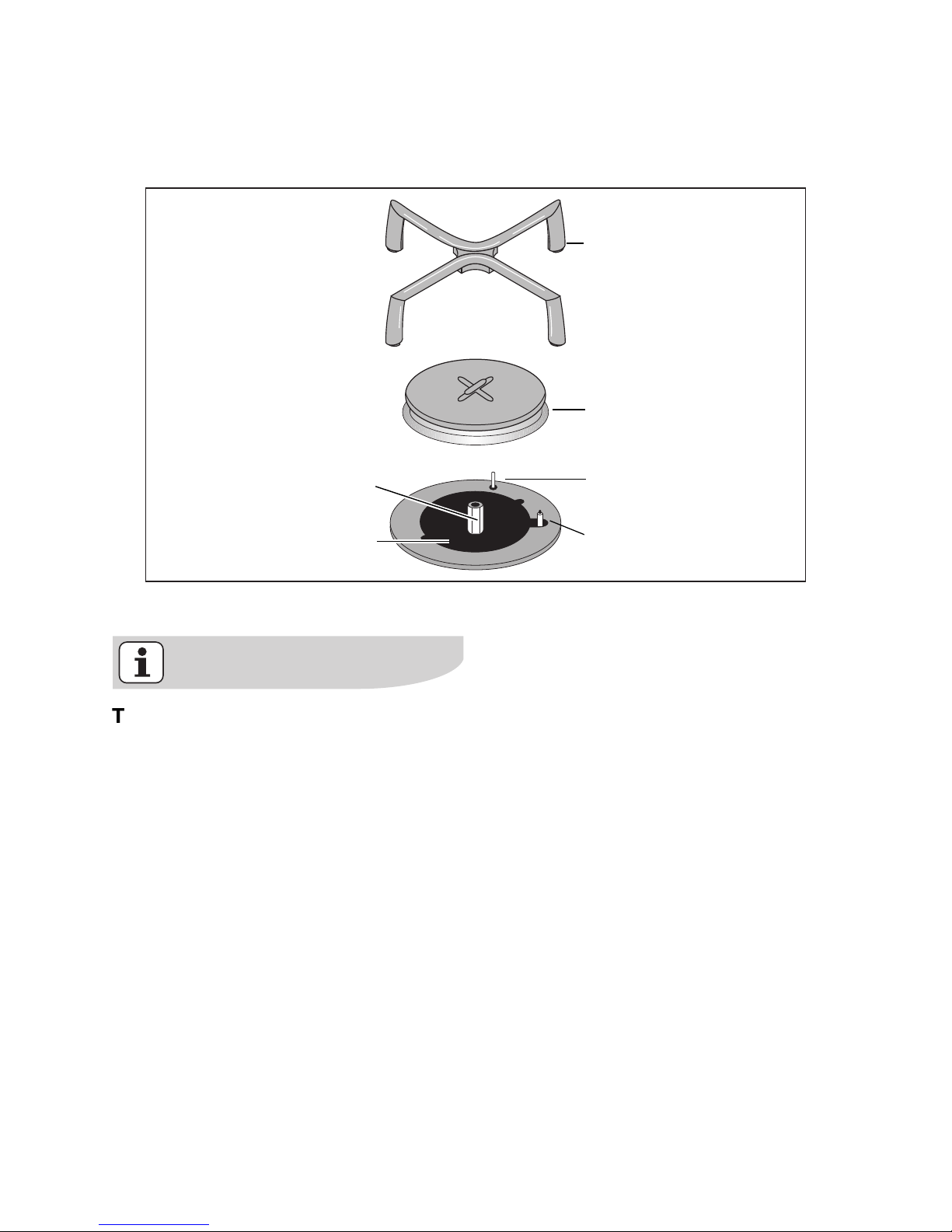

Ring burner

The appliance is equipped with fully

protected ring burners. If the flames

go out, for whatever reason, the gas

supply is automatically closed off.

Burner cap

Pan bracket

Burner body Spark plug

Thermosensor

Large flame jet

10 electrolux operating the appliance

Operating the appliance

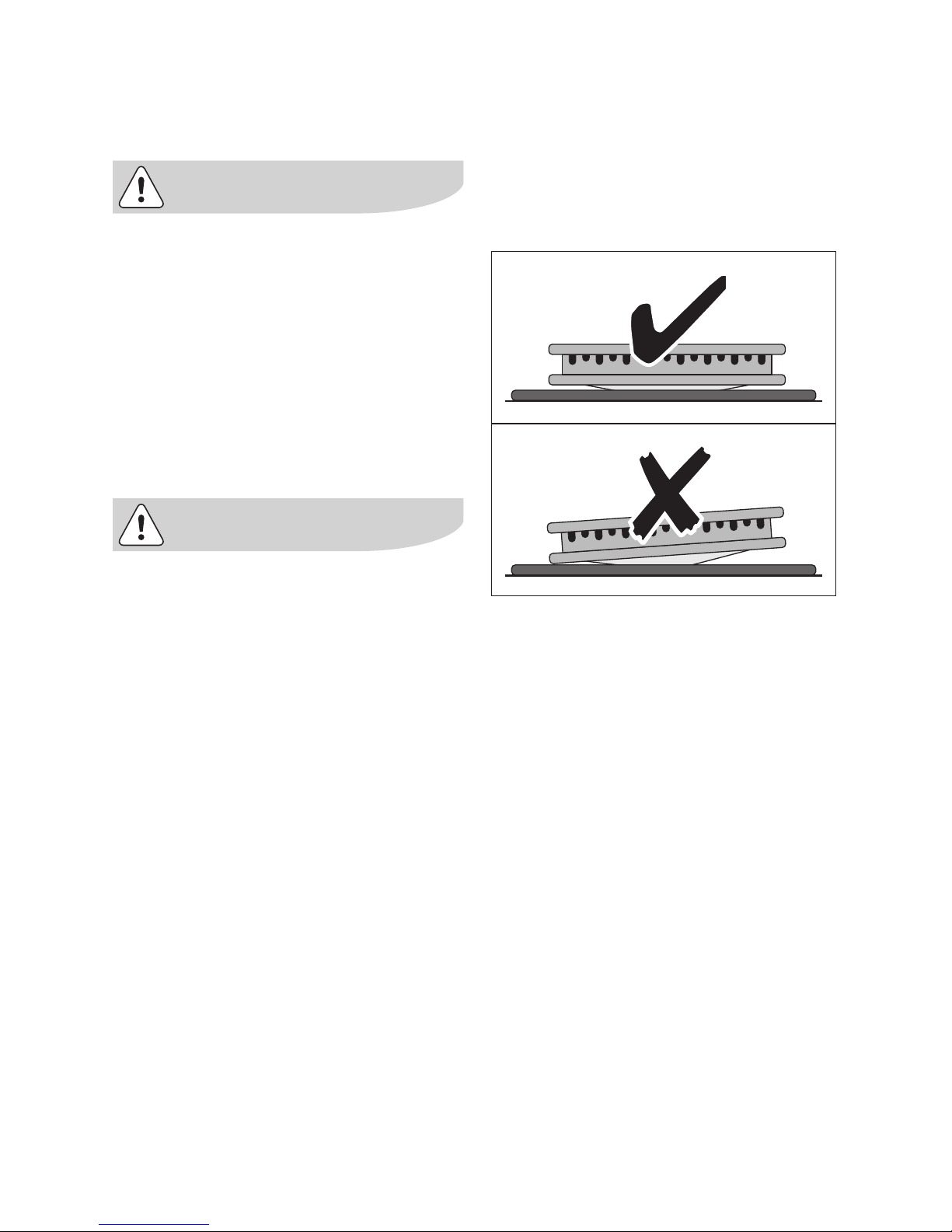

ATTENTION!

Before commissioning, ensure that the

burner caps are straight on the burner

bodies.

If the burner caps are not on straight,

the gas flame will not burn evenly and

this can cause damage to the burner.

Important

The apertures for the gas flames on

the burner crown must not be

blocked by foods that have boiled

over or by cleaning products.
