Electrolux EC4200AOW1 Manuel utilisateur
CONTENTS
1. SAFETY INFORMATION....................................................................................2
2. SAFETY INSTRUCTIONS..................................................................................4
3. OPERATION.......................................................................................................6
4. DAILY USE......................................................................................................... 7
5. HINTS AND TIPS............................................................................................... 8
6. CARE AND CLEANING......................................................................................8
7. TROUBLESHOOTING........................................................................................9
8. INSTALLATION................................................................................................ 12
9. TECHNICAL DATA...........................................................................................12
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
www.electrolux.com2
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away unless continuously supervised.
•Children of less than 3 years of age should be kept
away unless continuously supervised.
•Do not let children play with the appliance.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
•Keep all packaging away from children and dispose of
it appropriately.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–Farm houses; staff kitchen areas in shops, offices
and other working environments
–By clients in hotels, motels, bed and breakfast and
other residential type environments
•Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
•Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
ENGLISH 3
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging and the
transit bolts.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure the air can circulate
around the appliance.
• At first installation or after reversing
the door wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to flow
back in the compressor.
• Before carrying out any operations on
the appliance (e.g. reversing the
door), remove the plug from the
power socket.
• Do not install the appliance close to
radiators or cookers, ovens or hobs.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too cold.
• When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Authorised Service
Centre or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns, electric
shock or fire.
www.electrolux.com4
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains
isobutane (R600a), a natural gas with
a high level of environmental
compatibility. This gas is flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the
plastic parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create
pressure on the drink container.
• Do not store flammable gas and liquid
in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from
the freezer compartment if your hands
are wet or damp.
• Do not freeze again food that has
been thawed.
• Obey the storage instructions on the
packaging of frozen food.
2.4 Internal lighting
WARNING!
Risk of electric shock.
• The type of lamp used for this
appliance is for household appliances
only. Do not use it for house lighting.
2.5 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
2.6 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
• The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
ENGLISH 5
3. OPERATION
3.1 Control panel
21 3
1Temperature regulator
2Power indicator light
3High temperature alarm light
3.2 Switching on
B
C
A
2
3
4
5
6
7
1
A. Temperature Regulator
B. Half Loaded position
C. Full Loaded position
1. Insert the plug into the wall socket.
2. Turn the Temperature Regulator to
the Full Loaded position and let the
appliance run for 24 hours to allow
the correct temperature to be
reached before placing food inside.
The power indicator light will light up.
3. Adjust the Temperature Regulator
according to the quantity of the
stored foods.
3.3 Switching off
Turn the Temperature regulator to the
OFF position.
3.4 Temperature regulation
The temperature within the appliance is
controlled by the Temperature Regulator
situated on the control panel.
To operate the appliance, proceed as
follows:
• to obtain the minimum coldness, turn
the Temperature Regulator toward
lower settings.
• to obtain the maximum coldness. turn
the Temperature Regulator toward
higher settings.
In case of freezing less food
volumes, the Half Loaded
setting is the most suitable.
In case of freezing much
food volumes, the Full
Loaded setting is the most
suitable.
3.5 High temperature alarm
An increase in the temperature in the
freezer (for example due to a power
failure) is indicated by switching on of the
Alarm light .
During the alarm phase, don't place food
inside the freezer.
When normal conditions are restored,
the Alarm light will switch off
automatically.
www.electrolux.com6
4. DAILY USE
WARNING!
Refer to Safety chapters.
4.1 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen
and deep-frozen food for a long time.
The maximum amount of food that can
be frozen in 24 hours is specified on the
rating plate (refer to "Technical data").
The freezing process lasts 24 hours:
during this period do not add other food
to be frozen.
4.2 Storage of frozen food
When first starting-up or after a period
out of use, before putting the products in
the compartment let the appliance run at
least 24 hours Temperature Regulator to
the Full Loaded position.
CAUTION!
In the event of accidental
defrosting, for example due
to a power failure, if the
power has been off for
longer than the value shown
in the technical
characteristics chart under
"rising time", the defrosted
food must be consumed
quickly or cooked
immediately and then re-
frozen (after cooling).
4.3 Opening and closing the lid
CAUTION!
Never pull the handle with
immense force.
As the lid is equipped with a tightly
closing seal, it is not easy to reopen it
shortly after closing (due to the vacuum
formed inside). Wait for few minutes
before reopening the appliance.
The vacuum valve will help you to open
the lid.

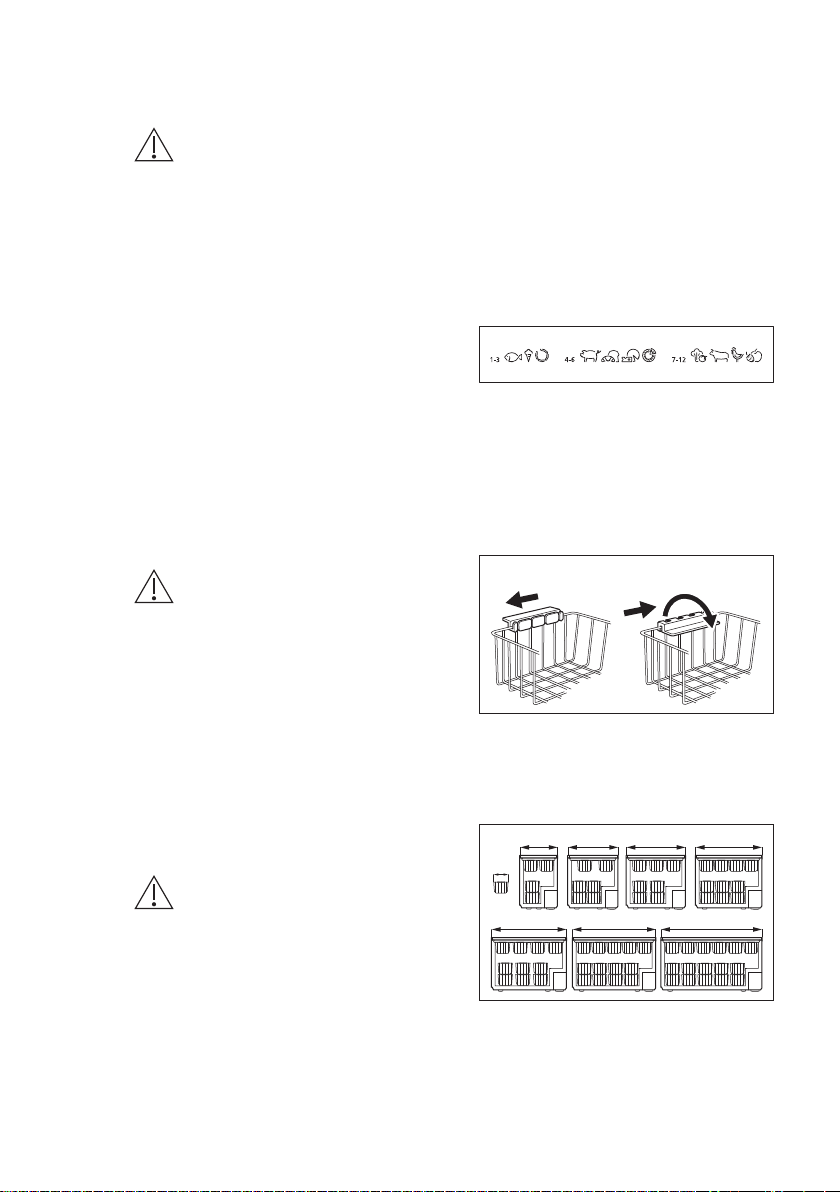

4.4 Freezing Calendar
The symbols show different types of
frozen goods.
The numbers indicate storage times in
months for the appropriate types of
frozen goods. Whether the upper or
lower value of the indicated storage time
is valid depends on the quality of the
foods and treating before freezing.
4.5 Storage baskets
Hang the baskets on the upper edge of
the freezer (A) or place them inside the
freezer (B). Turn and fix the handles for
these two positions as shown in the
picture.
A B
The following pictures show how many
baskets can be placed inside the various
freezer models.
The baskets will slide into each other.
230
806606 946 1061
1201 1336 1611
You can purchase additional baskets
from your local Authorised Service
Centre.
ENGLISH 7
5. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
5.1 Hints for freezing
To help you make the most of the
freezing process, here are some hints:
• The maximum quantity of food which
can be frozen in 24 hours is shown on
the rating plate.
• The freezing process takes 24 hours.
No further food to be frozen should be
added during this period.
• Freeze only top quality, fresh and
thoroughly cleaned foodstuffs.
• Prepare food in small portions to
enable it to be rapidly and completely
frozen and to make it possible
subsequently to thaw only the quantity
required.
• Wrap up the food in aluminium foil or
polythene and make sure that the
packages are airtight.
• Do not allow fresh, unfrozen food to
touch food which is already frozen,
thus avoiding a rise in temperature of
the latter.
• Lean foods store better and longer
than fatty ones; salt reduces the
storage life of food.
• Water ices, if consumed immediately
after removal from the freezer
compartment, can possibly cause the
skin to be freeze burnt.
• It is advisable to show the freezing in
date on each individual pack to
enable you to keep tab of the storage
time.
5.2 Hints for storage of frozen
food
To obtain the best performance from this
appliance, you should:
• make sure that the commercially
frozen foodstuffs were adequately
stored by the retailer;
• be sure that frozen foodstuffs are
transferred from the store to the
freezer in the shortest possible time;
• not open the lid frequently or leave it
open longer than absolutely
necessary.
• Once defrosted, food deteriorates
rapidly and cannot be refrozen.
• Do not exceed the storage period
indicated by the food manufacturer.
6. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
6.1 Cleaning the interior
Before using the appliance for the first
time, the interior and all internal
accessories should be washed with
lukewarm water and some neutral soap
to remove the typical smell of a brand-
new product, then dried thoroughly.
CAUTION!
Do not use detergents,
abrasive powders, chlorine
or oil-based cleaners as they
will damage the finish.
6.2 Periodic cleaning
CAUTION!
Unplug the appliance before
carrying out any
maintenance operation.
Do not use detergents,
abrasive products, highly
perfumed cleaning products
or wax polishes to clean the
inner side of the appliance.
Prevent damage to the
cooling system.
There is no need to clean
the compressor area.
1. Switch off the appliance.
www.electrolux.com8
2. Regularly clean the appliance and
the accessories with warm water and
neutral soap.
Clean the lid seal carefully.
3. Fully dry the appliance.
4. Connect the mains plug to the mains
socket.
5. Switch on the appliance.
6.3 Defrosting the freezer
CAUTION!
Never use sharp metal tools
to scrape off frost as you
could damage the appliance.
Do not use a mechanical
device or any artificial
means to speed up the
thawing process other than
those recommended by the
manufacturer. A temperature
rise of the frozen food packs,
during defrosting, may
shorten their safe storage
life.
Defrost the freezer when the frost layer
reaches a thickness of about 10-15 mm.
The amount of frost on the walls of the
appliance will be increased by the high
level of the outer environment humidity
and if the frozen food is not wrapped
properly.
The best time to defrost the freezer when
it contains no or only a little food.
1. Switch off the appliance.
2. Remove any stored food, wrap it in
several layers of newspaper and put
it in a cool place.
3. Leave the lid open , remove the plug
from the defrost water drain and
collect all defrost water on a tray.
4. When defrosting is completed, dry
the interior thoroughly and refit the
plug.
5. Switch on the appliance.
6. Set the temperature regulator to
obtain the maximum coldness and
run the appliance for two or three
hours using this setting.
7. Reload the previously removed food
into the compartment.
6.4 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Switch off the appliance and
disconnect the appliance from
electricity supply.
2. Remove all food
3. Defrost and clean the appliance and
all accessories.
4. Leave the lid open to prevent
unpleasant smells.
If the cabinet will be kept on,
ask somebody to check it
once in a while to prevent
the food inside from spoiling
in case of a power failure.
7. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
7.1 What to do if...
Problem Possible cause Solution
The appliance does not
operate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not con‐
nected to the mains socket
correctly.
Connect the mains plug to
the mains socket correctly.
ENGLISH 9
Problem Possible cause Solution
There is no voltage in the
mains socket.
Connect to a different elec‐
trical mains socket. Con‐
tact a qualified electrician.
The appliance is noisy. The appliance is not sup‐
ported properly.
Check if the appliance
stands stable.
Audible or visual alarm is
on.
The cabinet has been re‐
cently switched on or the
temperature in the appli‐
ance is too high.
Refer to "High Tempera‐
ture Alarm" and if the prob‐
lem still occurs contact the
nearest Authorized Service
Centre.
Power indicator light is
flashing.
An error has occurred in
measuring the temperature
or the appliance is not
working properly.
Contact the nearest Au‐
thorized Service Centre.
The lid doesn't close com‐
pletely.
Food packages are block‐
ing the lid.
Arrange the packages in
the right way, see the stick‐
er in the appliance.
There is excessive frost. Eliminate excess frost.
The lid is difficult to open. The lid gaskets are dirty or
sticky.
Clean the lid gaskets.
The valve is blocked. Check the valve.
The lamp does not work. The lamp is defective. Refer to "Replacing the
lamp".
The compressor operates
continually.
Temperature is set incor‐
rectly.
Refer to "Operation" chap‐
ter.
Large quantities of food to
be frozen were put in at
the same time.
Wait some hours and then
check the temperature
again.
The room temperature is
too high.
Refer to climate class chart
on the rating plate.
Food placed in the appli‐
ance was too warm.
Allow food to cool to room
temperature before storing.
The lid is not closed prop‐
erly.
Check if the lid closes well
and the gaskets are un‐
damaged and clean.
There is too much frost
and ice.
The lid is not closed cor‐
rectly or the gasket is de‐
formed/dirty.
Refer to "Opening and
closing the lid".
The water drainage plug is
not correctly positioned.
Position the water drain‐
age plug in the correct
way.
www.electrolux.com10
Autres manuels pour EC4200AOW1
2
Table des matières
Langues :
Autres manuels Electrolux Congélateur
Electrolux
Electrolux ENG2917AOW Manuel utilisateur
Electrolux
Electrolux EUF2700 Manuel utilisateur
Electrolux
Electrolux Chest freezers Manuel utilisateur
Electrolux
Electrolux Air-O-Chill 726992 Manuel utilisateur
Electrolux
Electrolux EUF10003W Manuel utilisateur
Electrolux
Electrolux Crio Smart REX72HF Manuel utilisateur
Electrolux
Electrolux NOFROST UNDERCOUNTER FREEZERS Manuel utilisateur
Electrolux
Electrolux LNS8FF19S Manuel utilisateur
Electrolux
Electrolux EUC2910 Manuel utilisateur
Electrolux
Electrolux EUC2403 Manuel utilisateur
Electrolux
Electrolux ERN29801 Manuel utilisateur
Electrolux
Electrolux EUC 0550 Manuel utilisateur
Electrolux
Electrolux 820 41 77 06 Manuel utilisateur
Electrolux
Electrolux 304 AISI Manuel utilisateur
Electrolux
Electrolux EC2204N Manuel utilisateur
Electrolux
Electrolux ECN 1155 Fiche technique
Electrolux
Electrolux ENN2741AOW Manuel utilisateur
Electrolux
Electrolux LNS9TE19S Manuel utilisateur
Electrolux
Electrolux LUT7NE28W1 Manuel utilisateur
Electrolux
Electrolux EUF 27291 W Manuel utilisateur
