Electrolux 253.28712809 Manuel

P08F0137.eps P08D0624.eps P08C1202.eps R08S0525.wmf

REPAIR

PARTS

LIST

253.28712809

For Parts or Service:

Call

1-800-4-MY-HOME®

(1-800-469-4663)

Or Visit

www.sears.com

UPRIGHT FREEZER

In all orders or correspondence, avoid delays and misunderstandings

by always giving the complete model number shown on the left side of

the access panel.

All repair parts listed are available for immediate purchase or special

order when you visit your nearest Sears Parts & Repair Center, or the

Service Department at most Sears stores. To order parts by phone, call

the toll-free number listed to the left or visit sears.com.

When requesting service or ordering parts, always provide the following

information:

• Product Type • Part Number

• Model Number • Part Description

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Publication number 5995603247

253.28712809

11/11 2

DOOR

CAUTION: Use the Kenmore part number to order part, not the illustration number.

21A

151

48C

P08D0624

253.28712809

# Functional Parts 3 11/11

* Non-Illustrated Parts

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

1 216522359 Gasket-door, white

2 297318600 Lock Assy

2A 297213300 Clip, spring

5 297147700 Key, lock

9 297185800 Panel-inner door, frzr

11 297317202 Panel-outer door, white

12 297086400 Nameplate

13 297154800 Door Stop, RH

18 297218020 Handle, ELITE, white

* 240537301 Nut-anchor, door hdl screw

21A 216850900 Screw, hex washer hd, 1/4 x 7/8, door stop/hng

22 216970800 Bearing, hinge w/o'ring, top

26 216524201 Gasket, secondary

27 5304472186 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

48C 297350100 Bin-door, w/lid

49 297187200 Bin-door, 2-liter

59 216974500 Bearing, door closer

64 216403700 Plug-button, hole filler, door base

72 297186701 Shelf, tilt out, wire

73 216513900 End Cap, shelf, LH, tilt-out

74 216514000 End Cap, shelf, RH, tilt-out

79 218755402 Screw-set, 10-32 x 0.375

80 218755504 Screw-shoulder, #10 AB, handle mounting

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

151# 297366203 Control-electronic, white, 115V

253.28712809

11/11 4

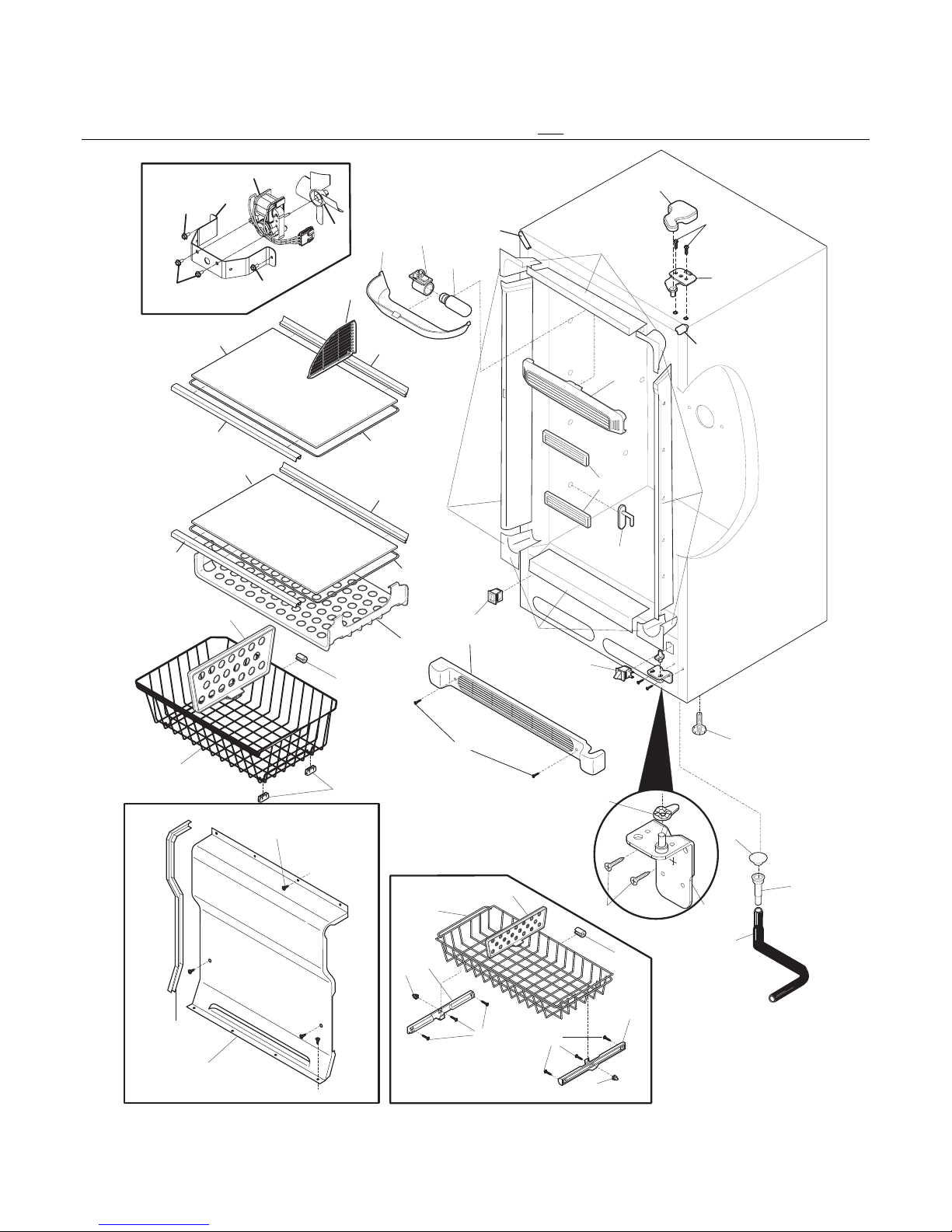

CABINET

163

71A

156

59A

59B

71A 71A

42C

156A

170

47A

P08C1202

152

41 28

93A

169

139

138

42A

137C

137B

253.28712809

# Functional Parts 5 11/11

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 297200600 Breaker Kit w/corners, no lock slot

7 297200800 Breaker Kit w/corners, incl lock catch

9 297200100 Breaker Kit w/corners, 32", top and bottom

13 # 297250000 Motor, fan, 115 V

14 216822900 Switch, light/lamp, ramp

15 297114000 Light Bulb, short, blue tint, 40W

16 297139500 Socket, light/lamp

19 216204902 Gasket-evap cover

25 297099251 Cover-evaporator

28 297179300 Hinge, bottom/RH

29 216313503 Hose-drain

32 5308005500 Drain

34 297184400 Shield-light

37 297273900 Trim-cabinet corner, white, (2)

38 297154600 Hinge-upper

40 297154701 Cover-upper hinge, white

41 297236200 Screw, tamper proof, 1/4-20 x 5/8

42 297166800 Glass-shelf

42A 297166801 Glass-shelf

* 216502400 Grommet-shelf mtg

42C 297183801 Divider, blue, glass shelf

47 297192901 Baffle, air

47A 297205801 Diffuser, air, blue, (2)

50 216394050 Bracket, fan motor mount

59 297308800 Basket, bottom

59A 216486500 Stop-basket, (2)

59B 297308400 Basket, mid-level

60 297013500 Slide, shelf

63 216396900 Screw, leveling foot, plastic, adjustable

63* 297164650 Bracket, LH leg levelor

63* 297164651 Bracket, RH leg levelor

68 08009560 Glide-basket

69 5305878546 Bumper-basket

71A 297146820 Screw, 8-18AB x.470 QX

72 297198900 Grille/Kickplate, 32", white

79 3017666 Nut-insert

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

93A 297174300 Screw, self pierce, #8, 18x.63

* 216327800 Clip, wire

137B 297166900 Frame

137C 297166901 Frame, shelf

138 297203601 Trim-shelf, front

139 297218201 Trim-shelf, rear

152 216974600 Bearing, hinge closer

156 297202501 Divider, basket, btm

156A 297202301 Divider, basket

163 297185301 Shelf, pizza

169 216912401 Screw, hex washer head, 8-32 x 0.500, bracket fan mtr, (2)

170 297280400 Valve, breather

* 5995603247 Repair Parts List

* 5303305324 Paint, touch-up, white

* 297251900 Use & Care Guide

* 297246001 Service Data Sheet

* 216910411 Energy Guide

* 297257300 Label, start guide

* 297258300 Instructions, elect guide, Precision

* 297001704 Insulation, 24", drain tube

253.28712809

11/11 6

SYSTEM

253.28712809

# Functional Parts 7 11/11

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater, aluminum, (2)

4 216987501 Dryer-filter

5 # 297237602 Harness-main

14 # 297348700 Defrost Heater, w/thermostat, termination swt

15 # 216997300 Evaporator

15A 297217900 Heat Exchanger, suct/cap tube

18 297078701 Insulator-evap, styrofoam, RH

19 297078801 Insulator-evap, styrofoam, LH

27 297293302 Grommet, compressor

29 # 297352151 COMPRESSOR EGX70HLC

30 216954205 Controller, compressor

31A 216994100 Pan-drain

* 5303311565 Clip-cable

32 297359700 Clip, controller

35 297368500 Bolt, compressor

43B 297315800 Clip, wire

55 297286802 Capacitor-run, 250 VA, 12 MF

86 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA

100# 297169904 Cord-power

130 297244700 Support, evaporator mtg

* 216502500 Sleeve, suction line

* 297014702 Plug-suction line

* 297018400 Thermistor

* 240555002 Screw-#8-32 X 3/8

* 297174300 Screw, self pierce, #8, 18x.63

® Registered Trademark /

Trademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries

® Marca Registrada /

Marca de Fábrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros países

Marque de commerce /

Marque déposée de Sears Brands, LLC

Get it fixed, at your home or ours!

Your Home

For troubleshooting, product manuals and home solutions advice:

www.managemyhome.com

For repair – in your home – of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner’s manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME®(1-800-469-4663)

Call anytime, day or night(U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

www.sears.com www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparación

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR®

(1-888-784-6427)

www.sears.com

Au Canada pour service en français:

1-800-LE-FOYERMC

(1-800-533-6937)

www.sears.ca
