Electrolux 253.28042807 Manuel

P08F0133.eps P08D0631.eps P08C1214.eps R08S0473.wmf

REPAIR

PARTS

LIST

253.28042807

For Parts or Service:

Call

1-800-4-MY-HOME®

(1-800-469-4663)

Or Visit

www.sears.com

UPRIGHT FREEZER

In all orders or correspondence, avoid delays and misunderstandings

by always giving the complete model number shown on the left side of

the access panel.

All repair parts listed are available for immediate purchase or special

order when you visit your nearest Sears Parts & Repair Center, or the

Service Department at most Sears stores. To order parts by phone, call

the toll-free number listed to the left or visit sears.com.

When requesting service or ordering parts, always provide the following

information:

• Product Type • Part Number

• Model Number • Part Description

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Publication number 5995597829

253.28042807

07/11 2

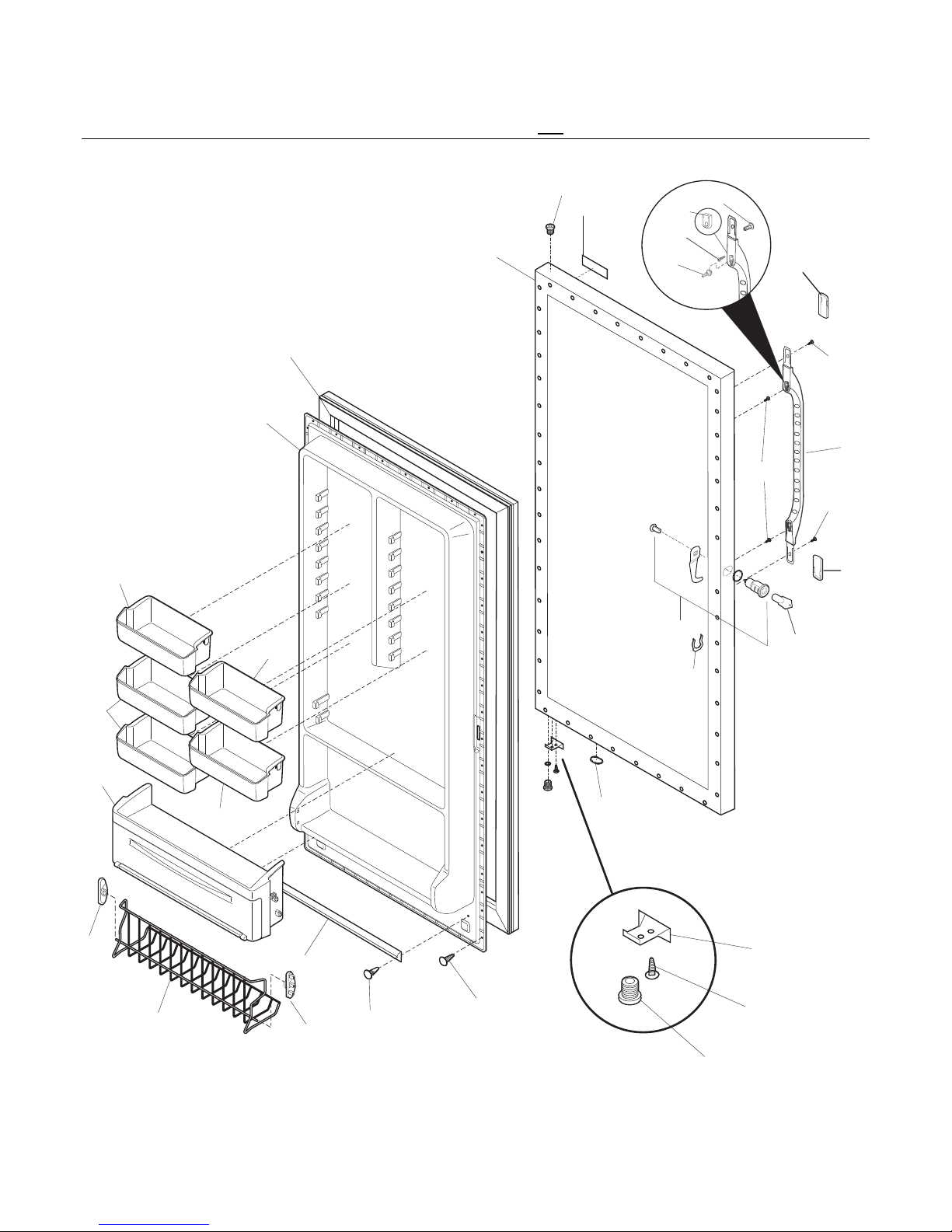

DOOR

CAUTION: Use the Kenmore part number to order part, not the illustration number.

173 93

174A

174

37A

174A

21A

22A P08D0631

12A

48C

253.28042807

# Functional Parts 3 07/11

* Non-Illustrated Parts

DOOR

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

1 216522362 Gasket-door, white

2 # 297318600 Lock Assy

2A 297213300 Clip, spring

5 297147700 Key, lock

9 297185900 Panel-inner door, frzr

11 297352903 Panel-outer, white

12A 297083900 Nameplate

13 297257000 Door Stop, chrome, RH

18 297272500 Handle-door, white

* 240537301 Nut-anchor, door hdl screw

* 297048000 Screw, anchor, #8, white

21A 297197500 Screw, door stop mtg, FH38-16X.750, P Twin

22 216970800 Bearing, hinge w/o'ring, top

22A 297006800 Bearing-hinge, btm, w/o'ring

26 216524201 Gasket, secondary

27 5304472186 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

37A 218771201 Trim-handle, 1.34", white

48C 297350100 Bin-door, w/lid

49 297187200 Bin-door, 2-liter

64 216403700 Plug-button, hole filler, door base

72 297186701 Shelf, tilt out, wire

73 216513900 End Cap, shelf, LH, tilt-out

74 216514000 End Cap, shelf, RH, tilt-out

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

173 218396700 Block-handle mtg, dovetail

174 297347800 Screw, #10-32 X .375

174A 297347900 Screw, #10-32 X .500

253.28042807

07/11 4

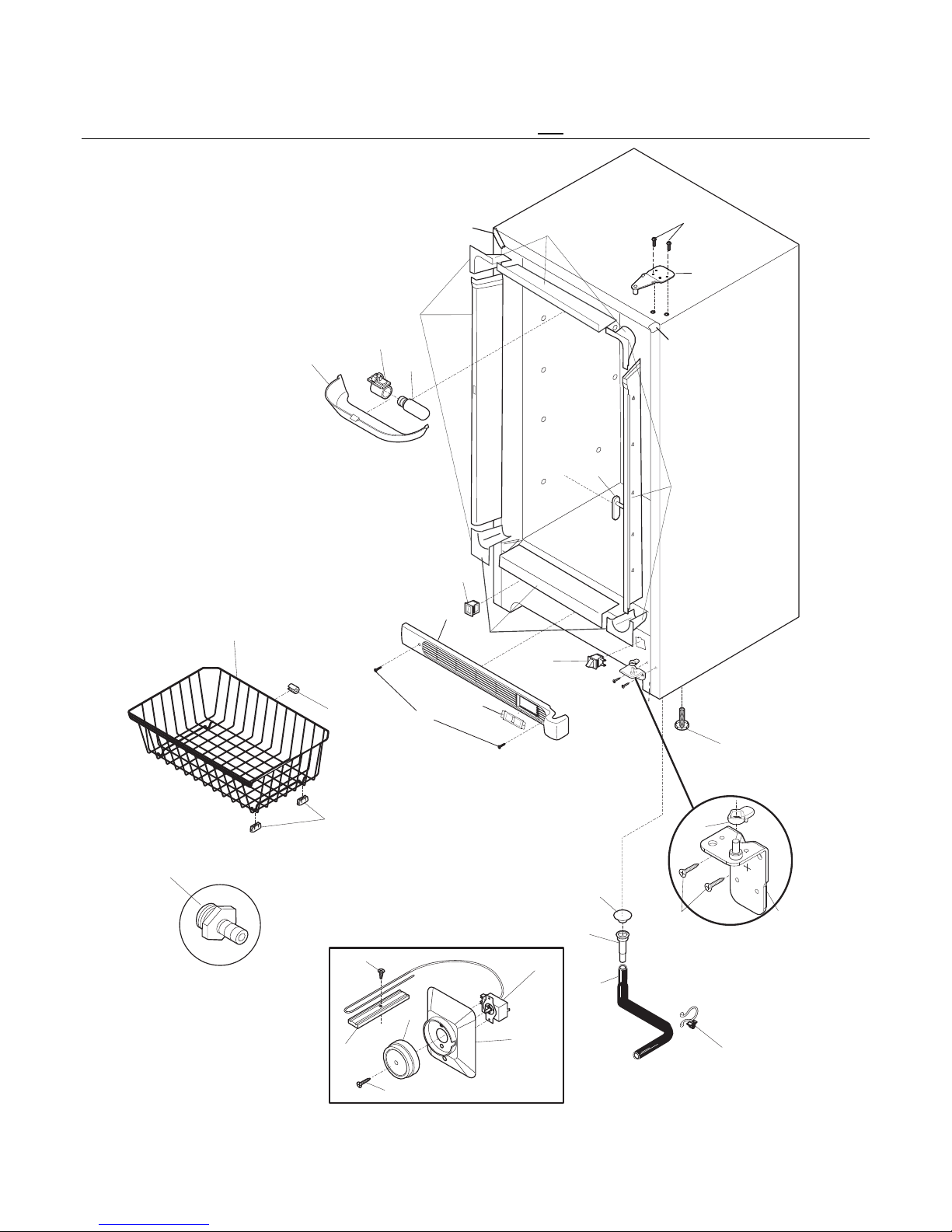

CABINET

CAUTION: Use the Kenmore part number to order part, not the illustration number.

59A

P08C1214

104

34 15

41 28

170

253.28042807

# Functional Parts 5 07/11

* Non-Illustrated Parts

CABINET

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

2 216269500 Adapter, drain hose

3 216502600 Plug, drain, interior

6 297200900 Breaker Kit w/corners

7 297201100 Breaker Kit w/corners, lock catch

9 297200100 Breaker Kit w/corners, 32", top and bottom

14 216822900 Switch, light/lamp, ramp

15 216846400 Light Bulb/Lamp

16 297139501 Socket, light/lamp, 25 W

18 216707200 Knob, temp control

20 297013800 Cover-control housing

21 # 216788100 Control-temperature

22 216823500 Clamp, cap tube, cold control

24 5304460604 Screw, type A, 10-24 x 3/8

26 216503300 Ramp, door closer

28 297283900 Hinge-bottom, stepped pin

29 216313502 Hose-drain

32 5308005500 Drain

34 297184400 Shield-light

35 216273000 Clip, wire retainer

37 297273900 Trim-cabinet corner, white, (2)

38 297283800 Hinge-upper

41 297236250 Screw, hex head, 1/4-20x5/8, hinge, (4)

59 297225400 Basket

59A 216486500 Stop-basket, (2)

63 216396900 Screw, leveling foot, plastic, adjustable

63* 297164650 Bracket, LH leg levelor

63* 297164651 Bracket, RH leg levelor

68 08009560 Glide-basket

69 5305878546 Bumper-basket

72 297036902 Grille/Kickplate, 32", white

86 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

104 216948401 Light, signal, assy w/bracket

104* 216926700 Shield

170 297280400 Valve, breather

* 216795112 Energy Guide

* 297010201 Service Data Sheet

* 297084100 Use & Care Guide

* 5995597829 Repair Parts List

* 5303305324 Paint, touch-up, white

* 297001704 Insulation, 24", drain tube

253.28042807

07/11 6

SYSTEM

CAUTION: Use the Kenmore part number to order part, not the illustration number.

253.28042807

# Functional Parts 7 07/11

* Non-Illustrated Parts

SYSTEM

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

1 # 5300083897 Condenser

3 216847806 Trim-shelf, evaporator

4 216987501 Drier-filter

5 # 297171900 Harness-main, w/light

6 297001600 Support-shelf, front LH

7 297001500 Support-shelf, front RH

11 216474600 Support-rear shelf

12 216225700 Grommet-spacer

13 216138901 Screw, hex sems, 8-18AB x 1.00, evap

27 297293302 Grommet, compressor

29 # 5304463417 Compressor Kit

30 297051001 Controller, compressor

32 216954300 Clip, controller

35 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)

36 # 297286000 Evaporator, tubing assy, white

43B 297315800 Clip, wire

55 216985001 Capacitor-run, 15 MF

86 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA

100# 297169904 Cord-power

* 216502500 Sleeve, suction line

* 240555002 Screw-#8-32 X 3/8

* 297174300 Screw, #8, 18x.63
