Electrolux FER641FS Manuel utilisateur

Product No. FER641FS0

Series Frigidaire

Color white

Volts 240

Wiring Diagram 131850600

Owner's Guide 134671200

Installation Instructions 134296400

Operating Instructions 134145400

P16L0045-Z.eps P16V0099.eps P16D0043.eps P16C0235.eps P16M0024.eps

131850600.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995482378

07/01/16

(EN/SERVICE/WC)

361

ELECTRIC DRYER

Model No.

FER641F

Publication No: 5995482378 FER641FS0

01/07 2

CABINET/DRUM

P16V0099

52A

FER641FS0 Publication No: 5995482378

# Functional Parts 3 01/07

* Non-Illustrated Parts

CABINET/DRUM

POS. NO PART NO. DESCRIPTION

2 131168200 Screw, pan head, 8-18B x 0.31

4 131785200 Bracket, elec power cord, knock out

5 5303281019 Ball, grounding

6 5303281020 Clip, ball, steel, flat nut

9 131793200 Panel, service access, rear

11 5303211428 Cover, terminal block

12 131825900 Bearing, drum support

13 131724300 Bracket, bearing support

14 131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive

15 # 131553900 Heater Assy, w/housing/felt

17 3204254 Baffle, heater shield

18 131477000 Screw, 10-16AB x 0.375

20 131469100 Bracket, hinge, rear, top panel mtg.

21 134122532 Drum, dryer, galvanized stl., service kit

24 131963900 Glide, drum

29 131382300 Screw, quadrex head, 10-14 x 1.00, vane mtg., special

30 5303201200 Vane, straight

32 131777700 Shaft, drum support, ballhitch

32* 5303307893 Lubricant, high temp

33 # 3204267 Thermostat, safety

34 131243700 Screw, pan head, 8-18AB x 0.375

35 131892100 Screw, 6-20B x 0.230

36 # 134120900 Thermal Limiter

42 134154100 Screw, hex washer head, 10-32 x 0.375, ground

44 134158000 Leveling Leg, screw

51 131472100 Insulator, heater housing

52 # 134101400 Terminal Block, main

52A# 3202786 Terminal Block, heater housing

64 131704600 Clip, front, cabinet bottom

* # 5303281153 Rear Bearing Kit, includes 5, 6, 12, 13, 14, 18, 32

Publication No: 5995482378 FER641FS0

01/07 4

FRONT PANEL/LINT FILTER

P16D0043

28 16

58A

FER641FS0 Publication No: 5995482378

# Functional Parts 5 01/07

* Non-Illustrated Parts

FRONT PANEL/LINT FILTER

POS. NO PART NO. DESCRIPTION

1 134417000 Seal, air duct

6 131621900 Duct, air

8 131622202 Cover, lint housing

9 131633200 Plug, white

16 134440100 Clip, U-nut

20 134440200 Seal, felt, upper

20* 5308027429 •Adhesive, high temp

21 134134700 Seal, felt, lower

22 131845912 Panel, front, white, w/lamp hole

22* 131474700 Insulation

25 131658800 Door Catch

26 # 131843101 Switch, door, with drum light

27 131450300 Trap, lint blade assy

28 134440000 Clip, guide

41 134222900 Hinge, dryer door

42 134156200 Screw, flat head, 8-18AB x 0.44, quad drive

44 131129900 Gasket, door seal

46 131644700 Handle, door, white

47 131844104 Panel, inner door, white

48 131789303 Panel, outer door, white

49 5303211430 Door Strike

50 131303300 Screw, pan head, 10-16AB x 0.500, locking

58 # 131843500 Lamp Assy, drum light, w/mtg bracket

58*# 131862800 •Lamp

58A 131744202 Damper, vibration

Publication No: 5995482378 FER641FS0

01/07 6

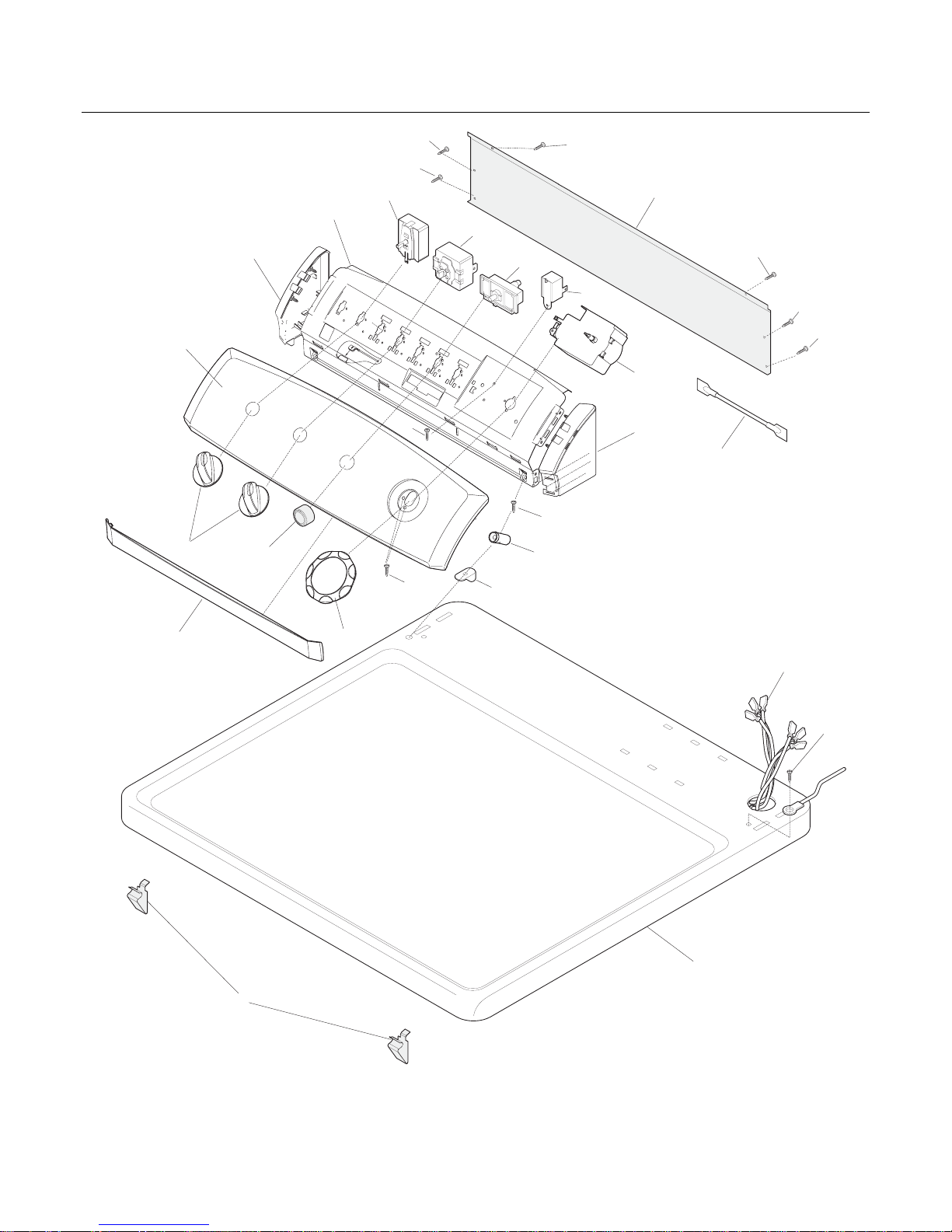

CONTROLS/TOP PANEL

P16C0235

FER641FS0 Publication No: 5995482378

# Functional Parts 7 01/07

* Non-Illustrated Parts

CONTROLS/TOP PANEL

POS. NO PART NO. DESCRIPTION

1 # 131719100 Timer, dryer

2 134096100 Spacer, console mtg

4 134034910 Knob, rotary, white

5 134019900 Closure, console trim, white, front

7 3205821 Clip, top-to-front

9 131992900 Panel, backsheet, console

10 # 131469000 Switch, push/start

14 # 134446800 Resistor, power

15 # 134398500 Switch, temp selector, 4 posn rotary

16 134034300 Screw, pan hd phillips, 8-18B x 0.250

17 131993040 Bracket, control mtg.

18 134842700 Panel, trimplate, white, console front

20 134019610 End Cap, white, LH

21 134035500 Knob, timer, white/gray

22 131266330 Screw, 8-18 x 1.250

23 # 134109900 Wiring Harness

24 131111501 Button, start switch, white, push type

25 5303015671 Screw, hex washer head, 8-18 x 0 .375, cup point

27 131197000 Clip, console mtg

31 134019600 End Cap, white, RH

33 # 131243200 Switch, 2 position

38 # 131629400 Buzzer, mini

38*# 131629600 Wiring Harness, mini buzzer

39 131168200 Screw, pan head, 8-18B x 0.31

45 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive

53 134086802 Panel, dryer top, white, console mtg

56 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point

Publication No: 5995482378 FER641FS0

01/07 8

MOTOR

FER641FS0 Publication No: 5995482378

# Functional Parts 9 01/07

* Non-Illustrated Parts

MOTOR

POS. NO PART NO. DESCRIPTION

4 131435200 Lock, blower housing

7 131451600 Tube, exhaust, rear, w/mtg bracket

7* 131456800 Tube, exhaust, side/bottom, Optional Kit

10 # 131775600 Blower Assy, housing, w/cover & wheel

11 131749800 Spacer, idler

15 # 131298300 Thermostat, temp control

20 131017900 Screw, hex head, 1/4-20T x 1.25, spacer mtg., thread cutting

22 131601000 Spring, idler arm

23 # 131863007 Idler Arm Assy, w/pulley

25 # 134503600 Belt, dryer

27 134242400 Clamp, motor mtg.

28 # 131560100 Motor & Pulley Assy

34 131243700 Screw, pan head, 8-18AB x 0.375

46 134203400 Bracket, motor mtg

47 131633300 Seal, exhaust tube

48 131168200 Screw, pan head, 8-18B x 0.31

52 131202300 Screw, 10-16AB x 0.625

Publication No: 5995482378 FER641FS0

01/07 10

WIRING DIAGRAM
