electrolux 3

Welcome to the world of Electrolux

Thank you for choosing a first class

product from Electrolux, which hopefully

will provide you with lots of pleasure in

the future. The Electrolux ambition is to

offer a wide variety of quality products

that make your life more comfortable.

You will find some examples on the cov-

er in this manual. Please take a few min-

utes to study this manual so that you

can take advantage of the benefits of

your new machine. We promise that it

will provide a superior User Experience

delivering Ease-of-Mind. Good luck!

4electrolux

Contents

Safety 5

Disposal 7

Environmental tips 8

Appliance description 9

Control panel 10

Prior to using for the first time 12

Sorting and preparing laundry 12

Starting up for the first time 13

Iron AidTM - Steam-System 14

Overview of Iron AidTM programmes 16

Starting an Iron AidTM programme 21

Drying 23

Overview of drying programmes 23

Starting a drying programme 27

Cleaning and maintenance 28

What to do if… 36

Technical data 38

Consumption values 38

Installation safety instructions 39

Removing transport safety

equipment 40

Special accessories 41

Guarantee/Customer Service 42

Service 43

he following symbols are used in this user manual:

Important information concerning your personal safety and information on

how to avoid damaging the appliance.

3General information and tips

2Environmental information

safety electrolux 5

Important: Only operate the Iron Aid programmes with distilled water!

Mains water causes damage to the appliance.

Safety

Before first starting up

•Notethe”Installation and con-

nection instructions”

•Important! The appliance must be

moved in vertical position for trans-

port.

• Before first starting up, check the

machine for any damage incurred

during transport. Never connect up a

damaged machine. If parts are dam-

aged, contact your supplier.

Intended use

• The appliance is intended for drying

and iron aid treatment of standard

laundry in domestic applications.

• This appliance is not intended for

use by persons (including children)

with reduced physical, sensory or

mental capabilities, or lack of experi-

ence and knowledge, unless they

have been given supervision or in-

struction concerning use of the ap-

pliance by a person responsible for

their safety.

• Do not dry unwashed items with dry-

ing programmes.

• Conversions or modifications to the

appliance are not permitted.

• When using dry-cleaning sets: Only

use those products which are de-

clared as suitable for the appliance

by the manufacturer.

• Items such as foam rubber (latex

foam) shower caps, waterproof tex-

tiles, rubber backed articles and

clothes or pillows fitted with foam

rubber pads should not be dried in

the appliance.

• Fabric softeners, or similar products,

should be used as specified by the

fabric softener instructions.

• Do not place heavily worn laundry

items in the appliance. Risk of fire!

• Do not place laundry items with

loose fillings (e.g. cushions) in the

appliance. Risk of fire!

• Parts with rigid components (e.g.

door mats) may cover the air holes.

Risk of fire! Do not place such items

in the appliance.

• Do not overfill the appliance. Risk of

fire! Observe max. loading volume of

6 kg.

• Ensure that explosive objects (e.g.

cigarette lighters, spray cans, etc.)

do not enter the appliance with the

laundry. Risk of fire and/or explo-

sion!

• Items that have been soiled with

substances such as cooking oil, ac-

etone, alcohol, petrol, kerosene,

spot removers, turpentine, waxes

and wax removers should be

washed in hot water with an extra

amount of detergent before being

dried in the appliance.

• Clean micro filter and fine filter after

every drying or Iron Aid programme:

• Never operate the appliance without

fluff filters or with damaged or

blocked fluff filters. Risk of fire!

6electrolux safety

• Only fill the water reservoir with dis-

tilled water. Do not use tap water or

any additives! The condensed water

from this appliance’s condensed wa-

ter container can also be used, if it is

filtered first (e. g. with a coffee filter).

• Clean the heat exchanger regularly.

• With stacked washer and Iron Aid

appliance: Do not place objects on

the appliance. These may fall off dur-

ing operation.

• The covering bonnet of the bulb for

the drum light must be screwed

down tightly.

Child safety

• Keep packaging away from children.

There is a risk of suffocation!

• Children often do not recognise the

hazards associated with electrical

appliances. Children should be su-

pervised to ensure that they do not

play with the appliance.

• Make sure that children and small

animals cannot climb into the appli-

ance’s drum. Could endanger life!

Keep the appliance door shut when-

ever it is not being used.

General safety

• Only specialists may undertake re-

pairs on the appliance.

• Never start up the appliance if the

mains cable is damaged or if the op-

erating screen, operating plate or

base area are damaged so that the

inside of the machine is open and

accessible.

• Should the appliance power supply

cable need to be replaced, this must

be carried out by our Service Centre.

• Switch off the appliance before all

cleaning, care or maintenance work.

Also disconnect the mains plug from

the socket or – with permanent con-

nections – switch off the LS switch in

the fuse box and/or fully unscrew the

screwed-in fuse.

• Disconnect the machine from the

power supply during long pauses in

operations.

• When removing from the socket,

never pull the mains plug by the ca-

ble, instead take a hold of the plug.

• Manifold plugs, couplings and exten-

sion cables must not be used. Risk

of fire from overheating!

• The height adjustable screw feet

must never be removed.

• Do not spray down the appliance

with jets of water. Risk of electric

shock!

• Do not lean on the open door. The

appliance may tip over.

• If you interrupt the drying or Iron Aid

programme laundry or drum may be

hot. Risk of burns! Take care when

removing the laundry.

• Take care when interrupting the Iron

Aid programme: Do not open the

door of the appliance during the

evaporation phase: Hot steam can

cause burns. The evaporation phase

is indicated by the animation of the

steam symbol in the display.

• Never stop the appliance before the

end of the drying cycle unless all

items are quickly removed and

spread out so that the heat is dissi-

pated.

• The final part of a drying cycle occurs

without heat (cool down cycle) to en-

sure that the items are left at a tem-

perature that ensures that the items

will not be damaged.

• Caution - hot surface:

Do not touch the surface while the

appliance is running.

disposal electrolux 7

Disposal

Packaging material

The packaging materials are envi-

ronmentally friendly and can be re-

cycled. The plastic components are

identified by markings, e.g. >PE<,

>PS<, etc. Please dispose of the

packaging materials in the appro-

priate container at the community

waste disposal facilities.

Old appliance

The symbol Won the product or on

its packaging indicates that this

product may not be treated as

household waste. Instead it shall be

handed over to the applicable col-

lection point for the recycling of

electrical and electronic equipment.

By ensuring this product is dis-

posed of correctly, you will help pre-

vent potential negative

consequences for the environment

and human health, which could oth-

erwise be caused by inappropriate

waste handling of this product. For

more detailed information about re-

cycling of this product, please con-

tact your local city office, your

household waste disposal service

or the shop where you purchased

the product.

Warning! Remove mains plug from

socket when you have no further

use for the machine. Cut off mains

cable and dispose of together with

plug.

Destroy loading door lock. Children

cannot then lock themselves in the

machine and put their lives at risk.

8electrolux environmental tips

Environmental tips

• During the drying process, laundry

becomes fluffy and soft. Fabric sof-

teners are not therefore needed

when washing.

• Condensed water can be used for

iron aid programmes after beeing fil-

tered.

• Your appliance will function most

economically if you:

– spin the laundry well before drying.

Example: Consumption data – de-

pending on spinning speed – for

6kg of laundry, dried using the

COTTON

CUPBOARD (AL-

GODÓN SECO ARMARIO) pro-

gramme.

– always keep the ventilation slots

on the base of the appliance unob-

structed;

– use the loading volumes specified

in the programme overview;

– ensure you have good ventilation

in the installation room;

– clean the micro-fine filter and fine

strainer after each drying or Iron

Aid cycle;

Pre-draining Drying cycle

Revolutions per minute Residual dampness Energy

in kWh

in litres as a %

800 4.2 70 4.0

1000 3,6 60 3,7

1200 3.2 53 3.3

1400 3.0 50 3.1

1800 2.5 42 2.6

appliance description electrolux 9

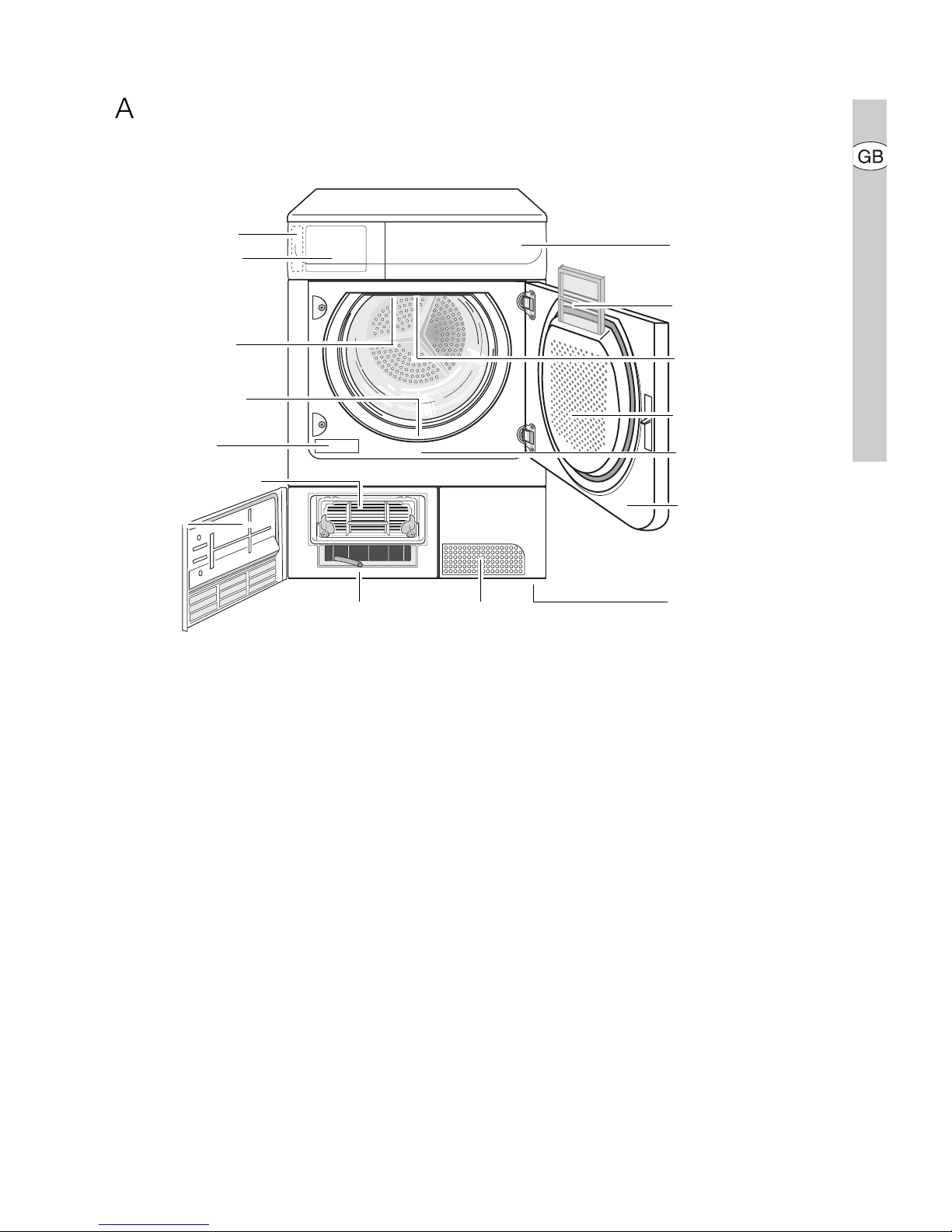

Appliance description

Drawer with

condensed water

container

Screwed feet

(with height adjust-

ment)

Loading door

(interchangeable

stop)

Control panel

Drainage hose

for water tank

Steam nozzle

Type plate

Micro-fine filter

(lint filter)

Fine strainer

(lint filter)

Lamp for inside

light

Large mesh filter

(lint filter)

Filler neck for

water tank

Button for opening

door in plinth

Air slots

Door in

plinth

Heat exchanger

10 electrolux control panel

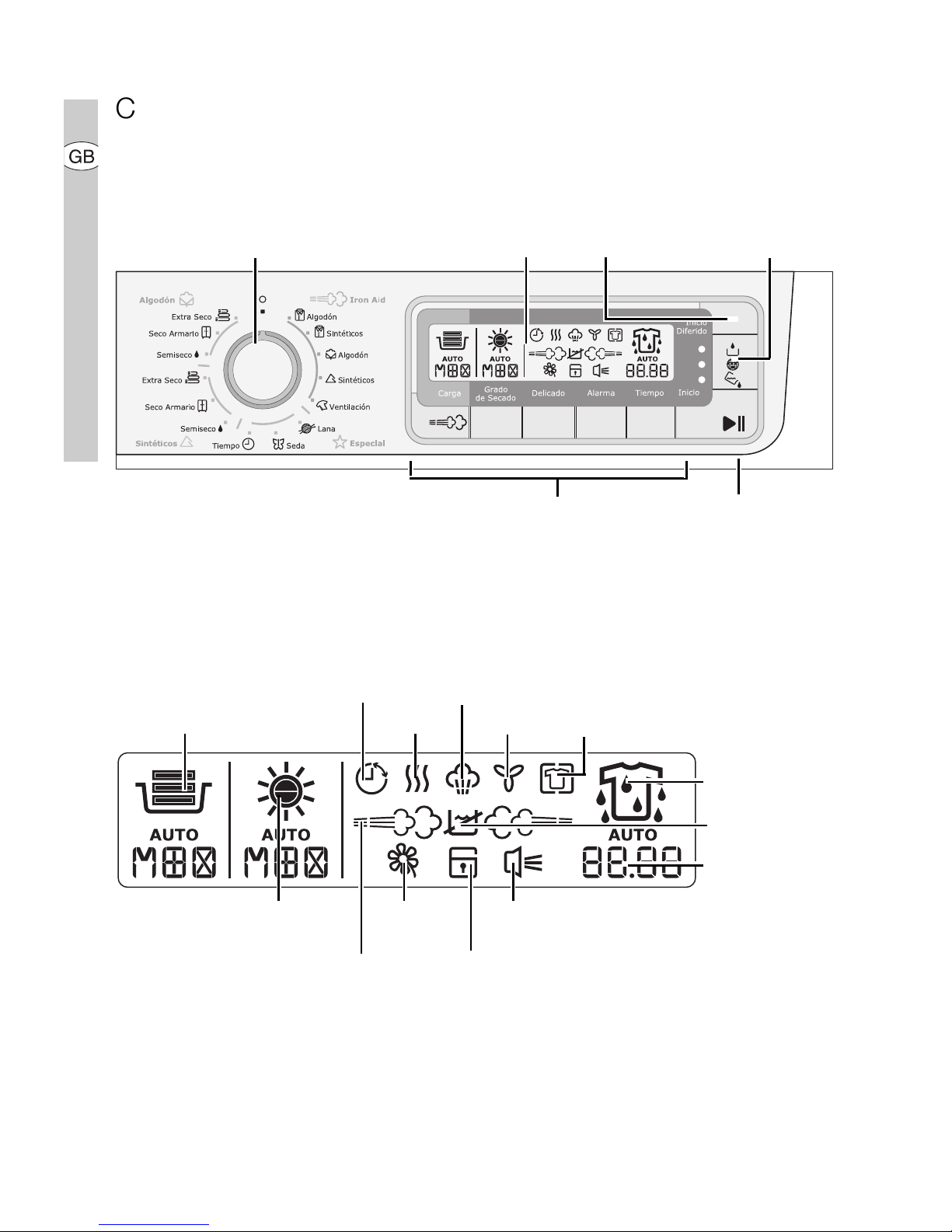

Control panel

What is shown in the display

Programme knob and

On/Off switch Display

Function buttons START/PAUSE-button

Maintenance displays

- HEAT EXCHANGER

- CLEAN FILTER

- CONTAINER

DELAY

TIMER

button

Degree of

dryness

Display

DELICATE

(DELICADO)

LOAD (CARGA)

DRYNESS(GRADO

DE SECADO)

BUZZER

(ALARMA)

Start time

preselection

Child safety device

Anticrease

Drying

Iron Aid

programme

Cooling

Steam display

Water tank

indicator

Start time /

programme

duration

display

Autres manuels pour EDI 96150 W

Table des matières

Autres manuels Electrolux Séchoir

Electrolux

Electrolux EDC 5370 Manuel utilisateur

Electrolux

Electrolux EDH913R9WB Manuel utilisateur

Electrolux

Electrolux EDS854J3WB Manuel utilisateur

Electrolux

Electrolux EW8H2966IR Manuel utilisateur

Electrolux

Electrolux EIED55HIW - 8.0 cu. Ft. Electric Dryer Guide de démarrage rapide

Electrolux

Electrolux EDV805JQSA Manuel utilisateur

Electrolux

Electrolux EDC704GEWA Manuel utilisateur

Electrolux

Electrolux EFMG417SIW0 Manuel utilisateur

Electrolux

Electrolux T5130 Manuel utilisateur

Electrolux

Electrolux EDH903BEWN Manuel utilisateur

Electrolux

Electrolux EIMED60LSS Manuel utilisateur

Electrolux

Electrolux EDE 421 E Manuel utilisateur

Electrolux

Electrolux Compass Pro Feuille d'instructions

Electrolux

Electrolux EDP2074PEW Manuel utilisateur

Electrolux

Electrolux Iron Aid EDI97170W Manuel utilisateur

Electrolux

Electrolux 6000 Manuel utilisateur

Electrolux

Electrolux DC6-14HP Manuel utilisateur

Electrolux

Electrolux EDC 5330 Manuel utilisateur

Electrolux

Electrolux TE1120 Manuel utilisateur

Electrolux

Electrolux GLER642CAS3 Manuel utilisateur

Electrolux

Electrolux EW8H359S Manuel utilisateur

Electrolux

Electrolux EDE1070PDW Manuel utilisateur

Electrolux

Electrolux DC6-14 Manuel utilisateur

Electrolux

Electrolux TK 5357 F Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire

Bosch

Bosch WTX8HKM9SN Manuel utilisateur
