Electrolux DC6-4 Manuel utilisateur

Installation manual

Drying Cabinet

DC6-4

Original instructions

427001179/EN

2022.02.10

Contents

1 Safety Precautions ..............................................................................................................................5

1.1 General safety information..........................................................................................................5

1.2 Symbols....................................................................................................................................5

2 Technical data.....................................................................................................................................6

3 Installation kit......................................................................................................................................7

4 Installation ..........................................................................................................................................8

4.1 Unpacking.................................................................................................................................8

4.2 Recycling instruction for packaging .............................................................................................9

4.3 Placement.................................................................................................................................9

4.4 Mechanical installation .............................................................................................................10

5 Evacuation system ............................................................................................................................ 11

5.1 Fresh air.................................................................................................................................. 11

5.2 Evacuation connection ............................................................................................................. 11

5.2.1 Draft stabilizer................................................................................................................12

5.2.2 Permanently installed and connected to the ventilation duct...............................................13

6 Reversing the door ............................................................................................................................15

7 Electrical connection..........................................................................................................................19

8 Function check..................................................................................................................................20

9 Disposal information..........................................................................................................................21

9.1 Disposal of appliance at end of life ............................................................................................21

9.2 Disposal of packing..................................................................................................................21

The manufacturer reserves the right to make changes to design and component specifications.

Installation manual 5

1 Safety Precautions

This appliance can be used in public areas.

Remove all objects from pockets such as lighters and matches.

WARNING. This appliance is intended only for drying textiles washed in water.

DO NOT MODIFY THIS APPLIANCE.

Servicing shall be carried out only by authorized personnel.

Only authorized spare parts shall be used.

When performing service or replacing parts, the power must be disconnected.

A-weighted emission sound pressure level at workstations: <70 dB

Additional requirements for the following countries: AT, BE, BG, HR, CY, CZ, DK, EE, FI,

FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH, TR,

UK:

• This appliance can be used in public areas.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory

or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction con-

cerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the

appliance. Cleaning and user maintenance shall not be made by children without supervision.

Additional requirements for other countries:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental ca-

pabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do

not play with the appliance.

1.1 General safety information

Do not hose down the machine with water.

In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma-

chine should be placed in room temperature for 24 hours before being used for the first time.

1.2 Symbols

Caution

Caution, hot surface

Read the instructions before using the machine.

Be careful. The drying cabinet is top heavy and can tip over easily.

6Installation manual

2 Technical data

C D

fig.W01253

1 Control panel

2 Air outlet* ⌀100 mm

A B C D E F G H I J K

mm 595 606 1901 1915 15 60 255 1089 300 100 850

* Connected with supplied draft stabilizer and hose.

Net weight: 56 kg.

Installation manual 7

3 Installation kit

A x1

B x1

C x1

D x2

E x4

F x1

G x2

H x2

J x4

K x1

fig.W01507

A Draft stabilizer

B Hose

C Spigot

D Fixing screw for spigot

E Cover plug for adjustable feet

F Allen key

G Screw TRX 5x70 zinc-plated

H Washer N8 5x25

J Wall plug

K Spacer 8.2x12x15

8Installation manual

4 Installation

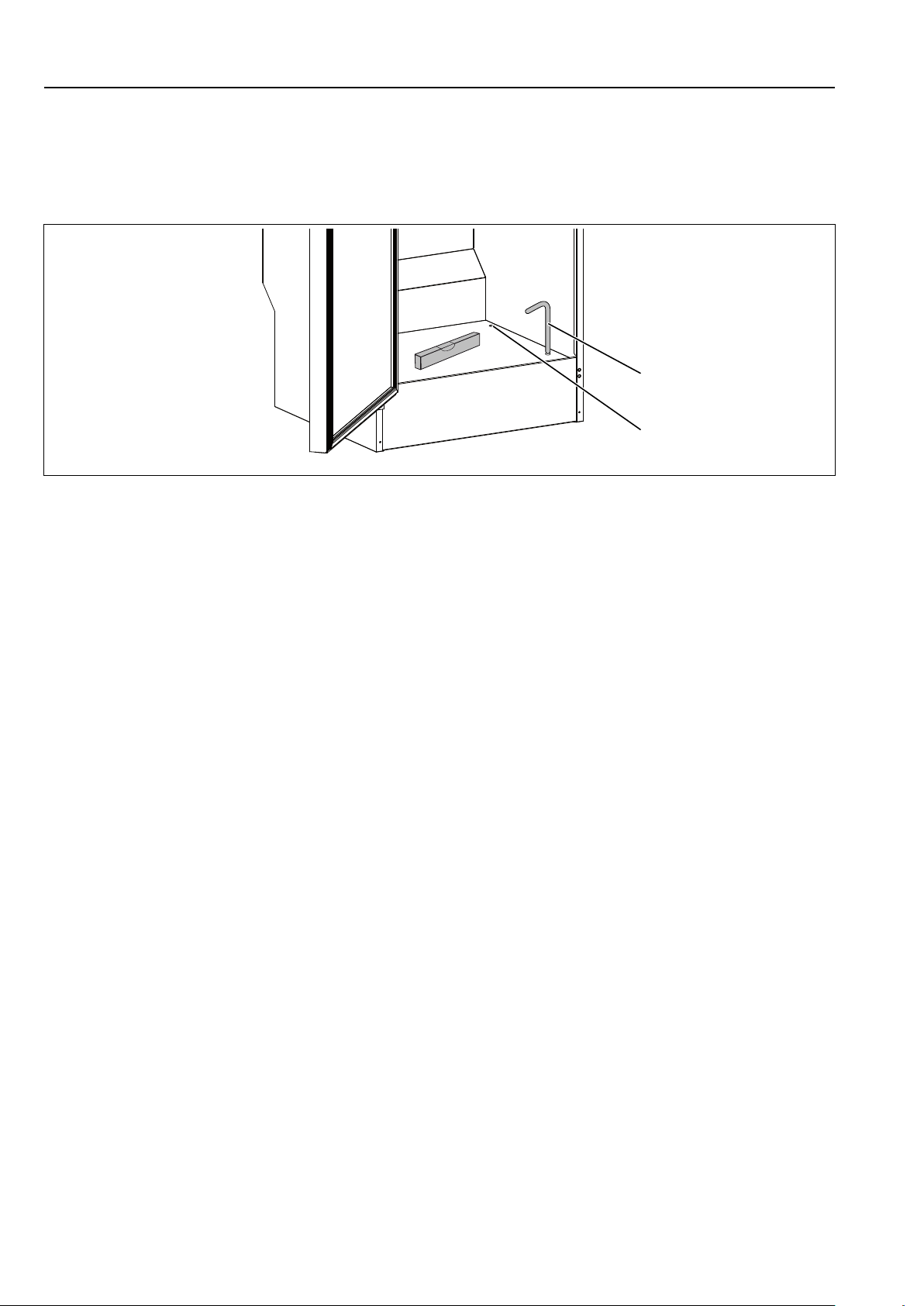

Place the drying cabinet on its final position.

Level the drying cabinet with the adjustable feet. Use the supplied Allen key (A) and adjust all four of the feet through

the holes in the base plate of the drying cabinet. Once the drying cabinet is level, press the four cover plugs (B) down

firmly into the holes.

fig.W01508

4.1 Unpacking

Unpack the drying cabinet and check that it has not been damaged in transit. Any damage to the drying cabinet and/

or the packaging must be reported within 7 days.

Installation manual 9

4.2 Recycling instruction for packaging

fig.X02425

Fig. Description Code Type

1 Wrapping film LDPE 4 Plastics

2 Cardboard packaging top PAP 20 Paper

3 Wooden bars FOR 50 Wood

4 Protection film LDPE 4 Plastics

5Cardboard side protection PAP 20 Paper

6 Wooden bars FOR 50 Wood

7Support bar PS 6 Plastics

8 Corner protection PS 6 Plastics

9 Undercarriage protection PS 6 Plastics

10 Pallet FOR 50 Wood

11 Plastic bag LDPE 4 Plastics

4.3 Placement

The drying cabinet should be positioned so that there is plenty of room for working, both for the user and service

personnel.

10 Installation manual

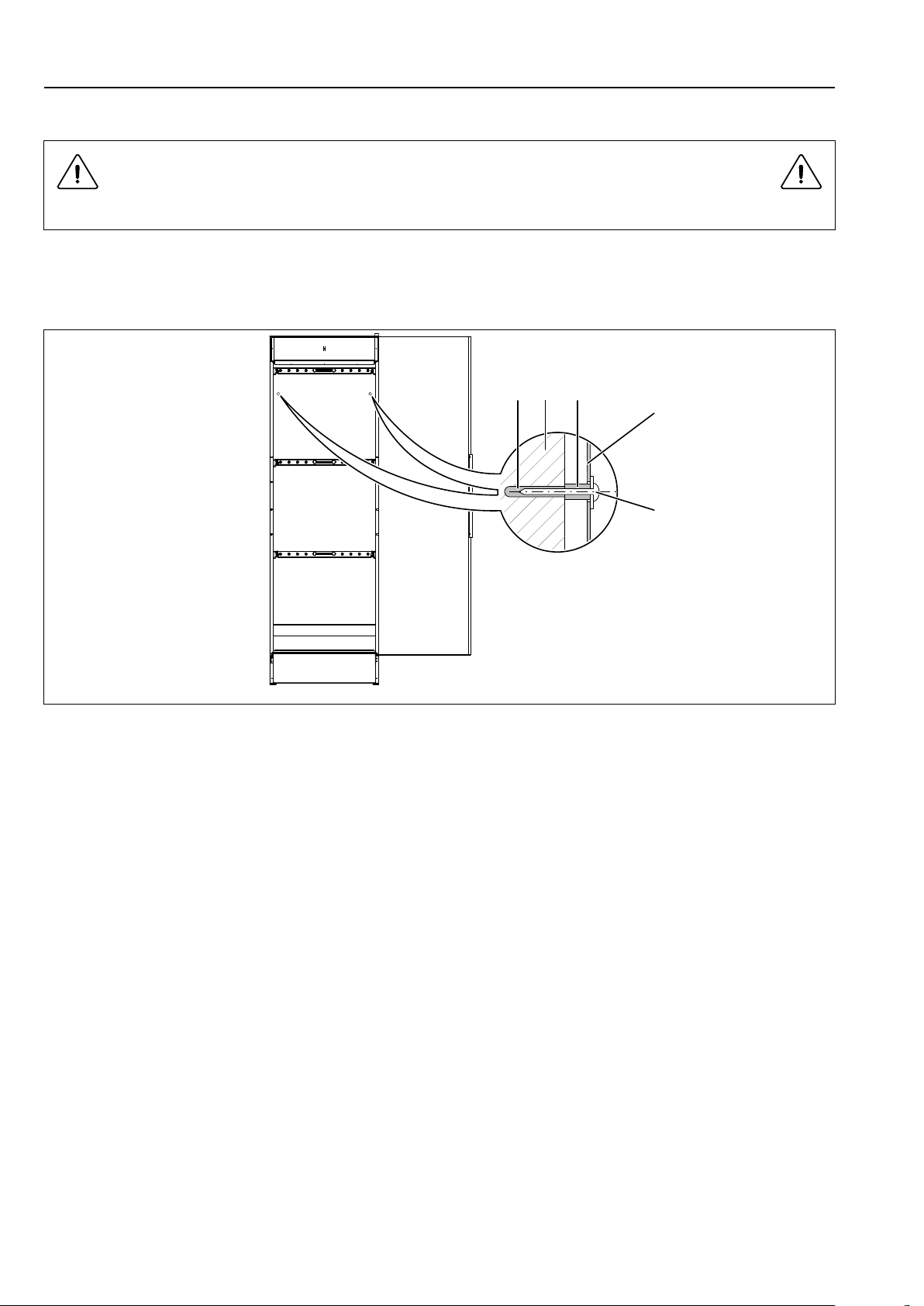

4.4 Mechanical installation

The drying cabinet must be secured to the wall to prevent it from tipping over. (Kit for this included upon delivery.)

Once the drying cabinet is in its final position, open the door and slide out the upper hanger section.

Drill 8 mm holes in the wall through the two predrilled holes in the rear of the drying cabinet (F).

Insert the plastic plugs (C) into the holes in the wall (D). Place a spacer (E) on the screw (G) and install with a washer

as shown in the figure.

C D E

fig.W01509
