SERVICE MANUAL

Muggenhofer Straße 135

D-904 9 Nürnberg

Germany

Fax +49 (0)911 3 3 14 0

TSE - N

Publ.-Nr.:

599 50 78 52

685

05.00

Edition:

Dishwasher

GS 24 CH

DISHWASHER

- 2 -

TSE-N 05.00 A. B. 599 50 78 5 EN

Contents

1. Survey of electronics used in this series ...........................................................3

Comfort level L3 / Li.3........................................................................................3

Comfort level GL.3 / Gli.3 .................................................................................. 3

Comfort level SL.3 / Sli.3 ...................................................................................4

2. Mechanical Construction ...................................................................................4

3. Comparison with front sides of W 23 generation............................................5

Comfort levels L.1 / Li.1 / GSA.2 / GSIA.2 .........................................................5

Comfort levels GL.1 / Gli.1 / GSB.2 / GSIB.2.....................................................5

Comfort levels SL.1 / Sli.1 / GSG.2 / GSIG.2.....................................................5

4. Construction (technical) and new functions ......................................................6

2- and 5-key electronic ......................................................................................6

Function of touch-sensitive field? ......................................................................6

8-sensor electronic ...........................................................................................6

5. Error codes .......................................................................................................7

Comfort level L.3 / Li.3.......................................................................................7

Comfort level GL.3 / Gli.3 .................................................................................. 7

Comfort level SL.3 / Sli.3 ...................................................................................7 - 8

6. Test routine carousel......................................................................................... 9

Sequence test routine carousel......................................................................... 9

7. Test routine computer .....................................................................................10 - 17

- 3 -

TSE-N 05.00 A. B. 599 50 78 5 EN

normal

intensive

short

rinse

ECO

normal

intensive

short

rinse

ECO

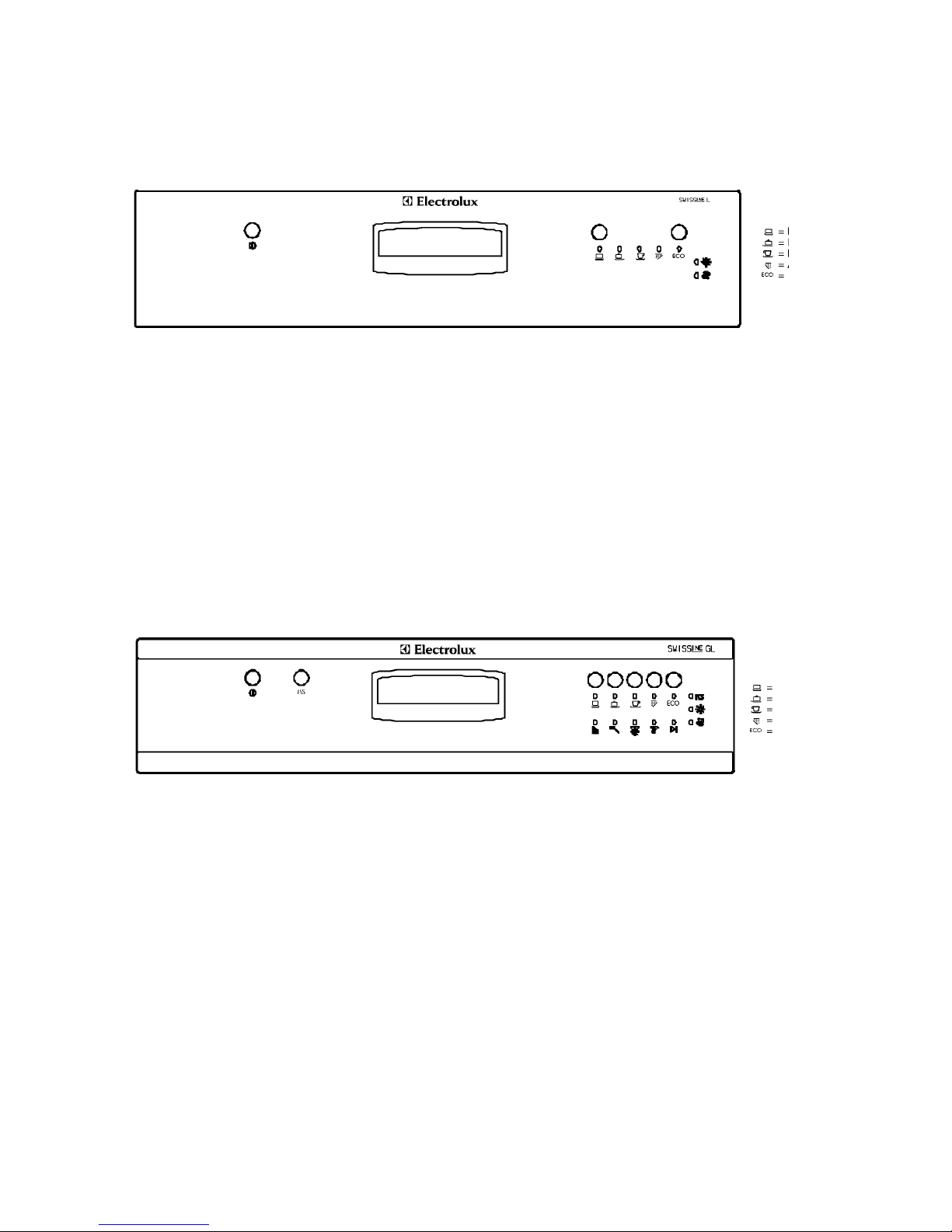

1. Survey of Electronics Used in this Series

Comfort level L.3 / Li.3

2-keys electronic / no. 153 0259-08/2

Internal name: TES 502 / 153 0964 00

2 red LE s (salt and rinse-aid)

5 green LE s for all cycles and ECO

no indication of program status

4 programs: NORMAL / INTENSIVE / SHORT / PRE-WASH

1 additional function: ECO

2 integrated test routines

Comfort level L.3 / li.3

5-keys electronic / no. 153 0259-05/8

Internal name: TES 401 / 153 0842 00

2 red LE s (salt and rinse-aid)

6 green LE s for all cycles, ECO and HALF LOA

5 yellow LE s as indication of program status

4 programs: NORMAL / INTENSIVE / SHORTt / PRE-WASH

2 additional functions: ECO / half load

2 integrated test routines

- 4 -

TSE-N 05.00 A. B. 599 50 78 5 EN

start delay

glass

normal

intensive

short

rinse

ECO

half load

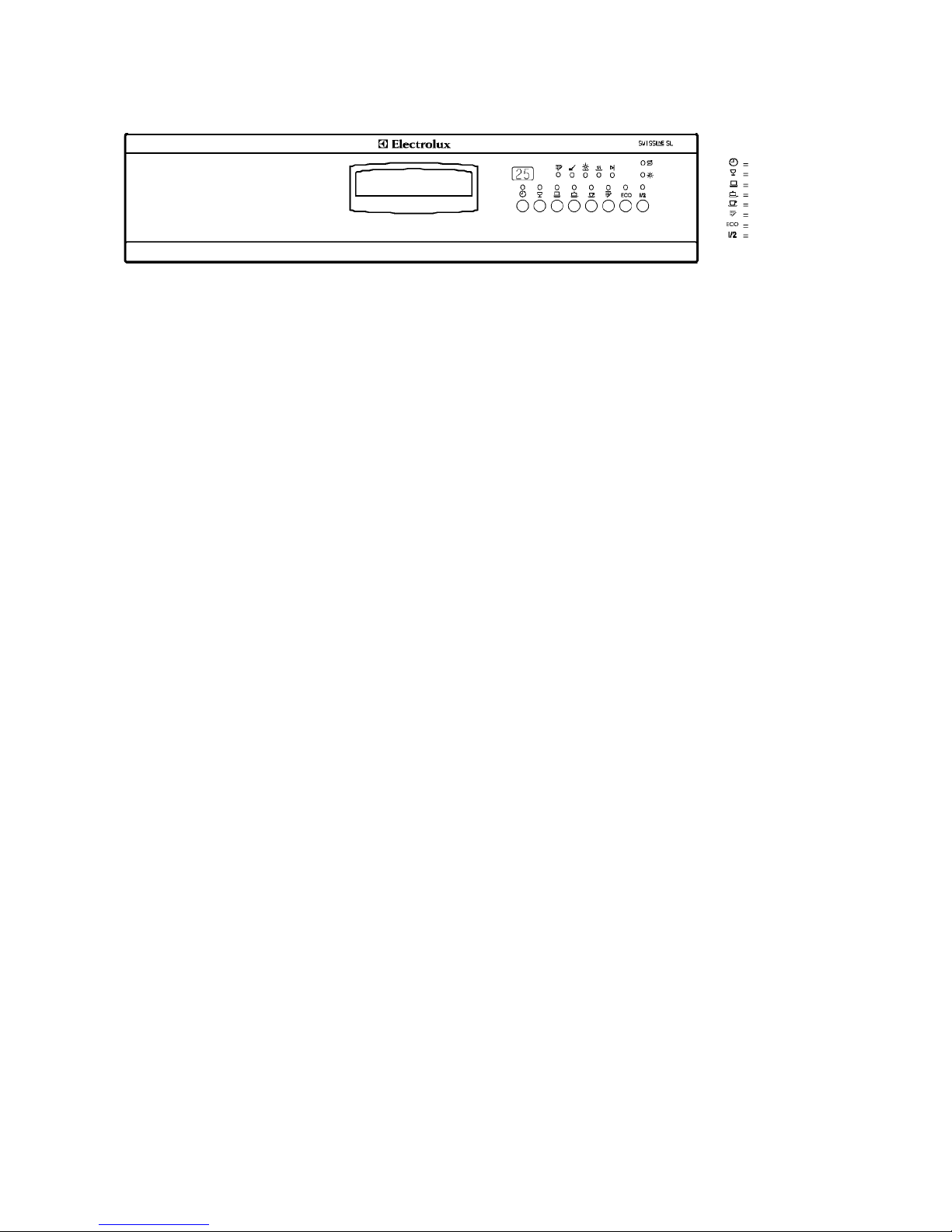

Comfort level SL.3 / Sli.3

8-sensors electronic / no. 153 0259-09/0

Internal name: TES 505 / 153 0894 00

2 red LE s (salt and rinse-aid)

8 green LE s for all cycles, ECO, stop and timer

5 yellow LE s as indication of program status

2 7-segment displays for start delay and remaining wash time

5 programs: GLASS / NORMAL / INTENSIVE / SHORT / PRE-WASH

3 additional functions: ECO / half load / start delay

2 integrated test routines

Important note

All electronics supplied under W 24 have already been equipped with the latest software version F. This

was introduced to avoid that the same wash cycles under series W 23 and W 24 show different

indices.

2. Mechanical Construction

Lowest comfort level:

Support panel made of plastic, design panel of steel, lacquered or stainless steel.

The design panel is interlocked with the support panel.

Medium comfort level:

Support panel made of plastic, design panel of glass, ornamental stripes of steel, lacquered or

stainless steel, ornamental rings surrounding all keys.

All components are glued with each other, the ornamental rings are snapped into the glass.

Highest comfort level:

Support panel made of plastic, design panel with sensor electronic on the back side made of glass,

ornamental stripes of steel, lacquered or stainless steel.

All components are glued with each other.

- 5 -

TSE-N 05.00 A. B. 599 50 78 5 EN

1 = normal

2 = intensive

3 = short

4 = rinse

1 = normal

2 = intensive

3 = short

4 = rinse

5 = ECO

1 = glass

2 = normal

3 = intensive

4 = short

5 = rinse

6 = ECO

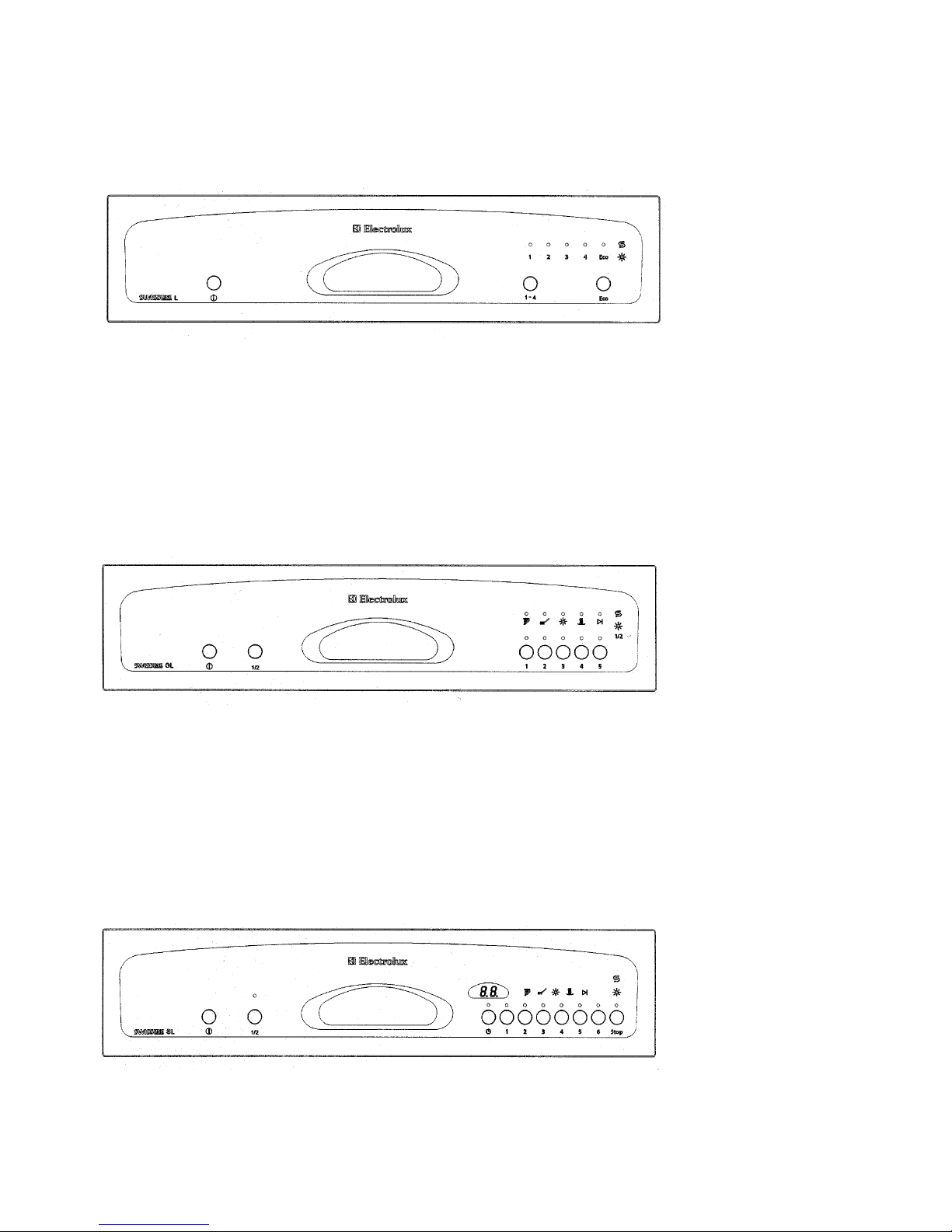

3. Comparison with Front Sides of D 23 Generation

Comfort levels L.1 / Li.1 / SA.2 / SIA.2

2-keys electronic / no. 153 0259-04/1

Comfort levels Sl.1 / Sli.1 / S .2 / SI .2

8-keys electronic / no. 153 0259-06/6

Comfort levels L.1 / li.1 / SB.2 / SIB.2

5-keys electronic / no. 153 0259-05/8

- 6 -

TSE-N 05.00 A. B. 599 50 78 5 EN

2- and 5-keys electronic

- Electronic derived from the W 23 series

- All keys / switches can be operated from the

front

- Snapped-in housing

- One-board solution in SM technology

- Light guides between LE display and

housing upper side, snapped in the housing

from the front

- Mechanical rams, integrated in the housing

lid, to submit the input orders

- Key caps pushed on new standard rubber

keyboard

- High-impedance signal inputs

- Electrical network inputs secured by V R

- All loads selected by TRIAC

- Pump capacity limited to 120VA by fixed

phase angle (half load and AAA)

- Temperature range 0 to 60 °C

- Moisture range 35 to 85 rel%

8-sensors electronic

- erived from the 8- and 7-keys electronic of

the W 23 series

- Main switch can be operated from the top in

the panel

- Snapped-in housing

- Two-board solution in conventional

technology (wired elements)

- LE directly through the housing surface

- Touch-sensitive fields with ground-in finger

guidance in the glass

- High-impedance signal inputs

- Electrical network inputs secured by V R

- All loads selected by TRIAC

- Pump capacity limited to 120VA by fixed

phase angle (half load and AAA)

- Temperature range 0 to 60 °C

- Moisture range 35 to 85 rel%

4. Construction (Technical) and New Functions

Function of Touch-Sensitive Field

With the 8-sensors electronic, a second electronic which is glued on the reverse side of the glass takes

on the function of the mechanical keys. Any touch-sensitive field produces a fine, very close-restricted

and constant electrical field. By approaching with a finger (or with a corresponding object) the field is

reduced. This reduction is recognized by the sensor electronic and interpreted correspondingly.The

connection between the sensor and the existing electronic is mady by a 10-poles low-voltage cable within

the panel.

The sensor electronic is set up very simply and insensitive to faults from the outside, but in case of a fault

it can be exchanged only together with the panel because it is glued

For the survey we talk in the following only about keys, even though the sensors are meant with the

highest comfort level.

The functions half load and normal + ECO (AAA) have been taken over without any changes from the

existing W 23 series as well as the existing test routines.

- 7 -

TSE-N 05.00 A. B. 599 50 78 5 EN

5. Error Codes

The electronic is able to detect and represent possible errors independently. Corresponding error

displays will flash at least twice as fast as with the normal entry.

Comfort level L.3 / Li.3

2-keys electronic / no. 153 0259-08/2

One of the green program LE s flashes fast according to the list. A total of 5 errors is displayed.

Comfort level L.3 / li.3

5-keys electronic / no. 153 0259-05/8

The yellow LE END flashes together with one of the green program LE s according to the list. A

total of 5 errors is displayed.

Comfort level SL.3 / Sli.3

8-keys electronic / no. 153 0259-09/0

A letter appears in the display and the yellow LE END flashes together with one of the green pro-

gram LE s according to the list. A total of 6 errors is displayed.

Code A and/or LE END and/or NORMAL is/are flashing:

- Maximum filling time of 105 sec exceeded, before the working level has been reached.

Possible errors: tap closed

inlet valve without function or clogged

level switch faulty (interruption)

Code C and/or LE END and/or INTENSIVE is/are flashing:

- Maximum drain time of 120 sec (20 sec in level 2) exceeded, without that the reset level has

been reached.

Possible errors: drain pump faulty / jammed

drain hose or sieve clogged

level switch faulty (short circuit)

- 8 -

TSE-N 05.00 A. B. 599 50 78 5 EN

Code E and/or LE END and/or SHORT is/are flashing:

- Maximum refilling time of 45 sec or maximum allowed number of 3 refillings exceeded.

Possible errors: inlet hose allows too less water,

sieve clogged

water pressure too low, water tap or

regenerating dosage (inlet bow) calcified

appliance is losing water

Code H and/or LE END and/or RINSE is/are flashing:

- Maximum heating time of 45 min exceeded without reaching the working temperature.

Possible errors: heating defective

heating relais without function

80°C thermostat switches too early or

irregularly

Code L and/or LE END and/or ECO is/are flashing:

- Short circuit or interruption with the NTC temperature sensor.

Possible errors: NTC temperature sensor faulty

connection dropped off

Code E2 (appears only on the 8-keys electronic for 2 sec after actuating the main switch):

- Appliance will lose saved values in case of a power failure or when pressing the mains

switch.

Error: E2PROM in electronic is faulty.

This error has no influence on the function of the dishwasher.

Note:

Both old error messages P and U are no longer considered in these controls. P (short circuit level

switch) was newly integrated in message C.

U (pump/cond interruption or short circuit) is dropped as a power monitoring is not possible because of

the phase-angle control.

- 9 -

TSE-N 05.00 A. B. 599 50 78 5 EN

6. Test Routine Carousel

Application: This test routine was developed for the test carousel in the factory. Only the

components inlet valve, recirculation pump, heating and drain pump are selected.

Start: switch off the main switch

close the door

For the following controls, these key combinations are valid:

press and keep pressed

2 keys / no. 153 0259-08/2: ECO (LE ECO and RINSE)

5 keys / no. 153 0259-05/8: ECO and RINSE together

8 keys / no. 153 0259-09/0: HALF LOAD and ECO together

switch on the main switch

keep the key(s) pressed for at least 5 sec (corresponding LE s flashing during

this time)

The display shows the lower circle of digit 8 and/or the corresponding LE s will

flash permanently

the program starts

Stop (main switch): If the program is stopped by the main switch it is possible to select a wash pro-

gram immediately after switching on again.

If the test routine is started anew after this stop  as described under start  the

program goes directly into step 5 and first pumps the water from the tub

(corresponding LEDs flashing at the end).

Now the test routine can be started anew  as described under start.

Sequence: See enclosed flowchart.

6.1 Sequence Test Routine Carousel

67(3

'XUDWLRQ

$OO/('VRQ

),//,1*

'5$,1

&,5&8/$7,21

+($7,1*OHYHO

'HWHUJHQW ULQVHDLG

5(*(1(5$7,21

$FWLRQ

13sec Check whether all LEDs

are functioning

2 75 sec Fixed filling time of 75 sec

3 Open If level 1 switches on,

heating until water

temperature has reached

60°C,

otherwise circulation only

for 120 sec (without

heating)

4 20 sec Pause, LEDs are flashing

5 45 sec Fixed drain time, DW is

drained

- 10 -

TSE-N 05.00 A. B. 599 50 78 5 EN

7. Test Routine Computer

Application: This test routine was developed for the test stand in the factory and can

also be used in the field (advantageously together with a transparent

door). All electrical components in the appliance are selected.

Start: switch off the main switch

close the door

For the following controls, these key combinations are valid:

press and keep pressed

2 keys / no. 153 0259-08/2: program selection (LE s ECO and INTENSIVE)

5 keys / no. 153 0259-05/8: ECO and INTENSIVE

8 keys / no. 153 0259-09/0: HALF LOAD and SHORT together

switch on the main switch

keep the key(s) pressed for at least 5 sec (corresponding LE s flashing during

this time)

The display shows the lower circle of digit 8 and/or the corresponding LE s will

flash permanently

Stop (main switch): If the program is stopped by the main switch it is possible to select a wash pro-

gram immediately after switching on again.

If the test routine is started anew after this stop  as described under start  the

cycle goes directly into step and first pumps the water from the tub

(corresponding LED flashing at the end).

Now the test routine can be started anew  as described under start.

Sequence: See enclosed flowchart.

Autres manuels pour GS 24 CH

Table des matières

Autres manuels Electrolux Lave-vaisselle

Electrolux

Electrolux ESF4510LOW Manuel utilisateur

Electrolux

Electrolux ESI 65010 Manuel utilisateur

Electrolux

Electrolux ESL 7220RO Manuel utilisateur

Electrolux

Electrolux GA60SLVS Manuel utilisateur

Electrolux

Electrolux EESB7310L Manuel utilisateur

Electrolux

Electrolux ESL64010 Manuel utilisateur

Electrolux

Electrolux ESI 6104 Manuel utilisateur

Electrolux

Electrolux EES69310L Manuel utilisateur

Electrolux

Electrolux EDW 1500 - 1510 Manuel utilisateur

Electrolux

Electrolux Dishwasher ESL 46510 Manuel utilisateur

Electrolux

Electrolux 727035 Manuel utilisateur

Electrolux

Electrolux EI24ID50Q Manuel utilisateur

Electrolux

Electrolux Energy Star WT65H208DU Manuel utilisateur

Electrolux

Electrolux ESL 4126 Manuel utilisateur

Electrolux

Electrolux ESF65050 Manuel utilisateur

Electrolux

Electrolux EWDW6505GS - Dishwasher With 9 Wash Cycles Guide de l'utilisateur

Electrolux

Electrolux DIVA Manuel utilisateur

Electrolux

Electrolux 503025 Manuel utilisateur

Electrolux

Electrolux ESF6210LOK Manuel utilisateur

Electrolux

Electrolux 24 Manuel utilisateur

Electrolux

Electrolux FAVORIT 50871 Manuel utilisateur

Electrolux

Electrolux ESI 602 Manuel utilisateur

Electrolux

Electrolux ESF 6130 Manuel utilisateur

Electrolux

Electrolux ESF8540ROX Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur

Siemens

Siemens SN 56N591 Manuel utilisateur
