The control panel

Description of the appliance

1. Water hardness adjustment

2. Levelling spacers

3. Upper basket stop

4. Salt container

5. Lower spray arm

6. Detergent dispenser

7. Control panel

8. Rating plate

9. Rinse aid dispenser

10. Large filter

11. Central filter

12. Upper spray arm

13. Upper basket

IN85

1. ON/OFF push button

2. 50° programme push button

3. Programme guide

4. Programme marker

5. Programme selector dial

Washing programmes

Programme Degree of soil

and

type of load

Require

push button

Starting

position of the

programme

selector

Recommended quantity

of detergent

Wash Prewash

Normal soil

Crockery and cutlery

Normal soil

Crockery and cutlery

Light soil

Crockery and cutlery

Light soil

Crockery and cutlery

Light soil

Crockery and party

crockery

Any.

Partial load (to be

completed later in

the day).

Cycle description

Normal 65°c

with prewash

Normal 65°c

no prewash

*Bio 50°c

with prewash

Bio 50°c

no prewash

** Quick wash

50°c

Rinse & Hold

Cold prewash

Main wash up to 65°C

1 cold rinse

1 hot rinse

Drying

Cold prewash

Main wash up to 50°C

1 cold rinse

1 hot rinse

Drying

Main wash up to 65°C

1 cold rinse

1 hot rinse

Drying

Main wash up to 50°C

1 cold rinse

1 hot rinse

Drying

Main wash up to 50°C

1 cold rinse

1 hot rinse

1 cold rinse (to avoid

food scraps from

sticking together).

*Testing programme for EN 50242 (see "Hints for Test Centres").

** This is a special programme for quick washing a full load of lightly soiled dishes, glasses and crockery (except pots) so

that you may re-use them promptly.

25 g 5 g

30 g /

/ /

On/Off

50°

On/Off

50°

On/Off

50°

On/Off

1. Check the filters

Ensure they are clean and properly positioned

(see "Maintenance and cleaning").

2. Check that there is rinse aid and

salt

3. Load the dishes

Remove any scraps of food.

Pull the lower basket out and arrange the

saucepans, plates and cutlery in it.

Pull the upper basket out and arrange the plates,

saucers, glasses and cups etc.in it.

Slide the baskets back into the machine.

4. Ensure that the spray arms can

rotate freely.

5. Measure out detergent

Add the required amount of detergent into the

dispenser according to the "Washing programmes"

chart.

Close the detergent dispenser lid.

6. Set the programme

The selection of the programme occurs with the door

partially opened.

Turn the programme selector dial clockwise until the

letter of the programme you wish to select

corresponds with the programme marker on the

control panel.

If necessary select the temperature of the main

wash according to the instructions in the "Washing

programmes" chart (see "Required push buttons").

7. Start the programme

Depress the On/Off push button and close the door,

the machine will start.

8. At the end of the washing

programme

At the end of the programme the dishwasher will

automatically stop.

9. Switch off the dishwasher

Open the door and switch off the dishwasher by

pressing the On/Off push button.

Wait a few minutes before removing the dishes; in

this way they will be cooler and the drying will be

improved.

Empty the lower basket first and then the upper one;

this will avoid water dripping from the upper basket

onto the dishes in the lower one.

When the washing programme has finished, it

is recommended that the dishwasher is

unplugged and the water tap turned off.

In general it is not advisable to open the door

while the machine is working; if the door is

opened however, a safety device ensures that

the machine stops.

Important!

Care must be taken if the door is opened during

the hot phase or immediately after a

programme has finished, as steam may escape.

Operating sequence

Loading your appliance

Before placing dishes in the machine, remove any scraps of

food, to avoid clogging the filters and consequently reducing

the performance.

Do not load very small items which can fall

through the baskets.

The lower basket

The lower basket is designed to take saucepans, lids, plates,

salad bowls, cutlery etc.

Serving dishes and large lids should be arranged around the

edge of the basket, ensuring that the upper spray arm can

turn freely.

The cutlery basket

Long bladed knives stored in an upright position

are a potential hazard.

Long and/or sharp items of cutlery such as

carving knives must be positioned horizontally in

the upper basket.

Take care when loading or unloading sharp items

such as knives.

Cutlery should be placed in the removable cutlery basket

with the handles facing downwards.

If the handles protrude from the bottom of the basket,

obstructing the lower spray arm, load the cutlery with the

handles facing upwards.

Mix spoons with other cutlery to prevent them from sticking

together.

For best results we recommend to use the cutlery grid

provided (if the size and dimensions of the cutlery allow it).

Using your appliance

UI49

UI19

UI04

UI71

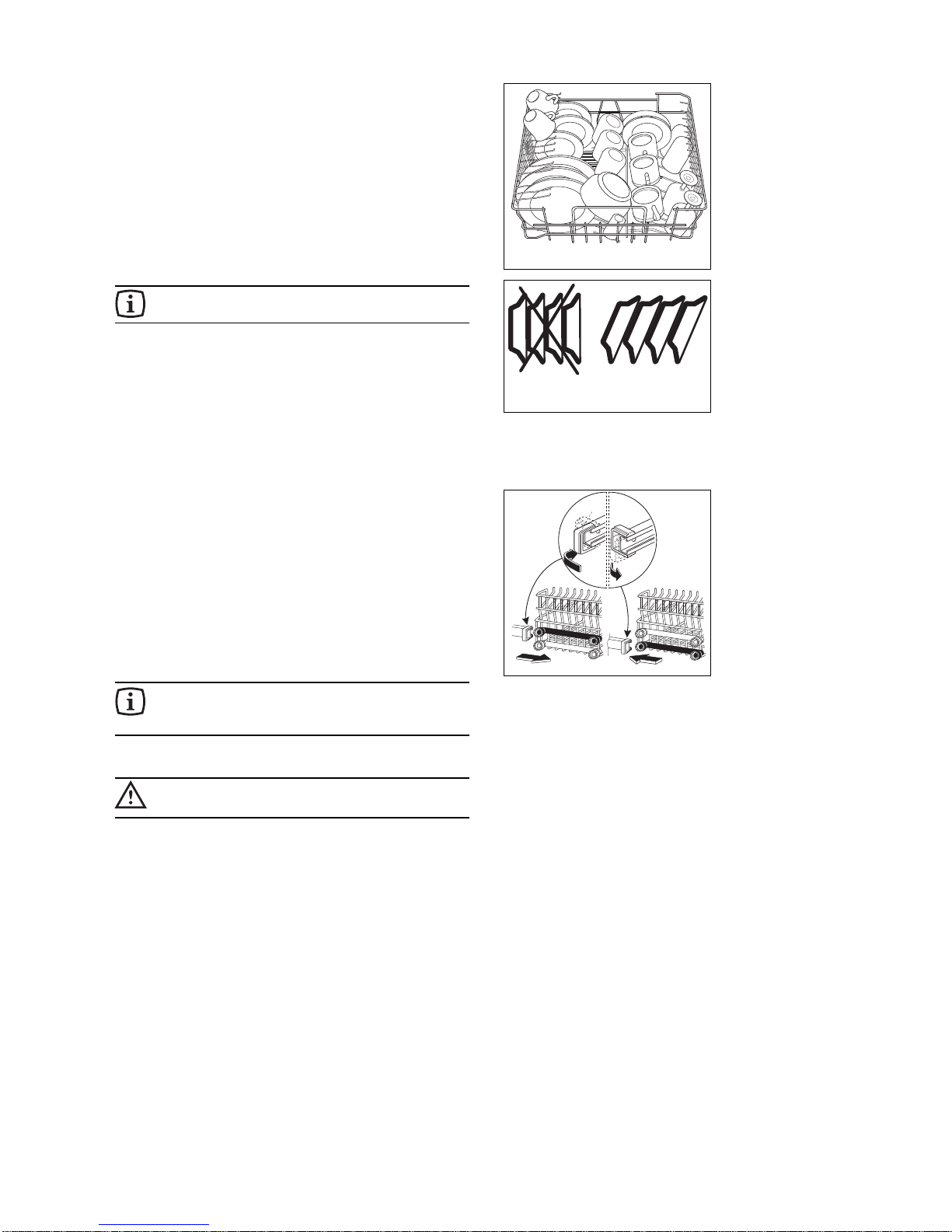

The upper basket

The upper basket is designed for plates (dessert plates,

saucers, dinner plates of up to 24 cm in diameter), salad

bowls, cups and glasses.

If dishes are loaded in the upper basket, tilt them forwards.

Arrange items on and underneath the fold-down cup racks

so that water can reach all surfaces.

Light items (plastic bowls etc.) should be loaded in the upper

basket and arranged so they do not move.

Before closing the door, ensure that the spray

arms can rotate freely.

Adjusting the height of the upper

basket

If washing very large plates (over 27 cm and up to 31 cm in

diameter) you can load them in the lower basket after

moving the upper basket to the higher position.

To move to the higher position proceed as follows:

1. Move the front runner stops (A) of the upper basket

outwards and slide the basket out.

2. Refit the basket in the higher position and replace the

stops (A) in their original position.

When the top basket is in the higher position it

will only take plates up to 20 cm in diameter and

you will not be able to use the raised cup racks.

After loading your machine always close the

door, as an open door can be a hazard.

US64

RC01

US70

Dimensions Width 59.6 cm

Height 81.8 - 87.8 cm

Max depth 55.5 cm

Max depth with open door 111.4 cm

Electrical connection Voltage 230 V - 50 Hz

Motor rating during wash 200 W

Power of heating element 2100 W

Overall power 2300 W

Water supply pressure Minimum 50 kPa (0.5 bar)

Maximum 800 kPa (8 bar)

Capacity 12 place settings

Technical specifications

Hints for test centres

Before starting any test it is necessary to fill completely with salt the salt container and with rinse aid the rinse aid dispenser

Test standard: EN 50242

Reference programme: Bio 50°c with prewash

Load: 12 standard place settings

Rinse aid selector: position 5

Detergent dosage: 25 g in the dispenser

5 g on the dispenser lid

US57 UI72

Arrangement

upper basket Arrangement

cutlery basket

UI49

Arrangement

lower basket

Protection against flooding

In order to prevent water floods, the machine has been

provided with two devices, having the following

characteristics:

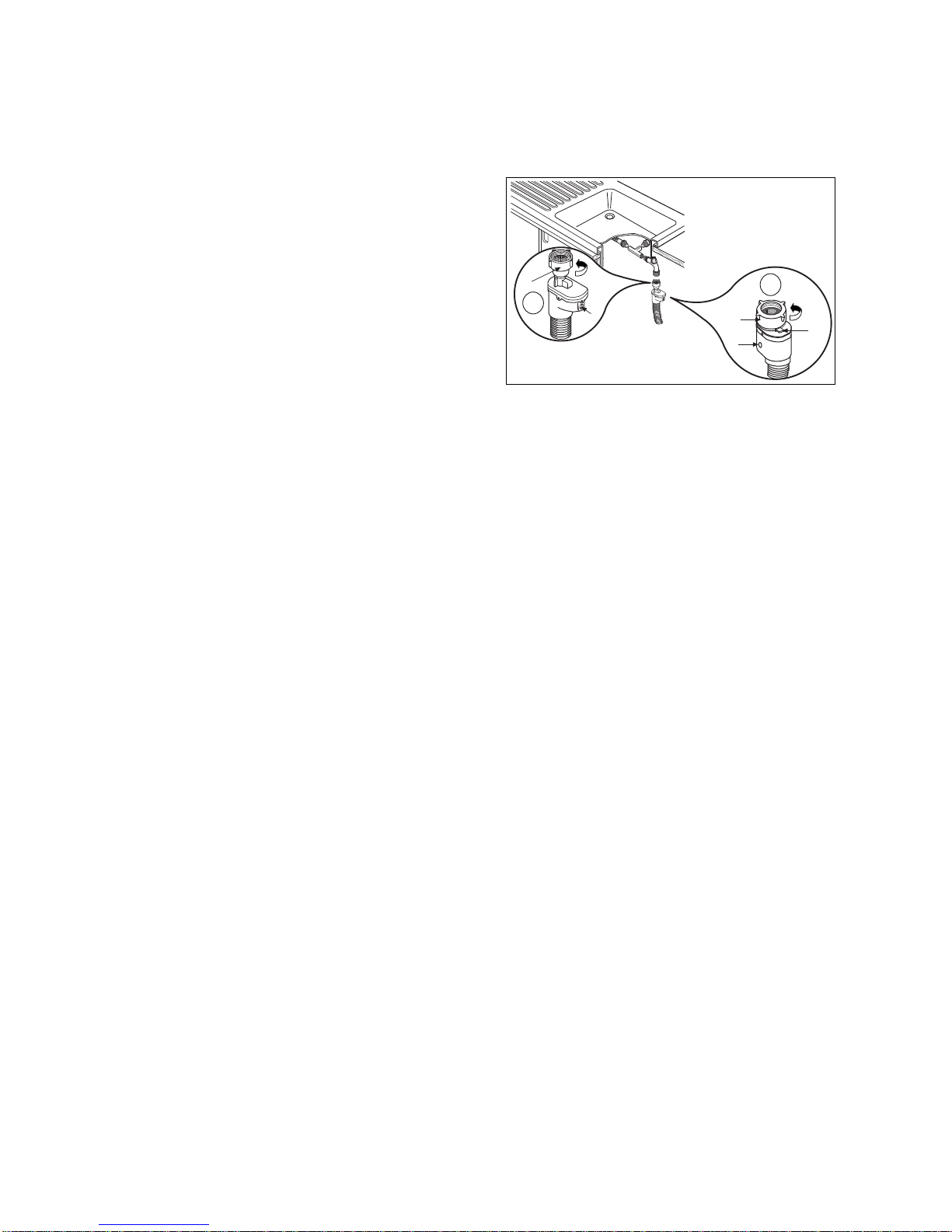

1. In the water inlet hose:

The water supply hose is fitted with a safety device,

which prevents water from entering the machine should

the inner hose split, due to wear.It operates even with

the machine off

The problem is signalled by a red indicator which

appears in the window (B - ➀ ➁).

If this happens, close the water tap and have the hose

replaced.

The retaining ring (A - ➀ ➁) must be properly fitted so as

to avoid water leaks.

Note!

Only for water supply hoses with Lock-fast safety

device to prevent inadvertent loosening.

To detach the hose press yellow lever (C - ➁) and turn

the retaining ring anticlockwise ➁.

2. In the bottom of the machine:

This device will operate if there are any water leaks in

the machine, however it will only operate if the machine

is on.

In case of intervention, turn off the water tap and call the

Service Force Centre.

To repair the machine call the Service Centre.

CA13
