welcome to the world of Electrolux electrolux 3

Thank you for choosing a first class product from Electrolux, which

hopefully will provide you with lots of pleasure in the future. The

Electrolux ambition is to offer a wide variety of quality products

that make your life more comfortable. You find some examples on

the cover in this manual. Please take a few minutes to study this

manual so that you can take advantage of the benefits of your new

machine. e promise that it will provide a superior User

Experience delivering Ease-of-Mind. Good luck!

elcome to the world of Electrolux

117990 17/0en 2-01-2007 11:46 Pagina 3

Safety information 5

Product description 7

Control panel 8

First use 12

Daily use 16

ashing programmes 29

Care and cleaning 31

Something not working 33

Technical data 36

Hints for test institutes 38

Installation 39

Environment concerns 43

Guarantee/Customer Service 44

Contents

The following symbols are used in this manual:

Important information concerning your personal safety and information on

how to avoid damaging the appliance.

General information and tips

Environmental information

4electrolux contents

117990 17/0en 2-01-2007 11:46 Pagina 4

safety information electrolux 5

In the interest of your safety and to

ensure the correct use, before

installing and first using the

appliance, read this user manual

carefully, including its hints and

warnings. To avoid unnecessary

mista es and accidents, it is

important to ensure that all people

using the appliance are thoroughly

familiar with its operation and

safety features. Save these

instructions and ma e sure that

they remain with the appliance if it

is moved or sold, so that everyone

using it through its life will be

properly informed on appliance use

and safety.

Correct use

●This dishwasher is only intended

for washing household utensils

suitable for machine washing.

●Do not put any solvents in the

dishwasher. This could cause an

explosion.

●Knives and other items with sharp

points must be loaded in the

cutlery basket with their points

down or placed in a horizontal

position in the upper basket.

●Only use products (detergent, salt

and rinse aid) suitable for

dishwashers.

●Avoid opening the door whilst the

appliance is in operation, hot

steam may escape.

●Do not take any dishes out of the

dishwasher before the end of the

dishwashing cycle.

Safety information

●After use, isolate the appliance

from the power supply and turn off

the water supply.

●This product should be serviced

only by an authorised service

engineer, and only genuine spare

parts should be used.

●Under no circumstances should

you attempt to repair the machine

yourself. Repairs carried out by

inexperienced persons will cause

injury or serious malfunctioning.

Contact your local Service Force

Centre. Always insist on genuine

spare parts.

General safety

●Dishwasher detergents can cause

chemical burns to eyes, mouth and

throat. Could endanger life!

Comply with the safety instructions

of the dishwasher detergent

manufacturer.

●The water in your dishwasher is

not for drinking. Detergent

residues may still be present in

your machine.

●Ensure that the door of the

dishwasher is always closed when

it is not being loaded or unloaded.

In this way you will avoid anybody

tripping over the open door and

hurting themselves.

●Do not sit or stand on the open

door.

Child safety

●This appliance is designed to be

operated by adults. Don’t allow

children to use the dishwasher

unsupervised.

117990 17/0en 2-01-2007 11:46 Pagina 5

6electrolux safety information

For electrical and water connection

carefully follow the instructions

given in specific paragraphs.

●Keep all packaging well away from

children. There is risk of

suffocation.

●Keep all detergents in a safe place

out of children’s reach.

●Keep children well away from the

dishwasher when the door is open.

Installation

●Check your dishwasher for any

transport damage. Never connect

a damaged machine. If your

dishwasher is damaged contact

your supplier.

●All packaging must be removed

before use.

●Any electrical and plumbing work

required to install this appliance

must be carried out by a qualified

and competent person.

●For safety reasons it is dangerous

to alter the specifications or

attempt to modify this product in

any way.

●Never use the dishwasher if the

electrical supply cable and water

hoses are damaged; or if the

control panel, work top or plinth

area are damaged such that the

inside of the appliance is freely

accessible. Contact your local

Service Force centre, in order to

avoid hazard.

●All sides of the dishwasher must

never be drilled to prevent damage

to hydraulic and electric

components.

117990 17/0en 2-01-2007 11:46 Pagina 6

product description electrolux 7

Product description

Upper basket

ater hardness dial

Salt container

Detergent dispenser

Rinse aid dispenser

Rating plate

Filters

Lower spray arm

Upper spray arm

This dishwasher has an internal

light that turns on and off when

the opening and closing of the

dishwasher’s door occurs.

Internal light equipped with led

lamp CLASS 1 in accordance with

EN 60825-1: 1994 + A1:2002 +

A2:2001

In case that this light has to be

replaced, please contact your local

Service Force Centre.

117990 17/0en 2-01-2007 11:46 Pagina 7

8electrolux control panel

Control panel

The digital display indicates:

- the level of hardness to which the

water softener is set,

- the approximate remaining time of

the running programme,

- activation/deactivation of the rinse

aid dispenser (ONLY with "Multi-

tab function"active),

- the end of a washing programme

(a zero will appear in the digital

display),

- the countdown of the delay start,

- fault codes concerning

malfunction of the dishwasher,

- if the audible signals are

activated/deactivated.

On/Off button

Digital display

Delay start button

Multi-tab button

Control lights

Programme selection buttons

Control lights

117990 17/0en 2-01-2007 11:46 Pagina 8

control panel electrolux 9

The salt indicator light on the

control panel can remain

illuminated for 2-6 hours after the

salt has been replenished,

assuming the dishwasher remains

switched on. If you are using salts

that ta e longer to dissolve then

this can ta e longer. The function

of the machine is not affected.

Control lights

Water tap Illuminates when the machine does not fill with

water.

Open door Illuminates to remind you to close the

dishwasher door correctly.

Salt Illuminates when the special salt has run out.

Rinse aid Illuminates when the rinse aid has run out.

Filter control Illuminates periodically, independently from the

quantity of soil on the filters, to remind you to

check and if necessary to clean the filters.

End of programme Illuminates when the washing programme has

ended.

117990 17/0en 2-01-2007 11:46 Pagina 9

10 electrolux control panel

Setting mode

Always remember that when:

- setting the water softener,

- activating/deactivating the audible

signals,

- activating/deactivating the rinse aid

dispenser,

the appliance MUST be in setting

mode:

●Press On/Off button, ALL

programme button lights are

illuminated = appliance in setting

mode.

●Press On/Off button, ONLY a

programme button light is

illuminated = last performed or

selected programme still set.

In this case, to return to setting

mode, the programme has to be

cancelled.

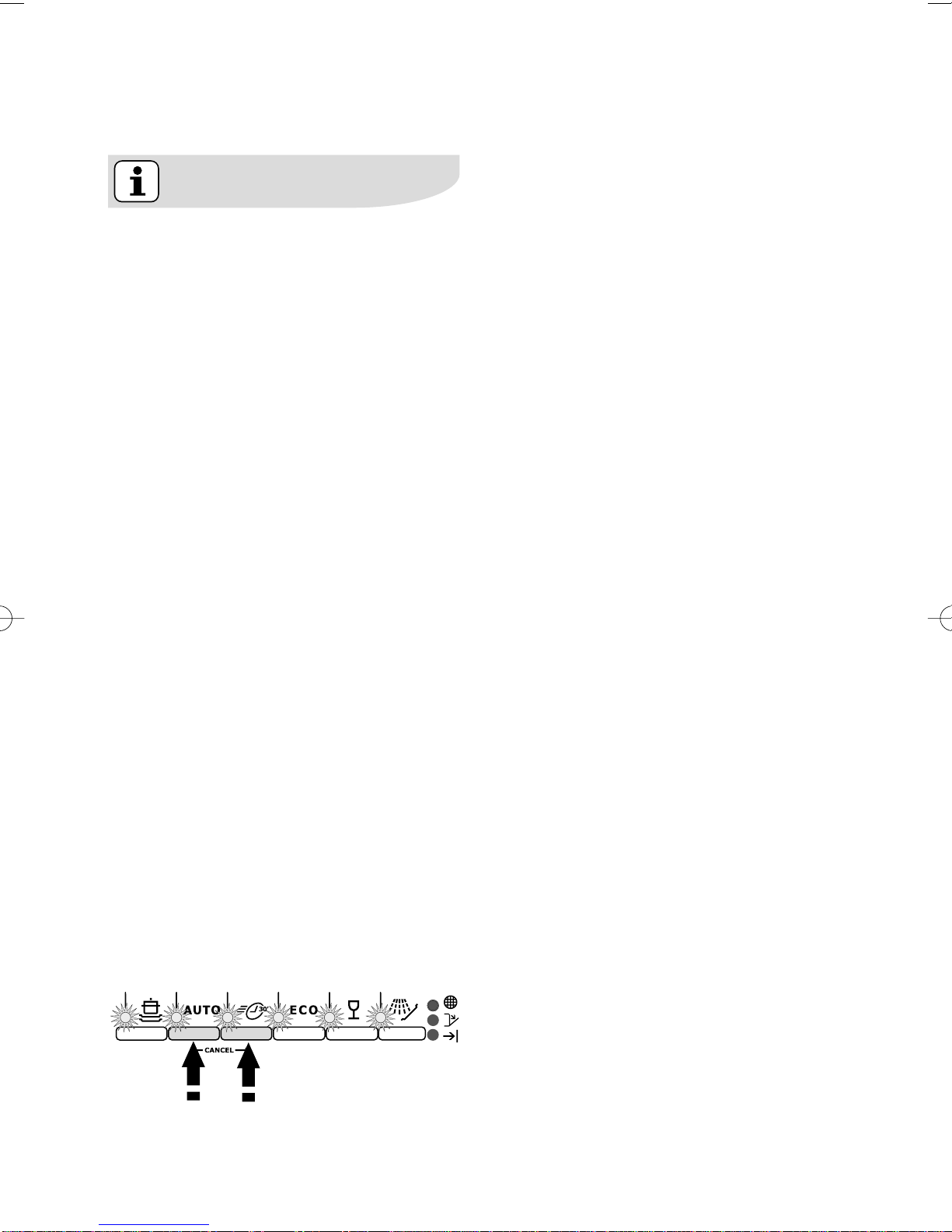

To cancel a set programme or a

programme in progress

Simultaneously press and hold the

two programme buttons positioned

over the word Cancel, until all the

programme button lights will

illuminate. The programme has been

cancelled and the machine is now in

setting mode.

117990 17/0en 2-01-2007 11:46 Pagina 10
