We were thinking of you

when we made this product

117985 62/0en 18-09-2007 9:29 Pagina 2

welcome to the world of Electrolux electrolux 3

You’ve chosen a first class product from Electrolux, which

hopefully will provide you with lots of pleasure in the future.

Electrolux ambition is to offer a wide variety of quality products

that make your life more comfortable. You can look at some

examples on the cover in this manual. But now it’s time to study

this manual and start using and enjoying the benefits from your

new machine. We promise that it’ll make your life a little easier.

Good luck!

Welcome to the world of Electrolux

117985 62/0

117985 62/0en 18-09-2007 9:29 Pagina 3

Safety information 5

Product description 7

Control panel 8

First use 14

Daily use 19

Washing programmes 31

Care and cleaning 33

Something not working 35

Technical data 38

Hints for test institutes 40

Installation 41

Environment concerns 45

Guarantee/Customer Service 46

Contents

The following symbols are used in this manual:

Important information concerning your personal safety and information on

how to avoid damaging the appliance.

General information and tips

Environmental information

4electrolux contents

117985 62/0en 18-09-2007 9:29 Pagina 4

safety information electrolux 5

In the interest of your safety and to

ensure the correct use, before

installing and first using the

appliance, read this user manual

carefully, including its hints and

warnings. To avoid unnecessary

mistakes and accidents, it is

important to ensure that all people

using the appliance are thoroughly

familiar with its operation and

safety features. Save these

instructions and make sure that

they remain with the appliance if it

is moved or sold, so that everyone

using it through its life will be

properly informed on appliance use

and safety.

Correct use

●This dishwasher is only intended

for washing household utensils

suitable for machine washing.

●Do not put any solvents in the

dishwasher. This could cause an

explosion.

●Knives and other items with sharp

points must be loaded in the

cutlery basket with their points

down or placed in a horizontal

position in the upper basket.

●Only use products (detergent, salt

and rinse aid) suitable for

dishwashers.

●Avoid opening the door whilst the

appliance is in operation, hot

steam may escape.

Safety information

●Do not take any dishes out of the

dishwasher before the end of the

dishwashing cycle.

●After use, isolate the appliance

from the power supply and turn off

the water supply.

●This product should be serviced

only by an authorised service

engineer, and only genuine spare

parts should be used.

●Under no circumstances should

you attempt to repair the machine

yourself. Repairs carried out by

inexperienced persons will cause

injury or serious malfunctioning.

Contact your local Service Force

Centre. Always insist on genuine

spare parts.

General safety

●Dishwasher detergents can cause

chemical burns to eyes, mouth and

throat. Could endanger life!

Comply with the safety instructions

of the dishwasher detergent

manufacturer.

●The water in your dishwasher is

not for drinking. Detergent

residues may still be present in

your machine.

●Ensure that the door of the

dishwasher is always closed when

it is not being loaded or unloaded.

In this way you will avoid anybody

tripping over the open door and

hurting themselves.

●Do not sit or stand on the open

door.

117985 62/0en 18-09-2007 9:29 Pagina 5

6electrolux safety information

Child safety

●This appliance is designed to be

operated by adults. Do not allow

children to use the dishwasher

unsupervised.

●Keep all packaging well away from

children. There is risk of

suffocation.

●Keep all detergents in a safe place

out of children’s reach.

●Keep children well away from the

dishwasher when the door is open.

Installation

●Check your dishwasher for any

transport damage. Never connect

a damaged machine. If your

dishwasher is damaged contact

your supplier.

●All packaging must be removed

before use.

●Any electrical and plumbing work

required to install this appliance

must be carried out by a qualified

and competent person.

●For safety reasons it is dangerous

to alter the specifications or

attempt to modify this product in

any way.

●Never use the dishwasher if the

electrical supply cable and water

hoses are damaged; or if the

control panel, work top or plinth

area are damaged such that the

inside of the appliance is freely

accessible. Contact your local

Service Force centre, in order to

avoid hazard.

●All sides of the dishwasher must

never be drilled to prevent damage

to hydraulic and electric

components.

For electrical and water connection

carefully follow the instructions

given in specific paragraphs.

117985 62/0en 18-09-2007 9:29 Pagina 6

product description electrolux 7

Product description

Upper basket

Water hardness dial

Salt container

Detergent dispenser

Rinse aid dispenser

Rating plate

Filters

Lower spray arm

Upper spray arm

This dishwasher has an internal

light that turns on and off when

the opening and closing of the

dishwasher’s door occurs.

Internal light equipped with led

lamp CLASS 1 in accordance with

EN 60825-1: 1994 + A1:2002 +

A2:2001

In case that this light has to be

replaced, please contact your local

Service Force Centre.

117985 62/0en 18-09-2007 9:29 Pagina 7

8electrolux control panel

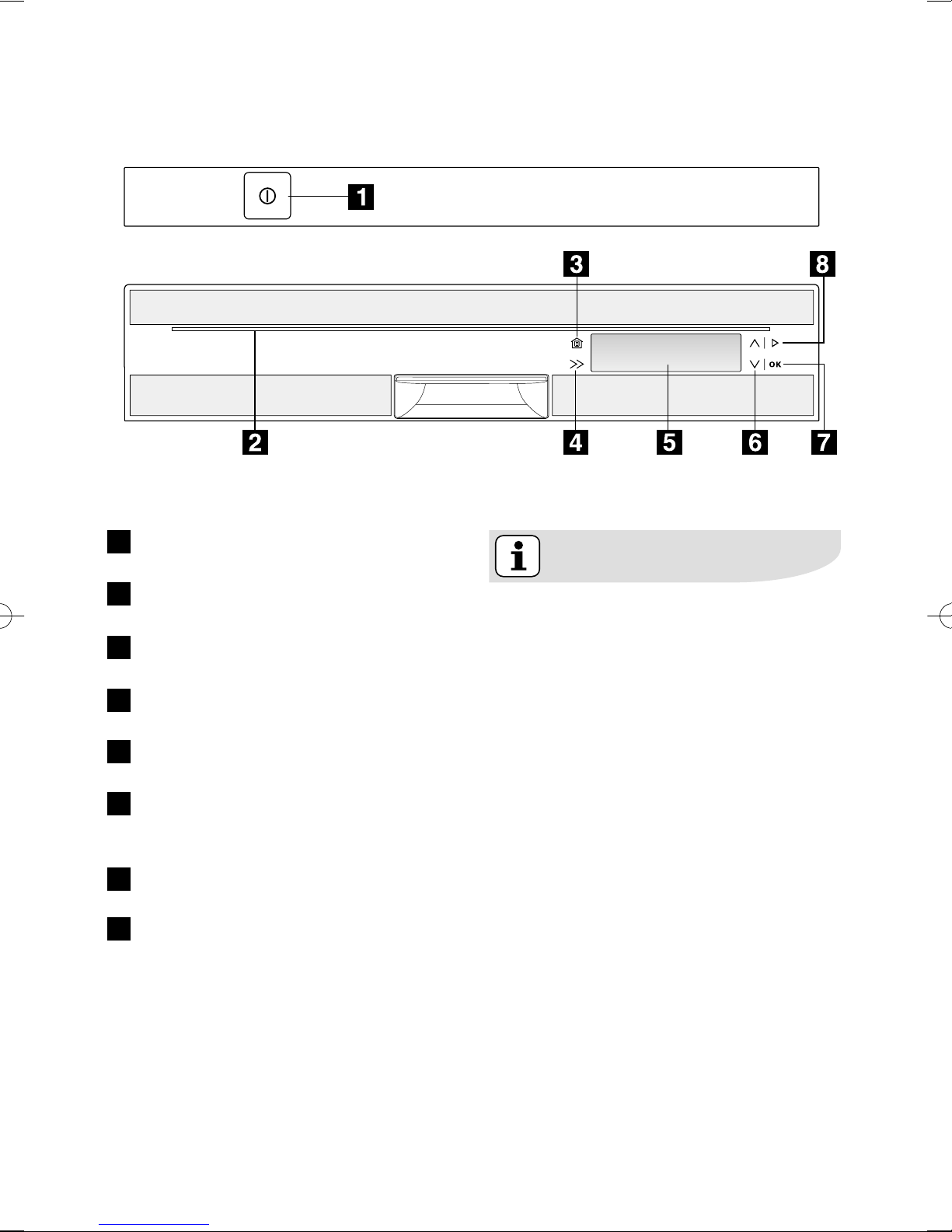

Control panel

A sequence of displayed messages

and audible signals will guide you

in the setting up of the appliance

and the selection of washing

programmes and available options.

On/Off button

Light bar

«Home» button

«Display» scrolling button

Display

«Up and down» scrolling

buttons

«OK» button

«Start» button

117985 62/0en 18-09-2007 9:29 Pagina 8

control panel electrolux 9

First use of the appliance:

●Press the On/Off button: the «light

bar» illuminates.

●Follow the instructions displayed to

set the desired language (default

set language: English) and time.

The following message is displayed:

(Press one of the «up and down»

scrolling buttons to select the

language and then OK to confirm the

selection).

When the displayed message ENG

flashes it is possible to select the

language by pressing one of the «up

and down» scrolling buttons.

Press OK to confirm. The following

displayed message appears:

Subsequently.

Once the highlighted time flashes it is

possible to set the right time.

Press OK to confirm.

Once the time has been set, the

display will appear divided in 3 areas:

-menu programmes

-time

-menu options

●press the «display» scrolling

button: the selected area is

displayed with a highlighted frame

●press one of the «up and down»

scrolling buttons to display the

available menu.

«Menu programmes» area

Symbol and duration of the washing

programme are displayed.

●Press one of the «up and down»

scrolling buttons:

the displayed area enlarges and

shows the list of available washing

programmes, the corresponding

symbol and the duration.

117985 62/0en 18-09-2007 9:29 Pagina 9

10 electrolux control panel

Press OK button or wait a few

seconds to store the setting.

The display will again show the 3

divided areas.

In the menu programmes area is

displayed the set programme and

duration.

In the time area is displayed the

ending time of the programme (= time

+ programme duration).

«Time» area

Allows you to delay the start of the

programme up to 19 hours.

Press «display» scrolling button to

select the area.

Press one of the «up and down»

scrolling buttons to modify the end

of programme time:

- In the upper part of the area the

set delay start of the programme

is highlighted.

- In the lower part of the area the

end of programme time is

updated.

Press OK button or wait a few

seconds to store the setting.

«Menu options» area

Press the «display» scrolling button

to select the area.

Press one of the «up and down»

scrolling buttons to see the list of the

available options (the selected option

is highlighted).

This area offers:

Press OK to change the setting.

Press one of the «up and down»

scrolling buttons to go to another

option.

Press the «Home» button or wait a

few seconds to come out from the

main menu.

Once selected, the options will remain

displayed as shown in the example

below.

Menu options Submenu

Extra rinse

Adds another rinse

phase.

See "Washing

programmes" chart

3-in-1

Option for the use

of 3 in 1 combi

detergents.

The option remains

active until it is

deactivated

117985 62/0en 18-09-2007 9:29 Pagina 10
