1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible for any injuries or damage that are the result

of incorrect installation or usage. Always keep the

instructions in a safe and accessible location for future

reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Children between 3 and 8 years of age and persons

with very extensive and complex disabilities shall be

kept away from the appliance unless continuously

supervised.

•Children of less than 3 years of age should be kept

away from the appliance unless continuously

supervised.

•Do not let children play with the appliance.

•Keep detergents away from children.

•Keep children and pets away from the appliance when

the door is open.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•This appliance is intended to be used in household

and similar applications such as:

–farm houses; staff kitchen areas in shops, offices

and other working environments;

–by clients in hotels, motels, bed & breakfast and

other residential type environments.

•Do not change the specification of this appliance.

ENGLISH 3

•The operating water pressure (minimum and

maximum) must be between 0.5 (0.05) / 8 (0.8) bar

(MPa)

•Follow the maximum number of 13 place settings.

•If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

•Put the cutlery in the cutlery basket with the sharp

ends pointing down or put them in the cutlery drawer

in a horizontal position with the sharp edges down.

•Do not leave the appliance with the open door

unattended to avoid stepping accidentally onto it.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

•Do not use high pressure water sprays and/or steam

to clean the appliance.

•If the appliance has ventilation openings in the base,

they must not be covered e.g. by a carpet.

•The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must

install this appliance.

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Do not use the appliance before

installing it in the built-in structure due

to safety manner.

• Follow the installation instructions

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Do not install or use the appliance

where the temperature is less than 0

°C.

• Install the appliance in a safe and

suitable place that meets installation

requirements.

2.2 Electrical connection

WARNING!

Risk of fire and electric

shock.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

www.electrolux.com4

• Make sure not to cause damage to

the mains plug and to the mains

cable. Should the mains cable need to

be replaced, this must be carried out

by our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• This appliance is fitted with a 13 A

mains plug. If it is necessary to

change the mains plug fuse, use only

a 13 A ASTA (BS 1362) fuse (UK and

Ireland only).

2.3 Water connection

• Do not cause damage to the water

hoses.

• Before connection to new pipes, pipes

not used for a long time, where repair

work has been carried out or new

devices fitted (water meters, etc.), let

the water flow until it is clean and

clear.

• Ensure that there are no visible water

leaks during and after the first use of

the appliance.

• The water inlet hose has a safety

valve and a sheath with an inner

mains cable.

WARNING!

Dangerous voltage.

• If the water inlet hose is damaged,

immediately close the water tap and

disconnect the mains plug from the

mains socket. Contact the Authorised

Service Centre to replace the water

inlet hose.

2.4 Use

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

• Dishwasher detergents are

dangerous. Follow the safety

instructions on the detergent

packaging.

• Do not drink and play with the water in

the appliance.

• Do not remove the dishes from the

appliance until the programme is

complete. Some detergent may

remain on the dishes.

• Do not sit or stand on the open door

of the appliance.

• The appliance can release hot steam

if you open the door while a

programme operates.

2.5 Service

• To repair the appliance contact the

Authorised Service Centre.

• Use original spare parts only.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

ENGLISH 5

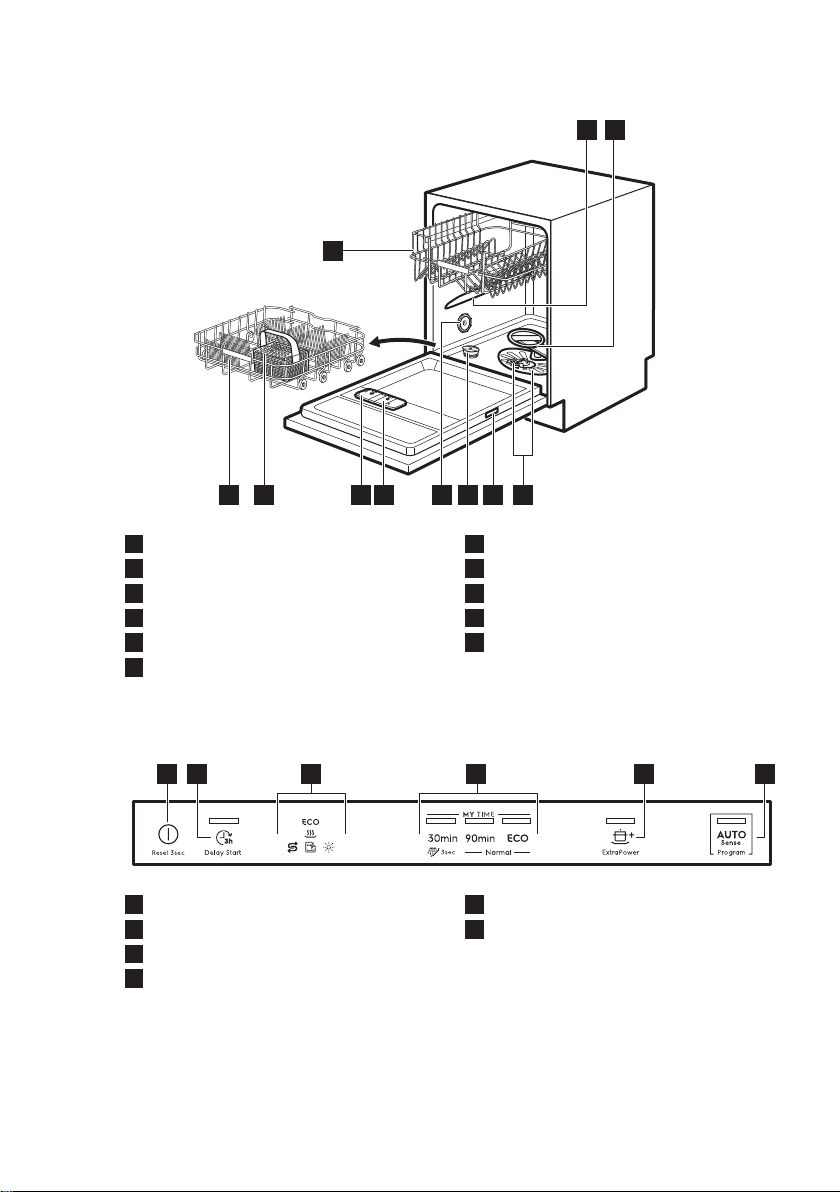

3. PRODUCT DESCRIPTION

9 8

10 56

1Upper spray arm

2Lower spray arm

3Filters

4Rating plate

5Salt container

6Air vent

7Rinse aid dispenser

8Detergent dispenser

9Cutlery basket

10 Lower basket

11 Upper basket

4. CONTROL PANEL

1 3 4 5

1On/Off button

2Delay Start button

3Indicators

4MY TIME selection bar

5ExtraPower button

6AUTO Sense button

www.electrolux.com6

4.1 Indicators

Indicator Description

The ECO programme indicator. It indicates the most environmentally

friendly programme selection for a normally soiled load. Refer to

"Programme selection".

Rinse aid indicator. It is on when the rinse aid dispenser needs refill‐

ing. Refer to "Before first use".

Salt indicator. It is on when the salt container needs refilling. Refer to

"Before first use".

Machine Care indicator. It is on when the appliance needs internal

cleaning with the Machine Care programme. Refer to "Care and

cleaning".

Drying phase indicator. It is on when a programme with the drying

phase is selected. It flashes when the drying phase operates. Refer to

"Programme selection".

5. PROGRAMME SELECTION

5.1 MY TIME

Using MY TIME selection bar, you can

select a suitable wash cycle based on

programme duration, ranging from 30

minutes to four hours.

BA C

A. •30min is the shortest programme

suitable for washing a load with

fresh and light soil.

• Pre-rinse (15min) is a

programme for rinsing off food

remains from the dishes. It

prevents odours forming in the

appliance. Do not use detergent

with this programme.

B. 90min is a programme suitable for

washing and drying normally soiled

items.

C. ECO is the longest programme (4h)

offering the most efficient use of

energy and water consumption for

crockery and cutlery with normal soil.

This is the standard programme for

test institutes.

5.2 ExtraPower

ExtraPower improves the washing

results of the selected programme. The

option increases the wash temperature

and duration.

The ExtraPower option is applicable to

the following programmes: 30min, 90min

and ECO.

5.3 AUTO Sense

The AUTO Sense program automatically

adjusts the wash cycle to the type of

load.

The appliance senses the degree of soil

and the amount of dishes in the baskets.

It adjusts the temperature and quantity of

water as well as the wash duration.

ENGLISH 7

5.4 Programmes overview

Programme Type of load Degree of soil Programme pha‐

ses

30min • Crockery

• Cutlery

• Fresh • Wash 50 °C

• Intermediate

rinse

• Final rinse 45 °C

• AirDry

Pre-rinse

• All types of

loads

• All degrees of

soil

• Prewash

90min • Crockery

• Cutlery

• Pots

• Pans

• Normal

• Lightly dried-on

• Wash 60 °C

• Intermediate

rinse

• Final rinse 55 °C

• Drying

• AirDry

ECO • Crockery

• Cutlery

• Pots

• Pans

• Normal

• Lightly dried-on

• Prewash

• Wash 50 °C

• Intermediate

rinse

• Final rinse 55 °C

• Drying

• AirDry

AUTO Sense • Crockery

• Cutlery

• Pots

• Pans

The programme ad‐

justs to all degrees

of soil.

• Prewash

• Wash 50 - 60 °C

• Intermediate

rinse

• Final rinse 60 °C

• Drying

• AirDry

Machine Care • No load The programme

cleans the appli‐

ance interior.

• Wash 70 °C

• Intermediate

rinse

• Final rinse

• AirDry

Consumption values

Programme 1) Water (l) Energy (kWh) Duration (min)

30min 9.4 -11.4 0.57 - 0.69 30

Pre-rinse 3.7 - 4.5 0.02 - 0.05 15

90min 9.1 - 11.1 1.01 - 1.13 90

ECO 9.9 1.039 240

www.electrolux.com8

Programme 1) Water (l) Energy (kWh) Duration (min)

AUTO Sense 8.2 - 11.2 0.67 - 1.08 120 - 170

Machine Care 8.4 - 10.2 0.60 - 0.71 60

1) The pressure and the temperature of the water, the variations of the mains supply, the

options and the quantity of dishes can change the values.

Information for test institutes

To receive the necessary information for

conducting performance tests (e.g.

according to EN60436), send an email

to:

[email protected]

In your request please include the

product number code (PNC) found on

the rating plate.

For any other questions regarding your

dishwasher please refer to the service

book provided with your appliance.

6. BASIC SETTINGS

You can configure the appliance by

changing basic settings according to

your needs.

Number Settings Values Description1)

1Water hard‐

ness

From level 1 to

level 10 (de‐

fault: 5)

Adjust the level of the water softener ac‐

cording to the water hardness in your

area.

2Rinse aid emp‐

ty notification

On (default)

Off

Activate or deactivate the rinse aid indi‐

cator.

3End sound On

Off (default)

Activate or deactivate the acoustic signal

for the end of a programme.

4Auto door open On (default)

Off

Activate or deactivate the AirDry.

5Key tones On (default)

Off

Activate or deactivate the sound of the

buttons when pressed.

1) For more details, refer to the information provided in this chapter.

You can change the basic settings in

setting mode.

When the appliance is in setting mode,

the indicators on the control panel

represent available settings. For each

setting, a dedicated indicator flashes:

1 3 2

4 5

ENGLISH 9

6.1 The water softener

The water softener removes minerals

from the water supply, which would have

a negative effect on the washing results

and on the appliance.

The higher the content of these minerals,

the harder your water is. Water hardness

is measured in equivalent scales.

The water softener should be adjusted

according to the hardness of the water in

your area. Your local water authority can

advise you on the hardness of the water

in your area. It is important to set the

right level of the water softener to assure

good washing results.

Softening hard water

increases the consumption

of water and energy as well

as the programme duration.

The higher the level of water

softener, the higher the

consumption and the longer

the duration.

Water hardness

German de‐

grees (°dH)

French de‐

grees (°fH)

mmol / l Clarke de‐

grees

Water softener

level

47 - 50 84 - 90 8.4 - 9.0 58 - 63 10

43 - 46 76 - 83 7.6 - 8.3 53 - 57 9

37 - 42 65 - 75 6.5 - 7.5 46 - 52 8

29 - 36 51 - 64 5.1 - 6.4 36 - 45 7

23 - 28 40 - 50 4.0 - 5.0 28 - 35 6

19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)

15 - 18 26 - 32 2.6 - 3.2 18 - 22 4

11 - 14 19 - 25 1.9 - 2.5 13 - 17 3

4 - 10 7 - 18 0.7 - 1.8 5 - 12 2

<4 <7 <0.7 < 5 1 2)

1) Factory setting.

2) Do not use salt at this level.

Regardless of the type of detergent

used, set the proper water hardness

level to keep the salt refill indicator

active.

Multi-tabs containing salt are

not effective enough to

soften hard water.

6.2 The rinse aid empty

notification

The rinse aid helps to dry the dishes

without streaks and stains. It is

automatically released during the hot

rinse phase.

When the rinse aid chamber is empty,

the rinse aid indicator is turned on

notifying to refill rinse aid. If the drying

results are satisfactory while using multi-

tablets only, it is possible to deactivate

the notification for refilling rinse aid.

However, for best drying performance,

always use rinse aid.

If standard detergent or multi-tablets

without rinse aid are used, activate the

notification to keep the rinse aid refill

indicator active.

www.electrolux.com10

Table des matières

Autres manuels Electrolux Lave-vaisselle

Electrolux

Electrolux ESR20EL5 Manuel utilisateur

Electrolux

Electrolux GA60GXI203 Manuel utilisateur

Electrolux

Electrolux ESL 424 Manuel utilisateur

Electrolux

Electrolux KESC7311L Manuel utilisateur

Electrolux

Electrolux KEAC7200IK Manuel utilisateur

Electrolux

Electrolux ESI 669 Manuel utilisateur

Electrolux

Electrolux ESI 63020 Manuel utilisateur

Electrolux

Electrolux ESL 6370RO Manuel utilisateur

Electrolux

Electrolux EWDW6505GB0 Manuel utilisateur

Electrolux

Electrolux EES47310L Manuel utilisateur

Electrolux

Electrolux ESL 66065 Manuel utilisateur

Electrolux

Electrolux ICON EDW5500DSS0 Manuel utilisateur

Electrolux

Electrolux ESF5206LOX Manuel utilisateur

Electrolux

Electrolux ESL2500RO Manuel utilisateur

Electrolux

Electrolux AEG FAVORIT 35020 VI Manuel utilisateur

Electrolux

Electrolux GA55GLICN Manuel utilisateur

Electrolux

Electrolux ESF 63025 Manuel utilisateur

Electrolux

Electrolux GA55GLV220 Manuel utilisateur

Electrolux

Electrolux ESF4500LOW Manuel utilisateur

Electrolux

Electrolux ESF5206LOW Manuel utilisateur

Electrolux

Electrolux ESI 4121 Manuel utilisateur

Electrolux

Electrolux 587.15362101C Manuel

Electrolux

Electrolux FAVORIT 88421 I Manuel utilisateur

Electrolux

Electrolux ESL4500LO Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur

Siemens

Siemens SN 56N591 Manuel utilisateur
