Contents

Operating Instructions 4

Safety information 4

Product description 6

Control panel 7

First use 10

Set the water softener 10

Filling with dishwasher salt 13

Filling with rinse aid 14

Daily use 16

Loading cutlery and dishes 16

The lower basket 18

The cutlery basket 19

The upper basket 20

Adjusting the height of the upper basket 21

Use of detergent 22

Multi-tab function 23

Washing programmes 26

Select and start a washing programme 27

Care and cleaning 30

Something not working 32

The wash results are not satisfactory 34

Technical data 35

Hints for test institutes 36

Installation 37

Water supply connections 38

Water inlet hose with safety valve 39

Water outlet hose connection 40

Electrical connection 41

Environment concernes 42

Guarantee/Customer Service 43

117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 3

Operating Instructions

Safety information

In the interest of your safety and to ensure the correct use, before installing

and first using the appliance, read this user manual carefully, including its hints

and warnings. To avoid unnecessary mistakes and accidents, it is important to

ensure that all people using the appliance are thoroughly familiar with its

operation and safety features. Save these instructions and make sure that they

remain with the appliance if it is moved or sold, so that everyone using it

through its life will be properly informed on appliance use and safety.

Correct use

●This dishwasher is only intended for washing household utensils suitable for

machine washing.

●Do not put any solvents in the dishwasher. This could cause an explosion.

●Knives and other items with sharp points must be loaded in the cutlery basket

with their points down or placed in a horizontal position in the upper basket.

●Only use products (detergent, salt and rinse aid) suitable for dishwashers.

●Avoid opening the door whilst the appliance is in operation, hot steam may

escape.

●Do not take any dishes out of the dishwasher before the end of the

dishwashing cycle.

●When the appliance is not in use for an extended period or while on vacation,

isolate the appliance from the power supply and turn off the water supply.

●This product should be serviced only by an authorised service engineer, and

only genuine spare parts should be used.

●Under no circumstances should you attempt to repair the machine yourself.

Repairs carried out by inexperienced persons will cause injury or serious

malfunctioning. Contact your local Service Force Centre. Always insist on

genuine spare parts.

General safety

●This appliance is not intended for use by young children or infirm persons

unless they have been adequately supervised by a responsible person to

ensure that they can use the appliance safely.

4Safety informations

117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 4

●Dishwasher detergents can cause chemical burns to eyes, mouth and throat.

Could endanger life! Comply with the safety instructions of the dishwasher

detergent manufacturer.

●Dishwasher detergents are strongly alkaline. They can be extremely dangerous

if swallowed. Avoid contact with the skin and eyes and keep children away

from the dishwasher when the door is open. Check that the detergent

receptacle is empty after completion of the wash cycle.

●The water in your dishwasher is not for drinking. Detergent residues may still

be present in your machine.

●Ensure that the door of the dishwasher is always closed when it is not being

loaded or unloaded. In this way you will avoid anybody tripping over the

open door and hurting themselves.

●Do not sit or stand on the open door.

Child safety

●Young children should be supervised to ensure that they do not play with the

appliance. Make sure that children and pets don’t climb into the dishwasher.

●Keep all packaging well away from children. There is risk of suffocation.

●Keep all detergents in a safe place out of children’s reach.

●Keep children well away from the dishwasher when the door is open.

Installation

●Check your dishwasher for any transport damage. Never connect a damaged

machine. If your dishwasher is damaged contact your supplier.

●All packaging must be removed before use.

●Any electrical and plumbing work required to install this appliance must be

carried out by a qualified and competent person.

●For safety reasons it is dangerous to alter the specifications or attempt to

modify this product in any way.

●Never use the dishwasher if the electrical supply cable and water hoses are

damaged; or if the control panel, work top or plinth area are damaged such

that the inside of the appliance is freely accessible. Contact your local Service

Force centre, in order to avoid hazard.

●All sides of the dishwasher must never be drilled to prevent damage to

hydraulic and electric components.

For electrical and water connection carefully follow the instructions given in

specific paragraphs.

Safety informations

117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 5

6Product description

Product description

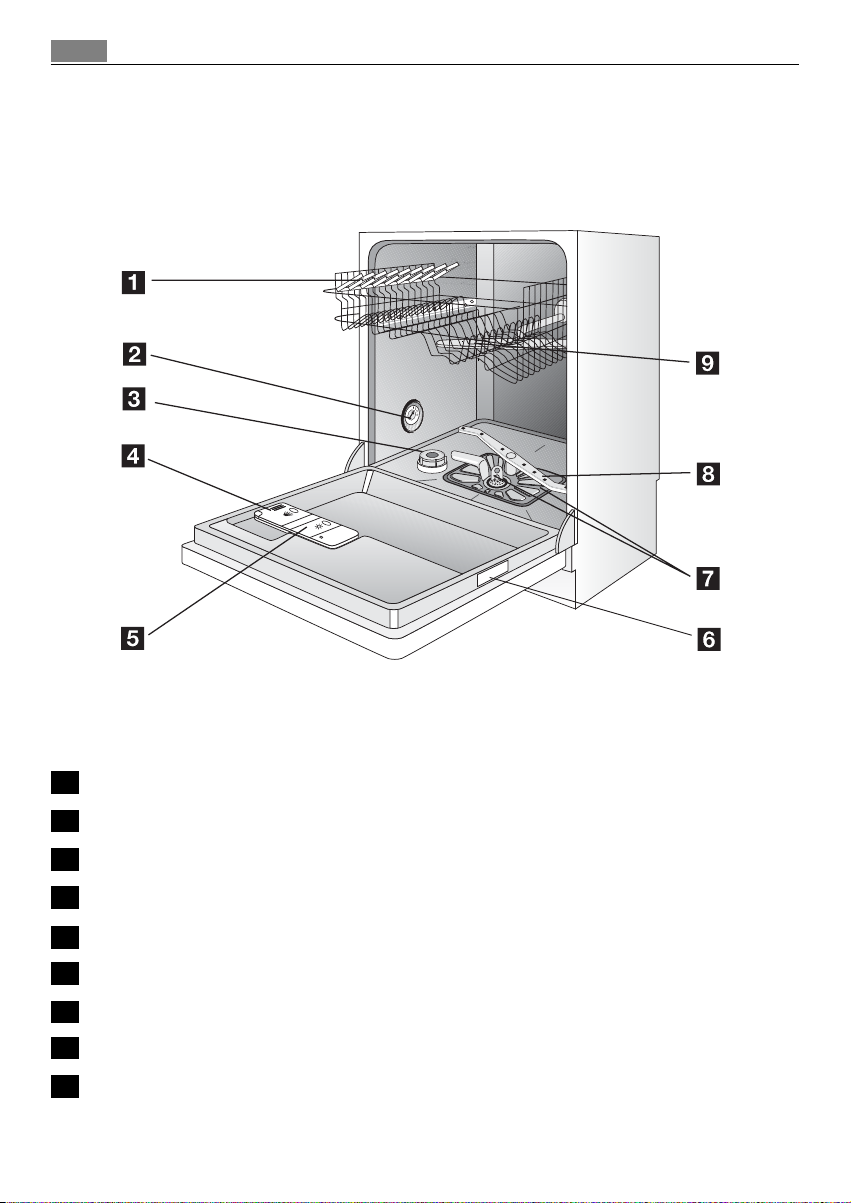

Upper basket

Water hardness dial

Salt container

Detergent dispenser

Rinse aid dispenser

Rating plate

Filters

Lower spray arm

Upper spray arm

TThhiissddiisshhwwaasshheerrhhaassaanniinntteerrnnaalllliigghhtttthhaatt

ttuurrnnssoonnwwhheenntthheeddoooorriissooppeenneedd..

IInntteerrnnaalllliigghhtteeqquuiippppeed

dwwiitthhlleeddllaammppCCLLAASSSS

11iinnaaccccoorrddaanncceewwiitthhIIEECC6600882255--11::11999933++

AA11::11999977++AA22::22000011..

IInnccaasseetthhaatttthhiissl

liigghhtthhaassttoobbeerreeppllaacceedd,,

pplleeaasseeccoonnttaaccttyyoouurrllooccaallCCuussttoommeerrCCaarree

CCeennttrree..

117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 6

Control panel

Programme selection buttons

Control lights

Digital display

DELAY TIMER button

3 IN 1 button

Indicator lights

On/off button

Function buttons

117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 7

8Control panel

Indicator lights

The salt and rinse aid indicator lights are never illuminated while a washing

programme is running even if filling with salt and/or rinse aid is necessary.

WWAATTEERRIlluminates when the dishwasher does not fill with water.

FFuunnccttiioonnbbuuttttoonnss::in addition to the dishwashing programme selection, the

setting of the water softener and the activation/deactivation of the rinse aid

dispenser can also be set with the help of these buttons.

TThheeddiiggiittaallddiissppllaayyiinnddiiccaatteess::

- the level of hardness to which the water softener is set,

- the approximate remaining time of the running programme,

- activation/deactivation of the rinse aid dispenser (OONNLLYYwith 3 IN 1 function

active),

- the end of a washing programme (a zero will appear in the digital display),

- the countdown of the delay start,

- if the audible signals are activated/deactivated.

- fault codes concerning malfunction of the dishwasher.

FFIILLTTEERRIlluminates from time to time, apart from the amount of soil

on the filters. Check and if necessary clean the filters.

DDOOOORRIlluminates when the door has not been properly closed.

SSPPRRAAYYAARRMMIlluminates when the upper spray arm is blocked.

SSAALLTTIlluminates when the special salt has run out.

RRIINNSSEEAAIIDDIlluminates when the rinse aid has run out.

117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 8

Control panel

SSeettttiinnggmmooddee

Always remember that when:

- setting the water softener,

- activating/deactivating the audible signals,

- activating/deactivating the rinse aid dispenser

the appliance MMUUSSTTbe in setting mode:

●Press On/Off button, AALLLLprogramme button lights are illuminated =

appliance in setting mode.

●Press On/Off button, OONNLLYYa programme button light is illuminated = last

performed or selected programme still set.

In this case, to return to setting mode, the programme has to be cancelled.

TTooccaanncceellaasseettpprrooggrraammmmeeoorraapprrooggrraammmmeeiinnpprrooggrreessss

Simultaneously press and hold the two programme buttons positioned over the

word RREESSEETT, until all the programme button lights will illuminate. The

programme has been cancelled and the machine is now in setting mode.

AAuuddiibblleessiiggnnaallss

Audible signals have been introduced to help indicate which operations the

dishwasher is performing:

- setting of the water softener

- end of programme

- intervention of an alarm due to malfunction

It is possible to deactvate the audible signals, using some of the programme

buttons on the control panel.

Factory setting: audible signals activated.

Deactivation/activation of the audible signals

11..Press the On/Off button. The dishwasher must be in setting mode.

22..Press simultaneously and keep pressed buttons BBand C

Cuntil the lights of the

buttons AA, BBand CCstart flashing.

33..Press button CC, the lights of buttons AAand BBturn off while the light of button

CCgoes on flashing. The digital display indicates the current setting.

44To change the current setting, press again button CC, the digital display will

indicate the new setting.

55To memorise the operation, switch off the dishwasher by pressing the On/Off

button.

Audible signals deactivated

Audible signals activated (factory set)

117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 9

10 First use

First use

Before using your dishwasher for the first time:

●Ensure that the electrical and water connections comply with the installation

instructions

●Remove all packaging from inside the appliance

●Set the water softener

●Pour 1 litre of water inside the salt container and then fill with dishwasher

salt

●Fill the rinse aid dispenser

If you want to use combi detergent tablets such as: ‘3 in 1’, ‘4 in 1’, ‘5 in 1’ etc...

set the 3 IN 1 function (see 3 IN 1 function).

Set the water softener

The dishwasher is equipped with a water softener designed to remove minerals

and salts from the water supply, which would have a detrimental or adverse

effect on the operation of the appliance.

The higher the content of these minerals and salts, the harder your water is.

Water hardness is measured in equivalent scales, German degrees (°dH), French

degrees (°TH) and mmol/l (millimol per litre - international unit for the hardness

of water).

The softener should be adjusted according to the hardness of the water in your

area. Your local Water Authority can advise you on the hardness of the water in

your area.

The water softener must be set in both ways: manually, using the water

hardness dial and electronically, using some of the programme buttons on the

control panel

117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 10

Table des matières

Autres manuels Electrolux Lave-vaisselle

Electrolux

Electrolux ESL 63010 Manuel utilisateur

Electrolux

Electrolux ESL 67010 Manuel utilisateur

Electrolux

Electrolux ESI 662 Manuel utilisateur

Electrolux

Electrolux ESI 64010 Manuel utilisateur

Electrolux

Electrolux ESF2400OH Manuel utilisateur

Electrolux

Electrolux E24ID74QPS0A Manuel utilisateur

Electrolux

Electrolux ESF 642 Manuel utilisateur

Electrolux

Electrolux DIVA Manuel utilisateur

Electrolux

Electrolux GA55SLI220 Manuel utilisateur

Electrolux

Electrolux FAVORIT 55010 I Manuel utilisateur

Electrolux

Electrolux ESF 66010 Manuel utilisateur

Electrolux

Electrolux EDW7505HPS - Semi-Integrated Dishwasher With 5 Wash... Manuel utilisateur

Electrolux

Electrolux ESF 66030 X Manuel utilisateur

Electrolux

Electrolux GA55LV220 Manuel utilisateur

Electrolux

Electrolux EDW5505EPS - ICON - Dishwasher Manuel utilisateur

Electrolux

Electrolux Zanussi DX 6452 Manuel utilisateur

Electrolux

Electrolux ESF 620 Manuel utilisateur

Electrolux

Electrolux EWDW6505GS - Dishwasher With 9 Wash Cycles Guide de l'utilisateur

Electrolux

Electrolux WTU40 Manuel utilisateur

Electrolux

Electrolux EW24ID80QS Manuel utilisateur

Electrolux

Electrolux GA55LV Manuel utilisateur

Electrolux

Electrolux ESLP 8815RA Manuel utilisateur

Electrolux

Electrolux BW3200FD Manuel utilisateur

Electrolux

Electrolux ESI 66010 Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur

Siemens

Siemens SN 56N591 Manuel utilisateur
