Electrolux Professional DC6-14HP Manuel utilisateur
User manual
Drying cabinet
DC6–14HP
Original instructions
427001216/EN
2022.05.11
Contents
Contents
1 Safety Precautions ..............................................................................................................................5
1.1 General safety information..........................................................................................................5
1.2 Symbols....................................................................................................................................5
2 Warranty terms and exclusions.............................................................................................................6
3 Appliance layout..................................................................................................................................7
3.1 Components..............................................................................................................................7
3.2 Drying principle..........................................................................................................................7
3.3 Air flow......................................................................................................................................9
4 First start ..........................................................................................................................................10
5 Operation ......................................................................................................................................... 11
5.1 Advice and tips for using the drying cabinet with dehumidifier ...................................................... 11
5.2 Operation................................................................................................................................ 11
5.3 Program description................................................................................................................. 11
5.4 Loads .....................................................................................................................................12
6 Maintenance .....................................................................................................................................13
6.1 Lint filter ..................................................................................................................................13
7 Servicing ..........................................................................................................................................14
8 Troubleshooting ................................................................................................................................15
8.1 Common questions ..................................................................................................................15
8.2 Error codes .............................................................................................................................15
9 Disposal information..........................................................................................................................16
9.1 Disposal of appliance at end of life ............................................................................................16
9.2 Disposal of packing..................................................................................................................16
The manufacturer reserves the right to make changes to design and component specifications.
User manual 5
1 Safety Precautions
This appliance can be used in public areas.
Remove all objects from pockets such as lighters and matches.
WARNING. This appliance is intended only for drying textiles washed in water.
DO NOT MODIFY THIS APPLIANCE.
Servicing shall be carried out only by authorized personnel.
Only authorized spare parts shall be used.
When performing service or replacing parts, the power must be disconnected.
The sound pressure level is found in Technical Data.
Additional requirements for the following countries: AT, BE, BG, HR, CY, CZ, DK, EE, FI,
FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH, TR,
UK:
• This appliance can be used in public areas.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction con-
cerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without supervision.
Additional requirements for other countries:
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental ca-
pabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do
not play with the appliance.
1.1 General safety information
Do not hose down the machine with water.
In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma-
chine should be placed in room temperature for 24 hours before being used for the first time.
1.2 Symbols
Caution
Caution, hot surface
Read the instructions before using the machine.
6User manual
2 Warranty terms and exclusions
If the purchase of this product includes warranty coverage, warranty is provided in line with local regulations and sub-
ject to the product being installed and used for the purposes as designed, and as described within the appropriate
equipment documentation.
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance
in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec-
tronic format.
Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling
agents to obtain optimal results and maintain product efficiency over time.
The Electrolux Professional warranty does not cover:
• service trips cost to deliver and pick up the product;
• installation;
• training on how to use/operate;
• replacement (and/or supply) of wear and tear parts unless resulting from defects in materials or workmanship re-
ported within one (1) week from the failure;
• correction of external wiring;
• correction of unauthorized repairs as well as any damages, failures and inefficiencies caused by and/or resulting
from;
– insufficient and/or abnormal capacity of the electrical systems (current/voltage/frequency, including spikes and/
or outages);
– inadequate or interrupted water supply, steam, air, gas (including impurities and/or other that does not comply
with the technical requirements for each appliance);
– plumbing parts, components or consumable cleaning products that are not approved by the manufacturer;
– customer’s negligence, misuse, abuse and/or non-compliance with the use and care instructions detailed within
the appropriate equipment documentation;
– improper or poor: installation, repair, maintenance (including tampering, modifications and repairs carried out
by third parties not authorized third parties) and modification of safety systems;
– Use of non-original components (e.g.: consumables, wear and tear, or spare parts);
– environment conditions provoking thermal (e.g. overheating/freezing) or chemical (e.g. corrosion/oxidation)
stress;
– foreign objects placed in- or connected to- the product;
– accidents or force majeure;
– transportation and handling, including scratches, dents, chips, and/or other damage to the finish of the product,
unless such damage results from defects in materials or workmanship and is reported within one (1) week of deliv-
ery unless otherwise agreed;
• product with original serial numbers that have been removed, altered or cannot be readily determined;
• replacement of light bulbs, filters or any consumable parts;
• any accessories and software not approved or specified by Electrolux Professional.
Warranty does not include scheduled maintenance activities (including the parts required for it) or the supply of
cleaning agents unless specifically covered within any local agreement, subject to local terms and conditions.
Check on Electrolux Professional website the list of authorized customer care.
User manual 7
3 Appliance layout
3.1 Components
1
2
4
3
fig.W01330

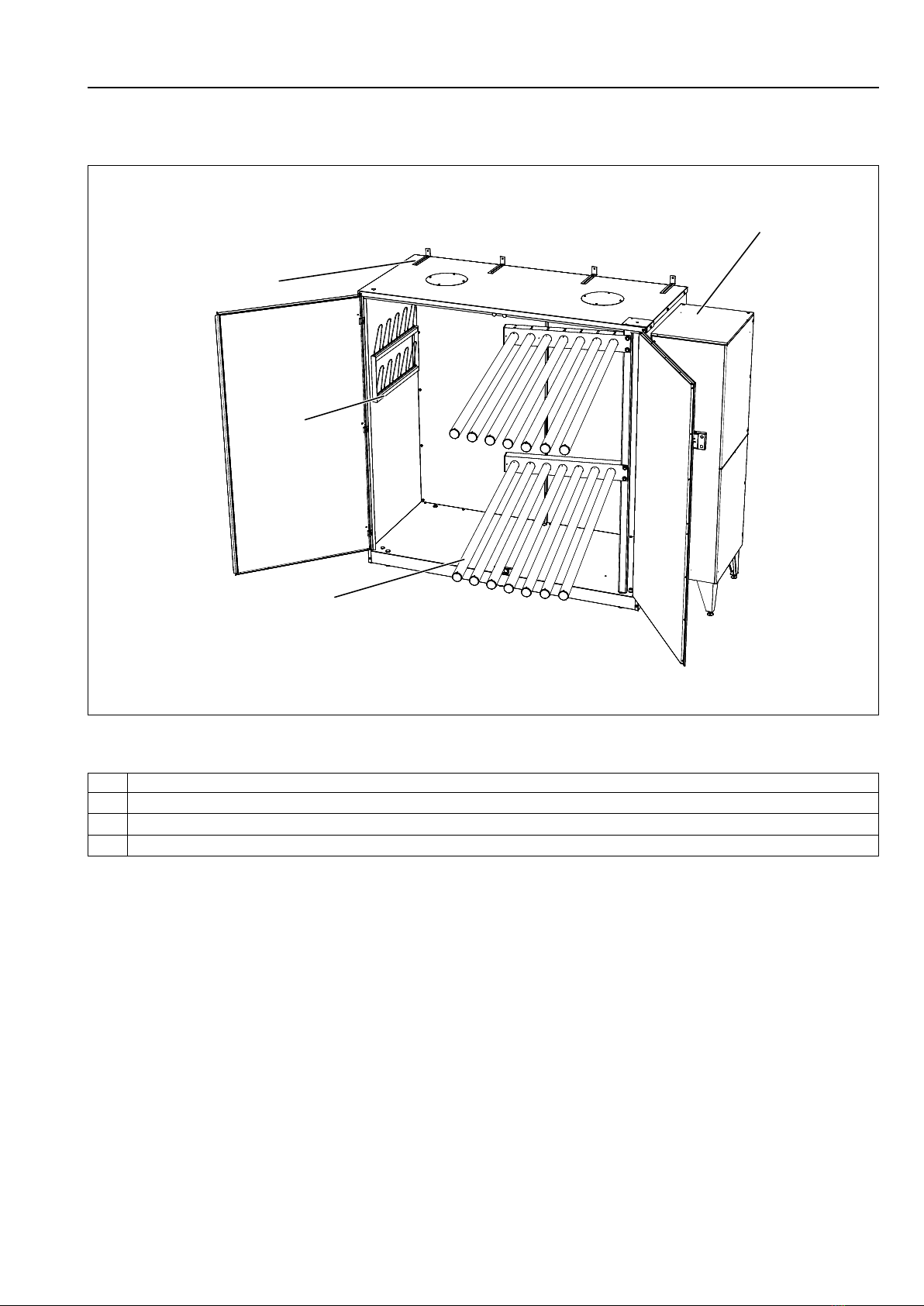

The figure shows the cabinet in the left version
1 Wall bracket
2 Heat pump component
3 Glove hangers
4 Expandable hanger. The lower hanger section contains curtain coils that can be used to fasten items.
3.2 Drying principle
Drying cabinet DC6-14HP works according to the principle of heat pump with dehumidifier unit instead of convention-
al hot air unit. This dries the garments at a lower heat and with significantly lower energy consumption.
The cabinet is a completely closed system. No exhaust air connection is required. The moisture is condensed during
the process, and the water formed is directed to the drain via a hose.
In addition, the fan is so powerful that it makes the garments sway, making the drying process even more efficient.
8User manual
Conventional drying cabinet
Energy consumption approx. 0.7 kWh/kg of laundry
1 3 4
2
c
c
c
fig.W01331
1 Air from room
2 Heating battery
3 Hot air
4 Hot, humid air that is led away
Drying cabinet with heat pump
Energy consumption approx. 0.35 kWh/kg of laundry
2 5
64
3
1
c
c
c
fig.W01332
1 Hot, humid air
2 Cooling battery
3 Condensation / water drops. Diverted to floor drain
4 Cooled air
5 Heating battery
6 Heated, dry air that is directed back into the drying cabinet. The air is at a lower temperature than in a conventional drying cabinet
User manual 9
3.3 Air flow
1
2
3

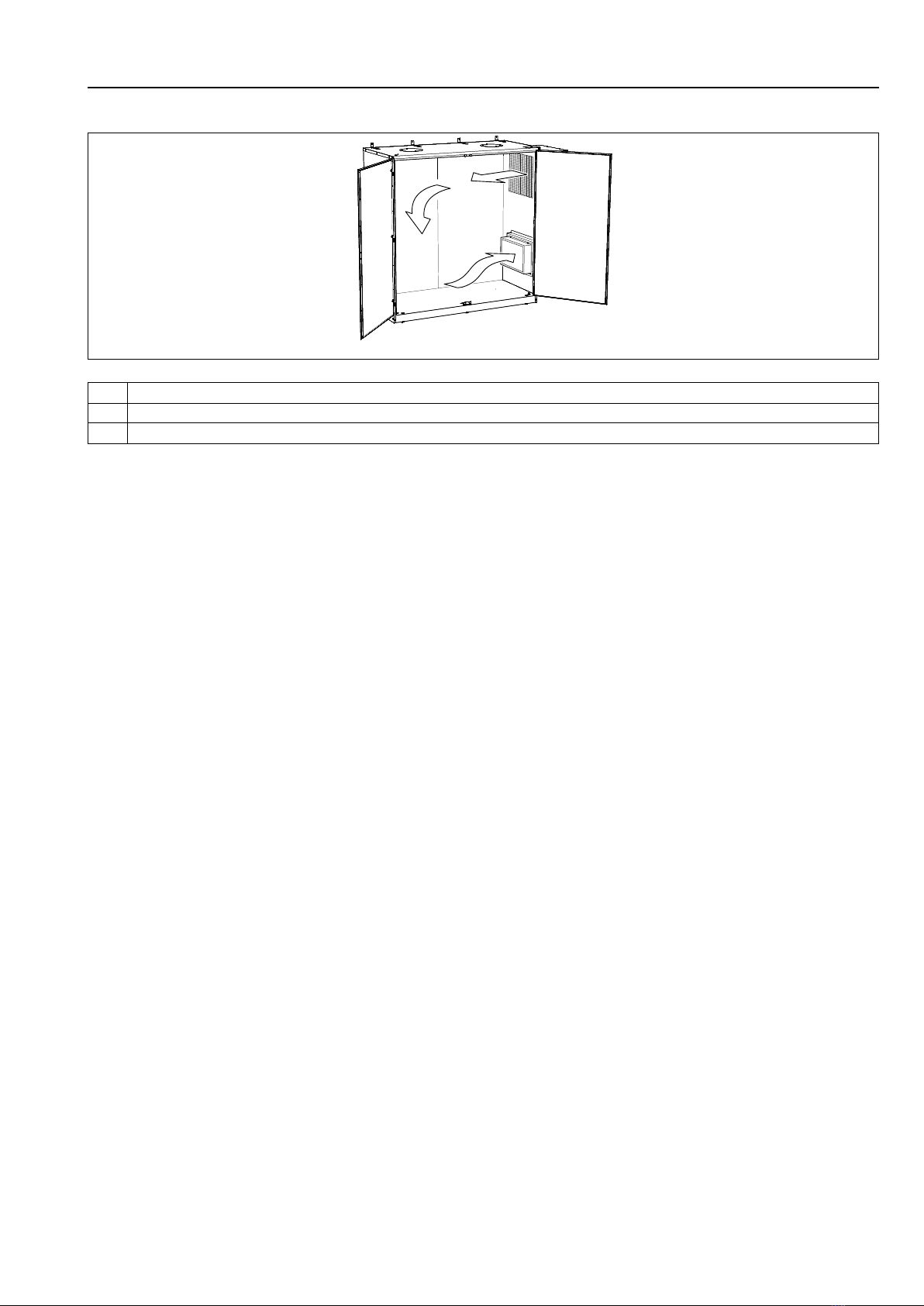

fig.W01333
1 Inlet for hot, dry air
2 Outlet for humid air. A lint filter is located in front of the air intake.
3 Circulating hot air
10 User manual
4 First start
Read the safety precautions on page 5 before using the cabinet.
Read this User Manual before beginning to use the drying cabinet.
• Make sure that the cabinet is secured to the wall. See the Installation Manual.
• Make sure that no packaging material is left out.
• Use a mild dish soap with hot water to wipe the inside and outside of the drying cabinet. Wipe thoroughly.
•If the heat pump unit has been on its side or tilted sharply, it must stand upright for 24 hours before the
cabinet is started.
