KeyFeatures:

• Only 10 in. (254 mm) deep overall

• For use in small to medium sized rooms up to

45,000 cu.ft (1,274 cu.m) with stage-to-last-row

distances up to 40 ft (12 m)

• Digital Dynamics Capable - DH2T compression

driver and EV-15G 15-in. woofer are highly

resistant to long-term mechanical fatigue

• Wideband response - 32-18,000 Hz

• 90° x 50° coverage pattern

• Horn mounting bracket allows 180° of horizontal

aiming and +/-15° of vertical aiming

• Input panel on top of LF system for convenient

installation

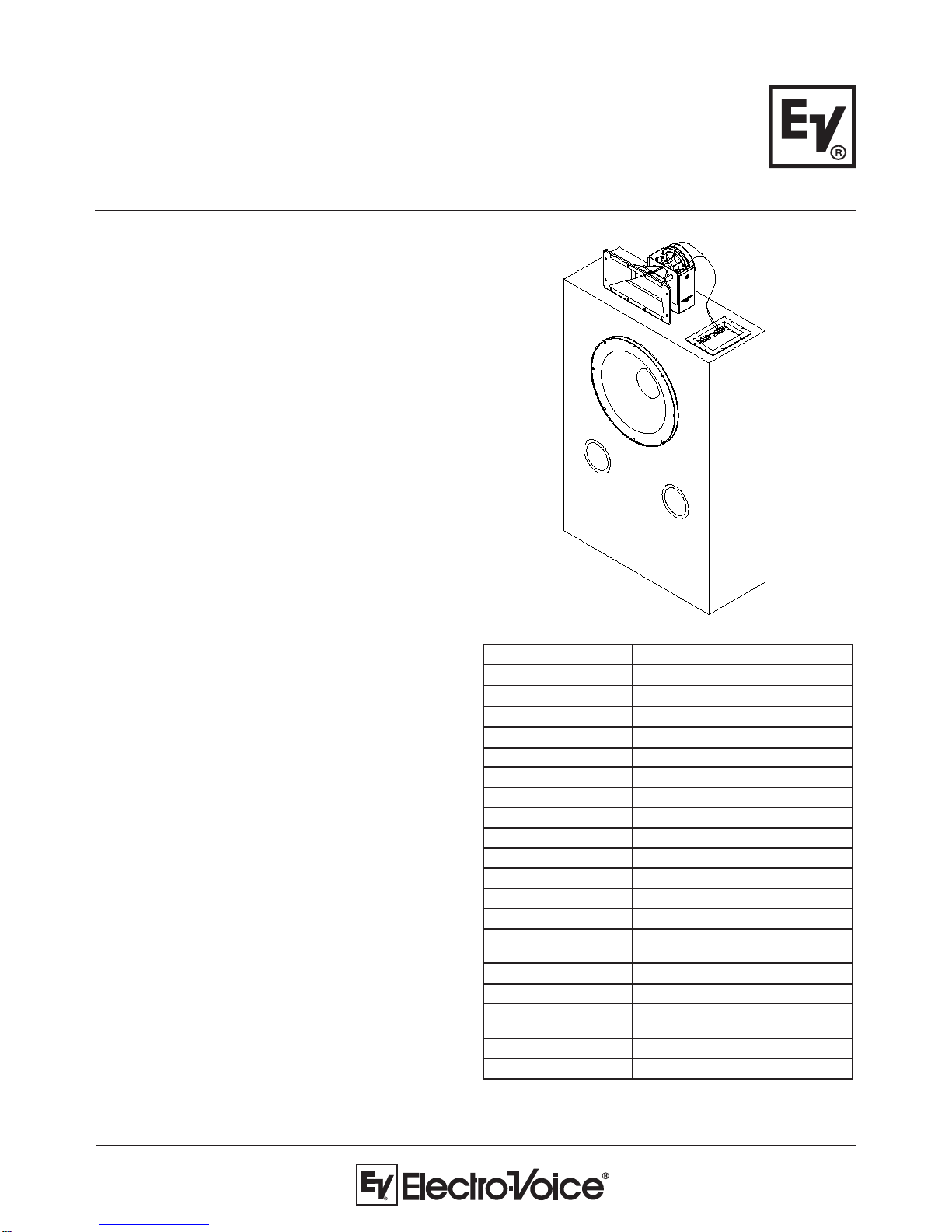

TS992M

15” Two-Way,

Full-Range Passive

Theater Stage System

GeneralDescription:

The Electro-Voice®TS992M is designed to provide high

quality sound for small to medium size cinema applications.

Its very shallow depth - only 10" (254 mm) deep, allows it to

be used in when space behind the screen is very limited.

Electro-Voice has combined its Cinema expertise in design

andcomponentstoproduceacinemasystemwithexceptional

performance in all areas: uniform dispersion, high efficiency,

high power-handling capacity and wide, smooth frequency

response. The TS992M features a single high-reliability, low

distortionEV-15G15" wooferwithcontinuous powercapacity

of 400 watts. The DH2T compression driver with 2" titanium

diaphragm provides natural sound and dialog intelligibly with

the reliability required by demanding sound tracks. A 90° x

50° horn evenly covers the entire seating plane front to back,

and side to side. A sophisticated crossover network

completes the system design.

The TS992M is mechanically designed for easy installation,

including convenient system connection and horn aiming.

All components of the TS992M are low reflectivity black. The

TS992Mprovideshighperformanceforallfilm-soundformats

in small to medium size rooms of up to 45,000 cu.ft (1,274

cu.m) in volume and stage-to-last-row distances of up to 12

m (40 ft).

Technical Specifications:

:)Bd01-(egnaR.qerFzHk81-zH83

:)Bd3-/+(esnopseR.qerFzHk61-zH85

:ytivitisneSmetsySm1/W1,Bd001

:LPSdetaluclacxaMBd031

:gnitaRrewoPW004

:egarevoClatnoziroH°09

:egarevoClacitreV°05

:tliTtekcarBpU°51,nwoD°51

:)ID(xednIytivitceriD01

:revossorCzHk3.1

noitceSFL :srotcennoCtupnIpirtsreirrablanimretwercS

:ecnadepmItupnIsmhO8

:recudsnarTFL.aiD"51,G-51VEx1

:)DxWxH(snoisnemiD"0.01x"0.62x"0.93 )mm452xmm066xmm199(

noitceSFH :recudsnarTFHT2HDx1

:)DxWxH(snoisnemiD"0.9x"0.21x"52.8 )mm6.822xmm503xmm012(

:thgieWteN)gk53(sbl77

:thgieWgnippihS)gk04(sbl78

Frequency Response:

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051, Fax:952/884-0043

www.electrovoice.com

PartNumber38110-315 RevB

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

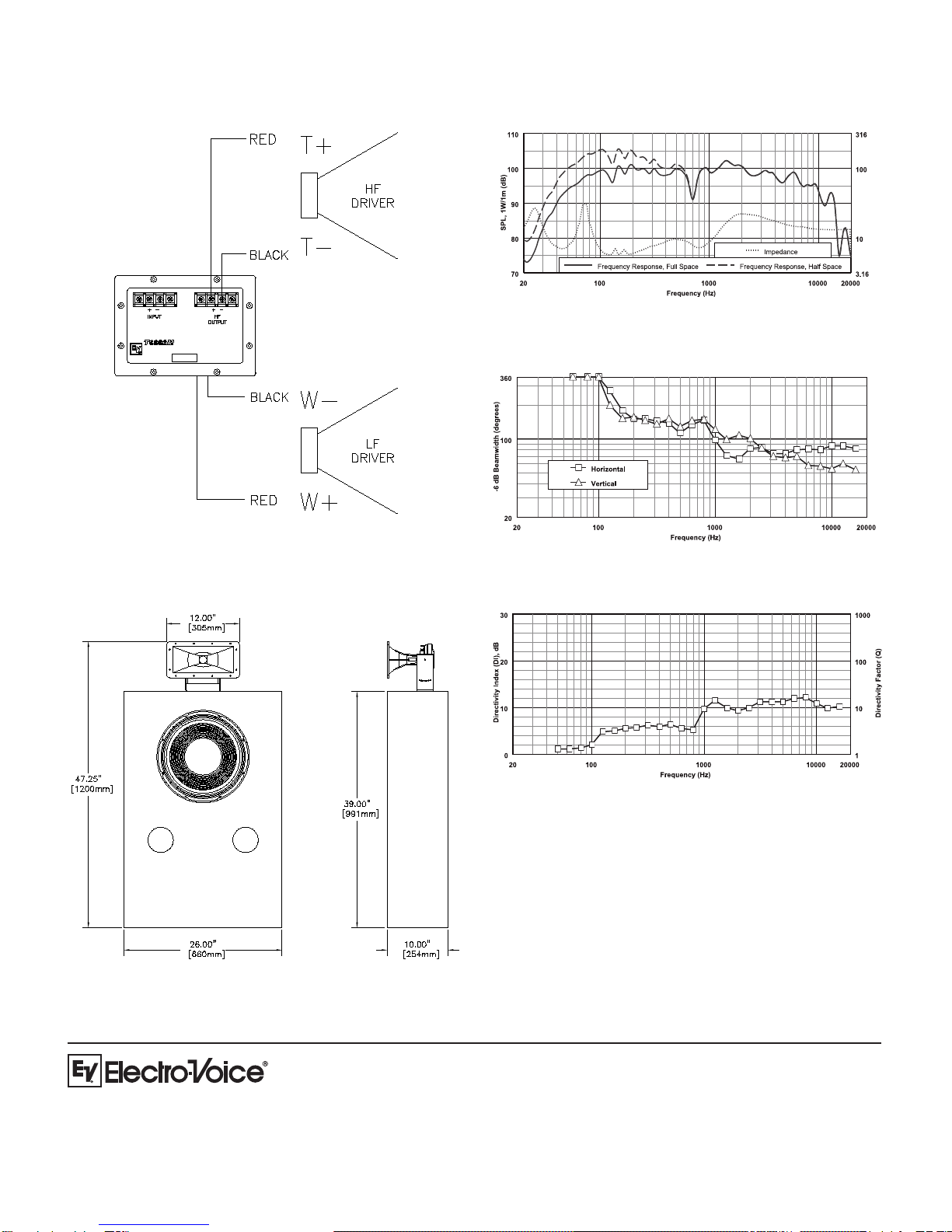

Dimension Drawings:

Block Diagram:

Front View Side View

PerformanceMatch:

• TL440M Subwoofer

• TL880DMSubwoofer

• CPS Series Amplifiers

• SL6.2M Surround Speaker

TS992MPartNumber:

• TS992M -- 301431-001

Beamwidth:

Directivity:
