Technical Specifications

The Fri+ series of Professional Fixed Install Speakers deliver

a broad range of performance options including multiple horn

patterns, easily switchable passive or bi-amp operation, and

EV’s World renown transducer technology for response that

is smooth and linear. The Fri+ is an economical and flexible

solution for the most demanding installations. Offering superior

performance, the Fri+122/66 is also equipped with 12-

recessed shoulder bolted suspension points for easy flying

and each cabinet includes 3, 3/8" forged eye-bolts for

convenience. All Fri+ speakers have a vertical box height of

28" allowing neat, concise and visually appealing arrays. The

fully rotatable horns allow the installer to construct arrays

covering the most demanding acoustical environments while

maintaining an aesthetic and uniform installation. The structural

integrity of the Fri+ cabinets allow for vertical arrays up 3 boxes

in depth. Fri+ speakers are specifically recommended for

demanding, cost conscious installations such as Houses of

Worship, Nightclubs, Live Music Venues, and mutli-use spaces

such as Gymnasiums and Auditoriums. All Fri+ speakers

employ EV’s exclusive Ring Mode Decoupling (RMDtm) and

high performance, World Class EV transducer design and

technology to ensure maximum speech intelligibility and

musical clarity. Additionally, all Fri+ systems are available in

Black, White and Unfinished options.

esnopseR.qerF

:)Bd3-(zHk51-zH26

egnaR.qerF

:)Bd01-(zHk61-zH05

:LPSdetaluclaCxaMBd821

:egarevoClatnoziroH°06

:egarevoClacitreV°06

:gnildnaHrewoPFLkaePW0021,suounitnoCW003

:gnildnaHrewoPFHkaePW042,suounitnoCW06

:ytivitisneS)m1/W1(Bd79

:recudsnarTFLrevirD)mm003("21HFB21LD

:recudsnarTFHrevirDnoisserpmoCtixe)mm67("37HD

:srotcennoCspirtsreirrabowT

:lairetaMerusolcnEdoowylpdetanimal-niarg-ssorcylp-7

:ellirGleetsAG61detarofrepdetaoCredwoP

:cepSlatnemnorivnE42PI925CEI

018DTSLIM

:)DxWxH(miD"45.71x"38.51x"29.72

)mm544x104x117(

:)hcae(thgieWteN)gk5.92(sbl56

:thgieWgnippihS)gk9.43(sbl77

General Description

FRI+122/66

12-Inch Two-Way Full-Range

Passive or Active

Speaker System

Key Features

• Compact, Easily Arrayable Cabinets

• RMDtm –Ring Mode Decoupled

• 3" Pure Titanium HF Compression Driver

• Available in 3 different Horn Patterns

• Switchable Passive or Active Operation

• Available in Black, White or Unfinished

• Manufactured with Pride in the United States

• Cloth Coverable Grills

• Paintable Enclosure

1 Full Space measurement. Half Space use will improve LF response.

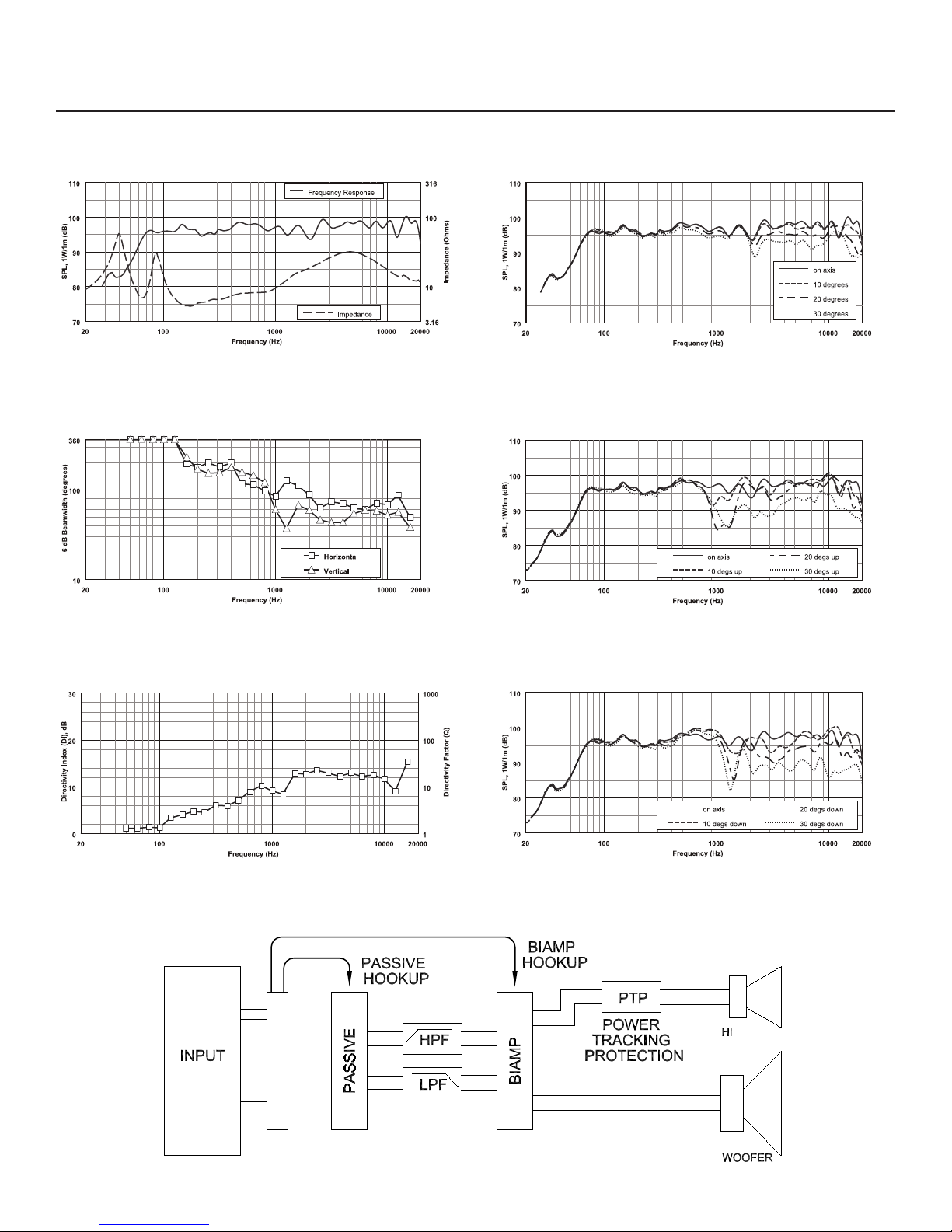

Horizontal Off Axis Frequency Response:Frequency Response (Full Space):

Vertical Off Axis Frequency Response (up):Beamwidth:

Vertical Off Axis Frequency Response (down):Directivity:

Block Diagram:

FRi+122/66 Full Range Loudspeaker

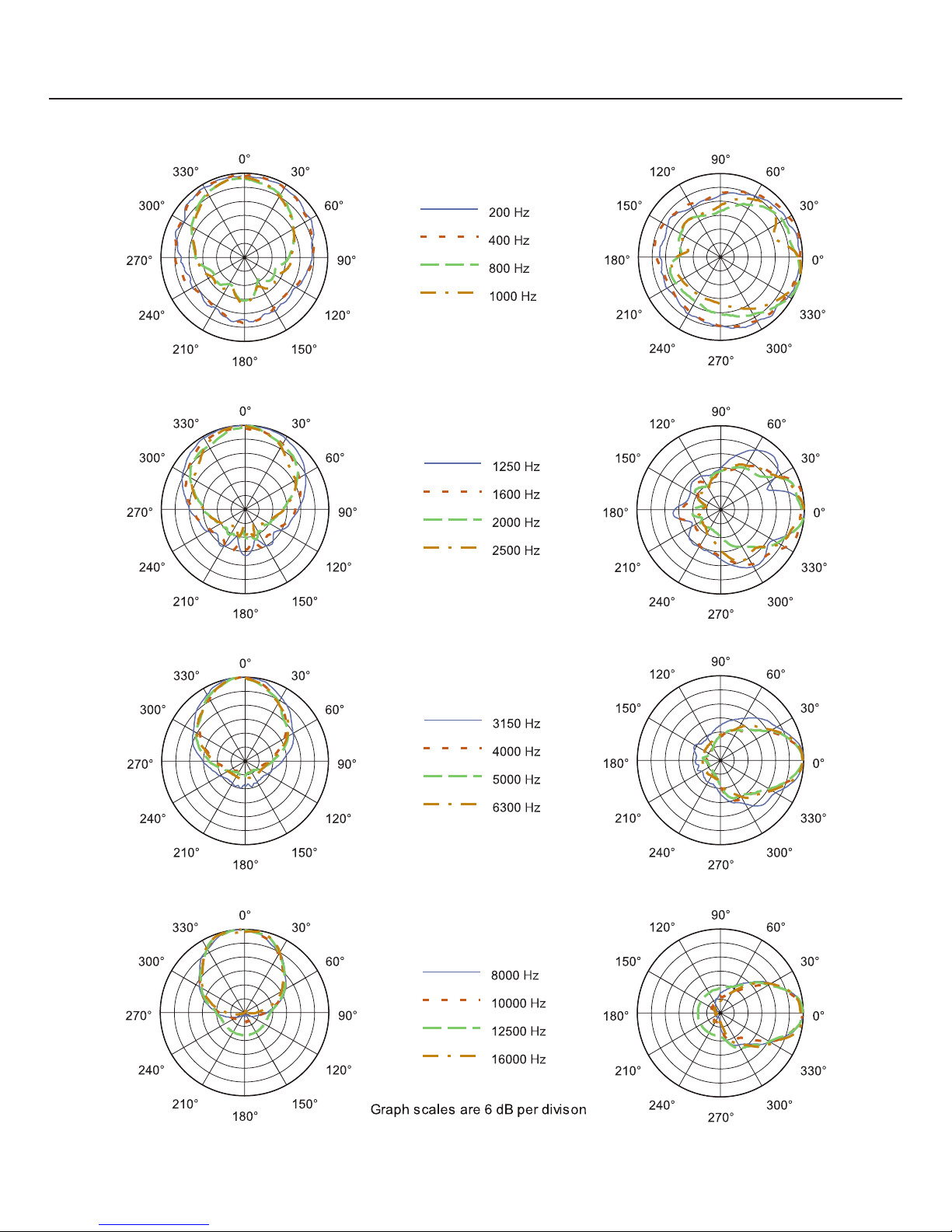

Horizontal 1/3 Octave Polars:

Engineering Data Sheet

Vertical 1/3 Octave Polars:

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 887-9212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

12000 Portland Avenue South, Burnsville, MN 55337

Phone: 952/884-4051, Fax: 952/884-0043

www.electrovoice.com

Part Number 38110-116 Rev. A

Architectural & Engineering Specs:

The two-way full range loudspeaker system shall incorporate a 12” LF transducer and a 3” (76mm) voice coil HF compression driver.

The LF driver shall be mounted in a vented enclosure tuned for optimum low-frequency response. The HF driver shall be loaded on

a constant-directivity horn with a nominal coverage pattern of 60° (h) x 60° (v). An internal passive filter network shall provide

acoustical crossover and system equalization. Input panel shall easily change from passive to biamp operation via internal connector.

System frequency response shall vary no more than +/-3 dB from 62 Hz to 15 kHz measured on axis. The loudspeaker shall

produce a sound pressure level (SPL) of 97 dB on axis at 1 meter. It shall handle 300 watts of amplifier power long term (EIA

Standard), and shall have a nominal impedance of 8 ohms. The loudspeaker enclosure shall be trapezoidal in shape. It shall be

constructed of 7-ply cross-grain-laminated plywood and shall employ extensive internal bracing. It shall be finished in aliphatic

polyurethane. Input connectors shall be two at 2 terminal barrier strips. A total of twelve 3/8-16 threaded mounting/suspension points

shall be provided, (three each on top and bottom, two per side, two on rear). The front of the loudspeaker shall be cloth coverable with

a powder-coated perforated 16 GA steel grille.

The two-way loudspeaker shall be the Electro-Voice model FRi+122/66.

FRi+122/66 Part Numbers: 301219-000, 301219-001, 301219-002

Dimension Drawings:

Front View Side View

Top View
