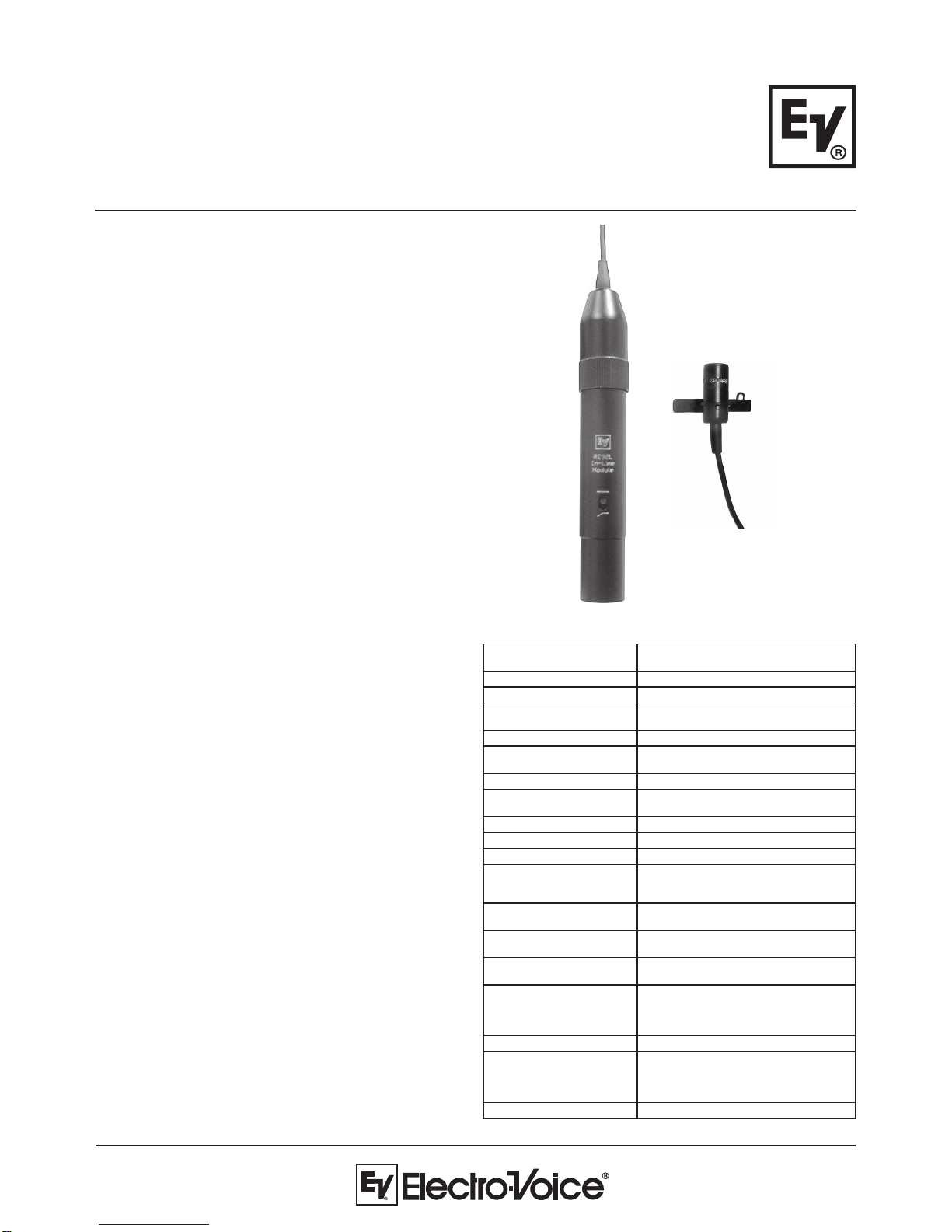

Electro-Voice RE92L Manuel utilisateur

KeyFeatures:

• Wide, Smooth Frequency Response

• Cardioid Polar Pattern

• 12dB/Octave Switchable High Pass Filter

• Transformerless Differential Output Easily

Drives Long Cables

• Includes Both Single and Dual Mic Tie Clips

GeneralDescription:

The Electro-Voice® model RE92L is a professional quality

miniature cardioid, electret condenser lavalier microphone.

It is designed for unobtrusive miking of speech and

instruments, making it an excellent choice for use in many

broadcast, stage performance, and presentation purposes.

Its small size makes the RE92L ideal for theatre, interviews,

public address systems, and houses of worship. The RE92L

has a cardioid polar pattern for high gain before feedback.

The RE92L condenser element provides clear and natural

sound reproduction. The included two-stage windscreen

minimizes wind noise and popping. The RE92L includes an

inlinemoduleforconnectiontoanystandardmicrophoneinput

capableofsupplying24to48Voltphantompower.TheRE92L

comes supplied with 4 feet of cable, both single and dual tie

clasps, and a belt clip for the inline module with a non-

reflecting black finish.

Technical Specifications:

:tnemelEnoitareneG

2tertcelekcab,resnednocdesaiB-fleS mgarhpaidderettupsdlog,kcihtnorcim

:esnopseRycneuqerF)trahcees(zH000,02otzH04

)trahcees(:nrettaPraloPdioidraC

tiucriCnepO,ytivitisneS :zHk1,egatloV lacsaP/Vm6.5

:)DHT%1(leveLgnippilCLPSBd531>

:esioNtnelaviuqE02=Bd0(dethgiew”A“LPSBd03< )slacsaporcim

:egnaRcimanyDBd501>

Bd49:ER(esioNotlangiS :)LPS Bd46

:zHk1,ecnadepmItuptuOsmho052

:stnemeriuqeRrewoPrewoPmotnahPtloV25ot21

:noitpmusnoCtnerruCylppus21Phtiwam8<

:snoisnemiDenohporciM)mm5.01("214.0=retemaiD niartsssel,)mm1.42("849.0=htgneL feiler

:snoisnemiDeludoMenilnI)mm2.22("578.=retemaiD )mm9.531("053.5=htgneL

:elbaC2.1(tf4xretemaid)mm45.2("001.0 gnol)m

:ytiraloPhtiw,3nipotecnerefer,evitisop2niP mgarhpaidehtnoerusserpevitisop

:dehsinruFseirosseccAneercsdniWegatSowT pilCeiTelgniS pilCeiTlauD eludomenilnirofpilCtleB

:roloCkcalbgnitcelfernoN

:snoitidnoClatnemnorivnE:%05-0ytidimuHevitaleR )F°561ot°02-(C°47ot°92- :%59-0ytidimuHevitaleR )F°531ot°02-(C°75ot°92-

:thgieWteNeludomenilnihtiw)smarg061(.zo6.5

RE92L

Unidirectional Condenser

Lavalier Microphone

Frequency Response:

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051, Fax:952/884-0043

www.electrovoice.com

©TelexCommunications,Inc.12/2003

Part Number 38110-287 Rev 2

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/553-5992 or 402/467-5321

For technical assistance, contact Technical Support at: 800/392-3497 or 952/736-4656

Specifications subject to change without notice.

Polar Response:

Using the Windscreen

The RE92L includes a windscreen that can be used anytime wind noise or breath pop is a problem. To install the

windscreen, simply press it on the top of the microphone. The windscreen has an internal frame that includes a stop

to help positioned the windscreen correctly. When installing the windscreen, make sure to push it down on the

microphone as far as it will go. This will ensure that the frame inside the windscreen doesn’t cover any of the acoustic

side ports on the microphone.

Application Notes:

Microphone Positioning

Best results will be achieved with the mic positioned 3 to 6

inches below the neckline. Typical locations are on the lapel,

shirt collar, or on the shirt directly below the chin. You

should avoid covering the microphone with any cloth, since

this could change the frequency response characteristics of

the microphone.

If mechanical noise pickup from the cable is a problem, it

can be minimized by looping the cable up and through the

tie clip as shown.

Dimensions:

Inline Module Dimensions Microphone Dimensions
