General Description:

The Electro-Voice® PA2450L is from the PA series of

professional commercial audio amplifiers. The direct path

airflow design reduces the heat buildup significantly and

allows for more amplifier channels and output power in

slim two rack space chassis. The audio performance of the

PA2450L is superior and fulfills the requirements in many

demanding long term applications from sound

reinforcement, paging or life safety installations.

The PA2450L features many of the same comprehensive

protection circuits typical in EV amplifiers. Complete

protection is provided for high temperature, audio limiters,

power up delay and peak current limiters. In addition to the

rated output power, the PA2450L provides excellent

headroom for a wide dynamic range on music signals. The

onboard dynamic limiter ensures that the output clipping of

the PA2450L will not will not generate excessive distortion.

The amplifier channels can be bridged for more power

flexibility.

Marked level controls on the rear panel provide hidden

reliable level adjustments for each channel. Front panel

LEDs indicate signal present, 0 dB, and limit. Phoenix type

connectorsforinputsandoutputsprovideaneasyrackwiring.

Key Features:

• 2 x 450W at 4 Ohms

• 2 U Rack Space Chassis

• Rear Level Controls

• Bridge Mode Operation Provides

1 x 900W at 8 Ohms

• Complete Protection Package

• Selectable 50Hz or 300Hz Hi-Pass Filter for

each Channel

• PhoenixType Inputs

• PhoenixType Outputs

• High Efficiency Circuit Design

• Front Panel Power On/Off

PA2450L

Two-Channel

PowerAmplifier

Technical Specifications:

Low Impedance Outputs:

- Min. Rated Load for Single Channel Operation is 4 Ohms. 2 Ohm Load is Not Recommended.

- Min. Rated Load for Bridged Operation is 8 Ohms. 4 Ohm Load is Not Recommended.

slennahCforebmuN2

ecnadepmIdaoLmhO8mhO4

)daoLdetaR*(rewoPtuptuOdetaR zHk1,%1<DHT W022W054

)daoLdetaR*(rewoPtuptuOdetaR zHk02…zH02,%2.0<DHT W002W004

zHk1taetaRwelSsµ/V82

zHk1.feR,Bd1-,esnopseRycneuqerFzHk04-zH01<

,zHk1/zH001ta,rotcafgnipmaD mhO4 052>

.feR,%1=DHThtdiwdnaBrewoP rewoPflaH,zHk1 zHk05>-zH01>

,zHk02...zH02,ecnadepmItupnI decnalaB mhOk02>

dethgieW-A,oitaResioN-ot-langiSBd401

tuptuOdetaRtaytivitisneStupnI zHk1,egatloVrorewoP )Vm577(uBd0

,rewoptuptuodetartaDHT zHk1,zHk08=WBM %1.0<

zHk7,zH06,ETPMS-DMI%1.0<

zHk51,zHk51.3,03MID%1.0<

detaR%01ta,zHk1.feR,klatssorC rewoPtuptuO Bd57-<

stnemeriuqeRrewoP-zH05,V032roV021 zH06

noitcetorPsretimiLoiduA erutarepmeThgiH sretimiLtnerruCkaeP yaleDnO-nruT

gnilooCraeR-ot-tnorF

mm,)DxHxW(snoisnemiD )uR2(mm604x88x384 "61x"5.3x"91

thgieW)sbl43.63(gk5.61

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051, Fax:952/884-0043

www.electrovoice.com

PartNumberLIT-0000XX Rev1

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

PA2450LPartNumber:

PA2450L, 120V -- D170408

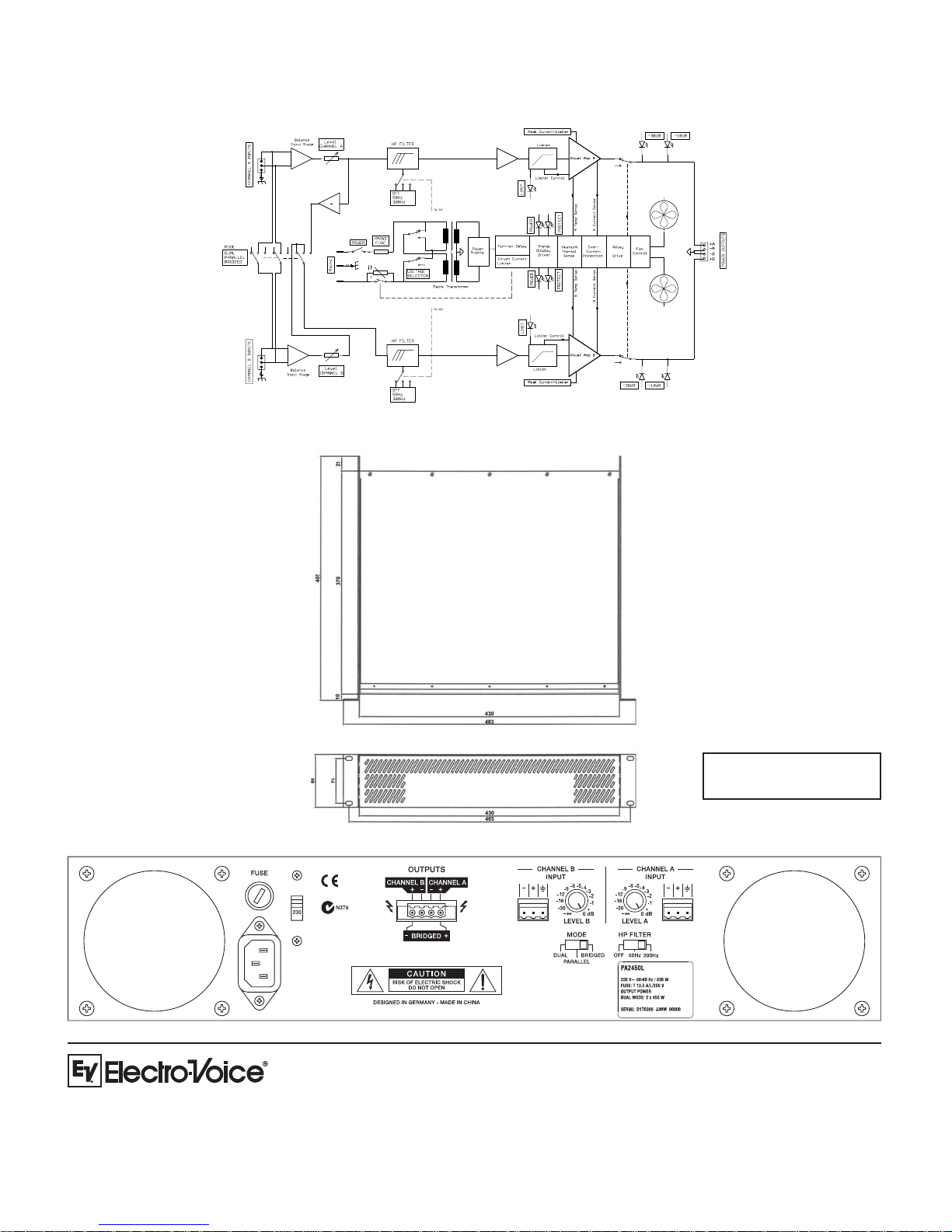

Block Diagram:

Dimension Drawings:

Rear View: Front View

Top View

All Dimensions

inMillimeters
