Electro-Harmonix MAINFRAME bit crusher Manuel utilisateur

Congratulations on your purchase of the MAINFRAME, a powerful but easy-to-use

sample rate reducer and bit crusher. Introducing old-school digital audio sounds

into your music has never been easier. A broad range of controls help you fine-

tune the digital artifacts, and the innovative Sample Rate Tuning Mode makes it

easy to match the sample reduction to a pitch, even on the fly. Access the

MAINFRAME and immerse your tone in the sounds of the arcades, consoles, and

terminals of yesteryear.

WARNING: Your Mainframe comes equipped with an Electro-Harmonix 9.6DC-200BI

power supply. The Mainframe requires 90mA at 9VDC with a center negative plug. Use

of the wrong adapter or a plug with the wrong polarity may damage your Mainframe and

void the warranty. Do not exceed 10.5VDC on the power plug. Power supplies rated for

less than 90mA will cause the Mainframe to act unreliably.

- FEATURES -

•Sample Rate Reduction ranging from 48kHz to 110Hz

•Bit Depth Reduction ranging from 24-bit to 1-bit

•Selectable High/Low/Band-Pass filter to shape the artifacts of the bit crushing

and sample rate reduction

•Sample Rate Tuning Mode allows you to set the sample rate to match the key

of a song, or continually adjust the sample rate based on what you play on

your instrument

•Programmable preset or expression pedal setting allows you to save your

sound or control any combination of the Mainframe’s knobs with an external

expression pedal

•Secondary knob parameters allow you to fine-tune the Mainframe’s effect

•High quality buffered bypass and silent switching

- SPECIFICATIONS -

•Audio input impedance: 2M

•Audio output impedance the OUTPUT jack: 500

•Current draw: 90mA

•Maximum input signal level: 6.25 dBu (4.5V peak-to-peak)

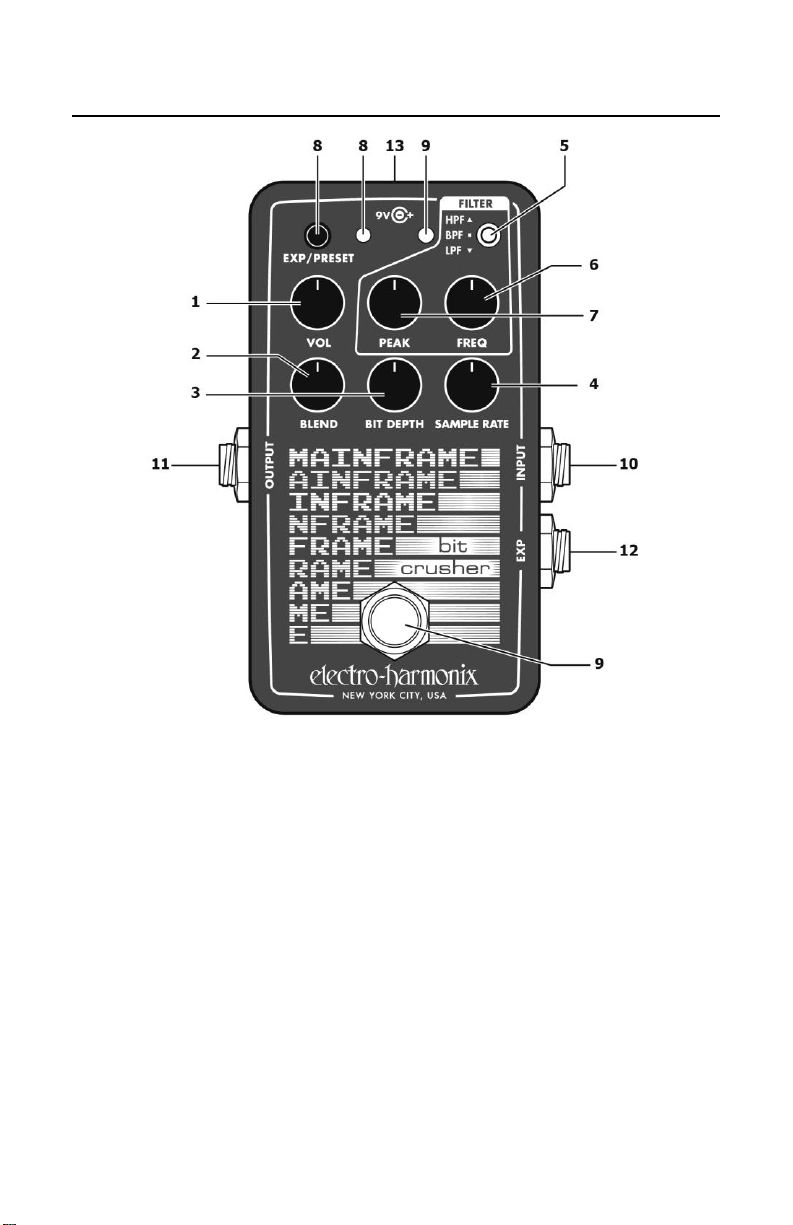

CONTROLS AND CONNECTIONS

1. VOL Knob This knob sets the master output level of the Mainframe.

2. BLEND Knob This knob blends between the dry guitar signal and the

effect signal. As the knob is turned clockwise, the output ranges from

completely dry guitar to a fully effected signal with the filter applied.

3. BIT DEPTH Knob As this knob is turned clockwise, the bit depth of

the signal is

reduced

, producing a distorted, noisy tone.

4. SAMPLE RATE Knob As this knob is turned clockwise, the sample

rate of the signal is

reduced

, producing a ringing or glitchy tone.

5. FILTER HPF/BPF/LPF Switch This toggle switch controls the

direction of the Mainframe’s filter:

HPF: High-Pass Filter

BPF: Band-Pass Filter

LPF: Low-Pass Filter

6. FILTER FREQ This knob controls the frequency of the Mainframe’s

filter. As the knob is turned up, the frequency increases. The frequencies

cut/passed by the filter vary by the filter type:

HPF: Frequencies above the FREQ knob setting are passed,

frequencies below are cut.

BPF: The FREQ knob controls the center frequency of a pass band.

Frequencies above and below this center frequency are cut.

LPF: Frequencies below the FREQ knob setting are passed,

frequencies above are cut.

Tip: For a tone with no filtering, set the FREQ knob to maximum and set

the toggle switch to LPF.

7. FILTER PEAK This knob controls the resonance of the Mainframe’s

filter. Turning this knob clockwise increases the resonance, producing a

sharper, more cutting tone.

8. EXP / PRESET Button and Green LED This button turns expression

mode or a saved preset on and off. When the Green LED is lit, expression

control is enabled, or the preset is enabled. See pages 6-9 for details on

how to save expression settings or a preset.

9. Footswitch and Red LED Press and release the footswitch to toggle

between bypass and effect modes. When the red LED is lit, the Mainframe

is in effect mode. Double tap the footswitch to enter Sample Rate Tuning

Mode, and tap it once again to exit Sample Rate Tuning Mode and save

the tuned sample rate.

10. INPUT Jack This 1/4" phone jack is the audio input of the

Mainframe. The input impedance is 2M.

11. OUTPUT Jack This 1/4" phone jack is the main audio output of the

Mainframe. The output impedance is 500.

12. EXP Jack Connect an expression pedal or control voltage jack to

allow for external control over every knob on the Mainframe. See pages

6-9 for a description on how to set up and control the Mainframe with an

external expression pedal.

13. 9V Power Jack Plug the output of the Mainframe’s supplied

EHX9.6DC 200mA AC adapter to the 9V power jack located at the top of

the pedal. The Mainframe requires 90mA at 9VDC with a center-negative

plug. Do not exceed 10.5VDC on the power jack.

SAMPLE RATE TUNING MODE

In Sample Rate Tuning Mode, the Mainframe analyzes your input signal in

real-time, and sets the sample rate to match the pitch of your signal, or a

set interval above your signal. You can use this mode to lock the sample

rate to a certain pitch for a song, or you can keep it constantly tuning

along with every note you play.

HOW TO TUNE THE SAMPLE RATE

1. Double-tap the footswitch to enter Sample Rate Tuning Mode. The

Red LED will begin blinking in a slow pattern to indicate that the

Mainframe is actively tuning the signal.

Note: You can leave the Mainframe in tuning mode indefinitely and it

will continually tune to your signal.

2. While in Sample Rate Tuning Mode, turn the SAMPLE RATE knob to

select the interval above the guitar pitch at which the sample rate will

be set. See the diagram below for the available interval ranges. The

default interval is two octaves.

3. While in Sample Rate Tuning Mode, tap the footswitch again to lock

the sample rate to whatever note you’re currently playing. You must

be playing a note while pressing this footswitch for the Mainframe to

save the note/interval combination.

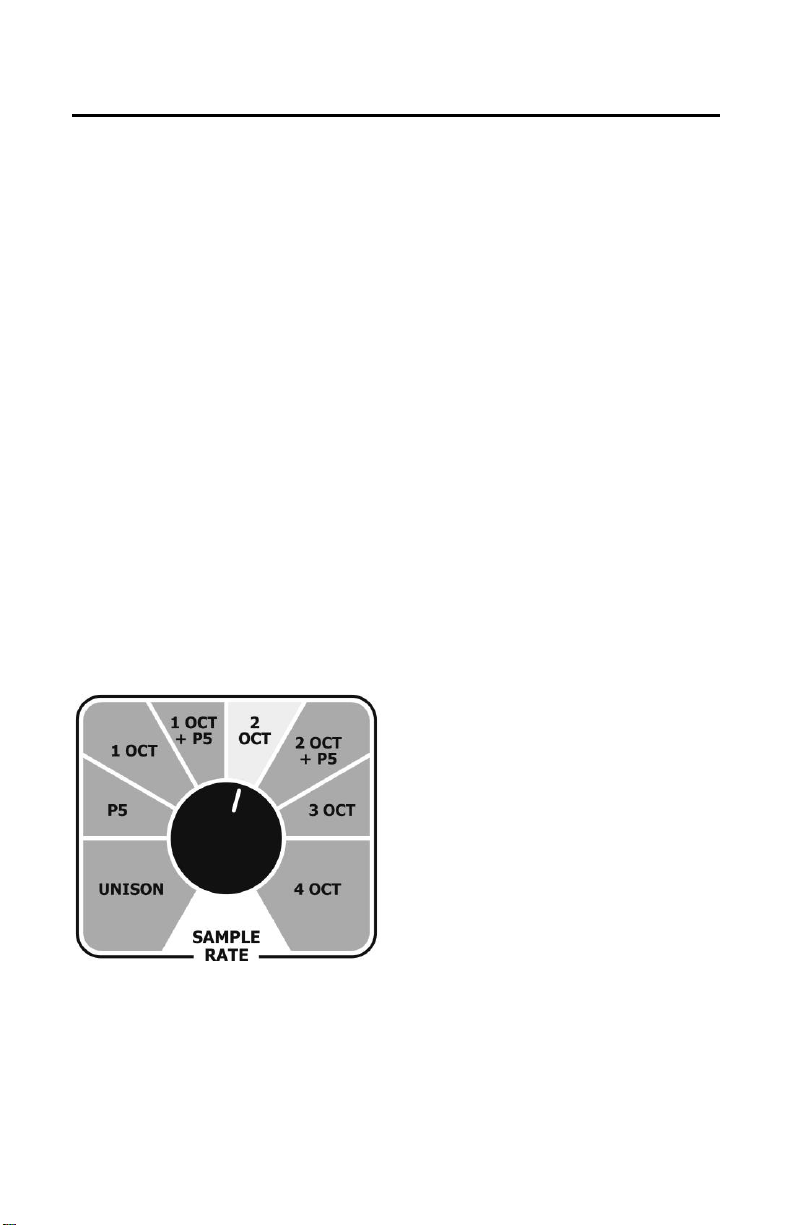

INTERVAL RANGES IN SAMPLE RATE TUNING MODE

While in Sample Rate Tuning Mode,

the Mainframe reads the input

signal, then multiplies it by the

interval selected with the SAMPLE

RATE knob (see diagram) to produce

the tuned sample rate of your

choice.

Example: If the interval is set to 2

octaves and the guitar plays an A2

(110Hz), the sample rate will be set

to A4 (440Hz).

Tip: When the interval is set to Unison or Octave, you may hear little to

no sound while in Sample Rate Tuning mode, because the Mainframe is

sampling the signal in the same place every cycle.

PRESERVING OR DISCARDING THE TUNED SAMPLE RATE

•Once locked, the tuned sample rate will be maintained even if the

pedal is powered off and on.

•To discard the tuned sample rate, turn the SAMPLE RATE knob, or re-

enter Sample Rate Tuning Mode by double-tapping the footswitch.

•The interval range set by sample rate tuning mode is also saved until

the SAMPLE RATE knob is turned again in Sample Rate Tuning Mode.

WHEN USING AN EXPRESSION SETTING OR A PRESET

If a custom expression setting (see pages 6-9) has been set up to control

the sample rate of the Mainframe, Sample Rate Tuning Mode will be

unavailable while expression is active. If a preset is currently active,

turning on Sample Rate Tuning Mode will flag that the preset has been

altered (see page 8).

If you are currently in Sample Rate Tuning Mode while such an expression

setting or preset is loaded, the Mainframe will exit Sample Rate Tuning

Mode and the expression pedal or preset will control the sample rate.

When using the factory default expression setting, the expression pedal

will sweep from no sample rate reduction up to the sample rate set by

Sample Rate Tuning Mode.

Sample Rate Tuning Mode can be used while

creating

an expression pedal

setting or preset, either by starting the preset/expression procedure while

Sample Rate Tuning Mode is active, or by turning on Sample Rate Tuning

Mode while creating the expression setting or preset.

PRESET AND EXPRESSION PEDAL USE

The Mainframe can store one custom setting in memory. This custom

setting can function as a preset with a snapshot of the toggle switch and

each knob position, or as a custom expression pedal setting allowing you

to sweep any combination of knobs between two saved positions in any

direction. Press the EXP/PRESET button to activate the saved setting.

If no custom setting has been made, by factory default an expression

pedal plugged into the EXP jack will control the sample rate of the

Mainframe. At the heel position, the sample rate will be the full 48kHz. At

the toe position, the sample rate will match the sample rate set by SAMPLE

RATE knob or by Sample Rate Tuning Mode. There is no factory default

preset, so if no expression pedal is used, pressing the EXP/PRESET button

will not load any different sound.

When making a custom setting, the heel and toe positions are saved for

an expression setting, and the toe position is also saved as a preset that

can be recalled without an expression pedal. The toggle switch position is

also saved and can be recalled as a preset or with an expression pedal.

CREATING A CUSTOM PRESET

1. Press and hold the EXP/PRESET button until the green LED starts

blinking slowly.

2. Press and release the EXP/PRESET button again. The green LED starts

blinking rapidly.

3. Turn any of the knobs and the FILTER switch to the settings you would

like to use for the preset. If the controls are already in the position

you would like for the preset, there is no need to turn anything.

4. Press and release the EXP/PRESET button. The green LED will light

solid, indicating that the preset is active. If Sample Rate Tuning Mode

was active during the creation, it will be turned off and the tuned

sample rate will be saved to the preset.

CREATING A CUSTOM EXPRESSION SETTING

1. Press and hold the EXP/PRESET button until the green LED starts

blinking slowly. This is heel-acquisition mode for an expression setting.

2. Turn any of the knobs to the settings you would like to use for the

heel position of the expression pedal.

3. Press and release the EXP / PRESET button. The green LED will start

blinking quickly, indicating that the heel expression settings have been

saved and the Mainframe has entered toe-acquisition mode.

4. Turn any of the knobs to the settings you would like to use for the toe

position of the expression pedal. Set the FILTER toggle switch to the

position you would like to use for the expression setting.

Note: Any knobs that are in the same position in the heel- and toe-

acquisition modes will not be included in the expression setting, but

their toe position will still be used when loading a preset without an

expression pedal.

5. If you have an expression pedal plugged in to the Mainframe, you can

sweep the pedal during toe-acquisition to hear how the expression

settings will sound.

6. Press and release the EXP/PRESET button. The green LED will light

solid, indicating that the expression setting or preset is active. If

Sample Rate Tuning Mode was active during the creation, it will be

turned off and the tuned sample rate will be saved to the toe position

of the expression setting.

Tip: You can follow the above instructions to create an expression setting

even if an expression pedal is not plugged in. For this reason, the heel-

and toe-acquisition settings are always part of the process, whether you’re

creating an expression setting or a preset.

CANCELING PRESET OR EXPRESSION SETTING CREATION

While creating a preset or in the heel- or toe-acquisition modes, you can

cancel the creation of a custom expression setting or preset by pressing

and releasing the footswitch. The previously-saved expression setting or

preset will be loaded, and any new settings will be discarded.

RECALLING / UNLOADING A PRESET OR EXPRESSION SETTING

1. Press and release the EXP / PRESET button. The green LED will light,

and the Mainframe will load your saved expression setting or preset.

2. If an expression pedal is present, any knobs that are saved to the

expression setting are disabled and the expression pedal controls

those parameters. If no expression pedal is present, the Mainframe

loads the saved positions of all knobs. In both situations, the FILTER

toggle switch’s saved setting will be loaded.

3. To unload the setting or preset, press and release the EXP / PRESET

button. The green LED will turn off, and the toggle switch and any

knobs that were part of the expression pedal setting or preset will

return to What You See Is What You Get operation.

CHANGING PARAMETERS AFTER RECALL

Normally, the green LED lights solid after loading an expression setting or

preset. If the FILTER toggle switch is moved, or if a knob is moved while

a preset is loaded (with no expression pedal connected), the green LED

will blink very rapidly to indicate that the preset has been loaded but has

been altered.

RELOADING ALTERED EXPRESSION SETTINGS OR PRESETS

In the situation where an expression setting or preset has been altered

and the green LED is blinking, press and release the EXP/PRESET button

to recall the saved setting again.

SAVING ALTERED EXPRESSION SETTINGS OR PRESETS

If you would like to save an altered expression setting or preset, press and

hold the EXP/PRESET button for 1 second. The green LED will light solid,

then blink quickly once the new preset has been saved.

ERASING THE CUSTOM EXPRESSION SETTING OR PRESET

Press and hold the EXP / PRESET button. While holding it, press and

release the footswitch. The green LED will blink quickly, then light solid,

indicating that the Mainframe has loaded the factory default expression

setting and the custom expression setting or preset has been erased.

POWERING UP WITH A SAVED PRESET OR EXPRESSION SETTING

If power is removed from the Mainframe while a preset or expression

setting is active, it will be active when the Mainframe is powered up again,

regardless of knob and toggle switch position.

Note: If there are alterations that haven’t been saved when power is

removed from the Mainframe, the changes will be lost and the saved

version of the preset or expression setting will be loaded.

EXPRESSION PEDAL SPECIFICATIONS AND COMPATIBILITY

The Mainframe accepts an expression pedal with TRS plug or control

voltage (CV) on a TS plug at its EXP phonejack. The polarity of the

expression pedal’s plug must have the Sleeve connected to the heel

position (usually GND), Ring connected to the toe position and the Tip

connected to the wiper. The nominal expression pedal impedance is 10kΩ

though most other values will work fine. Please do not go below 6kΩ on

your expression pedal’s potentiometer impedance. Some suggested

Expression Pedals: EHX Expression Pedal, M-Audio®EX-P, Moog®EP-2

and EP-3, Roland®EV-5 or Boss®FV-500L. Additionally, the EXP IN jack

can be connected to a CV source using a TS plug; the acceptable control

voltage range is 0V to 5V.

SECONDARY KNOB FUNCTIONALITY

The Mainframe allows you to take even more control over the bit crushing

effects by accessing “hidden” parameters through Secondary Knob Mode.

Use the secondary knob functions to fine tune the exact tone you want

from the Mainframe.

USING SECONDARY KNOB MODE

1. Press and hold the footswitch. While holding the footswitch, press the

EXP/PRESET button. The Red LED will blink to indicate that you are in

Secondary Knob Mode.

2. Turn the PEAK, FREQ, BIT DEPTH, and SAMPLE RATE knobs to edit

the secondary knob parameters. The VOL and BLEND knobs work

normally in Secondary Knob Mode.

3. To exit Secondary Knob Mode, press and release the footswitch or the

EXP/PRESET button. The Red LED will stop blinking. The secondary

knob parameters are saved and will be maintained even if the

Mainframe is power cycled.

Note: The normal knob parameters set by the PEAK, FREQ, BIT DEPTH,

and SAMPLE RATE knobs before entering Secondary Knob Mode are

preserved until those knobs are moved again.

SECONDARY KNOB PARAMETERS

SAMPLE RATE Knob:

Toggle continuous/pitched sample rates

When set below 50% (factory default), the Mainframe’s sample rate

reduction can be adjusted continuously through its range.

When set above 50%, the sample rate is constrained to musical

pitches, and is adjusted one half-step at a time.

BIT DEPTH Knob:

Toggle envelope-following/fixed bit crushing

When set below 50% (factory default), the Mainframe’s bit crushing

follows the instrument’s amplitude envelope. In this setting, loud and

soft signals will have the same number of bits.

When set above 50%, the Mainframe’s bit depths have fixed levels,

so quiet signals have fewer bits, and are therefore more distorted.

This also results in a gating effect at higher settings.

FILTER FREQ Knob:

Toggle 2nd-order/4th-order filter

When set below 50% (factory default), the filter will be 2nd-order.

When set above 50%, the filter will be 4th-order. This setting applies

to all filter directions (LPF, BPF, HPF). The 4th-order filter more

strongly blocks any frequencies that are being cut by the filter.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Electro-Harmonix Pédale musicale

Electro-Harmonix

Electro-Harmonix METAL MUFF with TOP BOOST Manuel utilisateur

Electro-Harmonix

Electro-Harmonix Silencer Manuel utilisateur

Electro-Harmonix

Electro-Harmonix MOD REX Manuel utilisateur

Electro-Harmonix

Electro-Harmonix Super Pulsar Manuel utilisateur

Electro-Harmonix

Electro-Harmonix Memory Boy Manuel utilisateur

Electro-Harmonix

Electro-Harmonix Pitch Fork Manuel utilisateur

Electro-Harmonix

Electro-Harmonix Deluxe Bass Big Muff Pi Manuel utilisateur

Electro-Harmonix

Electro-Harmonix NANO OPERATION OVERLORD Manuel utilisateur

Electro-Harmonix

Electro-Harmonix HOLY STAIN Manuel utilisateur

Electro-Harmonix

Electro-Harmonix Dual Expression Manuel utilisateur

Electro-Harmonix

Electro-Harmonix Black Finger Manuel utilisateur

Electro-Harmonix

Electro-Harmonix NEXT STEP SERIES Manuel utilisateur

Electro-Harmonix

Electro-Harmonix nano SMALL STONE Manuel utilisateur

Electro-Harmonix

Electro-Harmonix Cathedral Stereo Reverb Manuel utilisateur

Electro-Harmonix

Electro-Harmonix XO HUM DEBUGGER Manuel utilisateur

Electro-Harmonix

Electro-Harmonix DELUXE MEMORY MAN Manuel utilisateur

Electro-Harmonix

Electro-Harmonix BLACK FINGER Manuel utilisateur

Electro-Harmonix

Electro-Harmonix BIG MUFF Manuel utilisateur

Electro-Harmonix

Electro-Harmonix Mono Synth Manuel utilisateur

Electro-Harmonix

Electro-Harmonix SPRUCE GOOSE OVERDRIVE Manuel utilisateur

Electro-Harmonix

Electro-Harmonix XO WHITE FINGER Manuel utilisateur

Electro-Harmonix

Electro-Harmonix 8-STEP PROGRAM FOOT CONTROLLER Manuel utilisateur

Electro-Harmonix

Electro-Harmonix NEXT STEP Series Manuel utilisateur

Electro-Harmonix

Electro-Harmonix NEXT STEP Series Manuel utilisateur

Manuels Pédale musicale populaires d'autres marques

Behringer

Behringer ULTRA WAH UW300 Manuel utilisateur

Whirlwind

Whirlwind oc-bass Manuel utilisateur

Strymon

Strymon Lex-rotary Manuel utilisateur

Behringer

Behringer PB600 Manuel utilisateur

Lexicon

Lexicon MX200 Manuel utilisateur

Dunlop

Dunlop Hendrix 68 Shrine Octavio Fuzz Series Manuel utilisateur

Matthews Effects

Matthews Effects Whaler V2 Manuel utilisateur

Grid 1

Grid 1 Pedal Jeanie Manuel utilisateur

Amptweaker

Amptweaker tightboost Manuel utilisateur

Ibanez

Ibanez TS-808 Tube Screamer Overdrive Pro Manuel utilisateur

PuzzleSounds

PuzzleSounds DR. Q ENVELOPE FILTER Manuel utilisateur

BYOC

BYOC Analog Chorus Manuel

Dimavery

Dimavery EPVP-50 Manuel utilisateur

Tefi Vintage Lab

Tefi Vintage Lab GEGÈ Manuel utilisateur

Pro-MIDI

Pro-MIDI G25 Manuel utilisateur

DW 7000 Manuel utilisateur

FAMC

FAMC Liquid-Foot Jr. Series Manuel utilisateur

Dimavery

Dimavery EPOD-50 Overdrive Manuel utilisateur
