Electro-Harmonix BATTALION Manuel utilisateur
BATTALION
BASS PREAMP + DI
Congratulations on your purchase of the Electro-Harmonix Battalion. The all-
analog circuitry of the Battalion provides you with an amazing amount of
features in a sturdy and compact pedal. Basic functions include a four-band
equalizer, a compressor, and a noise gate. The Battalion also packs a full-
featured MOSFET distortion section, including a three-way toggle switch to
change where the distortion section is placed in the signal path, thereby
expanding the tonal versatility of the preamp.
In addition, the Battalion includes a balanced, XLR output for use as a DI, as
well as separate level and bypass controls for the XLR out. The ¼” output
jack is headphone ready and perfect for quiet practicing. So, are you ready
to head into the trenches? Road warriors and studio musicians alike will
appreciate the stunning quality and multiple features at their disposal.
- USING THE BATTALION -
Plug the 9VDC adapter into the jack on the top of the Battalion. The unit
must be powered to pass a signal. Connect an instrument cable from your
bass into the INPUT jack. Insert an instrument cable between the OUTPUT
jack and a suitable amplifier, or insert an XLR cable between the DI
OUTPUT jack and a suitable mixing console or recording interface. Click the
BYPASS footswitch to engage the Battalion. The green LED lights to indicate
that the unit is active, and the equalizer and gate will be in effect. Push in
the COMPRESSION button to engage the compressor. The blue LED will
illuminate to show that the compressor is active. Press the DISTORTION
footswitch to activate distortion. The red LED will light indicating the
distortion is active.
- CONTROLS -
BYPASS Footswitch & Green LED –The right LED illuminates when the
effect is engaged. The LED will not light if the Battalion is bypassed. Press
the footswitch to toggle between effect on and buffered bypass mode.
VOL Knob –Sets master output level of the pedal.
GATE Knob –Sets the threshold for the noise gate. Turn this up to cut
signal when no/little bass signal is coming through.
-10dB Pad Button –Press to cut the input signal by 10dB, good for active
basses or other basses with very strong output signals.
EQ CONTROLS:
BASS Knob –Boost or cut low end. No effect when the knob is at 50%.
Boosts/cuts frequencies below 200Hz.
LO MID Knob –Boost or cut low midrange frequencies. No effect when the
knob is at 50%. Boost/cut at 280Hz.
HI MID Knob –Boost or cut high midrange frequencies. No effect when
the knob is at 50%. Boost/cut at 750Hz.
TREBLE Knob –Boost or cut high end. No effect when the knob is at 50%.
Boosts/cuts frequencies above 2kHz.
COMPRESSOR CONTROLS:
COMPRESSOR Button & Blue LED –Use this switch to engage or bypass
the compressor circuit. The blue LED will illuminate when the compressor is
active. If active, the blue LED will stay lit even when the entire pedal is
bypassed, indicating compression will be active upon activating the pedal.
COMPRESSOR Knob –Determines the intensity of the compression. Turn
up to increase the compression ratio.
DISTORTION CONTROLS:
DRIVE (distortion) Footswitch & Red LED –Use this footswitch to
engage or bypass the distortion circuit. The Left LED will illuminate when the
distortion is active. If active, the LED will stay lit even when the entire pedal
is bypassed, indicating distortion will be active upon activating the pedal.
LEVEL Knob –Sets the output level of the distortion section.
BLEND Knob –Controls mix between dry and distorted signal. Add more
distortion by turning the knob up.
DRIVE Knob –Affects the intensity of the distortion
TONE Knob –Cuts the high end from the distortion signal as you turn the
knob down.
DISTORTION PRE/POST/DRY EQ Switch –Determines where the
distortion circuit falls in the pedal’s signal path. The Battalion has three
signal flow options when distortion is active:
PRE EQ –In this mode the distortion section comes right after the
compressor (if active) and before the EQ. The dry signal blended in with the
BLEND knob is the same signal that is fed into the beginning of the distortion
section. In this mode the EQ can heavily affect the tonal character of the
distorted signal.
POST EQ –In this mode the EQ comes right after compressor (if active) and
before the distortion. The dry signal blended in with the BLEND knob is the
same signal fed into the beginning of the distortion section, which is the
output of the EQ section. The EQ’s effect on the distorted signal’s tonal
character is less noticeable in this mode, but boosting certain frequency
areas can drive the distortion section, affecting the amount of distortion.
DRY EQ –In this mode, the distortion section comes right after the
compressor (if active), but only the dry signal that is blended in with the
BLEND knob is affected by the EQ. The distorted part of the signal is not
affected by the EQ at all. In this mode you can heavily EQ the dry signal
while leaving the distorted signal untouched, giving the option to simulate
dual-amp or dual-channel bass setups. Either use the BLEND knob to mix
between two distinct bass tones, or leave BLEND at max and use the
DISTORTION footswitch as a pseudo channel switcher.

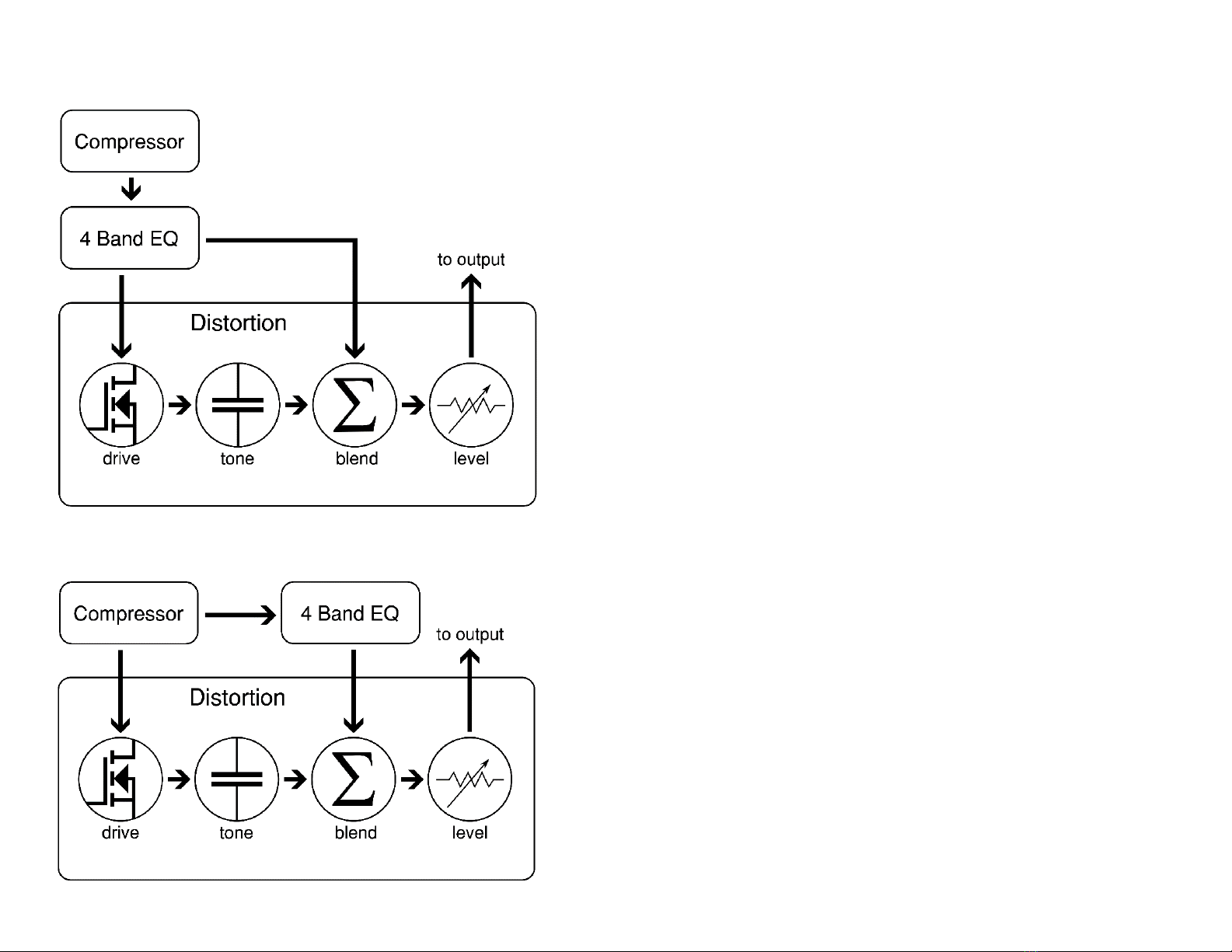

DISTORTION MODES (SIGNAL FLOW):
The following signal flow charts illustrate the three distortion modes. These
charts assume that the compressor is active –if it is inactive that block is
simply bypassed (replaced by your dry bass signal). In all modes, the gate’s
detector comes before the compressor, right at the input to ensure the gate
opens responsively, while the gate itself comes after all other processing, to
mute any possible noise picked up through the signal chain. The main VOL
knob is a master volume, also coming at the end of the signal chain.

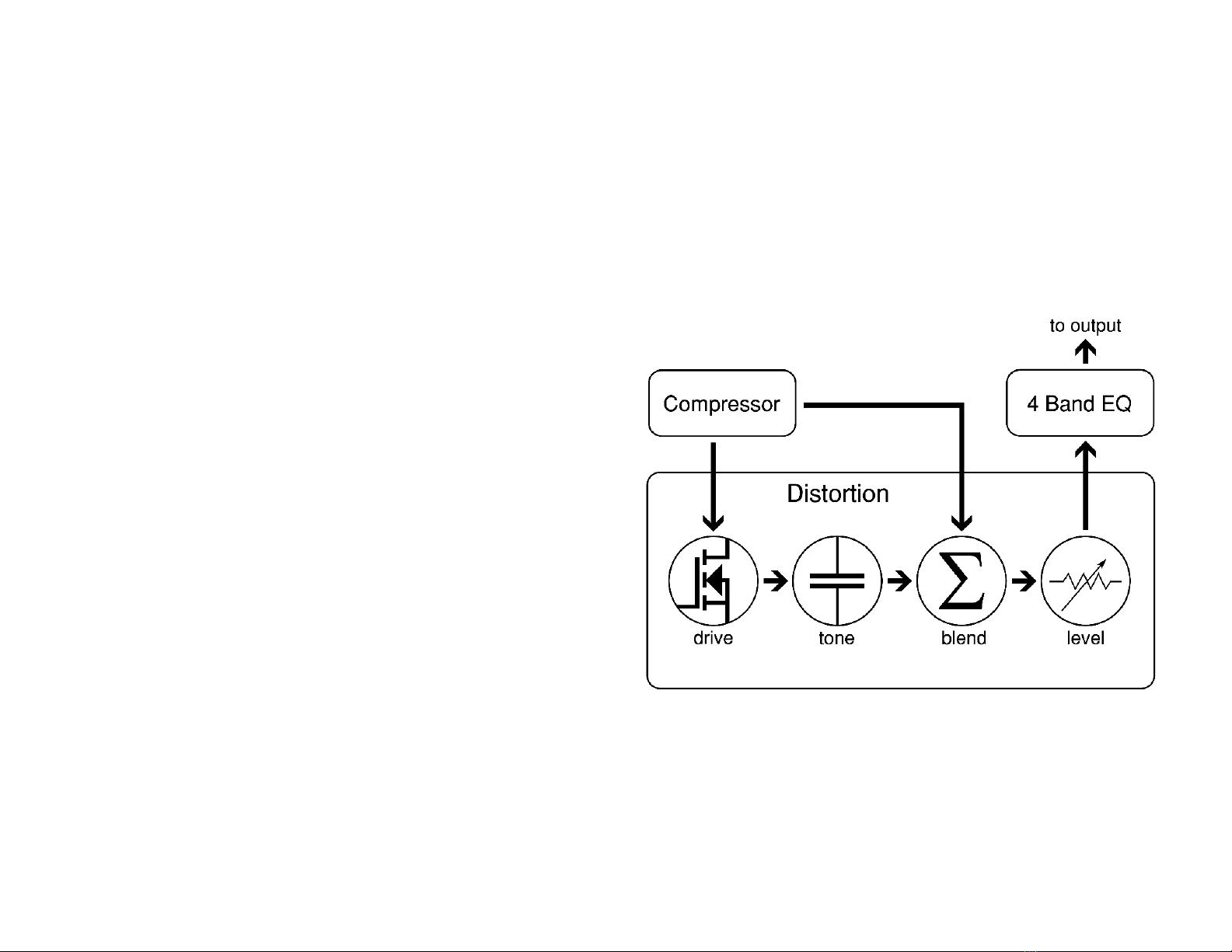

Pre-EQ
Post-EQ
Dry-EQ
JACKS, XLR CONTROLS, POWER
INPUT Jack –Plug your instrument or the output of another effects pedal
into this ¼” jack. The input impedance is 2.2M.
DRY OUTPUT Jack –Use this ¼” jack to output a dry, unaffected version
of your bass signal.
OUTPUT Jack –Use this ¼” jack to output the signal, dry or affected based
on the bypass status. Plug this jack into an amp, another effects pedal, or
plug headphones into this jack. The output impedance is 220.
XLR Jack –Use this to output a balanced signal.
XLR VOL Knob –Use this to set the volume of the XLR output.
XLR Bypass Button –Push in to have the XLR output the signal based on
the bypass state of the pedal. Leave out to output the dry signal regardless
of the bypass state of the pedal.
Ground Lift Button –Push in to keep ground connected to pin 1 of the
XLR jack. Leave out to disconnect pin 1 from ground.
9V Power Jack –Plug the output of the factory-supplied EHX9.6DC 200mA
AC adapter into the 9V power jack located at the top of the Battalion. The
Battalion draws 100mA at 9VDC with a center negative plug. The
Battalion accepts Boss®and Ibanez®style AC Adapters capable of delivering
at least 200mA.
- WARRANTY INFORMATION -
Please register online at http://www.ehx.com/product-registration or
complete and return the enclosed warranty card within 10 days of purchase.
Electro-Harmonix will repair or replace, at its discretion, a product that fails
to operate due to defects in materials or workmanship for a period of one
year from date of purchase. This applies only to original purchasers who
have bought their product from an authorized Electro-Harmonix retailer.
Repaired or replaced units will then be warranted for the unexpired portion
of the original warranty term.
If you should need to return your unit for service within the warranty period,
please contact the appropriate office listed below. Customers outside the
regions listed below, please contact EHX Customer Service for information on
customers: please obtain a Return Authorization Number (RA#) from
EHX Customer Service before returning your product. Include with your
returned unit a written description of the problem as well as your name,
address, telephone number, e-mail address, RA# and a copy of your receipt
clearly showing the purchase date.
United States & Canada Europe
EHX CUSTOMER SERVICE JOHN WILLIAMS
ELECTRO-HARMONIX ELECTRO-HARMONIX UK
c/o NEW SENSOR CORP. 13 CWMDONKIN TERRACE
55-01 2ND STREET SWANSEA SA2 0RQ
LONG ISLAND CITY, NY 11101 UNITED KINGDOM
Tel: 718-937-8300 Tel: +44 179 247 3258
To hear demos of all EHX pedals visit us on the web at www.ehx.com
Email us at info@ehx.com
- FCC COMPLIANCE -
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. If the device is
not installed and used in accordance with the instructions, it may cause
harmful interference to radio communications and void the user's authority
to guarantee the equipment.
Note:
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the
user's authority to operate the equipment under FCC rules.
