USER MANUAL

ALUMINIUM HEATER

WITH SMART APP CONTROL

EAH2000W

Thank you for choosing electriQ

Please read this user manual before using this heater and keep it safe for future

reference.

Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals

THIS PRODUCT IS ONLY SUITABLE FOR WELL INSULATED SPACES OR

OCCASIONAL USE

Page 2 of 24

CONTENTS

SAFETY INSTRUCTIONS

SETTING THE UNIT UP

PRODUCT OVERVIEW

CONTROL PANEL

DISPLAY

QUICK USE GUIDE

SETTING THE DAY AND TIME

OPERATION

WEEKLY TIMER

SETTING UP THE APP

USING THE APP

CLEANING AND MAINTENANCE

TROUBLESHOOTING

TECHNICAL SPECIFICATIONS

SUPPORT

PRODUCT FICHE

Page 3 of 24

SAFETY INSTRUCTIONS

IMPORTANT

Carefully read the instructions before operating the unit

This appliance is for indoor use only.

Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet.

Installation must be in accordance with regulations of the country where the unit

is used.

If you are in any doubt about the suitability of your electrical supply have it

checked and, if necessary, modified by a qualified electrician.

This heater has been tested and is safe to use. However, as with any electrical

appliance - use it with care.

Disconnect the power from the unit before dismantling, assembling or cleaning.

Avoid touching any moving parts within the appliance.

Never insert fingers, pencils or any other objects though the guard.

This appliance can be used by Children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning and user

maintenance shall not be carried out by children.

Children aged from 3 years and less than 8 years shall only switch on/off the

appliance provided that it has been placed or installed in its intended normal

operating position and they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards

involved. Children aged from 3 years and less than 8 years shall not plug in,

regulate, or clean the appliance or perform user maintenance.

Children under 3 years should be kept away unless continuously supervised.

Some parts of this product can become very hot and cause burns. Particular

attention has to be given where children and vulnerable people are present.

Do not clean the unit by spraying it or immersing it in water.

Never connect the unit to an electrical outlet using an extension cord. If an outlet

is not available, one should be installed by a qualified electrician.

Never operate this appliance if the unit, cord or plug is damaged. Ensure the

power cord is not stretched, exposed to sharp object/edges, or routed under the

unit.

Any service other than regular cleaning should be performed by an authorised

service representative. Failure to comply could result in a voided warranty.

Never use the plug as a switch to start and turn off the heater. Use the provided

power switch on the rear of the unit.

Do not use an external timer.

Do not cover the air inlet or outlet, or place items close to the unit which may

Page 4 of 24

restrict airflow, as this may present a fire risk.

The heater must not be located immediately below a socket outlet.

Always ensure the unit is secure before operation. Do not use on unstable or

uneven surfaces and if wall-mounted, it must be securely attached to a suitable

wall.

Do not move or tilt the unit.

Avoid keeping the unit in direct sunlight for a long period of time.

The heater is designed to be used at temperatures above -20°C. If it is

exposed to temperatures below this, it must be allowed to warm above this level

before operation.

Do not attempt to repair, disassemble or modify the appliance. This unit

contains no user-serviceable parts.

Always unplug or disconnect the appliance from the mains power supply when

not in use, or when moving or cleaning it. Do not pull the cord to unplug the

heater.

Keep the heater clean. Do not allow any object to enter the ventilation or

exhaust opening as this may cause electric shock, fire, or damage to the heater.

Do not use the appliance for anything other than its intended use. It is designed

for domestic indoor use only.

There may be a trace of odour during the first few minutes of initial use, or after

a period of storage. This is normal and will quickly disappear.

This appliance has hot and arcing or sparking parts inside. Do not use it in

areas where gasoline, paint, or any flammable liquids are used or stored.

Never locate this appliance where it may fall into a bathtub or otherwise become

exposed to water.

This appliance is IP24 rated, and so can be used or installed within a bathroom

as long as the appliance and its cables are not within Zones 0-2.

If used within a bathroom, the circuit must be protected by a suitable RCD to

prevent electric shock.

Do not allow the appliance to be submerged or sprayed with water.

If the unit is wall-mounted, it must be installed in accordance with current

regulations for the area of installation. If unsure, professional advice should be

sought.

WARNING: To reduce the risk of fire or electrical shock, DO NOT use this

appliance with any solid-state Speed Control Device or any variable speed

controllers.

ENERGY SAVING AND UNIT SAFETY PROTECTION TIPS

Do not cover or restrict the airflow. Do not use in a dusty environment.

For safety and maximum performance, when the castors are fitted the

minimum distance from a wall or objects should be 50cm.

Page 5 of 24

SETTING THE UNIT UP FOR USE

The appliance can be wall-mounted using the supplied mounting brackets, or alternatively

can be set up as a portable heater using the supplied legs and castors. It is important that

the unit is only operated if it is wall-mounted or has the castors fitted.

WALL MOUNTING

Please note:

A gap of 30cm should be left to both sides of the heater following installation

It is the responsibility of the installer to ensure that the unit is securely installed.

1. Attach the 4 mounting brackets on to the rear of the heater

using the 8 small screws provided, ensuring that they are all

orientated so that the large hole in the bracket will be at the

base of the heater when mounted.

2. Measure the distance between the wall hanging holes A

and B on the rear of the heater. Then measure the

distance between A and C.

3. After double-checking the measurements mark their

position on the wall, using a pencil. We would advise using

a spirit level to ensure all markings are square and level.

4. Once you are happy with the position of the marks, drill

8mm diameter holes using a suitable drill bit

5. Insert the wall plugs into the holes. Please note depending on the wall type; alternative

fixings may be required. Ask for professional advice if unsure.

6. Insert the supplied long screws into the wall plug ensuring that the screw head is

protruding by 5~10mm.

7. Hang the heater onto the screws, ensuring all screws engage with the relevant slot on

the rear of the heater.

8. Push the heater to the side so that screws move through the channel on the brackets

to secure it in position.

FITTING THE CASTORS

1. Push the castors into position on the underside of the

legs.

2. Place the 2 legs in position on the underside of the

heater.

3. Secure them into position using 2 small screws for

each leg

Bottom

Page 6 of 24

PRODUCT OVERVIEW

CONTROL PANEL

STANDBY

Button

DOWN

Button

PROGRAM

Button

Air Outlet

Control Panel

Castors

Power Switch

TIMER

Button

Page 7 of 24

DISPLAY

QUICK USE GUIDE

1. Switch the unit on using the main power switch on the rear of the unit. The

heater will make a sound, and the display will flash.

2. Press the STANDBY button to turn on the heater. The display panel will light

up, and the unit will start to operate with the default settings.

3. Set the current day and time.

4. Use the UP and DOWN buttons to change the desired temperature, and the

PROGRAM button to change between High Heat, Low Heat and Anti Frost

modes.

SETTING THE DAY AND TIME

1. With the appliance turned on, hold the DOWN button for 3 seconds until it

bleeps.

2. Change the day shown on the day indicator using the UP and DOWN

buttons.

3. Hold the DOWN button for 3 seconds until the unit bleeps to confirm the

day.

4. Change the hour value using the UP and DOWN buttons.

5. Hold the DOWN button for 3 seconds until the unit bleeps to confirm the

hour value.

6. Change the minute value using the UP and DOWN buttons.

7. Press the STANDBY button or leave for 10 seconds to save the settings.

Day Indicator

Low Heat Mode*

High Heat Mode*

Power Indicator

Time

Heating

indicator

Preset

Indicator

High Heat

Mode

Low Heat

Mode

Temperature

Display

Heating

Mode for

each hour*

Anti-Frost

Mode

Time*

WiFi

Indicator

* For 7 day timer

Timer

Indicator*

Chile Lock

indicator

Page 8 of 24

OPERATION

TURNING ON AND OFF

The Standby button can be pressed to enter and exit standby mode. If the

unit is not to be used for a while, we would advise for it to be turned off using

the switch on the back and unplugged.

CHANGING THE DESIRED ROOM TEMPERATURE

The desired room temperature can be adjusted in both High heat and Low

Heat modes, using the UP and DOWN buttons. After the UP or DOWN button

has been pressed, the temperature display will show the desired temperature.

The desired temperature can be adjusted between 5°C and 50°C.

CHILD LOCK

Press and hold the UP and DOWN buttons for 3 seconds to activate and

deactivate the child lock. When the child lock is activated the Child lock

symbol will be shown on the display and the buttons are disabled on the

control panel until the child lock is deactivated.

CHANGING THE POWER LEVEL

Repeatedly press the PROGRAM button to change between the 3 available

power modes:

High Heat

The heater will operate at High Power(2KW), the desired

temperature can be specified between 5°C and 50°C.

Low Heat

The heater will operate at Low Power (1KW), the desired

temperature can be specified between 5°C and 50°C.

Anti-Frost

The heater will operate to keep the room temperature

between 5°C and 9°C in order to prevent freezing within

the room. The desired temperature cannot be changed.

OPEN WINDOW PROTECTION

If the temperature of the room drops by 5 degrees within a 10 minute period

while the unit is operating, it will assume that a window or door is open and

will enter standby mode to preserve energy. The unit must be turned back on

using the STANDBY button following rectifying the cooling influence.

Page 9 of 24

WEEKLY TIMER

TURNING THE WEEKLY TIMER ON AND OFF

Hold the TIMER button for 3 seconds to activate or deactivate the timer. The

timer icon will be illuminated when the timer is activated.

CHOOSING BETWEEN THE TIMER PRESETS

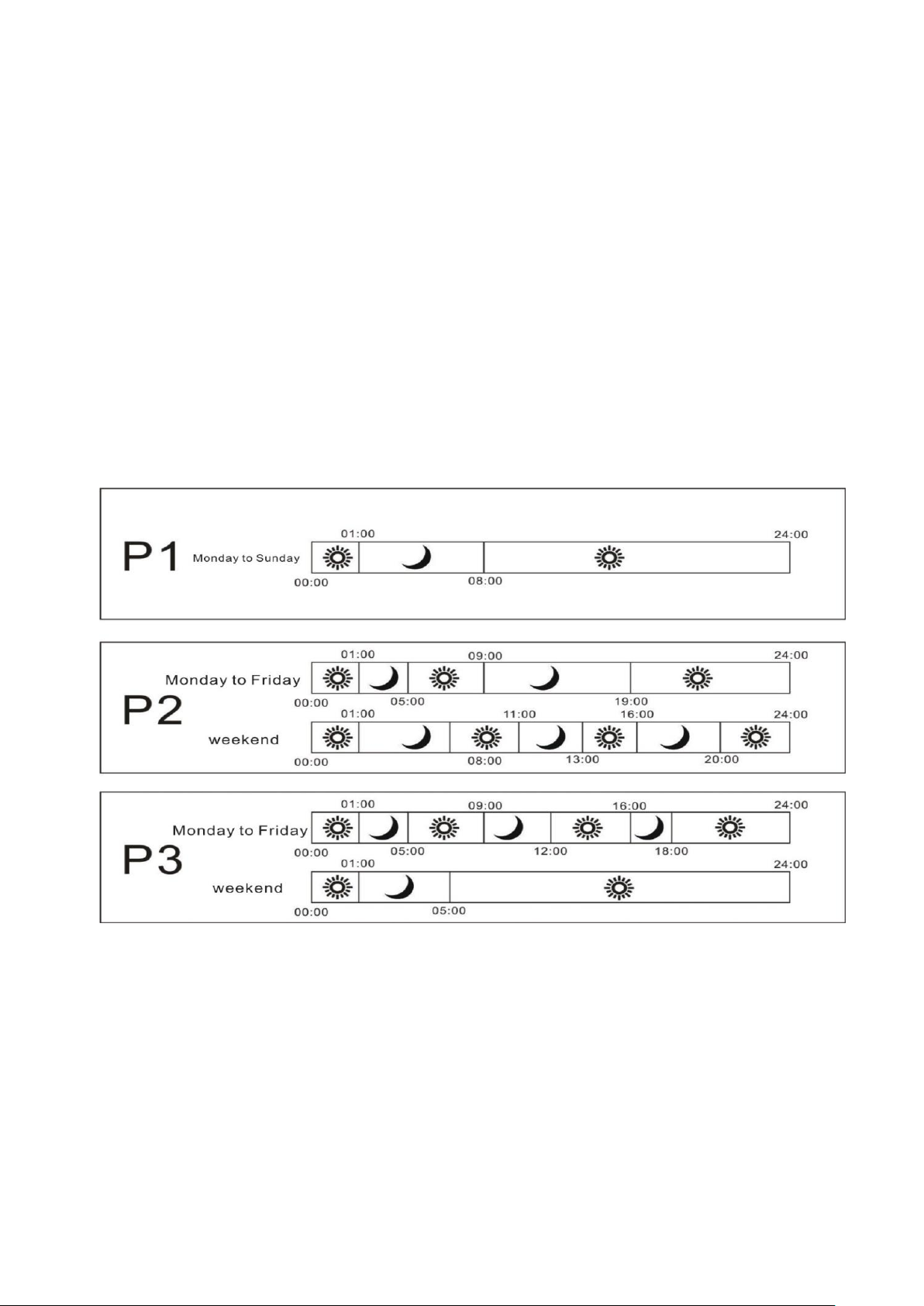

There are 4 timer presets built into the machine: P0 –P3. The presets specify

in which mode the unit operates throughout the day, changing the appliance

between High Heat and Low Heat options.

Press and hold the PROGRAM button for 3 seconds to change between the

presets. P0 is fully customizable whereas the other three presets are as given

below:

Page 10 of 24

PROGRAMMING THE CUSTOMISABLE PRESET (P0)

1. With the timer set to P0 mode, press the TIMER button.

2. Use the UP and DOWN buttons to select the day which you want to

adjust.

3. Press the TIMER button to confirm the day selected.

The bottom of the display will show how the unit is currently

programmed to work throughout that day.

4. Use the UP and DOWN buttons to select which hour to adjust.

5. Once the hour to adjust is selected, the PROGRAM button can be used

to change the heating mode operational within that time period.

6. To set the desired temperature for the hour selected, press the TIMER

button to allow adjustment of the temperature using the UP and DOWN

buttons.

7. Once the desired temperature has been changed, press the TIMER

button to allow selection of a different hour, using the UP and DOWN

buttons.

8. Once you have finished adjusting the timer, press the STANDBY button

or leave the unit for 10 seconds to save.

Table des matières

Autres manuels ElectrIQ Chauffage

ElectrIQ

ElectrIQ eiQEWMR Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-AM09 Manuel utilisateur

ElectrIQ

ElectrIQ ECFIRPH7W Manuel utilisateur

ElectrIQ

ElectrIQ EQODETALL Manuel utilisateur

ElectrIQ

ElectrIQ EORW800LED Manuel utilisateur

ElectrIQ

ElectrIQ HS10-600-0.6DGW Manuel utilisateur

ElectrIQ

ElectrIQ DPHW1500W Manuel utilisateur

ElectrIQ

ElectrIQ eiQODE45 Manuel utilisateur

ElectrIQ

ElectrIQ eiQODE80 Manuel utilisateur

ElectrIQ

ElectrIQ 1466275 Manuel utilisateur

ElectrIQ

ElectrIQ EPPH5W Manuel utilisateur

ElectrIQ

ElectrIQ HS24-600-2DGW Manuel utilisateur

ElectrIQ

ElectrIQ EDR-TRD1025B Manuel utilisateur

ElectrIQ

ElectrIQ EDR-TRM0820B Manuel utilisateur

ElectrIQ

ElectrIQ EQODETTM Manuel utilisateur

ElectrIQ

ElectrIQ DragonPlus7-1.5W Manuel utilisateur

ElectrIQ

ElectrIQ EIGH8TBVW Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-AM09W Manuel utilisateur

ElectrIQ

ElectrIQ EPMH1000LED Manuel utilisateur

ElectrIQ

ElectrIQ EQODETT Manuel utilisateur

ElectrIQ

ElectrIQ VSTR9-650-0.6WW Manuel utilisateur

ElectrIQ

ElectrIQ EGH20AWB Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
