Elecrow RC070S Manuel utilisateur
ELECROW 7 Inch HDMI
Touchscreen Monitor
Model: RC070S
USER MANUAL
Customer Support:
Should there be any questions, please feel free to let us know and contact us with
your purchase order number at info@elecrow.com.
Table of Contents
2019 ELECROW All Rights Reserved.
C1
Chapter 01: Before Using the Product
1-1. Packing Contents
1-2. Product Description
1-2-1. Port Description
Chapter 02: Connecting and Using a Source Device
2-1. Connected to Raspberry Pi
2-1-1. Preparations
2-1-2. How to Use with Raspbian/ Ubuntu Mate/ Retropie/ Kali System
2-1-3. Connect the Monitor to Raspberry Pi and Power the Raspberry Pi
2-2. Connected to PC/Laptop (with HDMI Port)
Chapter 03: Troubleshooting Guide and Warranty
3-1. Troubleshooting Guide
3-2. Warranty
3-3. Custormer Support
Chapter 04: Specifications
2
2
2
3
4
4
4
4-7
7-9
9
10
10
11
11
11
Chapter 01 Before Using the Product
1-1. Package Contents
1-2. Product Description
2019 ELECROW All Rights Reserved.
C2
• 1 x 7 Inch Monitor
• 1 x USB to Micro USB Connector (for RPI 4B)
• 1 x HDMI to Micro HDMI Connector (for RPI 4B)
• 1 x USB to Micro USB Cable (for connecting PC)
• 1 x HDMI to HDMI Cable (for connecting PC)
• 4 x M2.5 Screws (to mount RPI)
• 4 x Small Copper Pillars (to support RPI)
• 2 x Pro Stand
• 2 x M3 Screws (to mount Stand)
• 2 x Speakers
• 1 x User Manual
1-2-1. Port Description
2019 ELECROW All Rights Reserved.
C3
Micro USB Interface (Power): Connects to the device for power supply.
Micro USB Interface (Touch): Connects to the device for touch function and power
supply.
HDMI Interface (Display): Connects to a source device by using an HDMI cable/
connector.
Speaker: Set up the speaker.
Fan: Set up the fan device.
Backlight&Volume: For backlight & volume adjustment.
Earphone: For audio output.
1
23
4 5
6 7
8
9
10
1
4
2
8
56 7
3
10
9
Chapter 02 Connecting and Using a Source Device
2-1-1. Preparations
2-1-2. How to Use with Raspbian /Ubuntu Mate /Retropie/Kali System
Step 1. Download the Image
2-1. Connected to Raspberry Pi
2019 ELECROW All Rights Reserved.
C4
• Raspbian Image
Image Download Link: https://www.raspberrypi.org/downloads/raspbian/
User: pi Password: raspberry
Please download the latest Image for Raspberry Pi 4B
• Ubuntu Mate Image
Image Download Link: https://ubuntu-mate.org/download/#xenial
Number
1
2
3
4
5
6
7
8
Quantity
1pc
1pc
1pc
1pc
1pc
1pc
1pc
Main Material
Raspberry Pi Board ( 4B for example )
7 Inch Monitor
HDMI to Micro HDMI Connector
TF Card (above 8GB)
Card Reader
USB A to Micro USB Connect
5V/3A Power Adapter
Others
or
Click here
Click here
Download this Image and unzip
2019 ELECROW All Rights Reserved.
C5

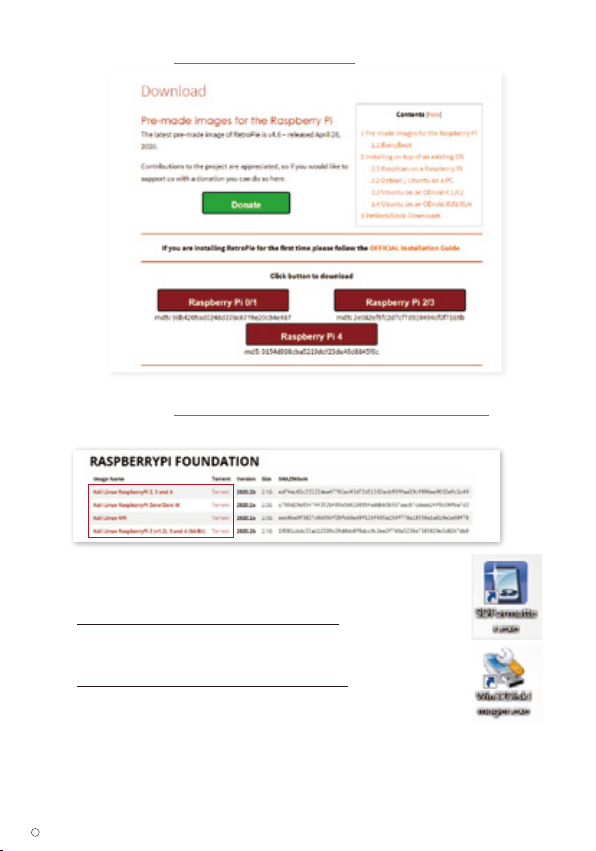

Step 2. Download and Install the Burning Tool
• Download SD Card Formatting Tool (SDFormatter 5.0.1)
Link: https://www.sdcard.org/downloads/formatter_4/
• Download System Burning Tool (Win32DiskImager)
Link: https://sourceforge.net/projects/win32diskimager/
• Format SD Card
• Retropie Image
Image Download Link: https://retropie.org.uk/download/
• Kali Image
Image Download Link: https://www.offensive-security.com/kali-linux-arm-images/
User: root Password: toor
Insert the TF card into the card reader →insert the card reader into the computer →open the
SDFormatter software →select the memory card →click Format →pop up the box and click
“Yes” or “OK” until the format succeeded
Select a Image to download
Click here and download
2019 ELECROW All Rights Reserved.
C6
Step 3. Burn the Image to SD Card
Step 4. Modify the “config.txt”
Open Win32DiskImager software →select downloaded image file(.img) →select SD card →
click ”write” →wait for burning completion, pop-up box click OK
Open the config.txt file of SD card root directory and add the following code at the end of the
file, save and eject SD card safely:
Step 5. Insert the SD Card into the Slot on the Back of the Raspberry Pi
Motherboard.
hdmi_force_hotplug=1
max_usb_current=1
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_cvt 1024 600 60 6 0 0 0
hdmi_drive=2
Please commend out by adding # in the front of "dtoverlay = vc4-fkms-V3D" or delete this line in
the config.txt file when working with Raspberry Pi 4.
2019 ELECROW All Rights Reserved.
C7
• Monitor Connected to Raspberry Pi 4B
1. Peel off the stickers of the mounting holes, then install the small copper pillars onto them.
2. Mount the Raspberry Pi on the back of the screen with M2.5 screws.
2-1-3. Connect the Monitor to Raspberry Pi and Power the Raspberry Pi
2019 ELECROW All Rights Reserved.
C8
3. Connect the HDMI connector & USB connector firmly onto Raspberry Pi and monitor.
4. Set up the speakers.(Please plug in the cable, then remove the sticker on the back of the
speaker, and then paste the speaker on the screen.)
• Raspberry Pi 4
HDMI to Micro HDMI Connector
USB Connector
2019 ELECROW All Rights Reserved.
C9
5. Install the pro stand with M3 screws.
6. Power the Raspberry Pi.
HDMI(Display) to HDMI cable Micro USB(touch port) to USB A Micro USB (Touch/Power)
COMPUTER
Note: Please note that when the monitor is connected to a game device or the monitor's touch end is connected to a
power source, socket, or other power supply device, the touchscreen doesn’t work.
!
2-2. Connected to PC/Laptop (with HDMI Port)
1
1 2 3
2
Note: 1. The Raspberry Pi cannot be powered on directly by powering the screen (neither 5V/2A nor 5V/3A).
2. Please connect the Power interface when powering the screen. If power is supplied to the screen through the
touch interface, the touch screen will become insensitive, or even unusable.
3. When the speakers are turned on 80% or more, it is recommended to connect the power port (not touch port)
to provide full power.
!
DISPLAY
3
