H.R.UV-C
Installation & Operating Manual
HR-55
HRP-55
HR-110
HRP-110
www.elecro.co.uk
Important Notes
Congratulations on purchasing the H.R.UV-C pool sanitising system,
the latest in UV technology, manufactured in England to the highest
standards.
To ensure your new product will give years of trouble free service please
carefully read the following instructions.
Incorrect installation will aect your warranty. Do not discard this
manual, please retain for future reference.
Important safety information
•Consult a qualied electrician
•Never look directly at an illuminated UV lamp
• Do not run this unit dry, do not cover this unit
• Always isolate the unit from mains electricity and turn o the water
supply before carrying out maintenance
• Always disconnect all pool appliances from the mains electricity supply
before servicing
• Power must be supplied through a Residual Current Device (RCD) with
a rated residual operating current not exceeding 30mA
• This unit must be earthed. Never use a higher rated fuse than specied
• The unit must not be submerged in water
• If the quartz sleeve is cracked, replace it immediately
•Young children should always be supervised near water
Specication
Model: HR-55 & HR-110 (Analogue); HRP-55 & HRP-110 (Digital)
Rating: 220~240V 50/60Hz; 110~120V 50/60Hz
MAX Pressure = 3 Bar
This unit is manufactured in conformance with:
Safety: BS EN 60335-1:2002. BS EN 60335-2-55:2003
EMC: EN 55015: 2000. EN 61000-3-2: 2000 EN 61000-3-3: 1995.
EN61547:1995
This unit is CE approved.
2
www.elecro.co.uk
ENGLISH
Product Overview
The H.R.UV-C is available in 55W single tube and 110W double tube
formats, supplied complete with ow switch and either an analogue
lamp life indicator and reset switch, or digital lamp life countdown with
intelligent dosing pump.

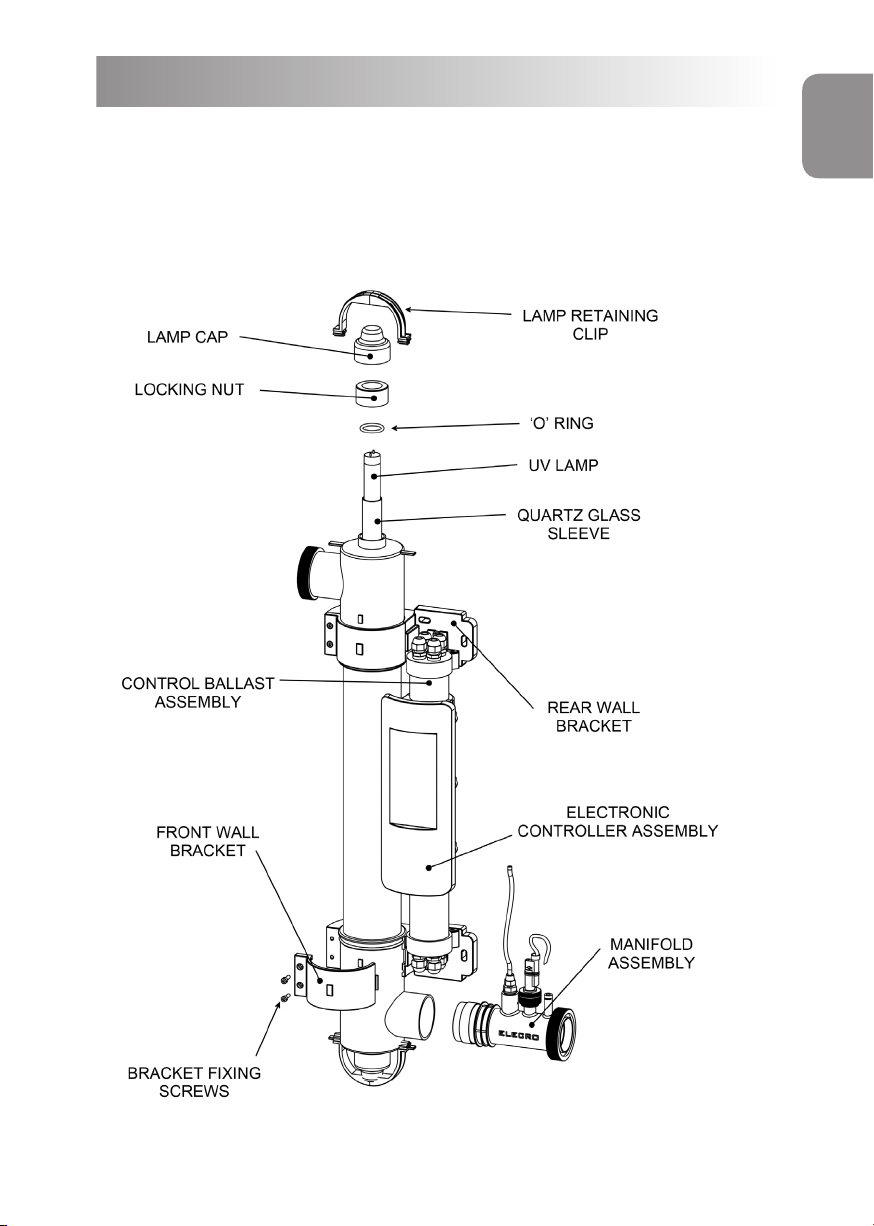

Fig 1.
55W Single Tube Unit
Note: Digital Model Shown
www.elecro.co.uk
1
ENGLISH

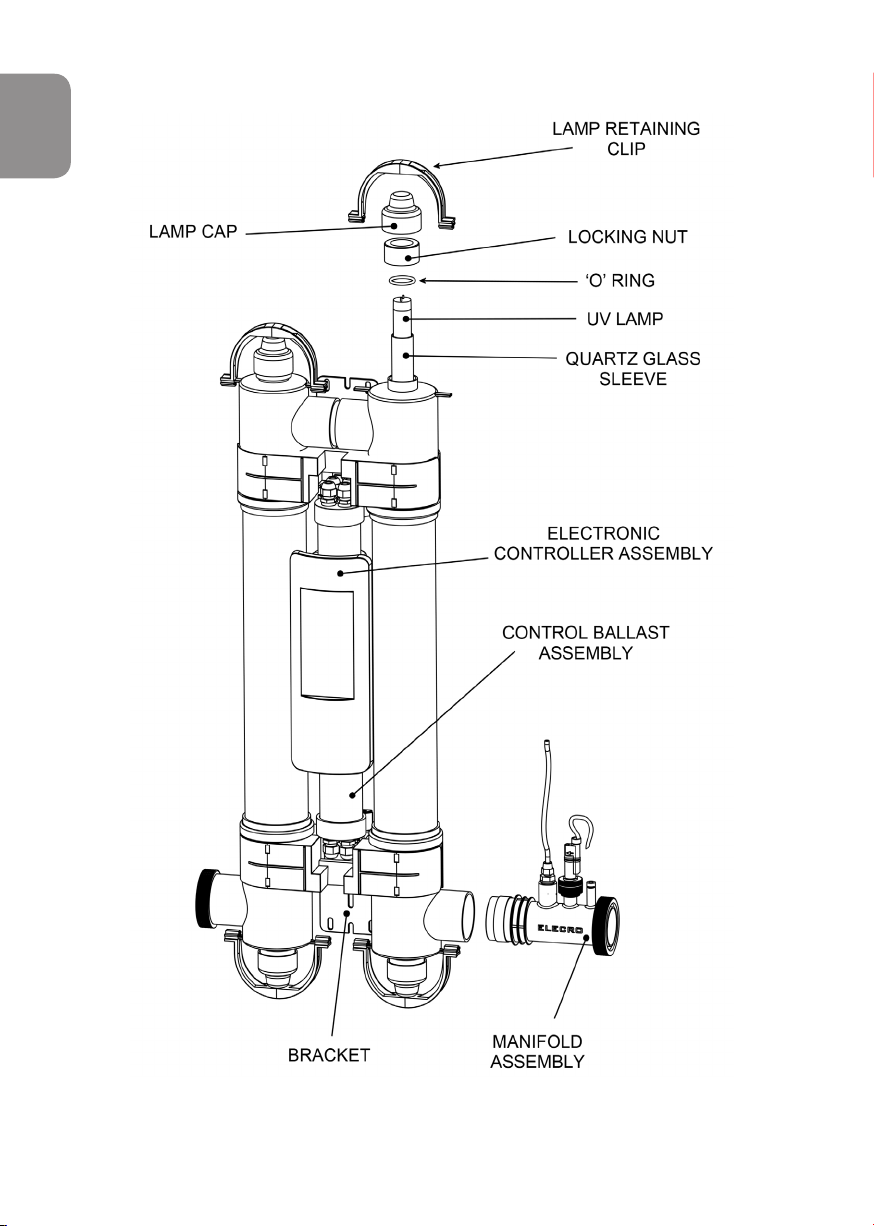

Fig 2.
110W Double Tube Unit
3
Note: Digital Model Shown
www.elecro.co.uk
Positioning the Unit
CAUTION: To prevent this unit falling into water, do not install above
or alongside your pool.
The H.R.UV-C unit is weatherproof but not waterproof; it must be installed
in a dry weatherproof enclosure. The unit must be mounted on a at
vertical surface horizontally or vertically. It must not be submerged in
water or placed in a position where water may collect around the unit.
To prevent the unit inadvertently being dropped into the pool, the unit
must be installed at least 3.5 metres from the edge of the pool.

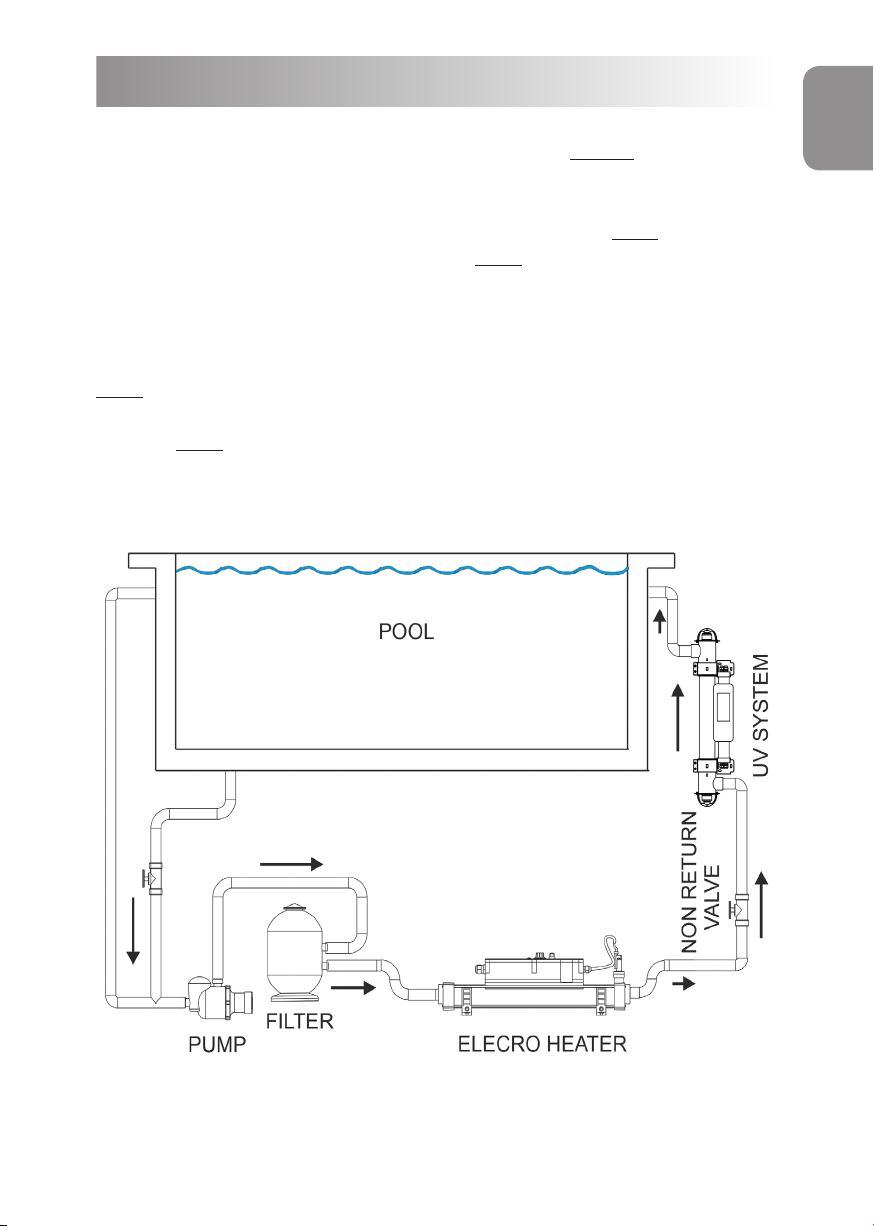

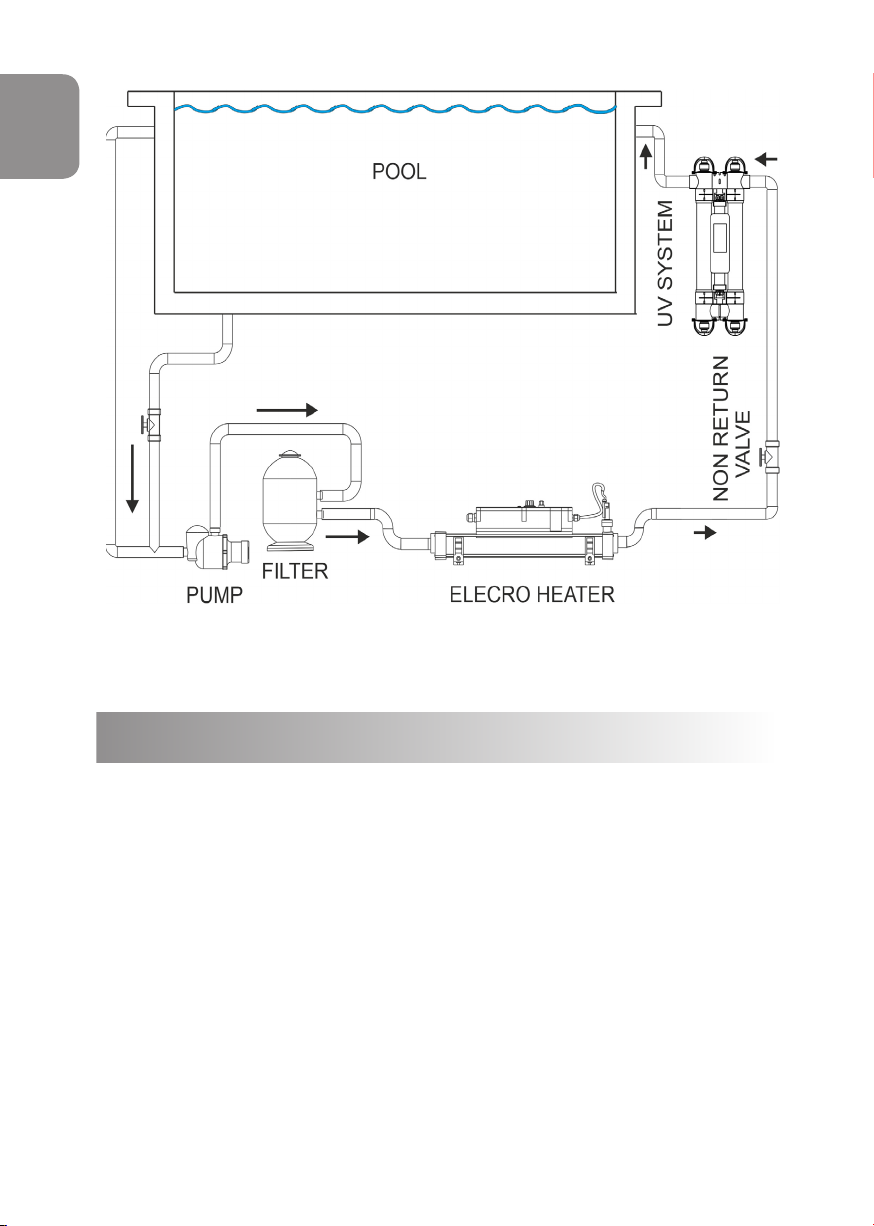

The unit must always be plumbed into the water system after the lter as
shown in g 3. to prevent dirt and debris being pumped into the unit.
Fig 3.
4
ENGLISH
5www.elecro.co.uk
ENGLISH
Mounting the UV Unit
The unit may be mounted on a wall or other suitable vertical surface that
is structurally strong enough (for example: when full of water the unit is
too heavy to mount onto a conventional wooden fence panel). The unit is
supplied with a xing kit. The unit can be mounted vertically as shown in
the next pages in g 5. and 6. or horizontally as shown in g 7.
NOTE!
When mounting the UV it is essential to leave a clearance space of at least 1
metre from one side of the unit to allow access to replace the lamp(s) and/or
quartz sleeve(s) when required. Both the lamps and the quartz sleeve can be
replaced from either end of the unit; if installing vertically the 1 metre clearance
space must be above or below the unit, if installing horizontally the 1m
clearance space must be to the left or right of the unit.
ENGLISH
Fig.4
2
www.elecro.co.uk
ENGLISH
ENGLISH
Washer x4
Screw x4
Raw plug x5

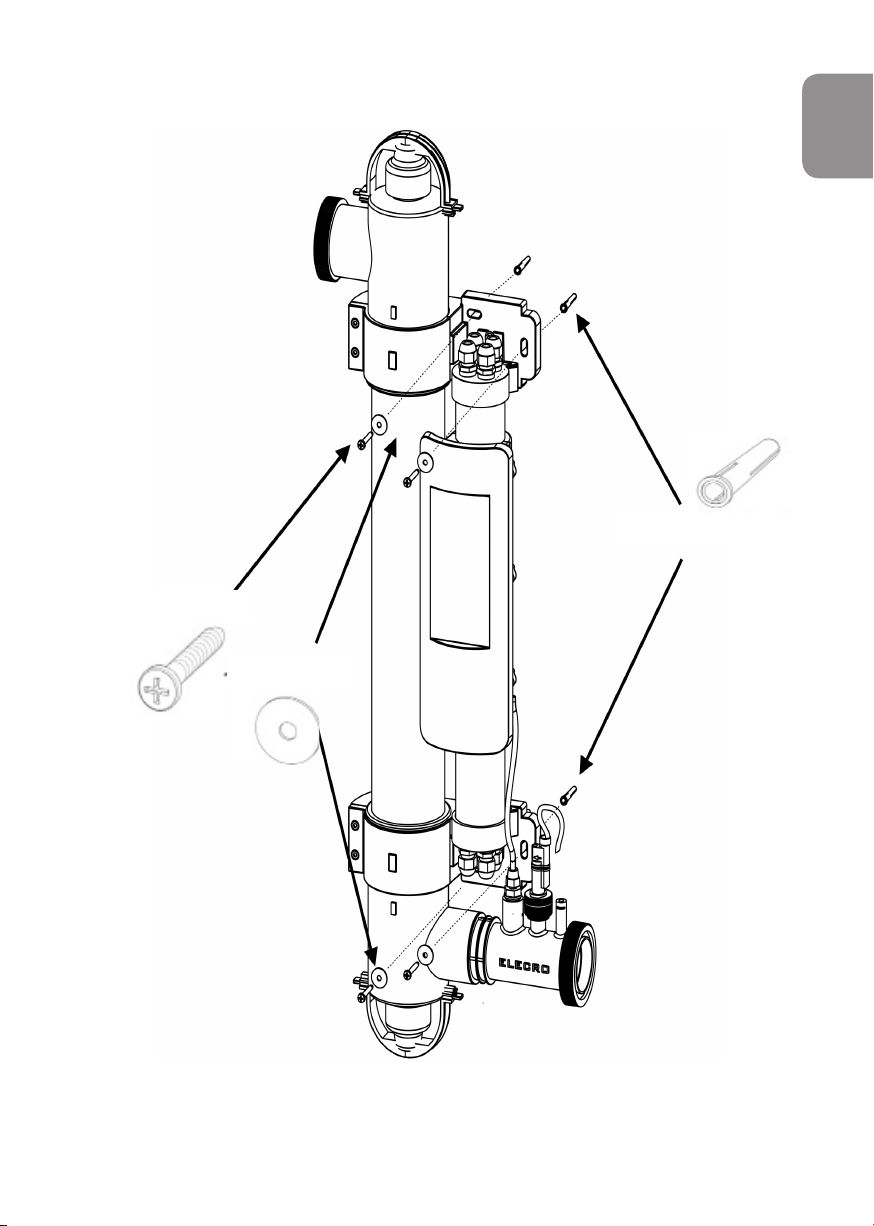

Fig 5.
6
55W Single Tube Unit
www.elecro.co.uk
2

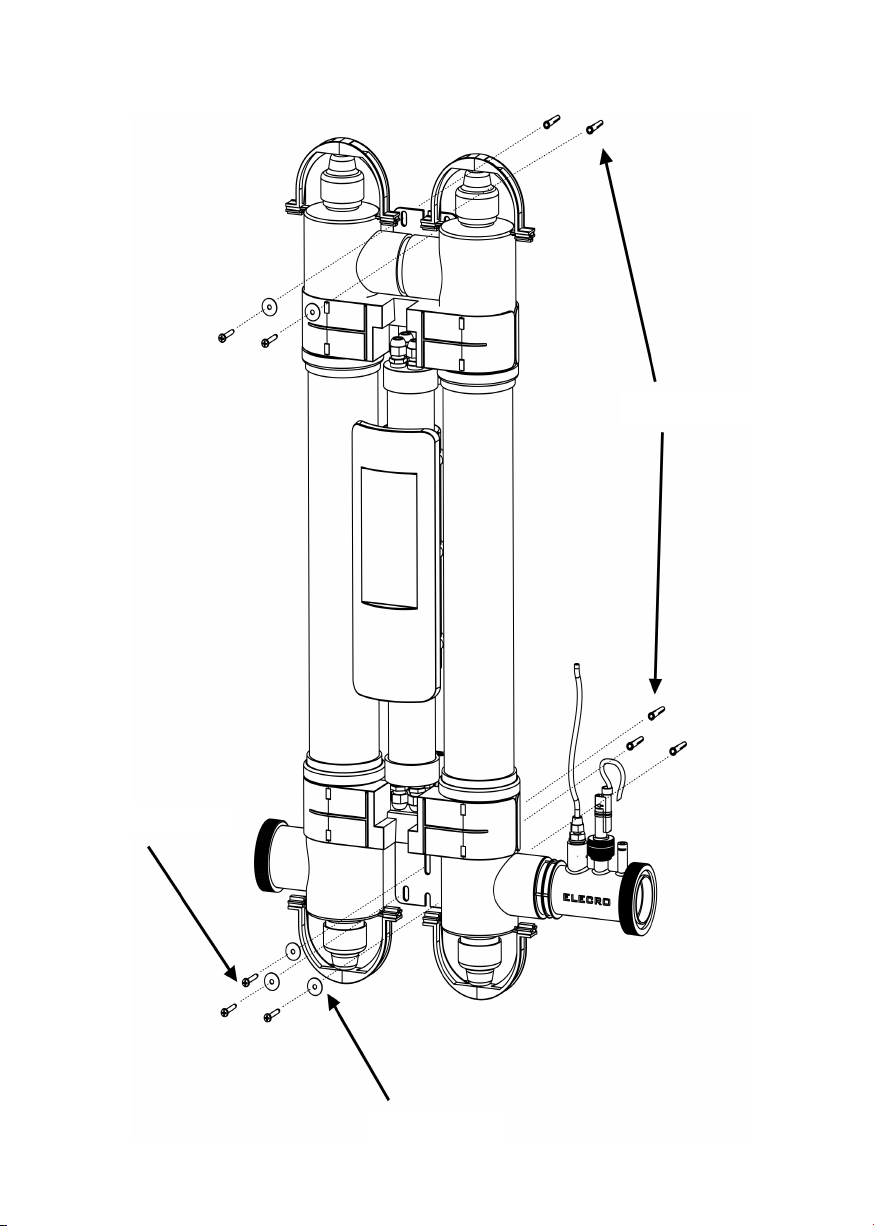

Fig 6.
7
110W Double Tube Unit
Washer x5
Raw plug x5
Screw x5
2www.elecro.co.uk 8

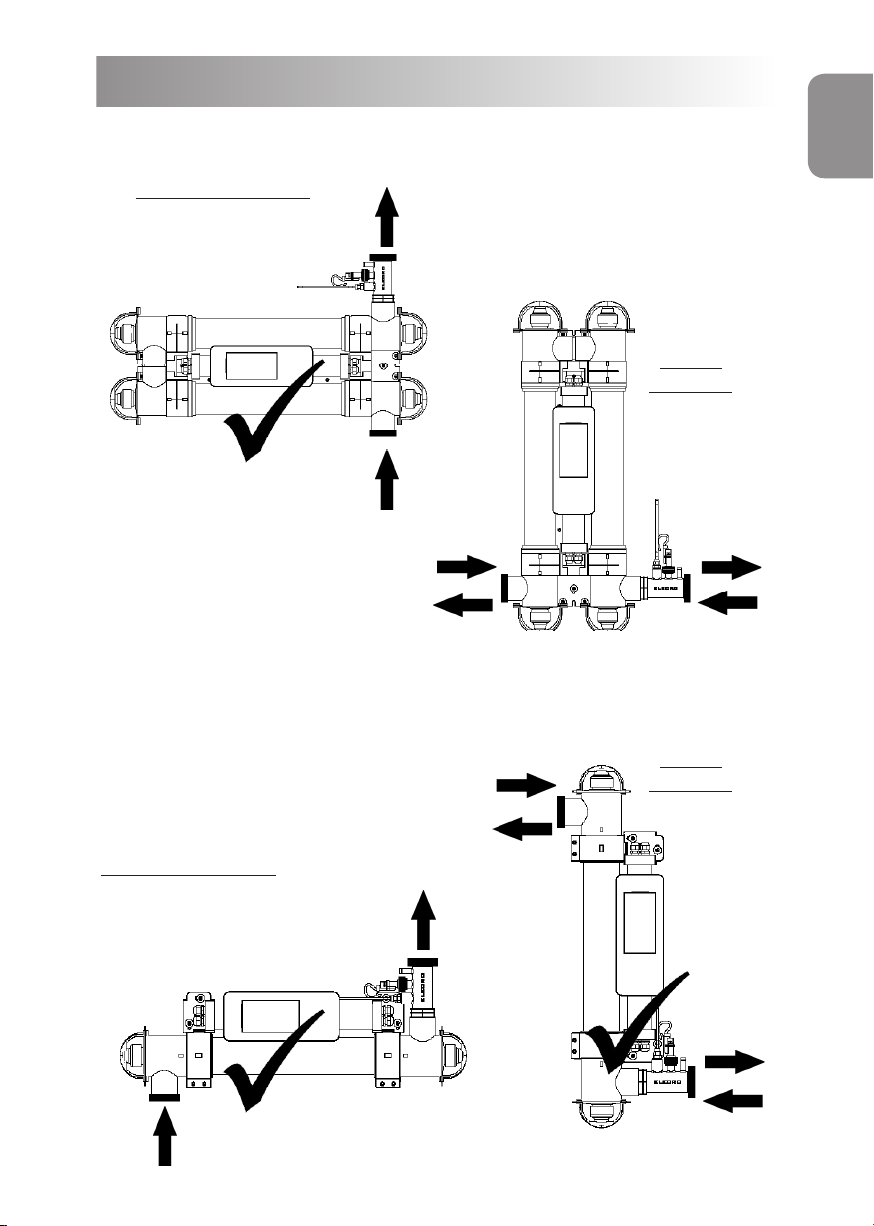

Fig 7.
ENGLISH
Vertical
mounting
110W Double Tube Unit
Horizontal mounting
55W Single Tube Unit
Horizontal mounting
Water must enter low
and exit high
Water must enter low
and exit high
Factory Default
Optional reverse ow
explained on page 10
Factory Default
Optional reverse ow
explained on page 10
Mounting Continued
Vertical
mounting
www.elecro.co.uk
9
Connection to the water supply

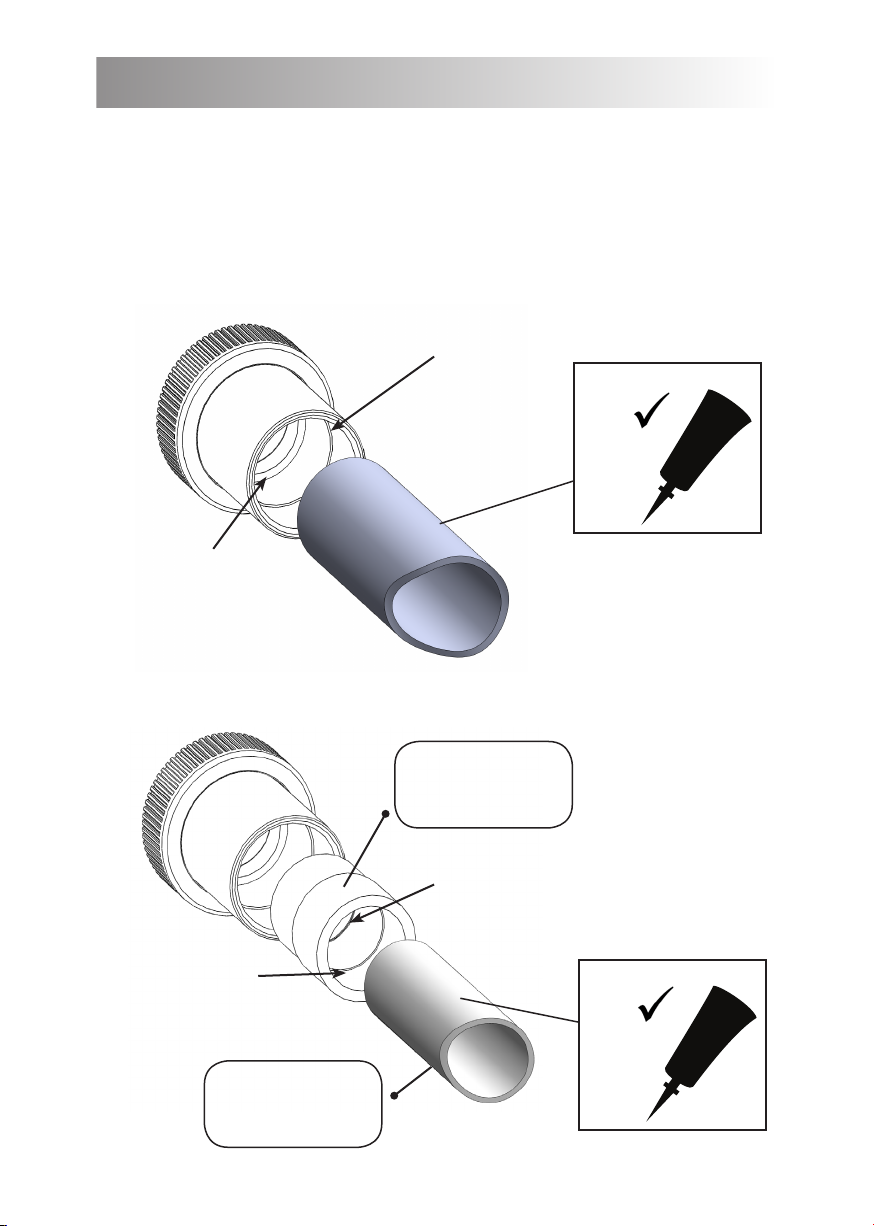

The unit is supplied with unions to allow connection to 2" or 63-mm rigid
pipe. Reducers are also supplied to allow connection to 50-mm or 1½" rigid
pipe - see g. 8.
For connection to 63-mm or 2" diameter pipe
Insert 63-mm
diameter pipe up
to this stop
Insert 2" diameter
pipe up to this
stop
ADHESIVE
ABS
PVC ×
Insert 50-mm
diameter pipe up
to this stop
Insert 1½"
diameter pipe up
to this stop
Solvent weld your
pipe to the correct
stop
2
Solvent weld the
supplied reducer
into the union
1
NOTE!
ADHESIVE
ABS
PVC ×
NOTE!
Fig 8.
For connection to 50-mm or 1½" diameter pipe
