Eldes KeyBoB Manuel utilisateur

User manual v1.0

CONTENTS OF PACK

Item Quantity

1. KeyBoB ..................................................1

2. CR2450 3V lithium battery ................1

3. Key ring ..................................................1

3. Warranty leaet ...................................1

Main features:

• Alarm system arming &

disarming;

• PGM output control;

• Partition switch;

• Stay Arm;

• Up to 8 actions with a

single key fob

• Key fob assignment to

User

• Inaudible Panic alarm

• Visual and audio in-

dication of command

status.

1. GENERAL INFORMATION

Key fob, named KeyBoB, is a wireless device intended to re-

motely arm and disarm ELDES alarm system, cause inaudible

Panic alarm or control any electric appliance connected to the

alarm system’s PGM output. The maximum wireless connection

range is 1700m (5577ft) in open areas.

By default, none of key fob’s buttons are pre-congured. Thus,

user can congure each key fob depending on the personal

preferences. A single key fob allows to complete up to 8 pos-

sible actions (i.e. 2 actions can be assigned to each button). EL-

DES alarm system supports up to 10 KeyBoB devices with the

custom conguration.

2. TECHNICAL SPECIFICATIONS

Congurable

functionality

Congurable

functionality

Disarm the

system

(congurable

functionality)

Arm the

system

(congurable

functionality)

LED

indicator

The hole to attaching

a key ring

NOTE: Pic. No. 1 reects the default key fob’s button

conguration. All key fob buttons are congurable ac-

cording to individual needs via Eldes Utility software.

2.1. Electrical & Mechanical Characteristics

Battery type*........................... 3V Lithium CR2450 type

5029LC (ANSI/NEDA)

Quantity of batteries.............. 1

Battery operation time** ...... 10+ years, or time period

equivalent to 15,000 button

presses

Wireless band .......................... ISM868

Range of operating................. -10…+55 °C (14... +131°F)

temperatures

Humidity................................... 0-90% RH @ 0... +40°C

(0-90% RH @ +32... +104°F)

(non-condensing)

Dimensions .............................. 69x35x12.6mm

(2.72x1.38x0.496in)

Wireless connectivy range.... Up to 1700m (5577ft) in open

areas

Compatible with***................ ESIM384; Pitbull Alarm PRO

*CR2450 3V lithium battery used as standard. Also CR2320

3V lithium battery can be used with specially adapted bat-

tery holder. The standrard battery is included in the device.

** This operation time can be achieved by pressing the key

fob’s buttons up to 4 times per day. The operation time de-

pends on dierent conditions and may vary.

*** Devices are compatible only with the latest rm-

ware versions.

3. HOW TO USE:

In order to start using KeyBoB, you must pair it with ELDES

alarm system using ELDES Utility software (see chapter 4.

PAIRING KEY FOB WITH ALARM SYSTEM).

KeyBoB features 4 congurable buttons, intended to operate

according to individual needs. User may choose up to 8 actions

for a single key fob: 4 short press actions (i.e. to assign 1 “click

and release” type of action to each button) and 4 long press ac-

tions (i.e. to assign 1 “click and hold” type of action to each but-

ton). User can set any action to any button (the only exception

is Panic alarm action - dedicated for long press ONLY).

Below you’ll nd the list of all possible actions and the descrip-

tion of each action:

• Arm System (Instant) – After the button is pressed,

this function instantly arms the system. KeyBoB’s internal

buzzer will emit 5 short beep sounds, LED indicator (red)

will light up, conrming a transferred command to ELDES

alarm system via wireless connection. Otherwise, key fob’s

internal buzzer will emit 1 long beep sound and LED indica-

tor (red) will light up or ash quickly, informing user about

unsuccessful attempt to transfer command (due to the

system’s violation (action failed) or the wireless connec-

tion loss (out of range)).

• Arm (Exit Delay) – After the button is pressed, this func-

tion arms the system after exit delay countdown is over

(by default, exit 15 seconds). KeyBoB’s internal buzzer will

emit 5 short beep sounds, LED indicator (red and green)

will ash alternately, conrming a transferred command to

ELDES alarm system via wireless connection. Otherwise,

key fob’s internal buzzer will emit 1 long beep sound and

LED indicator (red) will light up or ash quickly, informing

user about unsuccessful attempt to transfer command

(due to the system’s violation (action failed) or the wire-

less connection loss (out of range)).

• Arm (Stay mode) – After the button is pressed, this

function arms the system in Stay mode. KeyBoB’s internal

buzzer will emit 5 short beep sounds, LED indicator (red

and green) will light up, conrming a transferred command

to ELDES alarm system via wireless connection. Other-

wise, key fob’s internal buzzer will emit 1 long beep sound

and LED indicator (red) will light up or ash quickly, inform-

ing user about unsuccessful attempt to transfer command

(due the system’s violation (action failed) or the wireless

connection loss (out of range)).

• Disarm – After the button is pressed, this function dis-

arms the system. KeyBoB’s internal buzzer will emit 2 long

beep sounds, LED indicator (green) will light up, conrming

a transferred command to ELDES alarm system via wire-

less connection. Otherwise, key fob’s internal buzzer will

emit 1 long beep sound and LED indicator (red) will ash

quickly, informing user about unsuccessful attempt to

transfer command (due to the wireless connection loss

(out of range)).

• Turn output ON – After the button is pressed, this func-

tion turns ON the selected PGM output. KeyBoB’s internal

buzzer will emit 1 quick beep sound, LED indicator (green)

will quickly ash once, conrming a transferred command

to ELDES alarm system via wireless connection (action

success). Otherwise, key fob’s internal buzzer will emit 1

long beep sound and LED indicator (red) will light up or

ash quickly, informing user about unsuccessful attempt

to transfer command (due to the system’s violation (action

failed) or the wireless connection loss (out of range)).

• Turn output OFF – After the button is pressed, this func-

tion turns OFF the selected PGM output. KeyBoB’s internal

buzzer will emit 1 quick beep sound, LED indicator (green)

will quickly ash once, conrming a transferred command

to ELDES alarm system via wireless connection (action

success). Otherwise, key fob’s internal buzzer will emit 1

long beep sound and LED indicator (red) will light up or

ash quickly, informing user about unsuccessful attempt

to transfer command (due to the system’s violation (action

failed) or the wireless connection loss (out of range)).

• Toggle (Output) – After the button is pressed, this func-

tion changes the status of the selected PGM output (ON or

OFF, depending on the previous status). KeyBoB’s internal

buzzer will emit 1 quick beep sound, LED indicator (green)

will quickly ash once, conrming a transferred command

to ELDES alarm system via wireless connection (action

success). Otherwise, key fob’s internal buzzer will emit 1

long beep sound and LED indicator (red) will light up or

ash quickly, informing user about unsuccessful attempt

to transfer command (due to the system’s violation (action

failed) or the wireless connection loss (out of range)).

• Panic alarm – After the button is pressed, this function

triggers virtual panic alarm (NOTE: this action is available

only for Long Press setting). LED indicator (red) will light

up and therefore conrm a transferred command to ELDES

alarm system via wireless connection, while KeyBoB’s in-

ternal buzzer will remain silent (in case when Panic action

is set, key fob’s buzzer is always disabled due to security

reasons). Otherwise,key fob’s LED indicator (red) will ash

quickly, informing user about unsuccessful attempt to

transfer command (due to the wireless connection loss

(out of range)).

• Pulse ON output – PGM output state will be instantly

changed (turned ON) for a determined time period and

automatically turned OFF when the time period expires.

• Pulse OFF Output – PGM output state will be instantly

changed (turned OFF) for a determined time period and

automatically turned ON when the time period expires.

4. PAIRING KEY FOB WITH ALARM SYSTEM

In order to pair the device with the alarm system, you’ll

have to complete the following:

1) Run ELDES Utility software.

3) In software’s menu, open Peripheral Devices section

to see the list of all wireless devices;

2) When in Peripheral Devices section, press the key fob

button one time (any button on your key fob) and

your key fob will instantly appear in the list;

3) Click Add to System button, located next to the un-

paired wireless key fob icon (grey icon);

4) Press the key fob button (again, any button on your

key fob) once to complete the pairing process.

5) If the pairing is successful, key fob’s LED indicator

(green) will light up, and the icon next to the device will

turn GREEN.

6) Your KeyBob is ready for use.

NOTE: If you are unable to pair the wireless device,

please restore the parameters of the wireless

device to default and try again (see chapter 6.

RESTORING DEFAULT PARAMETERS).

KeyBoB

WIRELESS Key fob

5. BATTERY REPLACEMENT

1. Open key fob’s enclosure.

2. Remove the old battery from the battery slot.

3. Insert the new battery according to the appropriate po-

larity of the battery.

4. Battery is replaced.

6. SAFETY INSTRUCTIONS

Please read and follow these safety guidelines in or-

der to maintain safety of operators and people around:

• DO NOT use the system where it can be interfere with

other devices and cause any potential danger.

• DO NOT use the system with medical devices.

• DO NOT use the system in hazardous environment.

• DO NOT expose the system to high humidity, chemical

environment or mechanical impacts.

• DO NOT attempt to personally repair the system.

ATTENTION: Only CR2450 3V or CR2320 3V (with

specially adapted battery holder) battery can be used.

Install only new, high quality and unexpired batteries.

ATTENTION: In order to avoid re or explosion haz-

ards, special care must be taken when connecting posi-

tive and negative battery terminals. Dispose old bat-

teries only into special collection sites. Do not charge,

disassemble, heat or incinerate old batteries.

NOTE: The battery status can be monitored in real-

time using ELDES Utility software.

7. RESTORING DEFAULT PARAMETERS

1. Launch Eldes Utility software, go to Peripheral Devices

section, remove previously added key fob by clicking Re-

move, located next to the paired wireless device icon.

2. Press and hold and buttons simultane-

ously.

3. Hold those buttons pressed (approx. for 10 seconds) un-

til LED indicator (red) and the buzzer provide several short

ashes and beeps simultaneously.

4. Release the buttons.

5. Default parameters are restored.

8. ADDITIONAL INFORMATION

Warranty procedures

Warranty and out of warranty service should be obtained

by contacting the system integrator/dealer/retailer/ e-

tailer or distributor where the customer purchased the

product. When requesting for service, the proof of pur-

chase and the product serial number must be provided.

The return of the defective product should be strictly

through the original route of purchase, and the custom-

ers shall pack the product appropriately to prevent the

returned product from suering in the transportation.

Technical support

In order to ensure continuous and proper operation of Key-

BoB device and uninterrupted service, it is the responsibil-

ity of the User to make sure that: (I) the product is properly

installed, and (II) there is constant internet or GSM connec-

tion and electrical supply (low battery must be replaced in

time). If you experience diculty during the installation or

subsequent use of the system, you may contact ELDES, JSC

distributor or dealer in your country/ region. For more infor-

mation see eldesalarms.com

Limited Liability

The buyer must agree that the system will reduce the

risk theft, burglary or other dangers but does not provide

guarantee against such events. ELDES, JSC will not assume

any responsibility regarding personal or property, or rev-

enue loss while using the system. ELDES, JSC will also as-

sume no liability due to direct or indirect damage or loss,

as well as unreceived income when using the system, in-

cluding cases, when the damages arise due to the above

mentioned risks; when due to breakdown or malfunction

the user is not informed in a timely manner about a risk

which has arisen. In any case, the liability of ELDES, JSC, as

much as it is allowed by the laws in force, shall not exceed

the price of acquisition of the product.

Manufacturer Warranty

ELDES, JSC warrants this system only to the original pur-

chaser and only in case of defective workmanship and

materials under normal use of the system for a period of

twenty four (24) months from the date of shipment by

ELDES, JSC (Warranty Period). Warranty obligations do

not cover expandable materials (power elements and/or

batteries), holders and enclosures. The warranty remains

valid only if the system is used as intended, following all

guidelines outlined in this manual and in accordance with

the operating conditions specied. The warranty is void

if the system has been exposed to mechanical impact,

chemicals, high humidity, uids, corrosive and hazardous

environments or force majeure factors.

Consumer protection laws

FOR CONSUMERS WHO ARE COVERED BY CONSUM-

ER PROTECTION LAWS OR REGULATIONS IN THEIR

COUNTRY OF PURCHASE OR, IF DIFFERENT, THEIR

COUNTRY OF RESIDENCE, THE BENEFITS CONFERRED

BY THIS WARRANTY ARE IN ADDITION TO ALL RIGHTS

AND REMEDIES CONVEYED BY SUCH CONSUMER

PROTECTION LAWS AND REGULATIONS. This war-

ranty grants upon you specic legal rights, and you

may also have other rights that vary by country, state

or province.

It is strictly forbidden to copy and distribute the

information contained in this document or to

pass thereof to a third party without an a priori

written authorization obtained from ELDES,

JSC. ELDES, JSC reserves the right to update or

modify this document and/or related products

without an a priori warning. ELDES, JSC hereby

declares that the mentioned product KeyBoB

(certied as EWK3) is in compliance with the es-

sential requirements and other relevant provi-

sions of the Directive RED 2014/53/EU, Annex

III. The certicate is available at:

www.eldesalarms.com/keybob

The WEEE (Waste Electrical and Electronic

Equipment) symbol on this product (see

left) means it must not be disposed of in

household waste. To prevent possible harm

to human health and/or the environment,

you must dispose of this product in an ap-

proved and environmentally safe recycling

facility. For further information contact

your system supplier, or your local waste

authority.

Autres manuels Eldes Télécommande

Eldes

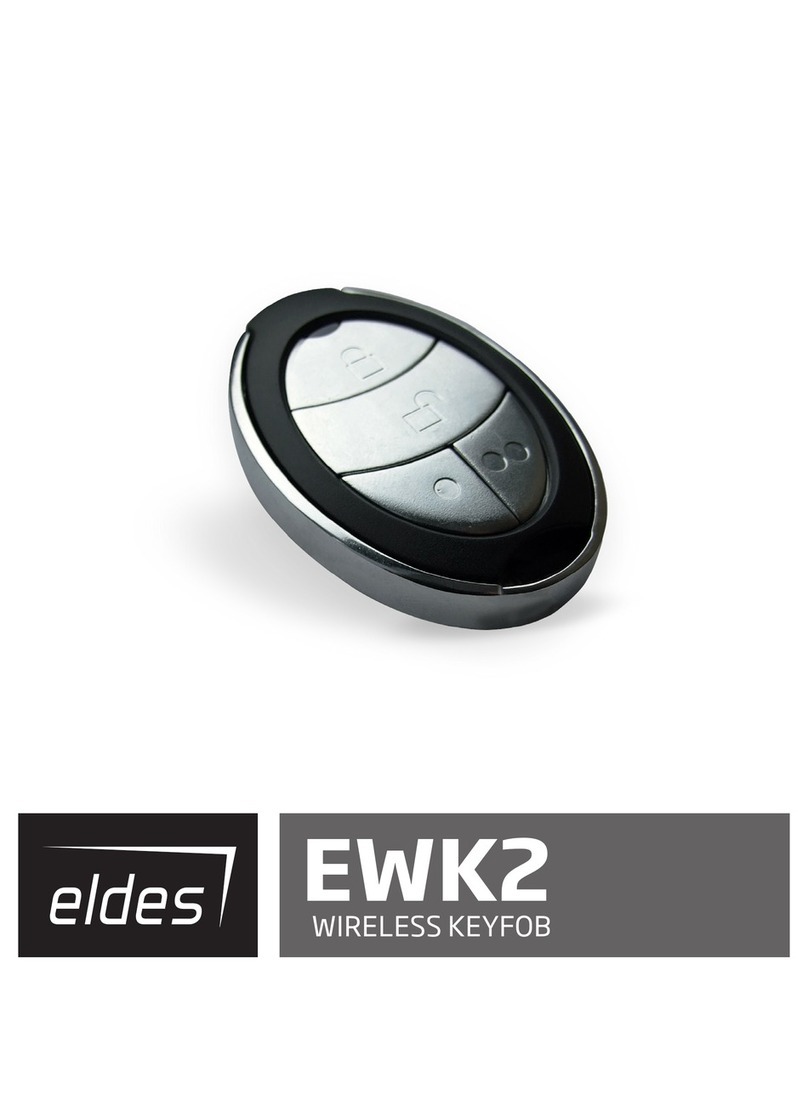

Eldes EWK2 Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
