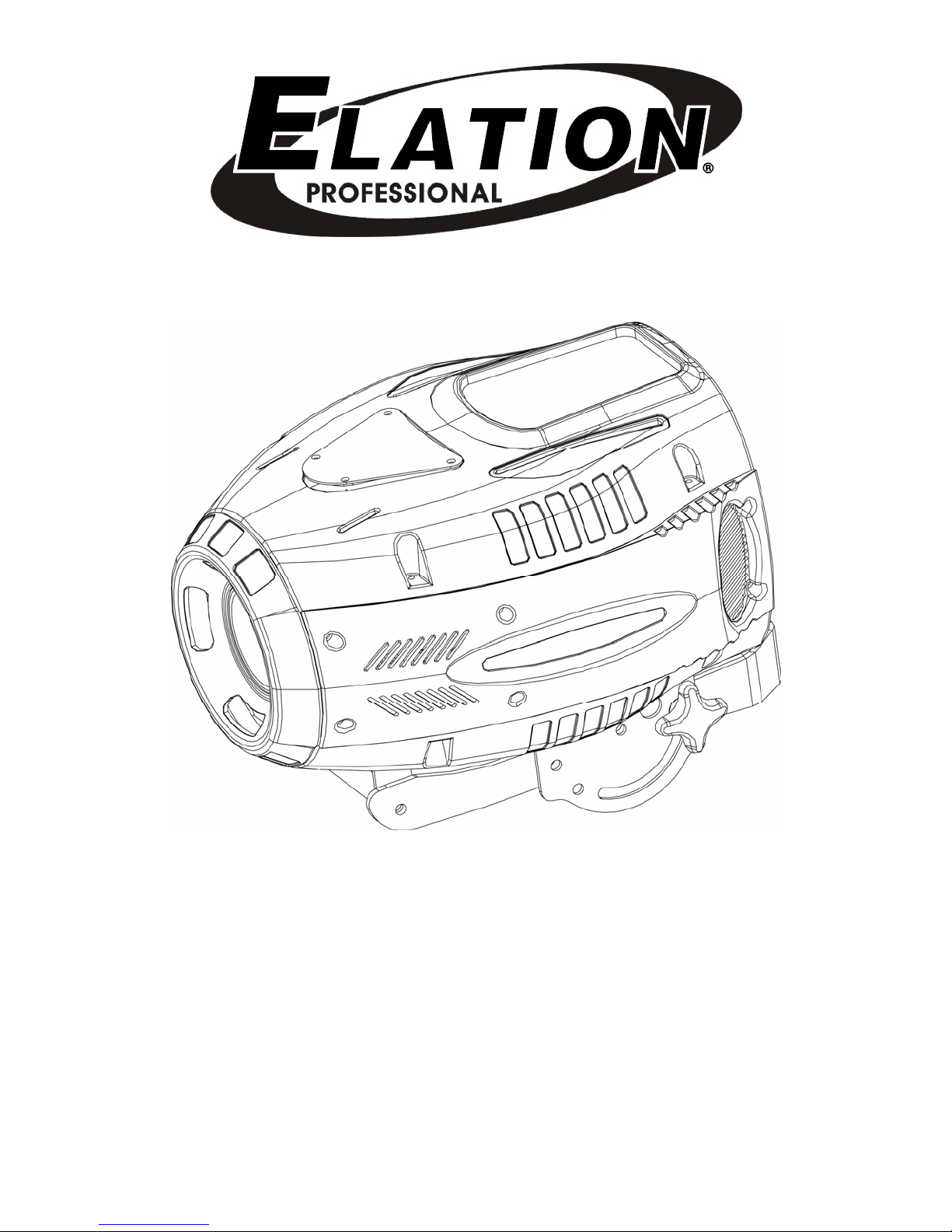

Elation Waterfall 250 Pro Manuel utilisateur

Rev. 12/28/05

Waterfall 250 Pro

Elation Professional

4295 Charter Street

Los Angeles, Ca 90058

Waterfall 250 Pro™

©ElationProfessional® 2

Waterfall 250 Pro™

www.elationlighting.com

Waterfall 250 Pro™

©Elation Professional® 3

Waterfall 250 Pro™

©Elation Professional® 4

Waterfall 250 Pro™

Contents

1. General Information……………………………………………………………………… 3

a. Introduction………………………………………………………………………. 3

b. Unpacking………………………………………………………..…………..… 3

c. Customer Support…………………………………………….………………… 3

d. Warranty Registration……………………………………………………..…… 4

e. Discharge Lamp Warning……………………………………………………… 4

2. Safety Instructions………………………………………………………........…………. 7

3. Features……………………………………………………………………………………9

4. General Guidelines………………………………………………………………………. 10

5. Lamp Installation…………………………………………………………………………. 11

a. Lamp installation…………………………………………………….………….. 11

b. Lamp optimization……………………………………………………..…………12

6. Mounting and Installation………………………………………………………….……. 14

a. Mounting Positions……………………………………………………………… 14

b. Mounting Points…………………………………………………………………. 15

c. Securing………………………………………………………………………….. 16

7. Understanding DMX……………………………………………………………………... 17

a. DMX Connections………………………………………………………………. 17

b. DMX Terminator…………………………………………………………………. 18

c. 3-Pin to 5-Pin Conversion……………………………………………………….19

d. DMX Addressing………………………………………………………………… 19

8. Display Indicators……………………………………………………………………….. 21

9. Fixture Menu……………………………………………………………………………… 22

a. Menu functions………………………………………………………………….. 24

10. DMX Channel Traits…………………………………………………………………….. 39

a. DMX Channel Values…………………………………………………………… 40

11. Error Codes………………………………………………………………………………. 42

12. Cleaning and Maintenance………………………………………………………………44

13. Warranty…………………………………………………………………………………... 45

14. Photometric Data………………………………………………………………………… 47

15. Gobo Patterns……………………………………………………………..……………... 48

16. Dimensional Drawings………………………………………………….……………….. 48

17. Circuit Schematic………...……………………………………………………………….49

18. Technical Specifications…………………………………………...………….………… 50

Waterfall 250 Pro™

©Elation Professional® 5

Waterfall 250 Pro™

1. GENERAL INFORMATION

INTRODUCTION: Congratulations, you have just purchased one of the most innovative and

reliable lighting fixtures on the market today! The Waterfall 250 Pro,™ has been designed to

perform reliably for years when the guidelines in this booklet are followed. Please read and

understand the instructions in this manual carefully and thoroughly before attempting to

operate this unit. These instructions contain important information regarding safety during

use and maintenance.

UNPACKING: Thank you for purchasing the Waterfall 250 Pro™ by Elation Professional®.

Every Waterfall 250 Pro™ has been thoroughly tested and has been shipped in perfect

operating condition. Carefully check the shipping carton for damage that may have occurred

during shipping. If the carton appears to be damaged, carefully inspect your unit for damage

and be sure all accessories necessary to operate the unit have arrived intact. In the event

damage has been found or parts are missing, please contact our customer support team for

further instructions. Please do not return this unit to your dealer without first contacting

customer support at the number listed below.

CUSTOMER SUPPORT: Elation Professional®provides a customer support line, to provide

set up help and to answer any question should you encounter problems during your set up or

initial operation. You may also visit us on the web at www.elationlighting.com for any

comments or suggestions. For service related issue please contact Elation Professional®.

Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.

Voice: (323) 582-3322

Fax: (323) 582-3108

E-mail: [email protected]

Forum: www.ElationLighting.com/forum

Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to

rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs

yourself, doing so will void your manufactures warranty.

Waterfall 250 Pro™

©Elation Professional® 6

Waterfall 250 Pro™

Please do not discard the shipping carton in the trash. Please recycle whenever possible.

WARRANTY REGISTRATION: The Waterfall 250 Pro™ carries a two year (730 days) limited

warranty. Please fill out the enclosed warranty card to validate your purchase. All returned

service items whether under warranty or not, must be freight pre-paid and accompany a

return authorization (R.A.) number. The R.A. number must be clearly written on the outside of

the return package. A brief description of the problem as well as the R.A. number must also

be written down on a piece of paper and included in the shipping container. If the unit is under

warranty, you must provide a copy of your proof of purchase invoice. Items returned without a

R.A. number clearly marked on the outside of the package will be refused and returned at

customer’s expense. You may obtain a R.A. number by contacting customer support at (323)

582-3322.

DISCHARGE LAMP WARNING: This fixture is fitted with a discharge

lamp, which is highly susceptible to damage if improperly handled. Never

touch the lamp with your bare hands, as the oil from your hands will

shorten lamp life. Also, never move the fixture until the lamps have had

ample time to cool. Remember, lamps are not covered under warranty

conditions.

This fixture emits intense UV radiation, which is harmful to the eyes and skin. The intense

luminance of the lamp can cause severe damage to the retina. Never operate this fixture with

the protective covers removed, these covers have been specially designed to shield against

UV radiation.

Epileptic Warning: Those suffering from epilepsy should avoid looking directly into the lamp

at all times.

Avoid switching the fixture on and off repeatedly in short intervals, as this will reduce lamp life

and intensity.

To achieve the intensity associated with discharge lamps, these lamps use a gas sealed in a

high-pressure environment to emit a brilliant output. Due to the high pressure involved with

the construction of the lamp, the lamp may explode during prolonged extensive use. This risk

is increased with age; added care is encouraged when dealing with older lamps. Thus, lamp

Waterfall 250 Pro™

©Elation Professional® 7

Waterfall 250 Pro™

should always be replaced at the end of their recommended duty cycle. Extreme caution

should be used when operated this or any fixture fitted with a gas discharge lamp.

Never open this fixture while in use!

During the initial operation of this fixture, a light smoke or smell may emit from the interior of

the fixture. This is a normal process and is caused by excess paint in the interior of the casing

burning off from the heat associated with the lamp and will decrease gradually over time.

This device falls under protection-class I. Therefore it is essential that the device be grounded

properly.

All electrical connections must performed by qualified personal.

Be sure the available voltage matches the voltage requirements of the unit.

Be sure the power cord is never crimped or damaged. If the power cord is damaged, replace

it immediately with a new one of similar power rating.

Always disconnect from main power before performing any type of service or any cleaning

procedure.

Only handle the power cord by the plug. Never pull out the plug by tugging the wire portion of

the cord.

Please be aware that damages caused by manual modifications to the device are not

subject to warranty.

Waterfall 250 Pro™

©Elation Professional® 8

Waterfall 250 Pro™

2. SAFETY INSTRUCTIONS

The Waterfall 250 Pro™ is an extremely sophisticated piece of

electronic equipment. To guarantee a smooth operation, it is

important to follow the guidelines in this manual. The

manufacturer of this device will not accept responsibility for

damages resulting from the misuse of this fixture due to the

disregard of the information printed in this manual.

1. Always be sure that the fan and the air inlets remain clean and are never blocked.

Allow about 6” (15cm) between this fixture and other devices or a wall to allow for

proper cooling.

2. Never touch the fixture during normal operation. This can cause severe personal

injuries and/or damage to the fixture.

3. Be sure to unplug the WATERFALL 250 PRO™ from the power outlet before

performing any service related issues.

4. Lamp Replacement; Allow at least 30 minutes after disconnecting main power

before you open the WATERFALL 250 PRO™. To prevent personal injury, never

touch the lamp if you are not absolutely sure it has cooled.

5. Never look directly into the lamp beam. You risk injury to your retina, which may

induce blindness.

6. Be sure to track and record the lamp running time. The lamp should be changed at

the end of the specified lamp life, regardless of lamp output. You may also have to

change the lamp if it shows any deformations or damage. The same is with all glass

components, color filters, lenses and mirrors.

7. For safe operation, follow the Installation guide described in chapter two of this

manual. Operating the WATERFALL 250 PRO™ without suited safety aids such as

safety cables or clamps can increase the risk of damage and/or personal injury.

8. Installation should only be performed by qualified and certified personal.

9. When mounting this fixture, use only the original rigging parts included with this

fixture. Any structural modification will void the original manufactures warranty and

Waterfall 250 Pro™

©Elation Professional® 9

Waterfall 250 Pro™

may increase the risk of damage and/or personal injury.

10. To reduce the risk of fire or shock, do not expose this fixture to rain or moisture.

11. Do not attempt to operate this fixture if the power cord has become damaged or

frayed.

Important Notice: Damages resulting from the disregard of safety and general user

instructions found in this user manual are not subject to any warranty claims.

Never look directl y into the light source,

as sensitive persons may suffer an epileptic shock.

Never touch the device during operation!

The housing may heat up

Waterfall 250 Pro™

©Elation Professional® 10

Waterfall 250 Pro™

3. FEATURES

•3 operation mode:

oDMX controlled,

oStand alone

oSound activated

•8 colors plus white (including UV filter), with two direction rainbow effect

•User selectable color change (mode 1: full colors, mode 2: split-colors)

•Rotating gobo wheel with 3 rotating gobos plus open, all gobos can be easily

replaceable and gobo indexing (3 Glass Gobos, 2 Beam Reducers, 2 Color Filters)

•Frost Filter

•Strobe effect: 0~13 flashes per second or random strobe

•Bright Phillips MSD 250/2 Lamp (250w / 8500K / 3000Hrs / 18,000Lm)

•Dimmer intensity from 0%~100%

•User Selectable Power Supply (Internal)

•Control board with 4-digit display and foil-keyboard

•Digital display can be turned 180° to fit different installation position

•RDMX (Remote DMX addressing from any DMX console)

•Auto test for all functions

•Automatic Pan/Tilt Correction

•Glass Dichroic Reflector for Even Lamp Output

•Anti-Reflective Coated Lenses

•USITT DMX-512 Complaint

•Value of each DMX-channel can be displayed

•Electronic Focus via DMX

•8 User Assignable Program Presets - Internal Program: Edit and save programs to the

incorporated EEPROM through the front control panel or external controller; you can

save a maximum of 48 scenes, and run the saved programs by using the “run” menu

on the front control panel

Table des matières

Autres manuels Elation Équipement d'éclairage

Elation

Elation Design Spot 300E Manuel utilisateur

Elation

Elation PROTEUS HYBRID Manuel utilisateur

Elation

Elation Color Spot 575 Manuel utilisateur

Elation

Elation Design LED 60 Strip II WA Manuel utilisateur

Elation

Elation PROTEUS RAYZOR BLADES Manuel utilisateur

Elation

Elation PowerWash 250 Manuel utilisateur

Elation

Elation Aquarius II Manuel utilisateur

Elation

Elation PLATINUM BEAM 15R Manuel utilisateur

Elation

Elation Event Cylinder DMX Manuel utilisateur

Elation

Elation PROTEUS EXCALIBUR Manuel utilisateur

Elation

Elation FUZE WASH 500 Manuel utilisateur

Elation

Elation WW PROFILE Manuel utilisateur

Elation

Elation Outdoor LED Par Fixture ELAR EXPAR Manuel utilisateur

Elation

Elation SIXPAR 200WMG Manuel utilisateur

Elation

Elation UNI BAR Manuel utilisateur

Elation

Elation ELAR EXQUADPAR HP Manuel utilisateur

Elation

Elation Elation DMX OPERATOR PRO Manuel utilisateur

Elation

Elation Design LED 60 TriStrip Manuel utilisateur

Elation

Elation Design Spot 1200C Manuel utilisateur

Elation

Elation Pro FS 1000 Manuel utilisateur

Elation

Elation DW PROFILE Manuel utilisateur

Elation

Elation PIXEL WASH 40IP Manuel utilisateur

Elation

Elation KL FRESNEL 6 Manuel utilisateur

Elation

Elation Event Cylinder RF Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
