Elan EL-SC-100 Manuel utilisateur

Quick Install Guide

EL-SC-100

QUICK INSTALL GUIDE

The EL-SC-100 Controller may be used as a standalone system controller

or as an Extender to any gSC OR SC controller or running g!6.6 or greater.

Please check the ELAN Training Guide for EL-SC-100 control capabilities.

The ELAN Training Guide contains valuable hardware and software

reference documentation and is considered an important supplement to

this document. Make sure you have the latest version by visiting the ELAN

Dealer website at www.elanhomesystems.com and follow the Dealer

Resources link.

Included in the box:

• EL-SC-100 Controller

• 12vDC Power Supply

Important Safety Instructions:

1. Read, understand and follow ALL safety and installation instructions

included in this manual. Failure to follow the included documentation may

damage the product and will void manufacturer’s warranty.

2. Follow ALL installation guidelines included with the product. Installation

of the product in high humidity environments, in close proximity to heat

sources and /or non-recommended locations will impede, interfere and/or

damage the intended operation of the product

3. Only use attachments and accessories which have been speciﬁed for use

by the manufacturer.

4. The use of abrasive, liquid or solvent based cleaning ﬂuids will damage

the product. Please refer and follow all Product Care instructions included

with the product.

5. Product Servicing may only be completed by authorized or certiﬁed

service centers & personnel. For a complete list of product servicing

options, please follow instructions included in the product documentation

and /or contact original manufacturer for details.

EL-SC-100

FCC and IC Information:

This Class B digital apparatus complies with Part 15 of the FCC rules and

with Canadian ICES-003 and RSS-247.

Operation is subject to the following two conditions:

1. This device may not cause interference and

2. This device must accept any interference, including interference that may

cause undesired operation of the device.

Cet appareil numérique de classe B est conforme aux normes canadiennes

ICES-003 et RSS-247. Son fonctionnement est soumis aux deux conditions

suivantes : (1) cet appareil ne doit pas causer d’interférence et (2) cet

appareil doit accepter toute interférence, notamment les interférences

qui peuvent affecter son fonctionnement.

Warning:

Changes or modifications to this unit not expressly approved by the

party responsible for compliance could void the user’s authority to

operate the equipment.

FCC and IC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for

an uncontrolled environment and meets the exemption from the routine

evaluation limits in section 2.5 of RSS 102.

1. This Transmitter must not be co-located or operating in conjunction with

any other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set

forth for an uncontrolled environment. This equipment should be

installed and operated with a minimum distance of 20 centimeters from

user and bystanders.

QUICK INSTALL GUIDE

Warning:

The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102, and users can

obtain Canadian information on RF exposure and compliance from the Canadian Representative Product

Solutions Group at Tel: (519) 763-4538.

FEDERAL COMMUNICATIONS COMMISSION

INTERFERENCE STATEMENT:

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

EL-SC-100

La puissance de sortie émise par l’appareil de sans ﬁl est inférieure à la limite

‘exposition aux fréquences radio d’Industry Canada (IC). Utilisez l’appareil de sans

ﬁl de façon à minimiser les contacts humains lors du fonctionnement normal.

Ce périphérique a également été évalué et démontré conforme aux limites

d’exposition aux RF d’IC dans des conditions d’exposition à des appareils

mobiles (antennes sont supérieures à 20 cm à partir du corps d’une personne).

FCC and IC Registrations

FCC ID: EF400186

IC: 1078A-00186

QUICK INSTALL GUIDE

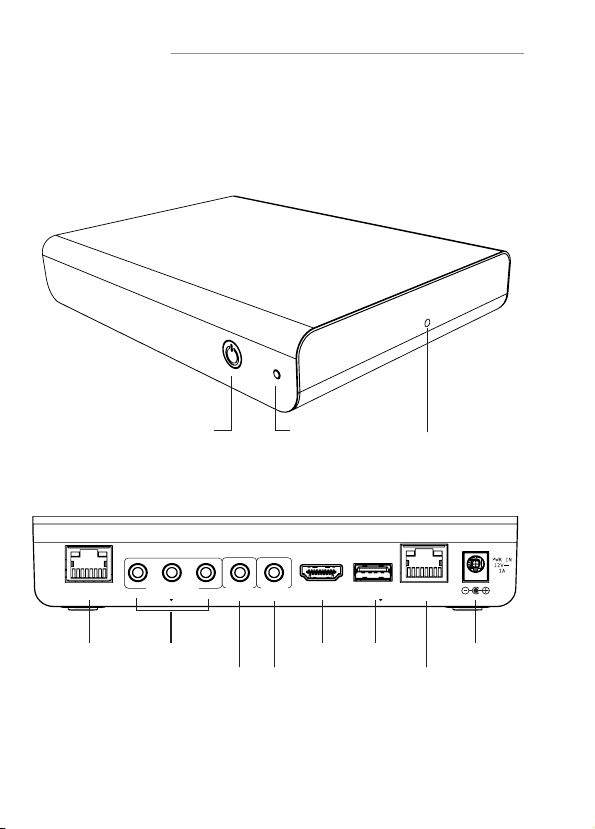

EL-SC-100 Overview

Dimensions: 6.95 in. x 4.94 in. x 1.30 in.

Power

Button

Status

Indicator

EL-SC-100_Rear_01.aiEL-SC-100_Rear_01.ai

RS-232 OSD USB LAN/POE

IR OUTPUTS AUDIO SENSE

RS-232 IR Outputs

Audio Out Sense Input

OSD USB

LAN / PoE

DC Power

Reset

EL-SC-100

5 in.

7 in.

WALL

3 in.

Mounting

The EL-SC-100 is designed to mount on a shelf, hang in a cabinet or rack,

or mount in a structured wiring enclosure with optional mounting bracket.

Wall Mounting: The EL-SC-100 chassis has been designed to allow

convenient wall mounting in any orientation. Arrows on the rear panel may be

used to mark the location for the screws. Mark the screw locations, mount

the screws leaving approx. 3/16” (5mm) of screw exposed and slide the

chassis over the screws.

Leave a

3/16 in. gap

between screw

heads and wall. Use arrows to mark

screw holes

QUICK INSTALL GUIDE

Structured Wiring Cabinet Mounting: Using the optional Structured

Wiring Cabinet Mount, the EL-SC-100 can be mounted in a structured

wiring cabinet.

1. Attach mounting bracket to wiring cabinet with snap rivets and washers

2. Snap the controller to the 2 hooks on the mounting bracket

Shelf Mounting: The EL_SC-100 has rubber feet to protect ﬁnished

surfaces. Set the controller in a location that will allow you to properly

manage connected wiring so that there is no tension on the connections.

EL-SC-100

Serial Connection

Connect an RS-232 serial controlled device using an RJ45 connector

(not included) to the RS232 port on the rear of the controller.

The EL-SC-100 serial connector is not compatible with RS-485 serial

devices. If your project requires RS-485 connections you will need to

use a gSC10 controller.

Below is the wiring pin-out for the RJ45 connector.

2 (CD)

3 (DTR)

4 (SG)

5 (RD)

6 TD)

7 (CTS)

8 (RTS)

QUICK INSTALL GUIDE

Sense Input Connection

ELAN sensors can be used to trigger events from 3rd party devices.

The status is binary, either ON or OFF. This can be used to trigger an event

map or as a condition of an event map. CONNECT ONLY an ELAN sensor

to this port.

Available ELAN sensors:

Audio Sensor ........................................... P/N: AUDSENSOR

Video Sensor............................................ P/N: VIDSENSOR

Contact Closure Sensor........................... P/N: CTSENSOR

Current / Magnetic Field Sensor............... P/N: CRSENSOR

Light / LED Sensor................................... P/N: LTSENSOR

Voltage Sensor......................................... P/N: VTSENSOR

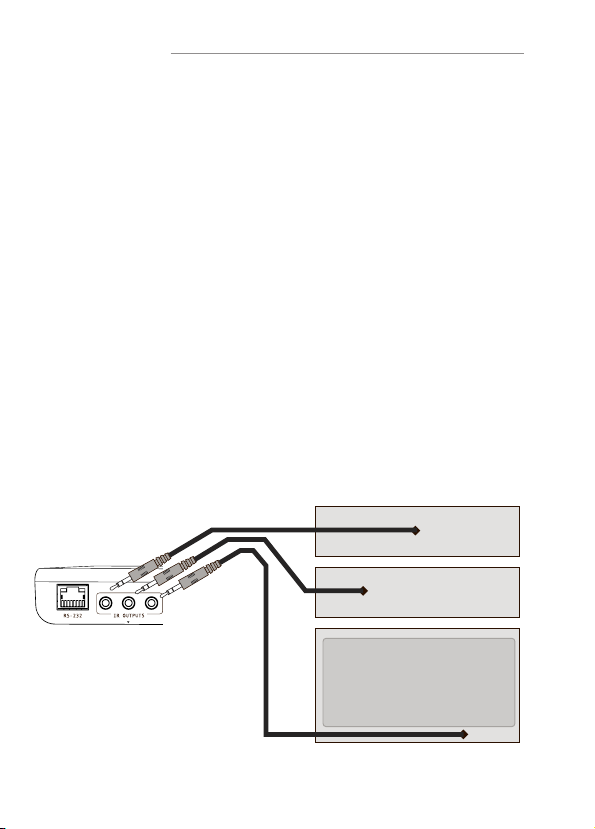

IR Output Connection

Three discrete IR outputs are supplied to control third party devices.

Each output is compatible with Xantech single and dual emitters

DVD

Media Player
