Elan Cite Evolis Solution Manuel utilisateur

Mise à jour : 25/06/2015

Document confidentiel et propriété d’Elan Cité. Ne peut être communiqué à une entité tierce sans autorisation préalable.

USER GUIDE

EVOLIS SOLUTION

ELAN CITE

12 ROUTE DE LA GARENNE

44700 ORVAULT

+33 240 160 114

Document confidentiel et propriété d’Elan Cité. Ne peut être communiqué à une entité tierce sans autorisation préalable.

Table of contents

CONTENT

DELIVERY ............................................................................................................................................................ 0

II.

PRODUCT DESCRIPTION ...................................................................................................................................... 0

III.

INITIAL POWER-UP ............................................................................................................................................. 0

UTO

TEST AT START UP

: ................................................................................................................................. 0

IV.

START UP INSTALLATION .................................................................................................................................... 0

URRENT

RENCH RE ULATIONS

........................................................................................................................ 0

RE SET

.................................................................................................................................................... 0

OUNTIN

.................................................................................................................................................... 0

OUNTIN KIT

............................................................................................................................................... 0

EMINDER

: .................................................................................................................................................... 0

OWER SUPPLY

............................................................................................................................................... 0

SET-UP AND DATA COLLECTION .......................................................................................................................... 0

CONS

: .......................................................................................................................................................... 0

OMPLEMENTARY MODES

NLY AVAILABLE ON

SP) ............................................................................................. 0

YNAMIC DISPLAY ACTIVATION

.......................................................................................................................... 0

ESSA ES

..................................................................................................................................................... 0

ARAMETERS FOR ADVANCED STATISTICS MANA EMENT FEATURES

........................................................................... 0

ATA RECOVERY

............................................................................................................................................. 0

UMMARY PA E

............................................................................................................................................. 0

VI.

DATA ANALYSIS .................................................................................................................................................. 0

RAPHICS VISUALIZATION

................................................................................................................................. 0

VERA E SPEEDS

: ........................................................................................................................................... 0

ERCENTILES

.................................................................................................................................................. 0

EATURES FOR

VO RAPH

................................................................................................................................ 0

.P.R.S

OPTION

....................................................................................................................................... 0

LUETOOTH

SECURITY COUPLIN COMPUTER

VOLIS

:.......................................................................................... 0

VII.

MAINTENANCE OF THE DEVICE ........................................................................................................................... 0

VIII.

TECHNICAL CHARACTERISTICS ............................................................................................................................ 0

I .

CHART OF SYMPTOMS/SOLUTIONS .................................................................................................................... 0

AFTER SALES SERVICE – TERMS AND CONDITIONS GUARANTEE ......................................................................... 0

Document confidentiel et propriété d’Elan Cité. Ne peut être communiqué à une entité tierce sans autorisation préalable.

Thank you for choosing Evolis « Solution » radar speed sign. It allows speed reduction by

displaying:

•the speed

•a pictogram « warning sign» alternately to excess speeds (optional)

•5 messages (editable) depending on the vehicle’s speed and time of the day

The device also records traffic data (average and maximum speeds, number of vehicles, vehicle

distribution per speed, percentiles, and both sides of traffic). Set up and traffic data collection

are achieved using « Evocom/Evograph » software and connection with the device is done by

USB cable (standard), Bluetooth (optional), touchpad (optional) and .P.R.S. (optional).

I. DELIVERY

What’s in the box:

At delivery, please check the correspondence between the package’s contents and the delivery

note. Any mistake or any damage related to the transport should be reported to us within 2

working days.

5 elements must be in the box

- Radar Speed Sign « Evolis Solution »

- Vertical mounting bar

- USB cable (5m)

- User guide

- A set of 2 keys for the battery compartment

Please keep original packaging for transport during the 2-year warranty

period

Document confidentiel et propriété d’Elan Cité. Ne peut être communiqué à une entité tierce sans autorisation préalable.

Depending on the power supply mode chosen, other accessories may be present:

- Mains / Street lighting

A set of outdoor male/female electric plugs with a 12V/17Ah battery

- Solar powered or with external charger

2 batteries 12V/22Ah

Document confidentiel et propriété d’Elan Cité. Ne peut être communiqué à une entité tierce sans autorisation préalable.

II. PRODUCT DESCRIPTION

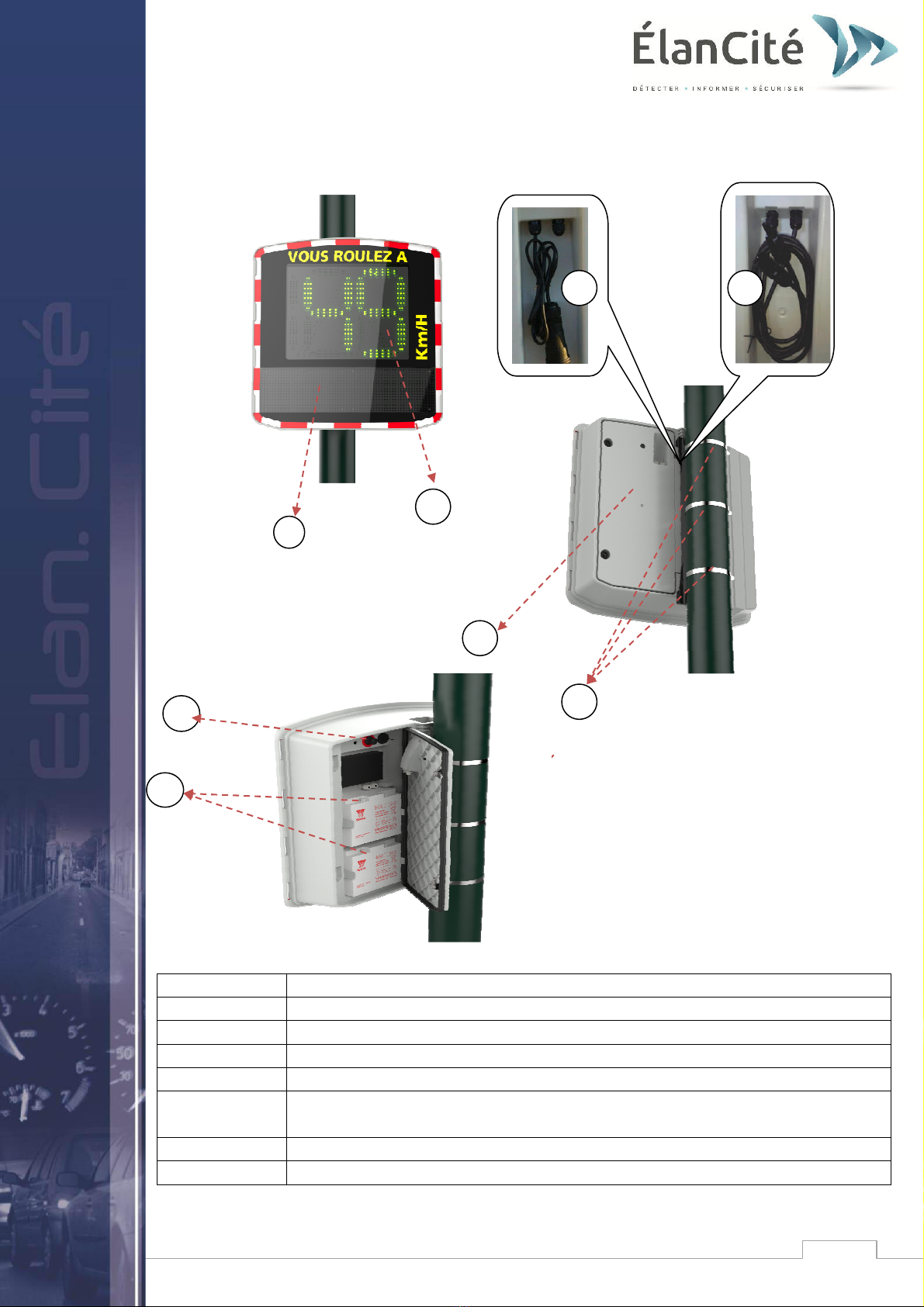

1 2 colors speed display (green/amber) + red

2 Message display (amber)

3 Backdoor

4 Pole straps (not included)

5 Battery compartments

6 Dial switch with preset speed thresholds, waterproof USB port and fuse for

power supply

7 Electric plug for mains (if ordered)

8 Cables and plugs for connection to solar panel (if ordered)

Document confidentiel et propriété d’Elan Cité. Ne peut être communiqué à une entité tierce sans autorisation préalable.

III.

INITIAL POWER-UP

a. Auto-test at start up :

Once powered on, turn the dial switch on any other position than

OFF (Veille), Evolis Solution will run a quick auto-test:

IV.

START UP INSTALLATION

a. Current French regulations

Speed Display

It must distinguish posted speed limits from excessive speeds: green or amber for posted speed limit

and below; and red for excessive speed

Speed must not be displayed beyond 10 km/h above the posted speed limit in urban areas and

20 km/h outside urban areas. Beyond, and instead of the speed, a regulatory logo type A 14 can be

displayed.

No other logo from the A 14 is authorized to be displayed alternately with the speed or beyond the

excessive speed (Repeal of Smileys...)

Text Display

No message must be displayed below the posted speed limit (e.g. Thank You...)

Beyond the posted speed limit, the message displayed must be a short warning message: DANGER,

SLOW DOWN........

Legal texts

Decree of November 25, 1967 relative to road signaling (modified in 2011)

Part 9 of the ISSR (Ministerial instructions for road safety)

CERTU recommendations for radar speed signs

** Dimensions of the speed digits and letters must allow the driver to read them safely. Characters must

meet the recommendations of Article Part of the ISSR.

Speed

Display

188 in green

Battery voltage level (e.g. : 147

for 14.7 Volts

Then a red 8 for Bluetooth or a

green 1 for PRS

Text

Display 2

test OK or DEMARRAGE

1. 2/3.

Document confidentiel et propriété d’Elan Cité. Ne peut être communiqué à une entité tierce sans autorisation préalable.

b.Pre set-up

Several thresholds can be programmable:



Minimum speed display



Threshold for color changing



Warning threshold before red display



Flash trigger speed threshold



Maximum speed display (anti-race)



Activation of alternate « warning sign » display



Thresholds of message activation

For quick start-up, all these parameters are already set-up according to usual speed zones with

corresponding standard messages.

The dial switch in the battery compartment allows to easily selecting speed and corresponding

factory parameters according to the posted speed limit where installed.

Document confidentiel et propriété d’Elan Cité. Ne peut être communiqué à une entité tierce sans autorisation préalable.

Factory parameters SOLUTION :

OPTION Display of the warning sign alternately to excess speed or beyond the anti race

threshold.

* SP: Specific mode or user mode (Select custom parameters set-up using Evocom software,

(see page 15/16)

** School function: (set-up by time slots and days of the week)

*** Activation of amber before red (deactivated by default)

Position of dial

switch

30 km/h 50 km/h 70 km/h 90 km/h 110 km/h

SP *

Standard School

function*

Minimum speed

displayed

15 km/h 15 km/h 15 km/h 15 km/h 15 km/h

15 km/h

Color change

31 km/h 51 km/h 71 km/h 91 km/h 111 km/h 51 km/h 31 km/h

Alert Zone ***

6 km/h 6 km/h 6 km/h 6 km/h 6 km/h

6 km/h

Flashing threshold

35 km/h 55 km/h 75km/h 95 km/h 115 km/h 55 km/h 35 km/h

Maximum speed

displayed

41 km/h 61 km/h 91 km/h 111 km/h 131 km/h 61 km/h 41 km/h

Message n°1

from 31 to

40 km/h

from 51

60 km/h

from 71

80 km/h

from 91

100 km/h

from 111

120 km/h

from 51

60 km/h

Message n°2

41 km/h 61 km/h 81 km/h 101 km/h 121 km/h 61 km/h

Message n°3

from

31km/h

Document confidentiel et propriété d’Elan Cité. Ne peut être communiqué à une entité tierce sans autorisation préalable.

c. Mounting

For best operating performances, please select the location for your radar speed sign according

to the following criteria:

• An open field of at least 490ft upstream the sign. This area and the radar beam should be free

of any objects (trees, poles, parked vehicles…)

• The speed display should be distant from more than 210ft of large road signs. Otherwise, these

road signs may disturb the radar beam.

• Do not install a speed display at crossings or on bridges. Keep a minimum distance of 410ft

with cross traffic, to prevent influence on display and traffic data.

• Please make sure the speed display does not interfere in the visibility of road signs.

Installation height: Between 7ft and 16ft (calculated from the bottom edge of the speed display).

Off road: please do not exceed a 9ft off road

Orientation

•Horizontal

Evolis Solution must be perpendicular to the road, even by strong off road, in

order to keep a maximum range. •Vertical

Sign must be installed straight, unless there is a strong road gradient (+/- 5%). In

this case, the sign can be installed with the same angle, using a wedge, in order to

optimize the detection range.

For any value

>5%, please

Document confidentiel et propriété d’Elan Cité. Ne peut être communiqué à une entité tierce sans autorisation préalable.

d.Mounting kit

A mounting bar is supplied with the display. Please mount it onto the pole using pole straps (not

included). Please watch the mounting direction (up/down). Insert the hooks of the speed display

into the bar. You can secure the speed sign with the bar using a key lock (not included).

In a safety interest, it is highly recommended to use an aerial lift during the installation of the

speed display.

We recommend the following installation procedure:

1. Put the bar onto the pole

2. Install the sign (without the batteries) onto the bar

3. Choose the correct direction and clamp the pole straps

4. Install the batteries, and/or connect the sign with mains

In case of solar power, it is necessary to install the solar panel with its mounting kit before

installing the speed sign (See Solar Panel user guide

Verification:

Once the sign has been installed, the detection range shall be between 330 and 820ft, but some

items may alter the range: curves, presence of obstacles, fog...

The dial switch located in the battery compartment allows you to choose the speed according to

the posted speed limit.
