EkoStinger Fixed System Manuel utilisateur
Installation Manual | Fixed System
V 1.02
1/28/2021 EkoStinger|140 Despatch Dr, East Rochester, NY 14445|855.833.7940|info@ekostinger.com
Need help? Please call EkoStinger at 855-833-7940
www.ekostinger.com
Installation Manual | Fixed System
Important Safety Instructions
EkoStinger|140 Despatch Dr, East Rochester, NY 14445|855.833.7940|info@ekostinger.com pg. 1
General Safety Warning
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in serious injury.
SAVE A WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE
1) Work Area Safety
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of ammable liquids,
gases or dust. Power tools create sparks which may ignite the dust or fumes.
Keep non needed personnel away while performing the installation. Distractions can cause accidents.
2) Personal Safety
Use personal protective equipment. Always wear eye and ear protection.
3) Unit Servicing
Recheck declared Torque after the rst 1,000 miles.
Recheck declared Torque every 10,000 miles.
4) Manufacturer's suggested Torque values
3/8" Hardware: 23 ft-lb
1/4" Hardware: 6.3 ft-lb
U.S. Recommended Bolt Torque Table
Size
Recommended Torque
Grade 2 Grade 5 Grade 8 18-8 S/S Bronze Brass
Coarse Fine Coarse Fine Coarse Fine Coarse Fine Coarse Fine Coarse Fine
* #4 - - - - - - 5.2 - 4.8 - 4.3 -
* #6 - - - - - - 9.6 - 8.9 - 7.9 -
* #8 - - - - - - 19.8 - 18.4 - 16.2 -
*#10 - - - - - - 22.8 31.7 21.2 29.3 18.6 25.9
1/4 4 4.7 6.3 7.3 9 10 6.3 7.8 5.7 7.3 5.1 6.4
5/16 8 9 13 14 18 20 11 11.8 10.3 10.9 8.9 9.7
3/8 15 17 23 26 33 37 20 22 18 20 16 18
7/16 24 27 37 41 52 58 31 33 29 31 26 27
1/2 37 41 57 64 80 90 43 45 40 42 35 37
9/16 53 59 82 91 115 129 57 63 53 58 47 51
5/8 73 83 112 128 159 180 93 104 86 96 76 85
3/4 125 138 200 223 282 315 128 124 104 102 118 115
7/8 129 144 322 355 454 501 194 193 178 178 159 158
** 1 188 210 483 541 682 764 287 289 265 240 235 212
* Sizes from 4 to 10 are in in.-lbs.
Sizes from 1/4 up are in ft.-lbs.
**Fine thread gures are for 1-14.
Grade 2, 5, and 8 values are for plated bolts.
Installation Manual | Fixed System
Table Of Contents
EkoStinger|140 Despatch Dr, East Rochester, NY 14445|855.833.7940|info@ekostinger.com pg. 2
Important Safety Instructions
Table of Contents
Parts ist
Shipped Items
Hardware Box (Fixed)
Exploded Diagram - Part Numbers
Assembly
Know Your Stinger Parts
Assembly Tools
Front Brace Assembly
Rear Brace Assembly
Attaching Bottom Support Angle
Attaching Cables
Assembly Finished
Installation
Installation Tools
Airline Cover
Measuring and Prep
Raising Stinger
I-Beam Anchoring via Plates
Wing Gussets
Installation Complete
Notes
1
2
3
4
5
6
7
8-9
10-11
12
13
14
15
16-17
18-22
23-25
26-28
29
30
31
1x - Stinger Shell - M Dxxx-Fx
1x - Bottom Support Angle - 10093F
1x - Hardware Box (Fixed) - HBFX
2x - 24" x 27" Aerodynamic Mud Flaps 14x - Zip Ties
8’ - Wire oom
Installation Manual | Fixed System
Parts List - Shipped Items
What comes with your EkoStinger order?
EkoStinger|140 Despatch Dr, East Rochester, NY 14445|855.833.7940|info@ekostinger.com pg. 3
Installation Manual | Fixed System
Parts List - Shipped Items
What comes with your EkoStinger order?
EkoStinger|140 Despatch Dr, East Rochester, NY 14445|855.833.7940|info@ekostinger.com pg. 4
20004 161/4"-20x1" Washer Head w/Patch
Part # Items QTY
Fixed Plate Bolts w/Loctite Patch
FX1001B
20091
20010
16
16
3/8"-16x1.5" Hex Bolt SS
3/8"-16 Nylock Nut
Part # Items QTY
Fixed Faceplate Hardware Bag
FX1002B
20044
20085
20006
EYE-H
10
4
7
1
1/4"x1" SS Fender Washer
1/4"-20x1" SS Hex Bolt
1/4"-20 Nylock Nut
Eyehook 1/4"x1"x7/8"
Part # Items QTY
Fixed Support Hardware
FX1005B
20044
20085
20006
2
2
2
1/4"x1" SS Fender Washer
1/4"-20x1" SS Hex Bolt
1/4"-20 Nylock Nut
Part # Items QTY

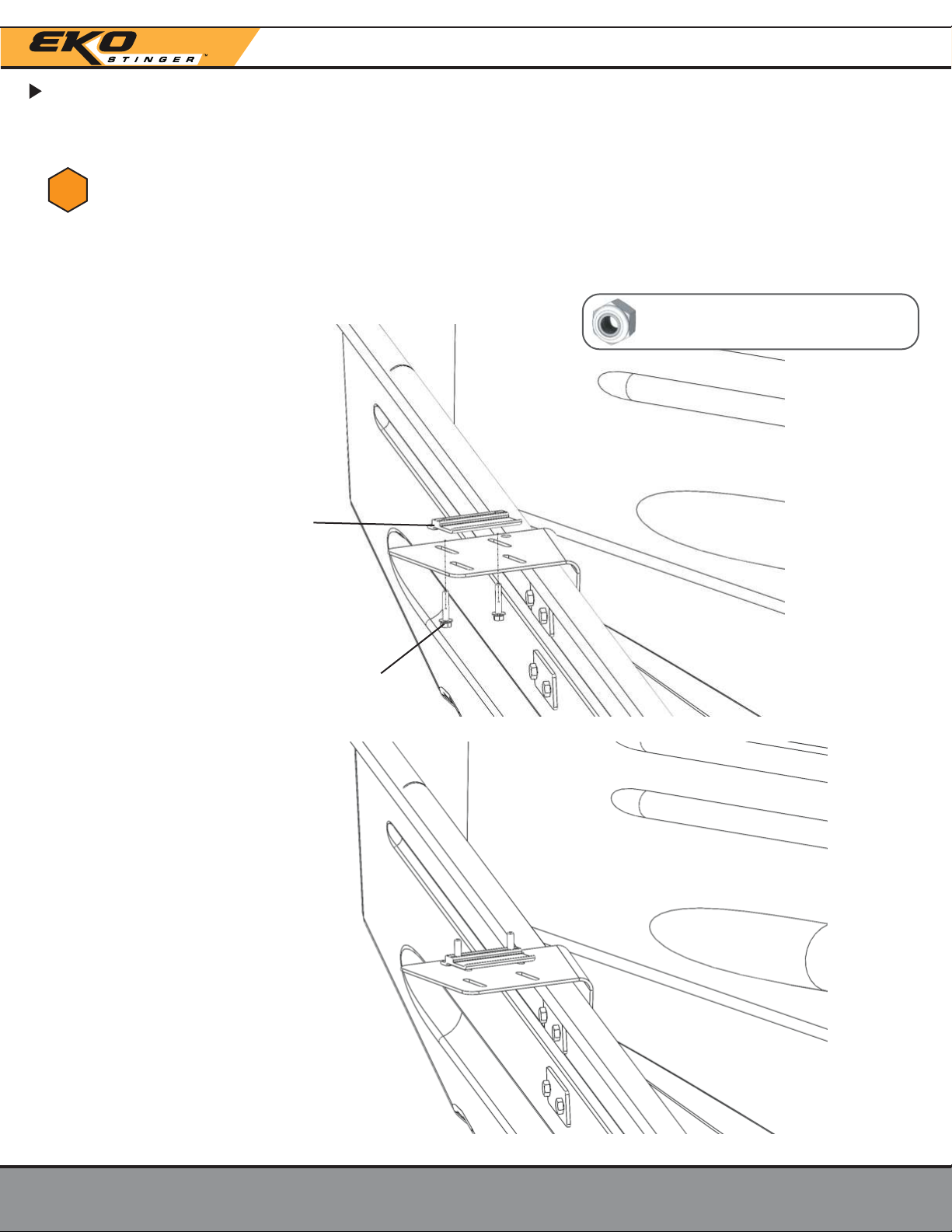

Wing Gusset Hardware Bag
FXG S-HWB
FX-GUS
20018
20004
1
2
2
3" x 3" x 5" Aluminum Bracket
Small Plate
1/4"-20 Bolt
Part # Items QTY
Rear Wing Gusset - Flat Bottom
FX1004F
FXBR-
FXBR-R
2
2
6"x15"90°Plate 4 Holes, 4 Slots, Powder
Coated, Painted, eft (Steel Brace Plate)
6"x15"90°Plate 4 Holes, 4 Slots, Powder
Coated, Painted, Right (Steel Brace Plate)
Part # Items QTY
Fixed Braces
FXSP
FXFP
FX1002B
8
8
1
1/4"x4.25" Aluminum Plate (Mold Brace Spacer)
1/8"x4.25" Aluminum Plate (Fixed Faceplate)
Fixed Faceplate Hardware Bag
Part # Items QTY
Faceplates and Spacers with Bolts and Nuts
FX1002A
FX1001B
PF Bag
1
1
Fixed Plate Bolts w/ octite Patch
arge Plates - Fixed
Part # Items QTY
Fixed Large Plate Bag
FX1001A
FX-CB
FX1005B
2
1
Rear Support Cable
Fixed Support Hardware
Part # Items QTY
Rear Cable Bag with Fixed Support Hardware Bag
FX1005A
20017F
20017RED
4
4
arge Plate
arge Plate - Paint Red
Part # Items QTY
Large Plate Fixed nit Bag
LPF Bag
Hardware Box (Fixed) - HBFX
Installation Manual | Fixed System
Parts List - Exploded Diagram
EkoStinger|140 Despatch Dr, East Rochester, NY 14445|855.833.7940|info@ekostinger.com pg. 5
M Dxxx-Fx
10093
FxBR-
FxBR-R
FxFP
20017RED
20017
20004
EYE-H
FX-GUS
20091
FX-CB
20010
20085
20006
20044
20006
20085
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
Stinger Shell
Bottom Support Angle
FX eft Brace
FX Right Brace
FX Faceplate
Red Plate
Plate
Plate Bolts
Eyehook
Wing Gusset
FX Faceplate Bolt
Rear Support Cable
3/8"-16 ocknut
Wing Gusset Shell Bolt
Wing Gusset Shell Nylock
Washer
1/4"-20 ocknut
Bottom Support Angle Bolt
# #Part Name Part NamePart Number Part Number
Installation Manual | Fixed System
Assembly - Stinger Unit
EkoStinger|140 Despatch Dr, East Rochester, NY 14445|855.833.7940|info@ekostinger.com pg. 6
Know Your Stinger Parts - Assembled Stinger Unit
Right Brace
FxBR-R
eft Brace
FxBR-
eft Brace
FxBR-
Right Brace
FxBR-R
Plate
20017F
(4x)
Red Plate
20017F
(4x)
Support Cable Hole
(2x)
Stinger
Shell
M Dxxx-Fx
Wing Gusset
FX-GUS
Bottom Support Angle
10093F
Support Cables
FX-CB
9/16 Wrench
Installation Manual | Fixed System
Assembly - Stinger Unit - Required Tools
EkoStinger|140 Despatch Dr, East Rochester, NY 14445|855.833.7940|info@ekostinger.com pg. 7
Cordless Impact Driver
Socket Adapter
7/16 Wrench
7/16 Socket
9/16 Socket
3/8 Driver
Installation Manual | Fixed System
Assembly - Stinger Unit
EkoStinger|140 Despatch Dr, East Rochester, NY 14445|855.833.7940|info@ekostinger.com pg. 8
Torque
23 ft-lb
Refer to
manufacturers
suggested
Torque values
on pg. 2.
Front Brace Assembly
Attach the Left Brace (FxBr-L) by inserting 4x Outside Bolts (20091)
through 2x Faceplates (FxFp), Stinger Shell, and continuing through the
2x Spacers (FxSp), the Left Brace (FxBr-L), and fastening at the end with
4x Lock Nuts (20010). Make sure the Brace is facing outward just like
in the picture. Do the same for the right side.
1
eft Brace
FxBr-
(Right Side: FxBr-R)
3/8 ock Nut
20010
(4x)
Spacer
FxSp
(2x)
Faceplate
FxFp
(2x)
Outside Bolt
3/8-16 x 1.5 Hex Bolt
20091
(4x)
Fixed Faceplate Hardware Bag
Faceplates and Spacers w/ Bolts + Nuts
Installation Manual | Fixed System
Assembly - Stinger Unit
EkoStinger|140 Despatch Dr, East Rochester, NY 14445|855.833.7940|info@ekostinger.com pg. 9
Fixed Plate Bolts w/Loctite Patch
Fixed Large Plate Bag
Front Brace Assembly
Attach the Plate (20017F) by inserting 2x Plate Bolts (20004) through
the Brace and into the threaded Plate. Make sure the Plate
is facing toward the center of the Brace, just like in the picture.
Do the same on the other side. Finger tighten for now.
2
Plate
20017F
Plate Bolt
20004
(2x)
