FlexScan‚

User’s Manual

Important

Please read this User's Manual carefully to familiarize yourself with safe

and effective usage procedures. Please retain this manual for future

reference.

Color Display Monitor

T566

English

SAFETY SYMBOLS

This manual uses the safety symbols below. They denote critical information. Please read them

carefully.

WARNING

Failure to abide b

the information in a WARNING ma

result in serious in

and

can be life threatening.

CAUTION

Failure to abide by the information in a CAUTION may result in moderate injury

and/or property or product damage.

Indicates a prohibited action.

Indicates to ground for safety.

manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any

means, electronic, mechanical, or otherwise, without the prior written permission of Eizo Nanao

Corporation.

Eizo Nanao Corporation is under no obligation to hold any submitted material or information

confidential unless

rior arran

ements are made

ursuant to Eizo Nanao Cor

oration's recei

t of

said information. Although every effort has been made to ensure that this manual provides up-

to-date information, please note that EIZO monitor specifications are subject to change without

notice.

ENERGY STAR is a U.S. registered mark.

Apple and Macintosh are registered trademarks of Apple Computer, Inc.

VGA is a registered trademark of International Business Machines Corporation.

DPMS is a trademark and VESA is a registered trademark of Video Electronics Standards

Association.

Windows is a registered trademark of Microsoft Corporation.

ScreenManager and PowerManager, QuickSet and i·Sound are trademarks of Eizo Nanao

Corporation.

FlexScan, SuperErgoCoat and EIZO are registered trademarks of Eizo Nanao Corporation.

As an ENERGY STAR®Partner, Eizo Nanao Corporation has determined that this

product meets the ENERGY STAR guidelines for energy efficiency.

English

TABLE OF CONTENTS

PRECAUTIONS ................................................................................... 4

1. INTRODUCTION ..................................................................................... 8

1-1. Features ........................................................................................................8

1-2. Package Contents..........................................................................................8

1-3. Controls & Connectors ................................................................................9

2. INSTALLATION ..................................................................................... 10

2-1. Connecting the monitor to the PC ..............................................................10

2-2. Getting Ready for Operation ......................................................................12

3. SCREEN ADJUSTMENT ...................................................................... 13

3-1. How to use the ScreenManager ..................................................................13

3-2. Fine Contrast ..............................................................................................15

3-3. Color ..........................................................................................................16

3-4. Power Save .................................................................................................18

3-5. Adjustment Lock ........................................................................................19

3-6. Connecting two PCs to the Monitor...........................................................20

4. TROUBLESHOOTING........................................................................... 21

5. CLEANING ............................................................................................ 26

6. SPECIFICATIONS ................................................................................. 27

7. GLOSSARY........................................................................................... 30

English

4PRECAUTIONS

PRECAUTIONS

IMPORTANT!

• This product has been adjusted specifically for use in the region to which it was

originally shipped. If operated outside the region to which it was originally shipped,

the product may not perform as stated in the specifications.

• To ensure personal safety and proper maintenance, please read this section and the

caution statements on the unit (refer to the figure below).

[Location of the Caution Statements]

WARNING

If the unit begins to emit smoke, smells like something is burning, or

makes strange noises, disconnect all power connections immediately

and contact your dealer for advice.

Attempting to use a malfunctioning unit can be dangerous.

Do not dismantle the cabinet or modify the unit.

Dismantling the cabinet or modifying the unit may result in electric shock or

burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing covers

may expose you to dangerous voltage or other hazards.

English

PRECAUTIONS

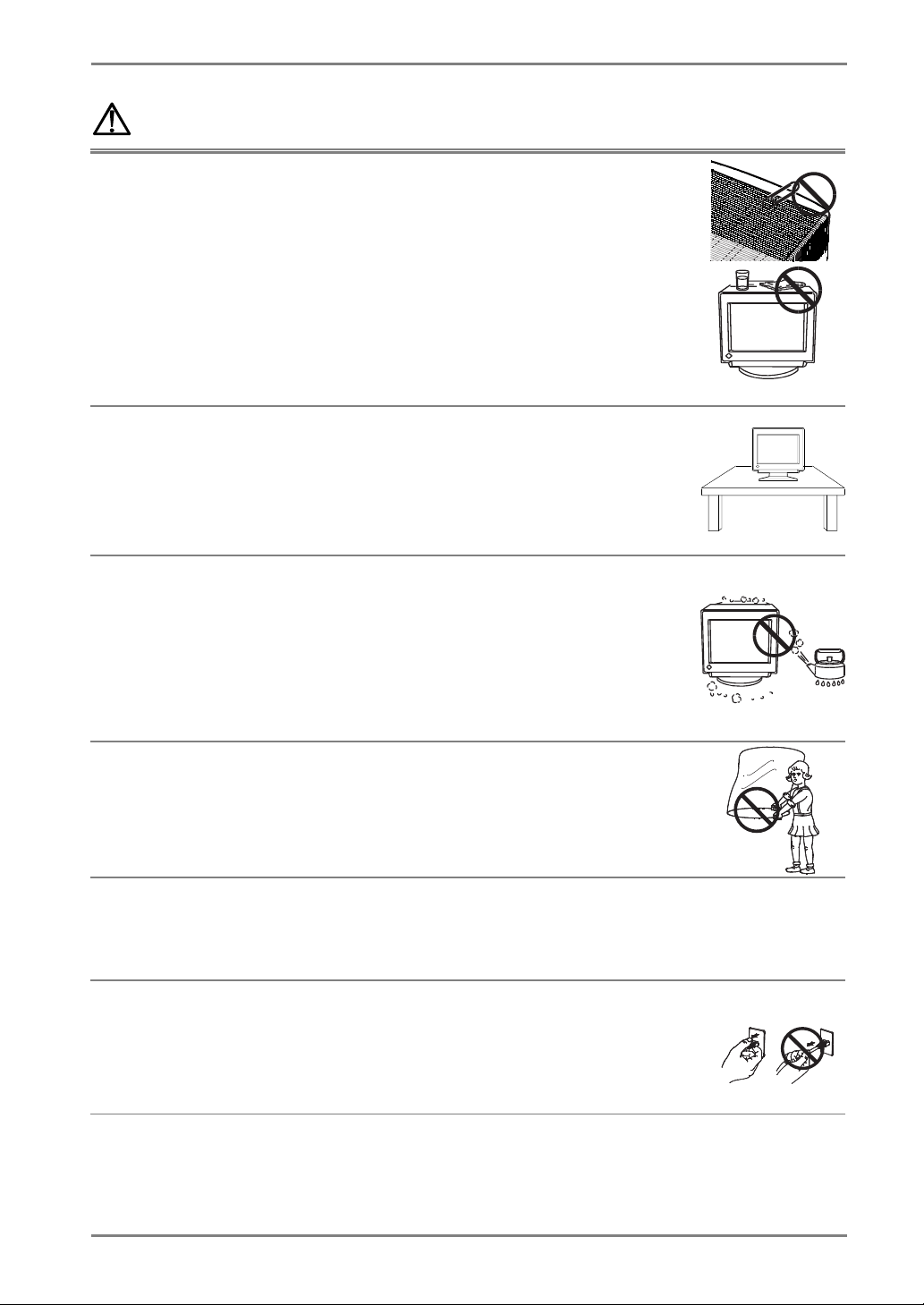

WARNING

Keep small objects or liquids away from the unit.

Small objects accidentally falling through the ventilation slots into the cabinet

or spillage into the cabinet may result in fire, electric shock, or equipment

damage.

If an object or liquid falls/spills into the cabinet, unplug the unit immediately.

Have the unit checked by a qualified service engineer before using it again.

Place the unit on a strong, stable surface.

A unit placed on an inadequate surface may fall, resulting in injury or

equipment damage.

When the unit is dropped, please ask your dealer for advice. Do not continue

using a damaged unit. Using a damaged unit may result in fire or electric

shock.

Set the unit in an appropriate location.

Not doing so may cause damage and could result in fire or electric shock.

* Do not place in outdoors.

* Do not

lace in the trans

ortation s

stem (shi

, aircraft, trains, automobiles,

etc.)

* Do not install in a dusty or humid environment.

* Do not place in a location where the steam comes directly on the screen.

* Do not place near heat generating devices or a humidifier.

To avoid danger of suffocation, keep the plastic packing bags away

from babies and children.

Use the enclosed power cord and connect to the standard power outlet

of your country. Be sure to remain within the rated voltage of the

power cord.

Not doing so may cause in fire or electric shock.

To disconnect the power cord, grasp the plug firmly and pull.

Never tug on the cord, doing so may cause damage and could result in fire or

electric shock.

English

6PRECAUTIONS

WARNING

The equipment must be connected to a grounded main outlet.

Not doing so may cause in fire or electric shock.

Use the correct voltage.

* Do not overload your power circuit, as this may result in fire or electric

shock.

* The unit is designed for use with a specific voltage only. Connection to

another voltage than specified in this User’s Manual may cause fire, electric

shock, or other damage.

* Do not overload your power circuit, as this may result in fire or electric

shock.

Handle the power cord with care.

* Do not place the cord underneath the unit or other heavy objects.

* Do not pull on or tie the cord.

If the power cord becomes damaged, stop using it. Use of a damaged cord

may result in fire or electric shock.

Never touch the plug and power cord if it begins to thunder.

Touching them may result in electric shock.

English

PRECAUTIONS

CAUTION

Handle with care when carrying the unit.

Disconnect the power cord and cables and remove the optional unit. Moving

the unit with the cord or the option attached is dangerous. It may result in

injury or equipment damage.

Do not move it alone. Always work with another person.

Moving it alone may cause lower back pain. Also note that the unit is heavier

at the front than at the rear.

Do not block the ventilation slots on the cabinet.

* Do not place books or any other papers on the ventilation slots.

* Do not install the unit in a closed space.

* Do not use the unit lying down or upside down.

* Do not remove the tilt-swivel stand.

Using the unit in these ways blocks the ventilation slots and prevents proper

airflow, leading to fire or other damage.

Do not sit on the cabinet or place any heavy objects on the cabinet.

A unit with heavy objects on it may fall or be damaged and result in injury.

Do not touch the plug with wet hands.

Touching them may result in electric shock.

Use an easily accessible power outlet.

This will ensure that you can disconnect the power quickly in case of a

problem.

Periodically clean the area around the plug.

Buildup of dust, water, or oil on the plug may result in fire.

Unplug the unit before cleaning it.

Cleaning the unit while it is plugged into a power outlet may result in electric

shock.

If you plan to leave the unit unused for an extended period, disconnect

the power cord from the wall socket after turning off the power switch

for the safety and the power conservation.

English

81. INTRODUCTION

1. INTRODUCTION

Thank you very much for choosing an EIZO Color Display Monitor.

1-1. Features

• Horizontal scanning frequency of 30-96kHz

Vertical scanning frequency of 50-160 Hz

• Support to sRGB standard (See page 31.)

• Max Brightness 400 cd/m2bright screen (when the movie mode is selected.)

• The color restoration circuit that can keep stable brightness and color-tone for a long

period supported (See page 16.)

• Fine contrast modes, to adjust the most suitable brightness and contrast of the screen

(See page 15.)

• The EIZO CRT Utility Disk enclosed (See readme.txt in the CD-ROM for details.)

- The utility software “ScreenManager Pro for USB” (for Windows) to control a

monitor from a PC with a mouse and a keyboard

- The software “ActiveGamma” (for Windows/Macintosh) to assign fine contrast

modes to applications

- The software “DesktopViewer” (for Windows) to display bright and clear still

images

1-2. Package Contents

Please contact your local dealer for assistance if any of the listed items are missing or

damaged.

• Monitor

• Power Cord

• Signal Cable (MD-C87 or MD-C100)

• Setup Guide

• EIZO CRT Utility Disk (for Windows/Macintosh)

• EIZO USB Cable (MD-C93)

• LIMITED WARRANTY

NOTE

• Please retain the packing materials for future transference.

• The EIZO USB cable is used when using the software in the EIZO CRT Utility Disk.

For information on the software, refer to the readme.txt in the EIZO CRT Utility Disk.

English

1. INTRODUCTION 9

1-3. Controls & Connectors

Front Rear

(1) BNC/D-SUB Selection Button

(2) AUTO/FINE MODE button

Push the button lightly: Fine Contrast Mode Selection button

Press and hold the button more than 2 seconds: AUTO-SIZING button

(3) QuickSet™ Control Pad

(Hereinafter “Control Pad”)

(4) Power Indicator

Green Power is on (Normal mode)

Flashing Green Power save (Mode 1)

Advance notice of monitor's Off Timer*1

Yellow Power save (Mode 2)

Flashing Yellow Power save mode with monitor's Off Timer*1

Off Power is off

(5) Power Switch

(6) Power Terminal*2 (with a cover)

(7) ScreenManager™

(8) Power Connector

(9) D-Sub mini 15 pin connector

(10) BNC Input Connector

(11) USB Port*3

Upstream port x 1

*1 Regarding the "Off Timer", see page 19.

*2 Power Terminal can be used with an optional i⋅Sound Sound Unit.

*3 USB Port is used when using the software EIZO CRT Utility Disk. (See page 11.)

Bottom

English

10 2. INSTALLATION

2. INSTALLATION

2-1. Connecting the monitor to the PC

NOTE

• Be sure that the power switches of both of the PC and the monitor are OFF.

1. Plug the signal cable into the connector at the rear of the monitor

and the other end of the cable into the video connector on the PC.

After connecting, secure the connection with the screw-in fasteners.

Signal Cable Connector PC

Signal Cable (enclosed)

D-Sub mini 15 pin

connector

 Standard Graphics Board

 Macintosh G3 (Blue &

White) / G4

Signal Cable (enclosed) +

Adapter* (optional)

D-Sub 15 pin

connector

 Macintosh

* Macintosh Adapter (optional)

2. Plug the power cord into the power connector at the rear of the

monitor. Then, plug the other end of the cord into a power outlet.

Autres manuels pour FlexScan T566

Table des matières

Autres manuels Eizo Moniteur

Eizo

Eizo ColorEdge CG232W Guide de l'utilisateur

Eizo

Eizo FlexScan L 788-i Manuel utilisateur

Eizo

Eizo FlexScan L 362T L362T L362T Manuel utilisateur

Eizo

Eizo FlexScan EV2313W Manuel utilisateur

Eizo

Eizo FLEXSCAN L365 - Manuel utilisateur

Eizo

Eizo ColorEdge CS2410 Manuel utilisateur

Eizo

Eizo HD 2411W Guide de l'utilisateur

Eizo

Eizo FlexScan EV2316W Manuel utilisateur

Eizo

Eizo G22-BL/G22-CL Manuel utilisateur

Eizo

Eizo FlexScan MX-Series Manuel utilisateur

Eizo

Eizo FlexScan EV2730Q-GY Manuel utilisateur

Eizo

Eizo DuraVision FDV1002 Manuel utilisateur

Eizo

Eizo RadiForce MX243W Manuel utilisateur

Eizo

Eizo ColorEdge CS2740 Manuel utilisateur

Eizo

Eizo RadiForce GX530-CL Manuel utilisateur

Eizo

Eizo eClient 630L LCD Monitor Integrated Windows-based... Manuel utilisateur

Eizo

Eizo DuraVision FDF2304W-P Guide de l'utilisateur

Eizo

Eizo DuraVision FDF2405W Manuel utilisateur

Eizo

Eizo DURAVISION FDX1201T Manuel utilisateur

Eizo

Eizo FLEXSCAN F931 - Manuel utilisateur

Eizo

Eizo FLEXSCAN T1721 Manuel utilisateur

Eizo

Eizo FlexScan EV2430 Manuel utilisateur

Eizo

Eizo FlexScan L675 Manuel utilisateur

Eizo

Eizo DuraVision FDS1703-A Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
