Eizo FLEXSCAN L551 - Manuel utilisateur

English

SAFETY SYMBOLS

This manual uses the safety symbols below. They denote critical information. Please read

them carefully.

manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any

means, electronic, mechanical, or otherwise, without the prior written permission of EIZO

NANAO CORPORATION.

EIZO NANAO CORPORATION is under no obligation to hold any submitted material or

information confidential unless prior arrangements are made pursuant to EIZO NANAO

CORPORATION’s receipt of said information. Although every effort has been made to ensure

that this manual provides up-to-date information, please note that EIZO monitor

specifications are subject to change without notice.

ENERGY STAR is a U.S. registered mark.

Apple and Macintosh are registered trademarks of Apple Computer, Inc.

VGA is a registered trademark of International Business Machines Corporation.

DPMS is a trademark and VESA is a registered trademark of Video Electronics Standards

Association.

Windows is a registered trademark of Microsoft Corporation.

FlexScan, ScreenManager and EIZO are registered trademarks of EIZO NANAO

CORPORATION.

WARNING

Failure to abide by the information in a WARNING may result in serious injury

and can be life threatening.

CAUTION

Failure to abide by the information in a CAUTION may result in moderate injury

and/or property or product damage.

Indicates a prohibited action.

Indicates to ground for safety.

As an ENERGY STAR®Partner, EIZO NANAO CORPORATION has determined that

this product meets the ENERGY STAR guidelines for energy efficiency.

English

TABLE OF CONTENTS 3

TABLE OF CONTENTS

PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1. INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1-1. Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1-2. Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1-3. Controls & Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2. CABLE CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2-1. Before Connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2-2. Connecting the Signal Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3. SCREENMANAGER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3-1. How to use the ScreenManager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3-2. ScreenManager Adjustments and Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3-3. Useful Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4. ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4-1. Auto Screen Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4-2. Range Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4-3. Brightness Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4-4. Color Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4-5. Power-save Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5. ATTACHING AN ARM STAND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

6. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

7. CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

8. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

9. GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

APPENDIX/ANHANG/ANNEXE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I

English

4PRECAUTIONS

PRECAUTIONS

IMPORTANT!

zThis product has been adjusted specifically for use in the region to which it was

originally shipped. If operated outside the region to which it was originally

shipped, the product may not perform as stated in the specifications.

zTo ensure personal safety and proper maintenance, please read this section and the

caution statements on the unit (refer to the figure below).

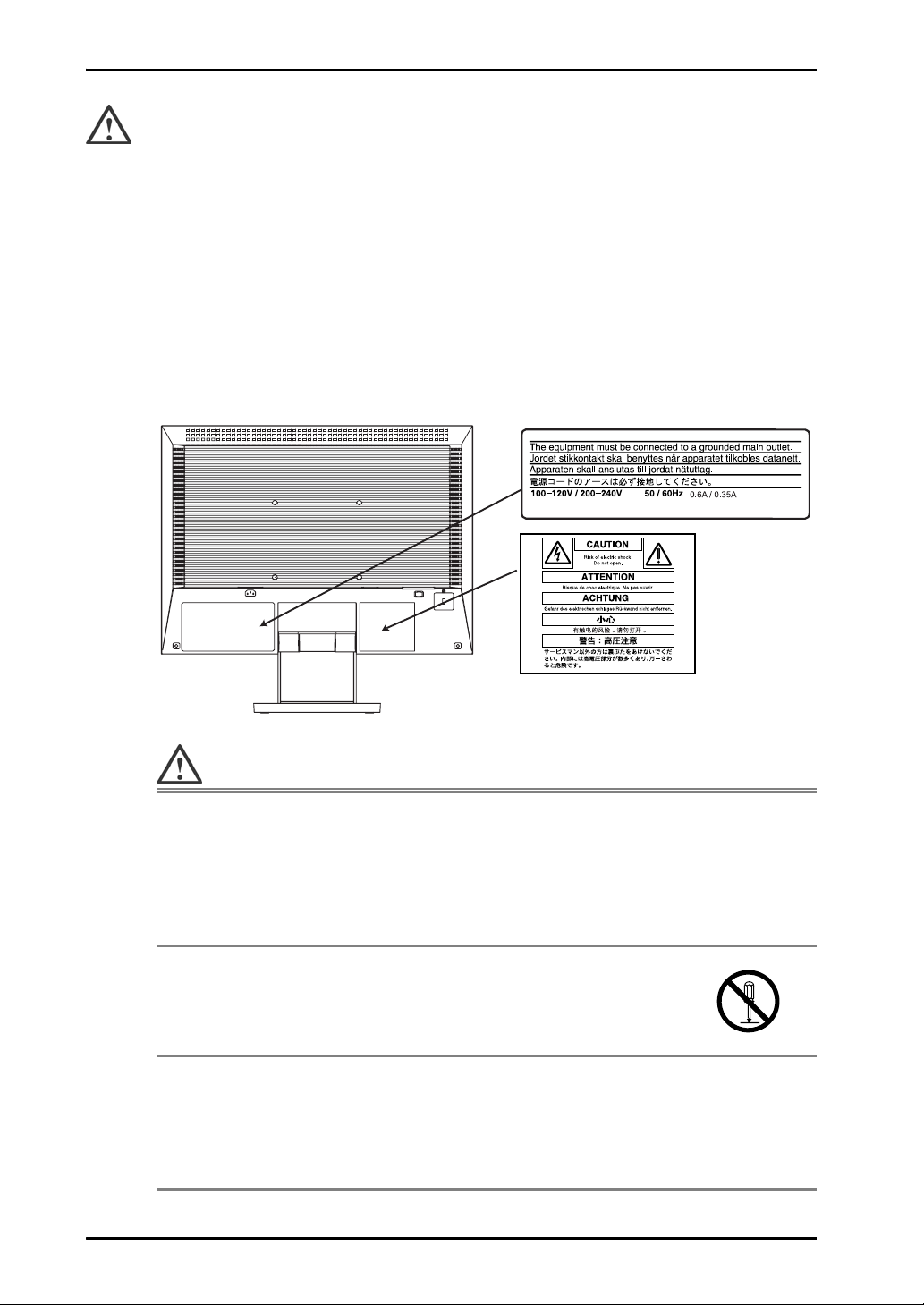

[Location of the Caution Statements]

WARNING

If the unit begins to emit smoke, smells like something is

burning, or makes strange noises, disconnect all power

connections immediately and contact your dealer for advice.

Attempting to use a malfunctioning unit may result in fire, electric

shock, or equipment damage.

Do not open the cabinet or modify the unit.

Opening the cabinet or modifying the unit may result in fire,

electric shock, or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or

removing covers may result in fire, electric shock, or equipment

damage.

English

PRECAUTIONS 5

WARNING

Keep small objects or liquids away from the unit.

Small objects accidentally falling through the ventilation slots into

the cabinet or spillage into the cabinet may result in fire, electric

shock, or equipment damage.If an object or liquid falls/spills into

the cabinet, unplug the unit immediately. Have the unit checked by

a qualified service engineer before using it again.

Place the unit at the strong and stable place.

A unit placed on an inadequate surface may fall and result in

injury or equipment damage. If the unit falls, disconnect the power

immediately and ask your dealer for advice. Do not continue using

a damaged unit. Using a damaged unit may result in fire or

electric shock.

Set the unit in an appropriate location.

Not doing so may result in fire, electric shock, or equipment damage.

zDo not place outdoors.

zDo not place in the transportation system (ship, aircraft, trains,

automobiles, etc.)

zDo not place in a dusty or humid environment.

zDo not place in a location where the steam comes directly on

the screen.

zDo not place near heat generating devices or a humidifier.

To avoid danger of suffocation, keep the plastic packing

bags away from babies and children.

Use the enclosed power cord and connect to the standard

power outlet of your country.

Be sure to remain within the rated voltage of the power cord.Not

doing so may result in fire or electric shock.

To disconnect the power cord, grasp the plug firmly and pull.

Tugging on the cord may damage and result in fire or electric shock.

OKOK

English

6PRECAUTIONS

WARNING

The equipment must be connected to a grounded main outlet.

Not doing so may cause in fire or electric shock.

Use the correct voltage.

zThe unit is designed for use with a specific voltage only.

Connection to another voltage than specified in this User’s

Manual may cause fire, electric shock, or equipment damage.

zDo not overload your power circuit, as this may result in fire or

electric shock.

Handle the power cord with care.

zDo not place the cord underneath the unit or other heavy objects.

zDo not pull on or tie the cord.

If the power cord becomes damaged, stop using it. Use of a

damaged cord may result in fire or electric shock.

Never touch the plug and power cord if it begins to thunder.

Touching them may result in electric shock.

When attaching an arm stand, please refer to the user’s

manual of the arm stand and install the unit securely with

the enclosed screws.

Not doing so may cause the unit to come unattached, which may

result in injury or equipment damage. When the unit is dropped,

please ask your dealer for advice. Do not continue using a

damaged unit. Using a damaged unit may result in fire or electric

shock. When reattaching the tilt stand, please use the same screws

and tighten them securely.

Do not touch a damaged LCD panel directly with bare hands.

The liquid crystal which leaks from the panel is poisonous if it

enters the eyes or mouth. If any part of the skin or body comes in

direct contact with the panel, please wash thoroughly. If some

physical symptoms result, please consult your doctor.

Follow local regulation or laws for safe disposal.

The backlight of the LCD panel contains mercury.

English

PRECAUTIONS 7

CAUTION

Handle with care when carrying the unit.

Disconnect the power cord and cables when moving the unit.

Moving the unit with the cord attached is dangerous. It may

result in injury.

When handling the unit, grip the bottom of the unit firmly

with both hands ensuring the panel faces outward before

lifting.

Dropping the unit may result in injury or equipment damage.

Do not block the ventilation slots on the cabinet.

zDo not place any objects on the ventilation slots.

zDo not install the unit in a closed space.

zDo not use the unit laid down or upside down.

Blocking the ventilation slots prevents proper airflow and may

result in fire, electric shock, or equipment damage.

Do not touch the plug with wet hands.

Doing so may result in electrical shock.

Use an easily accessible power outlet.

This will ensure that you can disconnect the power quickly in case

of a problem.

Periodically clean the area around the plug.

Dust, water, or oil on the plug may result in fire.

Unplug the unit before cleaning it.

Cleaning the unit while it is plugged into a power outlet may result

in electric shock.

If you plan to leave the unit unused for an extended period,

disconnect the power cord from the wall socket after turning

off the power switch for the safety and the power

conservation.

English

8PRECAUTIONS

LCD Panel

In order to suppress the luminosity change by long-term use and to

maintain the stable luminosity, use of a monitor in lower

brightness is recommended.

The screen may have defective pixels. These pixels may appear as

slightly light or dark area on the screen. This is due to the

characteristics of the panel itself, and not the product.

The backlight of the LCD panel has a fixed life span. When the

screen becomes dark or begins to flicker, please contact your

dealer.

Do not press on the panel or edge of the frame strongly, as this

may result in damage to the screen. There will be prints left on the

screen if the pressed image is dark or black. If pressure is

repeatedly applied to the screen, it may deteriorate or damage

your LCD panel. Leave the screen white to decrease the prints.

When the screen image is changed after displaying the same image

for extended periods of time, an afterimage may appear. Use the

screen saver or timer to avoid displaying the same image for

extended periods of time.

When the monitor is cold and brought into a room or the room

temperature goes up quickly, dew condensation may occur inside

and outside the monitor. In that case, do not turn the monitor on

and wait until dew condensation disappears, otherwise it may

cause some damages to it.

Do not scratch or press on the panel with any sharp objects, such

as a pencil or pen as this may result in damage to the panel. Do

not attempt to brush with tissues as this may scratch the LCD

panel.

English

1. INTRODUCTION 9

1. INTRODUCTION

Thank you very much for choosing an EIZO Color Monitor.

1-1. Features

z[Horizontal scanning frequency] 24.8 - 80 kHz

[Vertical scanning frequency] 50.0 - 75.1 Hz

[Resolution] 1280 dots x 1024 lines

zAuto Screen Adjustment function incorporated (p. 18)

zBrightRegulator function incorporated (p. 19)

zSupport to sRGB (p. 31) standard

1-2. Package Contents

Please contact your local dealer for assistance if any of the listed items are missing or

damaged.

zLCD Monitor zUser’s Manual (in the CD-ROM)

zPower Cord zSetup Guide

zSignal Cable (MD-C87) zLIMITED WARRANTY

zEIZO LCD Utility Disk zMounting Screws: M4 x 12 (mm) x 4 pcs

NOTE

zPlease retain the packing materials for future transference.

English

10 1. INTRODUCTION

1-3. Controls & Connectors

Front

(1) ScreenManager®

(2) Sensor*1

(3) Control Button (Left)*2

(4) Enter Button

(5) Control Button (Right)*2

(6) Power Button

(7) Power Indicator*3

*1 When using the BrightRegulator function, the sensor detects the surrounding brightness,

see page 19.

*2 Pressing the Control buttons without displaying ScreenManager displaying the

Brightness Adjustment (p. 19)When using the BrightRegulator function, the sensor detects

the surrounding brightness, see page 19.

*3 Regarding the power indicator for the “Off Timer”, see page 18.

Green Operation

Orange Power saving

Off Power off

(1)

(3) (4) (5)(2) (6) (7)

Control Panel

Autres manuels pour FLEXSCAN L551 -

Table des matières

Autres manuels Eizo Moniteur

Eizo

Eizo FlexScan T966 Manuel utilisateur

Eizo

Eizo FlexScan L568 Manuel utilisateur

Eizo

Eizo FLEXSCAN T1721 Guide de l'utilisateur

Eizo

Eizo RadiForce GS520-BL Manuel utilisateur

Eizo

Eizo FlexScan SX3031W Manuel utilisateur

Eizo

Eizo FLEXSCAN S2232W - Manuel utilisateur

Eizo

Eizo ColorEdge CG222W Manuel utilisateur

Eizo

Eizo RadiForce G51-BLG Manuel utilisateur

Eizo

Eizo FlexScan F35 Manuel utilisateur

Eizo

Eizo FlexScan EV2730Q Manuel utilisateur

Eizo

Eizo FlexScan L 353T L353T-C L353T-C Manuel utilisateur

Eizo

Eizo CuratOR EX3220-3D Manuel utilisateur

Eizo

Eizo DuraVision FDF2304W-IP Manuel utilisateur

Eizo

Eizo ColorEdge CG2730-BK Manuel utilisateur

Eizo

Eizo FlexScan S2111W Manuel utilisateur

Eizo

Eizo FLEXSCAN T765 - Manuel utilisateur

Eizo

Eizo RadioForce RX650 Manuel utilisateur

Eizo

Eizo FORIS FS2331 Manuel utilisateur

Eizo

Eizo ColorEdge CG279X Manuel utilisateur

Eizo

Eizo IEC60601-1-1 Manuel utilisateur

Eizo

Eizo RadiForce RX240 Manuel utilisateur

Eizo

Eizo RadiForce MX216-BK Manuel utilisateur

Eizo

Eizo FP-301 Manuel utilisateur

Eizo

Eizo DuraVision FDU2101 Guide de l'utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
