Contents of the Package . ...........................................................................2

Accessories Introduction.............................................................................3

Ineractive Kit setting...................................................................................5

Operation Guide for Windows OS............................................................6

Operation Guide for Mac..........................................................................25

Operation Guide for Linux......................................................................33

Troubleshooting........................................................................................ 35

IK-US10

INTERACTIVE FUNCTION MANUAL

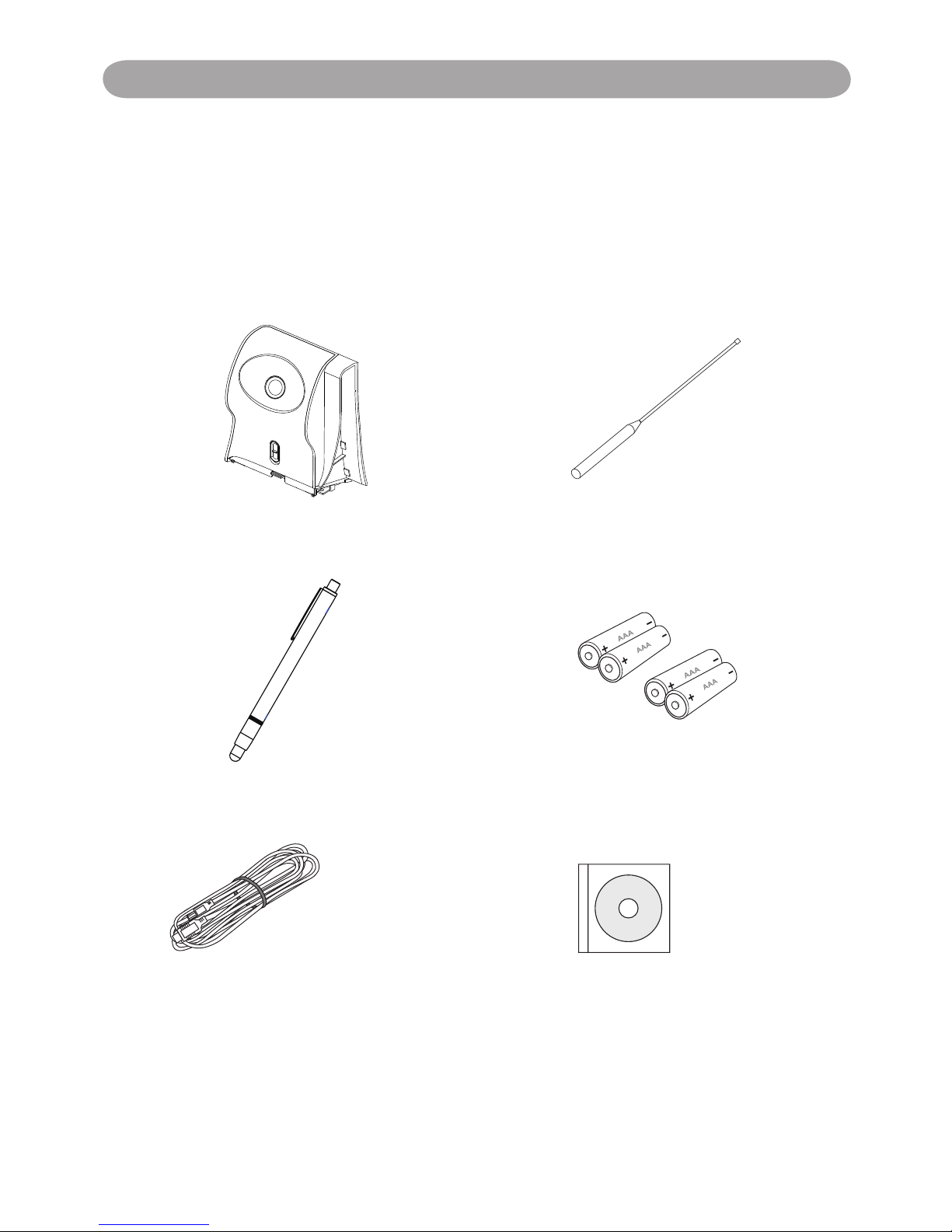

Contents of the Package

Please make sure that following items are included in the box. If any

items are missing, contact your dealer.

1. Interactive Kit

(IR camera unit)

2. Pointer

3. Light Pen 4. Batteries (AAA)

5. USB Cable 6. Owner's Manual (CD)

Function Key on the "Pointer Body"

Before using the Pointer.

Screw the Rod part into the pointer

body rmly please.

How to use this

While pressing the button IR is

emitted from the tip of the rod and

the CMOS sensor in the projector

detects the position of it. While the

signal is emitted, the LED Lamp also

lights green.

1) Position the tip of pointer on the

screen.

2) Push the button to click the target

as a mouse or push and hold the

button to draw a line as a pen.

LED Lamp

Button: Mouse Left Key

Power switch

Accessories Introduction

光光光光光光光光光光光

Function Key on the "Light Pen"

Pen tip with touch sensor

Power switch

How to use this

While the tip of pen is pressed to the

hard screen, IR is emitted from it and the

projector detects the position of it.

1) Position the tip of the pen on the screen.

2) Press and hold the tip of the pen to the

hard screen and you can draw a line as a

pen.

CAUTION

Touch sensor is located in the tip of the pen

therefore, the Battery is consumes if the tip

is pressed . If the pen is not used, please

store it in off position of Power switch to

avoid the consumption of the battery.

(Please conrm the "off position" as below;

LED lamp of the pen tip does not light when

the tip is pressed.)

Back side Front side

Accessories Introduction

Operation Guide for Windows OS

Interactive Kit Settings

Interactive kit Settings

The IR camera Interactive function needs an external IR camera. Please refer to

below gure and plug in IR camera to projector before projector was installed.

*Push down to lock

the camera after

installation

Interactive

Interactive Settings

PB Setting

Off

Select Enter Exit

Use this feature to select the Interactive Pen function.

Choose “Off” to disable the Interactive Pen function.`

Choose “IR Camera” to enable the Interactive Pen function.`

You need to unplug the Mini USB cable that connects NB/desktop with the projector

before using the Interactive function. After you complete the Interactive Settings in

OSD, use Mini USB cable to connect NB/desktop with the projector.

The Interactive function is available when displaying graphic source from HDMI/VGA input. Other sources

are not supported.

If “3D” or “Dynamic Black” function is enabling, “Interactive” feature is disabling.

Note

Operation Guide for Windows OS

System Requirements

To ensure the interactive function work properly, please check

your computer system to see if it meets the following conditions.

LightPen-Dual

System Requirements

OS Required Microsoft Windows XP(SP2)(32bit) /

Vista (32bit)/Windows 7 (32bit/64bit) or

above

Processor Type Intel® Core™2 Duo 2.0GHz or above

(dedicated GPU is recommended)

RAM 2GB above

Min. Free disk space 100 MB

Interactive function is provided by "LightPen-Dual" software.

Operation Guide for Windows OS

2. Software Installation

2.1 Driver Installation

*When you connect supplied USB cable between projector and your PC,

the folder of SPDriver will pop-up. Please double click the "win.exe" and

completed the installation process from step 4.

Step 1. Insert the "Owner's Manual" CD-ROM into the CD drive.

Step 2. Open the "LightPen Software for Windows" folder in the CD-

ROM.

Step 3. Double click the " Setup.exe" by mouse.

And then the window will appear as below.

Step 4.

(1) Click " SPDriver" by mouse.

And then "Setup Wizard" window will appear as below.

Click "Next" to install.

Operation Guide for Windows OS

(2) You can choose to install folder depend on your requirements, or

use the default folder. Then click "Next" to continue.

(3)Please wait for a while for the installation.Installation is

nished.

Operation Guide for Windows OS

2.2 LightPen Software Installation

Step 1. Insert the "Owner's Manual" CD-ROM into the CD drive.

Step 2. Open the "LightPen Software for Windows" folder in the CD-ROM.

Step 3. Double click " Setup.exe" by mouse.

And then the window will appear as below.

Step 4.

(1) click " LightPen-Dual" by mouse.

And then "Setup Wizard" window will appear as below.

Click "Next" to install.

Operation Guide for Windows OS

(2) You can choose to install folder depend on your requirements, or use the

default folder. Then click "Next" to continue.

(3) Conrm the information listed and select "Install".

(4) Please wait for a while for the installation. Installation is nished.
