Ei Electronics EI944 Manuel utilisateur

Instruction Manual

Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation of your

Fire / CO Alarm Interface. The booklet should be regarded as part of the product.

If you are just installing the unit, the booklet must be given to the householder. The booklet is to be given to any subsequent user.

Model: Ei414

Fire / CO Alarm Interface

Contents

1. Introduction & Connection Diagrams ........................................................................................

2. Typical Installation Examples ..........................................................................................................

3. Installation ............................................................................................................................................

4. House Coding .......................................................................................................................................

5. Testing ....................................................................................................................................................

6. Service Relay ........................................................................................................................................

7. User Information ................................................................................................................................

8. Troubleshooting the RadioLINK .....................................................................................................

9. Technical Specification .....................................................................................................................

10. Service & Guarantee .........................................................................................................................

11. Contact Us ............................................................................................................................................

Page

1. Introduction

The Ei414 Fire / CO Alarm Interface can be used to connect Ei Electronics RadioLINK Alarm Systems to

suitable other Systems such as Fire Panels, Telecare Systems, Auto Diallers, Security Systems etc. The Ei414

has 3 output relays for Fire, CO & Service that can be triggered by an Ei Electronics RF Alarm System. These relays

can be directly connected to the other Systems or alternatively can be used to trigger one of the other Systems

RF transmitters. A RadioLINK system consists of Ei Electronics RadioLINK Smoke, Heat and CO Alarms along with

RadioLINK accessory devices that are interconnected using the Ei Electronics proprietary RF protocol system. The

Ei414 must be House Coded to the other RadioLINK devices in the system.

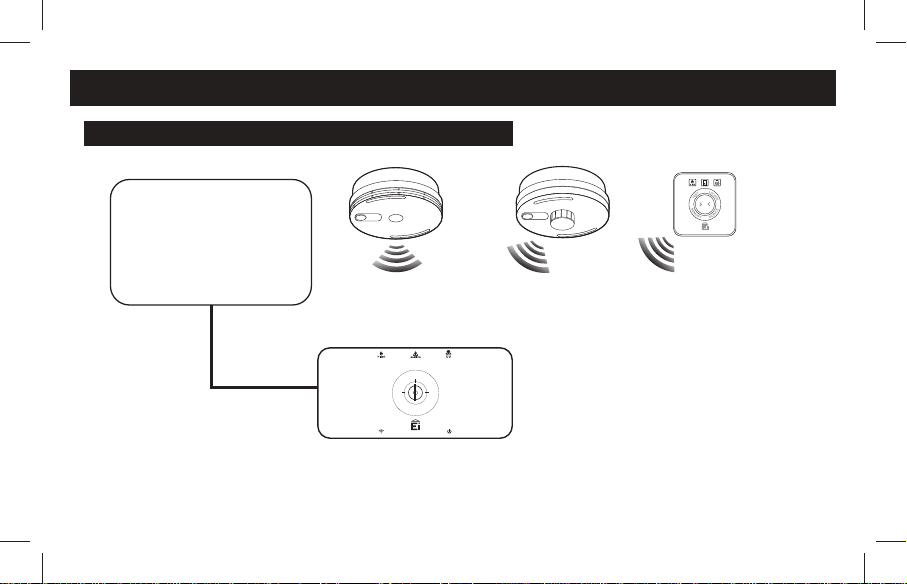

service

ON TEST

OFF

Fire / CO Alarm Interface

Alarm Code LED’s

RadioLink LEDPower LED

Key Switch

Off

Test

open screws

then insert screwdriver into the notch to remove cover

How to remove Cover

Fire / CO Alarm Interface

Wireless Smoke Alarm System Wireless Smoke &

Carbon Monoxide Alarm System

RF Smoke Alarm

Alarm Controller

RF Smoke Alarm

Model No. - Alarms Comment

Ei262 Mains Carbon Monoxide Alarms The Ei262 has built-in RadioLINK technology

Ei140RC, Ei160RC & Ei2110 Series Smoke Alarms

Due to our continuous improvements policy, product performance and features are being frequently updated - See Contact Us section

The Alarms must be fitted on Ei168RC RadioLINK bases

Ei605 & Ei650 Series Smoke Alarms Alarms must be fitted with the correct Ei605 & Ei650 series RadioLINK module

Ei208W powered for life Carbon Monoxide Alarms The Alarms must be fitted with Ei200MRF RadioLINK modules

Ei170RF & other RadioLINK devices Contact us or visit our website for details

Works

with

RF CO Alarm

Alarm Interface Alarm Interface

RF Smoke Alarm Alarm Controller

External Panel

(Fire / Telecare etc.)

Ei414

service

ON TEST

OFF

Fire / CO Alarm Interface

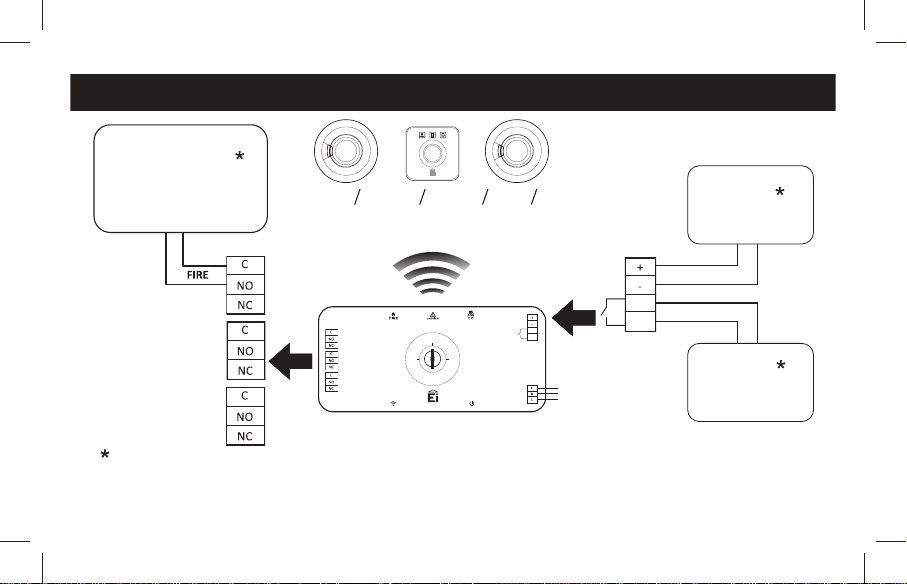

Hardwired Output Connection Diagram

230VAC

11 - 30VDC

Ei208WRF

For connection to External Panel see Manufacturers instructions

Ei650RF Ei168RCEi262 Ei450

RF Signal Input

from Ei Alarm System

Fire / CO Alarm Controller

Ei414

service

ON TEST

OFF

Fire / CO Alarm Interface

230VAC

11 - 30VDC

Ei208WRF

For connection to External Panel & RF Transmitter see Manufacturers instructions

For connection to External Devices see Manufacturers instructions

Ei650RF Ei168RCEi262 Ei450

RF Signal Input

from Ei Alarm System

Fire / CO Alarm Controller

Ei208WRF Ei650RF Ei168RCEi262 Ei450

RF Fire Signal

Output

Fire / CO Alarm Controller

External RF Panel

(Fire / Telecare etc.)

Wireless (RF) Connection Output Diagram

External Device

(Strobe etc.)

Ei414

service

ON TEST

OFF

Fire / CO Alarm Interface

External

Fire Panel

External

Device

(sprinkler flow valve)

Input Connection Diagram

230VAC

Transmitter

External Panel

(Fire / Telecare etc.)

Ei414

service

ON TEST

OFF

Fire / CO Alarm Interface

Hardwired Output Connection Diagram

230VAC

11 - 30VDC

Ei208WRF

For connection to External Panel see Manufacturers instructions

Ei650RF Ei168RCEi262 Ei450

RF Signal Input

from Ei Alarm System

Fire / CO Alarm Controller

Ei414

service

ON TEST

OFF

Fire / CO Alarm Interface

230VAC

11 - 30VDC

Ei208WRF

For connection to External Panel & RF Transmitter see Manufacturers instructions

For connection to External Devices see Manufacturers instructions

Ei650RF Ei168RCEi262 Ei450

RF Signal Input

from Ei Alarm System

Fire / CO Alarm Controller

Ei208WRF Ei650RF Ei168RCEi262 Ei450

RF Fire Signal

Output

Fire / CO Alarm Controller

External RF Panel

(Fire / Telecare etc.)

Wireless (RF) Connection Output Diagram

External Device

(Strobe etc.)

Ei414

service

ON TEST

OFF

Fire / CO Alarm Interface

External

Fire Panel

External

Device

(sprinkler flow valve)

Input Connection Diagram

230VAC

Transmitter

External Panel

(Fire / Telecare etc.)

Ei414

service

ON TEST

OFF

Fire / CO Alarm Interface

Hardwired Output Connection Diagram

230VAC

11 - 30VDC

Ei208WRF

For connection to External Panel see Manufacturers instructions

Ei650RF Ei168RCEi262 Ei450

RF Signal Input

from Ei Alarm System

Fire / CO Alarm Controller

Ei414

service

ON TEST

OFF

Fire / CO Alarm Interface

230VAC

11 - 30VDC

Ei208WRF

For connection to External Panel & RF Transmitter see Manufacturers instructions

For connection to External Devices see Manufacturers instructions

Ei650RF Ei168RCEi262 Ei450

RF Signal Input

from Ei Alarm System

Fire / CO Alarm Controller

Ei208WRF Ei650RF Ei168RCEi262 Ei450

RF Fire Signal

Output

Fire / CO Alarm Controller

External RF Panel

(Fire / Telecare etc.)

Wireless (RF) Connection Output Diagram

External Device

(Strobe etc.)

Ei414

service

ON TEST

OFF

Fire / CO Alarm Interface

External

Fire Panel

External

Device

(sprinkler flow valve)

Input Connection Diagram

230VAC

Transmitter

2. Typical Installation Examples

Ei650RF

Smoke Alarm Ei603TYCRF

Heat Alarm

RF Transmitter

RadioLINK Battery Powered Alarm System

Ei164RC

Heat Alarm

Ei166RC

Smoke Alarm

with Ei168RC

RadioLINK Base

Ei208WRF

Carbon Monoxide

Alarm

RadioLINK / Hard Wired Hybrid System

Ei164RC Heat Alarm

with Ei168RC

RadioLINK Base

Ei414

Ei166RC Smoke Alarm

with Ei168RC

RadioLINK Base

RadioLINK Mains Powered Alarm System

Fire / CO Alarm Controller

Ei650RF

Smoke Alarm Ei450 Alarm

Controller

Fire / CO Alarm Controller

Ei450 Alarm

Controller

Fire / CO Alarm Controller

Ei450 Alarm

Controller

service

ON TEST

OFF

Fire / CO Alarm Interface

RF Transmitters

Ei414

fire CO

service

ON TEST

OFF

Fire / CO Alarm Interface

External Panel

(Fire / Telecare etc.)

Ei414

service

ON TEST

OFF

Fire / CO Alarm Interface

External RF Panel

(Fire / Telecare etc.)

External RF Panel

(Fire / Telecare etc.)

In the event of a fire, the Ei161RC / Ei166RC

/ Ei164RC will detect Smoke / Heat and the

Ei168RC base will transmit an RF fire signal

to the Ei414. The Ei414 will then trigger the

external panel.

N.B. The Ei450 Alarm Controller MUST be

used to test the RadioLINK Alarm System (at

least 1 x Ei168RC must be fitted - see ‘User

Information’ section).

Ei650RF

Smoke Alarm Ei603TYCRF

Heat Alarm

RF Transmitter

RadioLINK Battery Powered Alarm System

Ei164RC

Heat Alarm

Ei166RC

Smoke Alarm

with Ei168RC

RadioLINK Base

Ei208WRF

Carbon Monoxide

Alarm

RadioLINK / Hard Wired Hybrid System

Ei164RC Heat Alarm

with Ei168RC

RadioLINK Base

Ei414

Ei166RC Smoke Alarm

with Ei168RC

RadioLINK Base

RadioLINK Mains Powered Alarm System

Fire / CO Alarm Controller

Ei650RF

Smoke Alarm Ei450 Alarm

Controller

Fire / CO Alarm Controller

Ei450 Alarm

Controller

Fire / CO Alarm Controller

Ei450 Alarm

Controller

service

ON TEST

OFF

Fire / CO Alarm Interface

RF Transmitters

Ei414

fire CO

service

ON TEST

OFF

Fire / CO Alarm Interface

External Panel

(Fire / Telecare etc.)

Ei414

service

ON TEST

OFF

Fire / CO Alarm Interface

External RF Panel

(Fire / Telecare etc.)

External RF Panel

(Fire / Telecare etc.)

In the event of a fire, the Ei650RF / Ei603TYCRF

will detect Smoke / Heat and transmit an

RF fire signal to the Ei414. The Ei414 will

then trigger the RF transmitter and alert the

external panel.

Ei650RF

Smoke Alarm Ei603TYCRF

Heat Alarm

RF Transmitter

RadioLINK Battery Powered Alarm System

Ei164RC

Heat Alarm

Ei166RC

Smoke Alarm

with Ei168RC

RadioLINK Base

Ei208WRF

Carbon Monoxide

Alarm

RadioLINK / Hard Wired Hybrid System

Ei164RC Heat Alarm

with Ei168RC

RadioLINK Base

Ei414

Ei166RC Smoke Alarm

with Ei168RC

RadioLINK Base

RadioLINK Mains Powered Alarm System

Fire / CO Alarm Controller

Ei650RF

Smoke Alarm Ei450 Alarm

Controller

Fire / CO Alarm Controller

Ei450 Alarm

Controller

Fire / CO Alarm Controller

Ei450 Alarm

Controller

service

ON TEST

OFF

Fire / CO Alarm Interface

RF Transmitters

Ei414

fire CO

service

ON TEST

OFF

Fire / CO Alarm Interface

External Panel

(Fire / Telecare etc.)

Ei414

service

ON TEST

OFF

Fire / CO Alarm Interface

External RF Panel

(Fire / Telecare etc.)

External RF Panel

(Fire / Telecare etc.)

In the event of a fire /

CO event, the relevant

Smoke / Heat / CO

Alarm will transmit an

RF signal to the Ei414.

The Ei414 will then

trigger the relevant RF

transmitter and alert the

external panel.
