EGS Pentax G6N Manuel utilisateur

Pentax G6N

Product Guide

Version 2.04

Revision Version 2.00, September 2020

Version 2.02, November 2020

Version 2.03, December 2020

Version 2.04, February 2021


Page | 2


Table of Contents
1Product Information ..........................................................................................................................................................................3
1 G6N Front Panel ..........................................................................................................................................................................3
2 G6N Battery Compartment..........................................................................................................................................................3
3 G6N Ports & Speaker...................................................................................................................................................................4
2G6 Basic Operation ............................................................................................................................................................................5
1 Power Button...............................................................................................................................................................................5
2 G6N Panel LEDs............................................................................................................................................................................5
3 Battery Compartment Door.........................................................................................................................................................6
4 Nano SIM Card.............................................................................................................................................................................6
5 Micro SD Card..............................................................................................................................................................................6
6 Installing a Battery.......................................................................................................................................................................7
7 Wired/Cable Connections............................................................................................................................................................7
8 G6N ARP ......................................................................................................................................................................................8
9 Antenna Height............................................................................................................................................................................8
10 Bluetooth ID.................................................................................................................................................................................9
3Web UI .............................................................................................................................................................................................10
1 Status.........................................................................................................................................................................................11
2 Information................................................................................................................................................................................11
3 Satellites ....................................................................................................................................................................................12
4 Download ..................................................................................................................................................................................13
5 Management .............................................................................................................................................................................14
6 Settings......................................................................................................................................................................................15
6.1 Working Mode ...................................................................................................................................................................15
6.2 Device configuration ..........................................................................................................................................................18
6.3 NMEA Message..................................................................................................................................................................19
6.4 Relay Mode ........................................................................................................................................................................20
4G6 standard accessories ..................................................................................................................................................................22
1 Shipping Case.............................................................................................................................................................................22
2 Power.........................................................................................................................................................................................22
3 Battery Pack...............................................................................................................................................................................22
4 Battery Charger .........................................................................................................................................................................22
5 UHF antenna..............................................................................................................................................................................23
6 Accessories ................................................................................................................................................................................23
5Appendix 1 Default radio configuration...........................................................................................................................................24
6Appendix 2: Voice Messages............................................................................................................................................................25
7Appendix 3 G6N Specifications ........................................................................................................................................................26


Page | 3

1Product Information

1.1 G6N Front Panel

The front of the G6N has an information panel with 1 power button and 3 LED indicators.

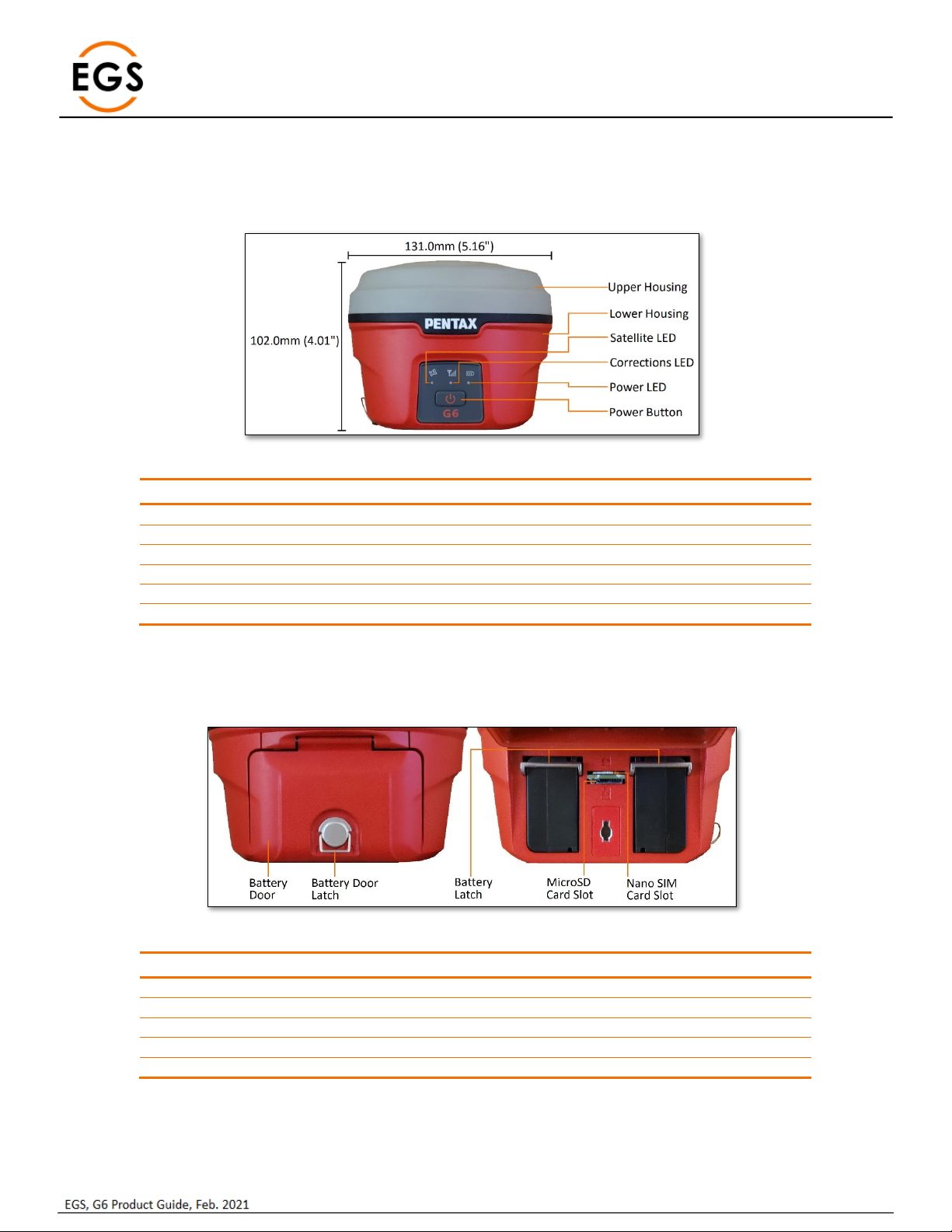

Figure 1: G6N Measurements and Front Panel

Item

Function

Upper Housing

Cover for GNSS antenna

Lower Housing

Access for batteries, ports, status panel

Satellite LED

Blinks for number of satellites tracked

Corrections LED

Blinks for corrections received

Power LED

Solid green for > 10% battery, Red for < 10%

Power Button

Turns instrument On/Off

1.2 G6N Battery Compartment

The back side has two battery compartments along with two slots above, one for SIM card another for Micro SD card.

Figure 2: G6N - Back and Battery Compartment

Item

Function

Door, Battery Compartment

Access to battery compartment

Latch, Battery Door

Lock / Unlock battery compartment

MicroSD Card Slot

Insert or Remove microSD card

Nano SIM Card Slot

Insert or Remove Nano SIM card

Battery Door Latch

Lock / Unlock battery

Page | 4

1.3 G6N Ports & Speaker

The ports and speaker are located on the bottom side of the instrument. In addition, the instrument serial number and certification

labels are also on the bottom side of the instrument.

Figure 3: G6N Bottom

Description

Function

Speaker

Audio announcements

5-pin Lemo

External Power & external radio

7-pin Lemo

USB port

TNC female

UHF antenna

Page | 5

2G6 Basic Operation

This section highlights the basic operations of G6.

2.1 Power Button

The main function of power key is for power on/off and to confirm a selection.

Function

Button Press

Comments

Power On

Press for 2 s then release

LEDs come on & system boots up, position

status announcement

Power Off

Press for 3 s to blink LEDs, release, press

once and release

All LEDs blink after 3s press, power off

announcement, press once and release to

confirm

Self-Check

Press for 3 s, release, press for 3 s, release

Self-check announcement after second

button press. Announcement for each

module self-check pass/fail.

2.2 G6N Panel LEDs

The G6N has 3 LED Indicators for Power, Corrections and Satellite tracking.

LED

Status

Function

Power LED

Solid Green = > 10%

Red = < 10%

Indicates battery capacity

When <10%, 3 beeps every 60 s

~30 minutes operation when LED is Red

Satellite LED

Green = Tracking

Satellites

Blinks to indicate number of satellites

30 s cycle

LED is Off for zero satellites

Corrections LED

Green & Blinking

Blinks to indicate receive/transmit

corrections

Page | 6

2.3 Battery Compartment Door

The battery compartment latch has a drawing guide indicating the locked and unlocked latch position. The handle is horizontal when

locked, and vertical when unlocked.

Figure 4: Battery Door Latch

2.4 Nano SIM Card

Ensure the instrument is powered Off. The Nano SIM card slot is accessed by opening the battery compartment door.

Insert the Nano SIM card into the upper slot, as shown in the guide above the slot, noting the angled edge.

To install the Nano SIM card, just push the SIM card into the SIM card slot. To eject the Nano SIM card, push the card in to release.

Figure 5: SIM Card (Top) and SD Card (Bottom)

A valid SIM card must be installed before using the integrated cellular modem in the G6.

2.5 Micro SD Card

Ensure the instrument is powered Off. The microSD card slot is accessed by opening the battery compartment door. This is the lower

slot between the two batteries. To install the Micro SD card, push the card into the card slot as shown in the guide below the slot. To

eject the Micro SD card, push the card in to release.

Page | 7

2.6 Installing a Battery

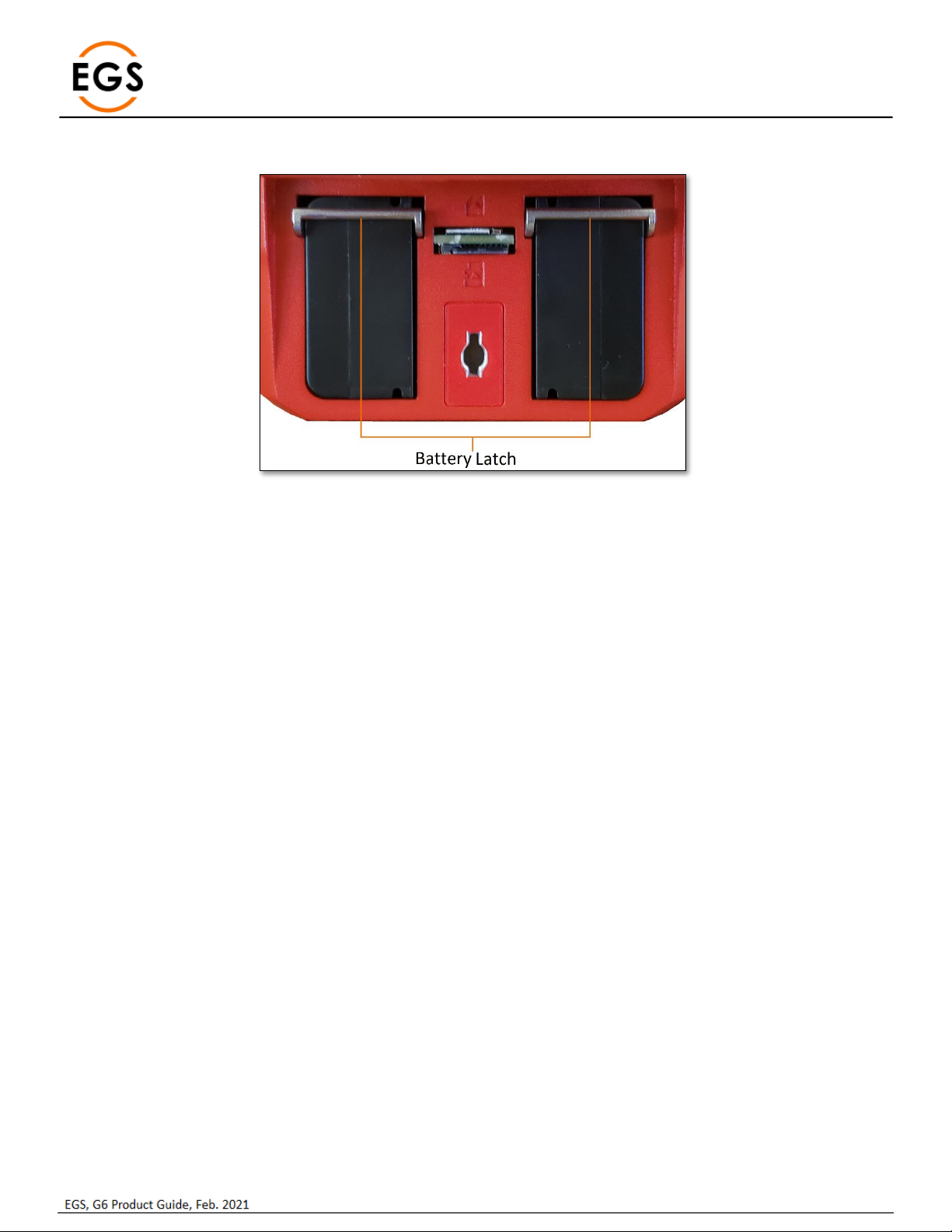

Figure 6: Battery Latch

To install the battery, turn open the battery compartment latch, and the battery compartment door will open upwards.

Insert the battery into the battery compartment, the battery latch will lock the battery in place.

Close the battery compartment door and lock the battery door latch.

To remove the battery, open the compartment latch, open the battery door and push the battery latch up to release the battery.

2.7 Wired/Cable Connections

The bottom of the receiver has 3 ports:

•TNC female port for the UHF radio antenna

•5-pin Lemo for external power & external interface

•7-pin Lemo for RS232/USB interface.

Page | 8

2.8 G6N ARP

The Antenna Reference Point (ARP) is at the bottom of the G6N. The Antenna Code is TIAPENG6.

Figure 7: G6 Dimensions

2.9 Antenna Height

When using the G6N as a Rover, the antenna height is the vertical height of the survey pole. This is direct to the ARP, so no offsets are

required for a vertical survey pole.

For a Slant Height, a Slant Height Adapter is supplied to allow a convenient measurement around a tripod or tribrach.

Figure 8: Slant Height Adapter

Page | 9

Figure 9: Slant Height Adapter Mounting Location

Figure 10: Slant Height Measurement

When measuring Slant Height from the ground to the end of the Slant Height Adapter, the Vertical Height can be calculated as shown

in the figure above.

2.10 Bluetooth ID

Bluetooth communication is typical for data collection. The Bluetooth ID is the serial number of the G6N. The Bluetooth PIN is 1111.

Page | 10

3Web UI

The G6 has an on-board Web UI that is accessed via Wi-Fi. A smart phone, tablet, data controller, PC and similar devices with a web

browser can be used to connect the G6 via WI-FI. The G6 WI-FI does not have the Internet access, so only the Web UI pages are

viewable.

Figure 11: G6N SSID

After connecting the G6’s WI-FI denoted by the Serial Number, open a web browser and input IP ‘192.168.10.1’to access the on-board

Web UI.

The default login details are:

•IP Address: 192.168.10.1

•Account: admin

•Password: password

Figure 12: G6 Default Web UI Login Details

The browser will then display the Pentax Web UI, starting on the Status page (Figure 8) with the Serial Number of the G6 shown in the

web page header. The Web UI has a menu on the left side with categories for:

•Status

•Information

•Download

•Management

A Settings button is displayed on the upper right for user settings input.
