WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before

using this product. Save these instructions for future reference.

OPERATING MANUAL

56-VOLT LITHIUM-ION

CORDLESS MOWER

MODEL NUMBER LM2000

Español p. 33

56-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2000

introduction

Congratulations on your selection of a new generation of 56V Lithium-ion powered lawn mower. It has been designed,

engineered and manufactured to give you the best possible dependability and performance.

Should you experience any problem you cannot easily remedy, please contact EGO customer service center

1-855-EGO-5656.

This manual contains important information on to the safe assembly, operation and maintainance of your mower.

Read it carefully before using the mower. Keep this manual handy so you can refer to it at any time.

SERIAL

NUMBER_____________________________

DATE OF

PURCHASE__________________________

THE MODEL AND SERIAL NUMBERS WILL BE FOUND

ON A LABEL ATTACHED ON THE REAR DISCHARGE

DOOR.

YOU SHOULD RECORD BOTH SERIAL NUMBER AND

DATE OF PURCHASE AND KEEP IN A SAFE PLACE FOR

FUTURE REFERENCE

sPecifications

Voltage 56V DC

No-Load Speed 3300 RPM

Cutting Height 1.2” to 3.5” (30mm to 90mm)

Cutting Height Positions 5

Deck Size 20” (510mm)

Grass Bag Volume 1.7 Bushel/60L

Mower Weight (Without battery pack; with grass bag) 56.2lb. (25.5 kg)

1156-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2000

assemblY

WARNING: To prevent accidental starting that could cause serious personal injury, always remove the safety key and

the battery pack from the tool when assembling parts.

WARNING: Do not attempt to modify this tool or create accessories not recommended for use with this mower. Any

such alteration or modication is misuse and could result in a hazardous condition leading to serious injury.

unPacKinG

 Take all the accessories from the carton rst, then grasp the front storage handle and rear storage handle at the

same time to carefully lift the mower from the carton. Make sure that all items listed in the parts list are included.

 Inspect the product carefully to make sure no breakage or damage occurred during shipping.

 Do not discard the packing material until you have carefully inspected and satisfactorily operated the mower.

 If any parts are damaged or missing, please return the mower to the place of purchase.

list of Parts

PART NAME QUANTITY

Lawn mower 1

Grass bag 1

Grass bag frame 1

Mulching insert 1

Side discharge chute 1

Safety key 1

Operator’s manual 1

56-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2000

descriPtion

1Bail Switch

(Switch Lever)

Handle Locking Clamp Side Rail

Rear Discharge Door Handle Locking Clamp

Rear Storage Handle

Battery Pack Cover

LED Work Lights

Quick Adjust Lever

Grass Bag

Cutting Height

Adjustment Lever

Rear Wheel

Mower DeckFront Wheel

Front Storage Handle

Safety Key Handle

1b 1c

Support for Stand-up Storage

Support for

Stand-up

Storage

Battery-Release Button

Power Indicator

on the Mower

Switch button

for LED Lights

Rear Discharge

Door

Trailing Shield

WARNING: The safe use of this product requires an understanding of the information on the tool and in this operator’s

manual, as well as knowledge of the project you are attempting. Before use of this product, familiarize yourself with all

operating features and safety rules.

1356-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2000

SAFETY KEY

The key must be present and inserted before the motor can

be started.

BAIL SWITCH

The bail switch is located on the upper handle of the

mower. The switch engages and disengages the motor/

blade.

WARNING: The bail switch and the key are safety

devices. Never attempt to bypass their operations.

ELECTRIC BRAKE

Quickly stops blade rotation when the bail switch is

released.

HANDLE-LOCKING CLAMP

Locks/unlocks the side rails in the extended or the recessed

position.

SIDE RAILS

Can be extended and locked for operation or recessed for

storage.

QUICK-ADJUST LEVER

Locks/unlock the handle when adjusting the angle of the

mower handle:

1. Locked Storage Position

2. Grass Bag Attachment/Removal Position

3. Upper Operating Position

4. Lower Operating Position

TRAILING SHIELD & REAR DISCHARGING DOOR

The trailing shield is designed to minimize stones or other objects being thrown backward by the mower blade. The shield

and the rear door, minimize the possibility of accidental foot contact with the blade. DO NOT operate the mower without

the trailing shield and rear door in place.

LED WORK LIGHTS

The LED work lights are located in the front of the mower. This feature provides extra light for increased visibility.

SPRING-LOADED CUTTING HEIGHT ADJUSTMENT LEVER

One handed cutting height adjustment

Side Discharge

Chute

Mulching Insert

56-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2000

oPeration

ASSEMBLING THE GRASS BAG

1. Check the grass bag before assembling to make sure there is no damage.

2. Slide the grass bag onto the frame, as shown in Fig. 2.

3. Assemble the top clips to the frame, as shown in Fig. 3, then assemble the

two side clips. Assemble the bottom clip last.

4. The completely assembled grass bag is shown in Fig. 4.

Clips

1556-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2000

ADJUSTING THE FOLDABLE HANDLE

WARNING: Do not attempt to start the mower until the handle has been

locked at one of the two preset operating positions.

1. LOCKED STORAGE POSITION: Your mower is shipped with the handle in

the compact, locked position (Fig. 5).

2. GRASS BAG ATTACHMENT/REMOVAL POSITION:

Press and hold the quick-adjust lever with your right hand to release the

handle from the locked storage position. Begin to lift the handle from its

folded position with your left hand, and then release the lever (Fig. 5).

Gently pivot the handle upward until you hear and feel the lock pin engage

in the rst position (Fig. 6.) This position allows easy access to install and

remove the grass bag.

OPERATING POSITIONS

NOTE: The motor cannot be started unless:

a) the side rails are fully extended

b) both green handle-locking clamps are securely closed

c) the handle is locked into one of the operating positions

3. UPPER OPERATING POSITION: Lift the handle with your left hand. Gently

pivot the handle backward until you hear and feel the lock pin engage in

the Upper Operating Position. Fully extend the side rails and securely close

the two handle-locking clamps (Fig. 7 & 8). Taller users may prefer this

position.

4. LOWER OPERATING POSITION: Press and hold the quick-adjust lever with

your left hand to release the handle from the upper operating position.

Begin to lower the handle with your right hand, and then release the lever.

Gently pivot the handle downward until you hear and feel the lock pin

engage in the Lower Operating Position. Fully extend the side rails and

securely close the two handle-locking clamps (Fig. 7 & 8).

Press the Quick

Adjust Lever

Indication

Line

Locked Storage

Position

Grass Bag

Attachment/Removal

Position

Upper

Operating

Position

Lower

Operating

Position

56-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2000

ATTACHING/REMOVING THE GRASS BAG

WARNING: Do not at any time make any adjustment to the

lawn mower without rst stopping the motor and removing the

safety key.

NOTICE: Remove the mulching insert or side discharge chute

before attaching the grass bag on the mower;

1. Adjust the handle to the Grass Bag Attachment/Removal

Position (please see ADJUSTING ThE FOLDABLE

hANDLE).

2. Lift the rear discharge door.

3. Hook the grass bag assembly on the pivot rod

(Fig. 9). Release the discharge door so that it rests on the

grass bag.

4. To remove the grass bag, lift the rear discharge door on the

mower. Lift the grass bag up, off of the pivot rod.

5. Release the discharge door.

WARNING: When using the grass bag, never operate the mower unless the hooks on the grass bag are rmly seated

on the pivot rod and the rear discharge door rests rmly against the top of the grass bag.

NOTICE: Under normal usage, bag material is subject to wear. To reduce the risk of injury, frequently inspect the

bag assembly and replace if there are any signs of wear or

deterioration. Use only grass bags manufactured for this mower.

ATTACHING/REMOVING THE MULCHING INSERT

WARNING: Do not at any time make any adjustment to the

lawn mower without rst stopping the motor and removing the

safety key.

1. Lift the rear discharge door.

2. Grasp the handle of the mulching insert and fully insert it

into the mower so that it is securely seated (Fig. 10).

3. To remove the mulching insert, lift the rear discharge door,

grasp the handle of the mulching insert and pull it out.

4. Release the discharge door and make sure it rests rmly

against the mulching insert.

NOTICE: The mulching insert must be removed in order to install

and use the grass bag and must be re-installed when the grass

bag is removed.

Rear Discharge Door

Hook

1756-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2000

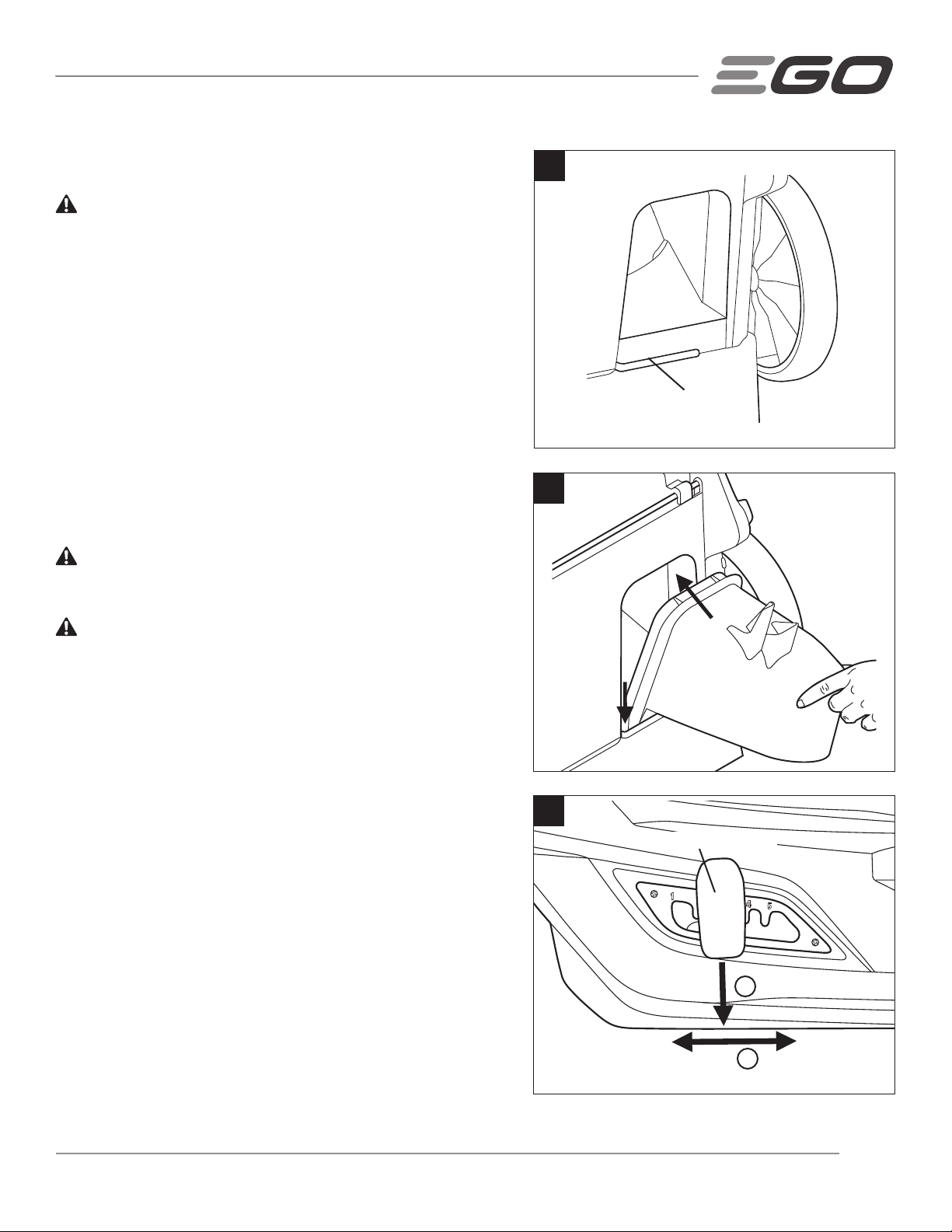

ATTACHING/REMOVING THE SIDE DISCHARGE CHUTE

(Fig. 11a & b)

WARNING: Do not at any time make any adjustment to the

lawn mower without rst stopping the motor and removing the

safety key.

1. Lift the rear discharge door.

2. Align the lower edge of the discharge with the V-slot of the

doorsill and insert it in the slot.

3. Push the top of the discharge and insert it into the mower.

Check to see that it is securely seated in the deck.

4. To remove the side discharge chute, lift the rear discharge

door, grasp the side discharge chute and pull it out.

5. Release the discharge door and make sure that it rests

rmly against the discharge chute.

SPRING-LOADED CUTTING HEIGHT ADJUSTMENT (Fig. 12)

WARNING: Do not at any time make any adjustment to the

lawn mower without rst stopping the motor and removing the

safety key.

WARNING: Keep your feet away from the deck when

adjusting its height.

The mower can be set to 5 cutting heights between

1.2” (30mm) and 3.5” (90mm). Choose the proper cutting height

according to the types and conditions of the grass.

 To raise the blade height, grasp the height adjustment lever,

move it outwards, then move it toward the back of the

mower and engage the lever in the desired cutting height

position on the mower deck.

 To lower the blade height, grasp the height adjustment

lever outwards and move it toward the front of the mower

and engage the lever in the desired cutting height position

on the mower deck.

11b

Step 1

Step 2

11a

V-Slot

Height Adjustment Lever

56-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2000

TO ATTACH/DETACH THE BATTERY PACK (Fig. 13)

CHARGE BEFORE FIRST USE.

WARNING: If any parts are broken or missing, do not attempt

to attach the battery pack to the mower or operate the mower

until the broken or missing parts are replaced. Failure to do so

could result in serious injury.

1. The battery cover is hinged. Raise the battery cover by

lifting the front of the cover.

2. Align the raised ribs on the mower with the grooves in

the battery pack, and then insert the battery pack into the

compartment.

3. Push the battery pack until you hear a “click”. The battery-

release button will spring up when the battery pack is

securely attached.

4. To detach the battery pack, depress the battery-release button to release the battery pack, and then lift it out of the

compartment.

5. Close the battery cover.

NOTICE:Make sure that the latch on the mower snaps into place and that the battery pack is secured to the mower

before starting operation.

SAFETY KEY

In order to prevent accidental start-up or unauthorized use of your cordless mower, a removable safety key has been

incorporated into the design of your mower. The mower will be completely disabled when the safety key has been

removed from the mower.

WARNING: The cord on the safety key is used for storage; keep it out of the reach of children. DO NOT tether the

safety key to mower.

DANGER:Rotating blades can cause serious injury. To prevent serious injury, remove the safety key when the mower

is unattended, or when adjusting, cleaning, servicing, transporting, lifting, or storing the mower.

Battery-Release

Button

Battery Cover

Table des matières

Autres manuels Ego Power+ Tondeuse à gazon

Ego Power+

Ego Power+ LM2120E-SP Manuel utilisateur

Ego Power+

Ego Power+ LM2150SP Manuel utilisateur

Ego Power+

Ego Power+ LM1900E Manuel utilisateur

Ego Power+

Ego Power+ LM2020SP Manuel utilisateur

Ego Power+

Ego Power+ LM2130SP Manuel utilisateur

Ego Power+

Ego Power+ ZT4200E-L Manuel utilisateur

Ego Power+

Ego Power+ ZT5200E-L Manuel utilisateur

Ego Power+

Ego Power+ LM2020E Manuel utilisateur

Ego Power+

Ego Power+ LM1900E-SP Manuel utilisateur

Ego Power+

Ego Power+ LM1700E Manuel utilisateur

Ego Power+

Ego Power+ LM2130E-SP Manuel utilisateur

Ego Power+

Ego Power+ Z6 ZTR Manuel utilisateur

Ego Power+

Ego Power+ LM2135E-SP Manuel utilisateur

Ego Power+

Ego Power+ LM2150E-SP Manuel utilisateur

Ego Power+

Ego Power+ LM2160SP Manuel utilisateur

Ego Power+

Ego Power+ LM2130SP-FC Manuel utilisateur

Ego Power+

Ego Power+ LM2130E-SP Manuel utilisateur

Ego Power+

Ego Power+ ZERO TURN Z6 Manuel utilisateur

Ego Power+

Ego Power+ ZT4200E-S Manuel utilisateur

Ego Power+

Ego Power+ ZT4204L Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
