USER MANUAL

CAR BLACK BOX E730

Instructions before use

This user manual will describe the usage of this product in details and at the same time provide comprehensive information

including usage, operation, installation instructions and specification, etc. Please read the manual carefully and keep it properly.

We hope our product will satisfy your need and provide you with longterm services.

Product Guarantee

This product is approved by ISO9001:2000 International Quality Standard and certified with FCC, CE and SGS.

Our customers can use this product free of apprehension.

Please note this product is for personal use only. The forms of usage should not offend or infringe international or domestic

copyright laws and regulations.All recorded videos should be for personal use only. Please note that using this product for

recording of occasions like shows, exhibitions or commercial activities will infringe others' copyrights or legislation rights.

Check Product Accessories

Please check whether the following

accessories are present before use,

1. Vehicle Power Cable (4M) x1

2. Holder x1

3. USB Cable x1

4. User Manual x1

5. Holder Coverx2

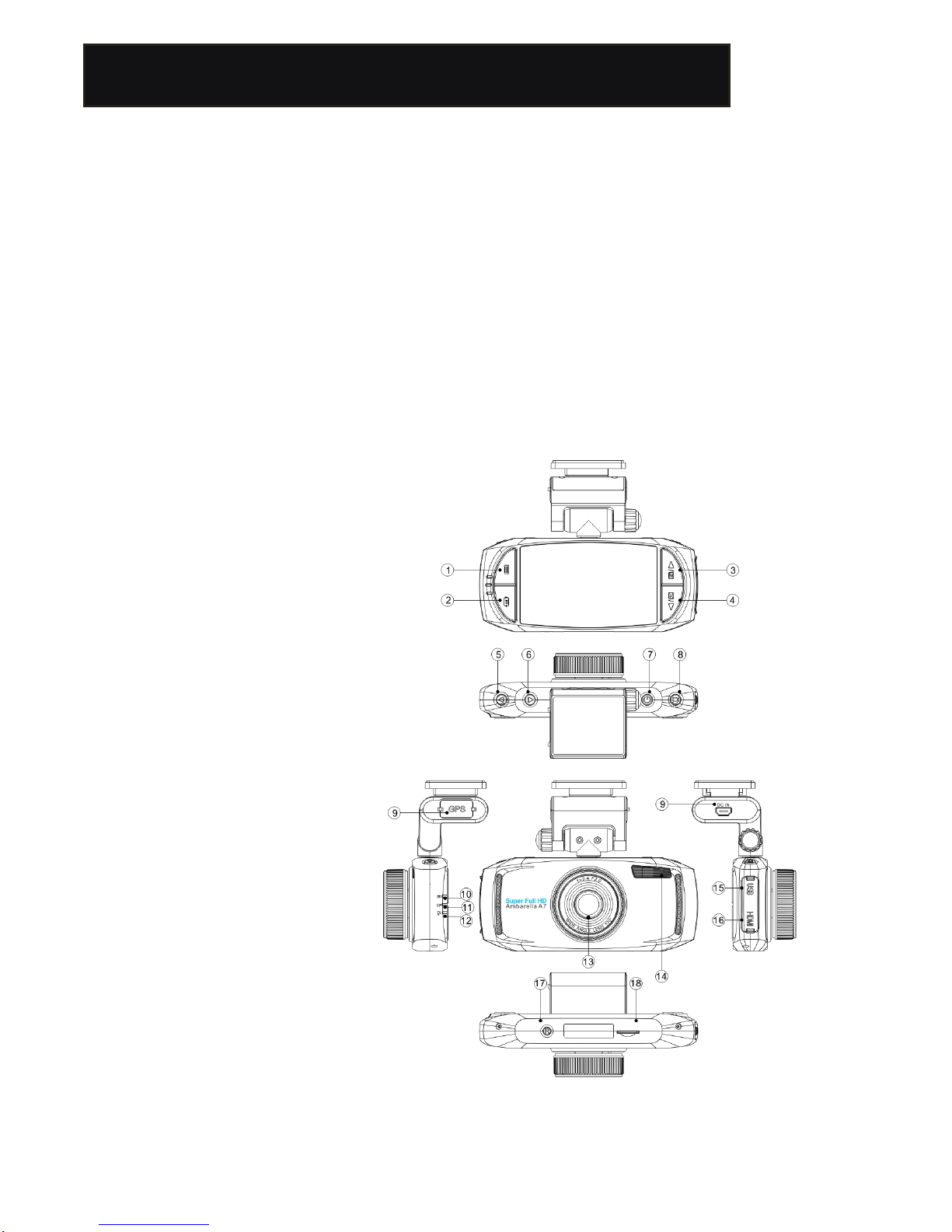

Product Structure

1.Menu/Emergency Button

2.Mode

3.UP/Mute

4.Down/EV

5..Left/LED on/off Button

6.Right / Button

7.Power On/Off ;

Short Press Power On/Off ;

Long Press Forced Power Off Button

8.Record / Photo / OK

9.GPS

10.Red Light Indicator (Charging)

11.Blue Light Indicator(Recording)

12.Green Light Indicator

(GPS)Optiona

13.Lens

14.fill light]

15.USB Port/AV Output

16.HDMI Output

17.Car DV

18.TF Card Slot

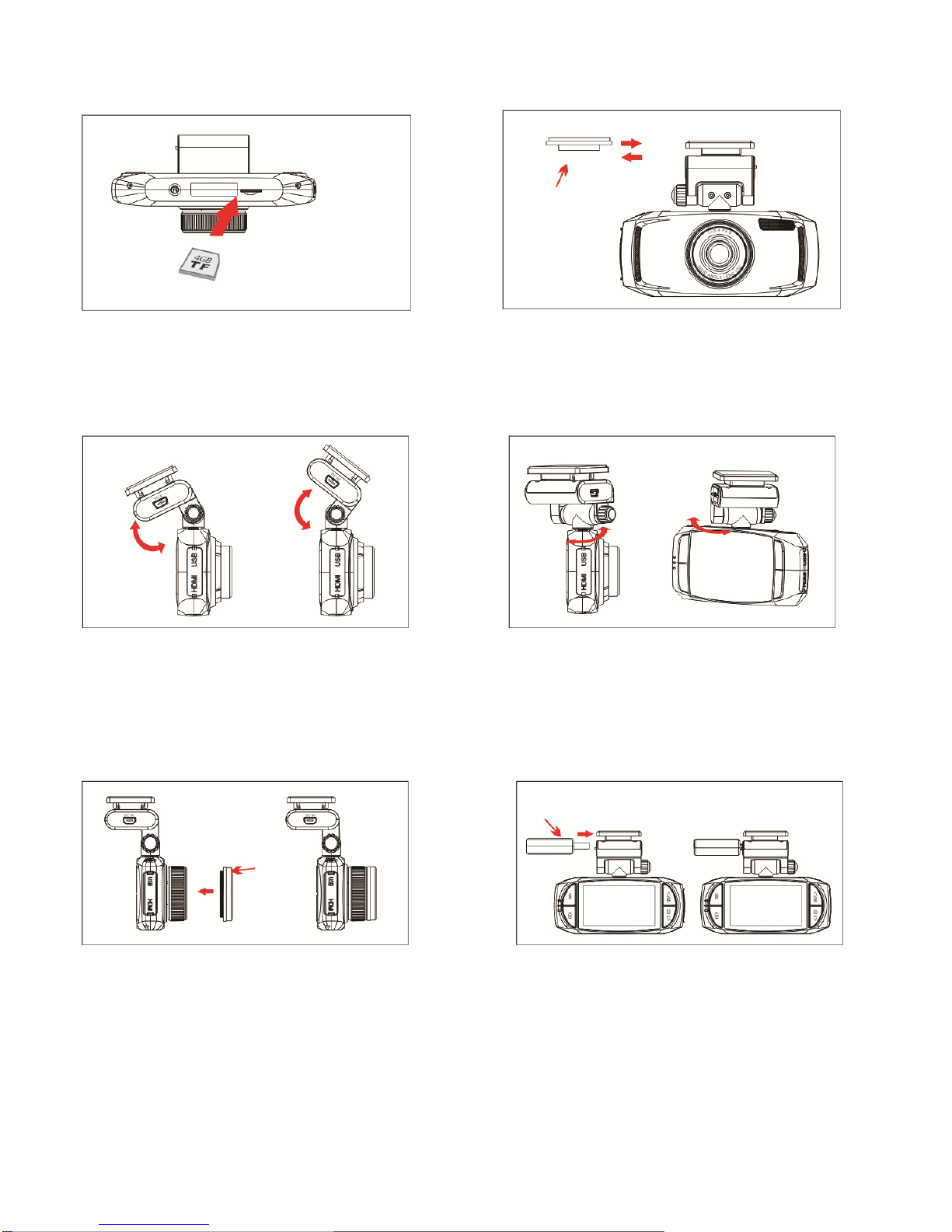

Installation

Warning:Must use C6 or higher specification TF card

(micro SD card)

Removing the Stand - hand pinch bracket exit slot can

be directly (without moving any snaps).

Bracket rotation angle adjustment

If the recording position is not appropriate , it can be adjusted up and down or left and down or left and right.

Up and down rotation: first , loosen the nut, adjust up and

down to the appropriate angle(the maximum is 180 ), and

then tighten the nut

Optional accessories mounting and removing

CPL installation and removing

Put the CPL to the Lens and move clockwise to install

Turn CPL anti clockwise to remove

Transmit the video to LCD TV

You can also transmit the video from the drive recorder to your LCDTV at home to playback the data or adjust the setting.

The steps areas follows:

1. Your video equipment should haveAV IN or HDMI ports.

2. ConnectAV cable or HDMI cable (optional purchase) to the video equipment and the drive recorder.

Please format your TF

card before use.

The fixed plate and the machine installation

Install the fixed plate in the appropriate location of your

car, then left aligned with the slot to install.

Left and right rotation:when adjust left and right angle,

you can rotate the angle of the device directly(the

maximum angle is 200)

GPS/wifi module installation and removin

CPL

Module

Inster the GPS/WIFI module to the port

Pull the GPS/WiFi module from the port

Fixed plate

3. Connect the home use transformer (optional purchase) to the drive recorder and the house power socket.

4. Adjust the channel of the video equipment to AV or HDMI.

5. Installation completed.

Photo size

Photos resolution can be configured during capture. Higher value means higher resolution and better picture quality.

MENU Button Menu【Photo size】【3M(2048X1536)】【5M(2592X1944)】【8M(3264X2488)】

Menu Operation

Press "Menu" Button active the Menu selection, "OK " button Enter sub-menu and confirm the selection left and right or up and

down button

to select the item .

Video Clip Mode:

Resolution

Video resolution can be configured during recording. Higher value means higher resolution and better picture quality, and the

storage

capacity consumption will be relatively higher.FPS is Frame Per Second during recording. Higher FPS means smoother video.

MENU Button 【Video resolution】【1920x1080 30P】【1280x720 60P】【1280x720 30P】【640x480 30P】

Date Stamp

Through this function, you can select whether to show time and License plate number and GPS rate information during

recording..

MENU Button 【Stamp】【On】/【Off】

Record Time

Setting Recycle record can, under limited memory card, repeatedly use the new data to overwrite the old data, in order to

achieve non-

interrupted recording result.MENU Button【Record Time】【2 minute】/【5 minutes】/【10 minutes】/【NO】

*Setting Value. It means saving data every 5 minutes, relatively each cycle will overwrite 5 minutes of old data.

Motion detect

In the view range , if there is any object move, it is detected and trig the car dv begin to record automatically.

MENU Button【Motion detect】【Off】【5s】【10s】【30s】【60s】

G-Sensor

When there is a collision, with the help of the changes in XYZ curves, G Sensor or Gravity Sensor can determine the direction

of the collision

and simultaneously set the recorded data to protection mode, and the data will not be overwritten by circulated recording.

Adjust the

sensitivity parameter of XYZ axles. so the drive recorder will not automatically set the data to protection mode.

MENU Button【G-Sensor】【High】【Normal】【Low】【Off】

Contrast

Use to record and take photo, the measurement of different brightness level between the brightness light and the darkness dark

in area of

light & Dark The more the scope, the more the contrast, and vise versa

MENU Button【Contrast】【Normal】/【Hard】/【Soft】

Sharpness

Use to adjust the image sharpness. when not enough, it can be adjusted more clearer

MENU Button【Sharpness】【Standard】/【Hard】/【Soft】

Brightness

Adjust the brightness of view when record and take photo,

MENU Button【Brightness】【Normal】/【High】/【Low】

Saturation

Use to adjust purity of bright degree or color of image, the bigger the color composition, the bigger the saturation, the smaller

decolorization

composition the smaller the saturation

MENU Button【Saturation】【Normal】/【High】/【Low】

Used to set different white balance when record and take photo, the object color change due to the light color, there is the

different color

temperature of photos taken under the different light situation

MENU Button【WB】【Auto】/【Incandescent】/【D4000】/【D5000】/【Sunny】/【Cloudy】

Volume

Mute Mic and speak On/Off

MENU 【Volume】【0】/【1】/【2】/【3】/【4】/【5】/【6】/【7】

Language

Use this setting to adjust the menu to your preferred language.

MENU Button【Language】【English】【简体中文】/【繁體中文】/【Pусский】/【Korean】/【日本語】

Press OK Button to process

Light Freq

Select 50Hz if the power voltage of the country is 220V. Select 60Hz if the power voltage is 110V.

MENU Button Menu【Light Freq】【50Hz】/【60Hz】

TV Out

This setting can be adjusted when you use AV cable or HDMI cable to transmit the video to the monitor. Select local video

specifications

NTSC or PAL to solve the problem of flicking pictures owing to inappropriate video format.

MENU Button Menu【TV out】【NTSC】/【PAL】

Date & Time

Adjust the current date and time. (Drive recorder with GPS feature will automatically sync the standard date and time after

positioning, no

setting is required).

MENU Button Menu【Date& Time】Press "OK”key to enter setting Press, select Year, Month, Day, Time, Minute.

GPS

Setting GPS can choose to activate or disable GPS function.

MENU Button【System Setup】Menu【GPS】【ON】/【OFF】

At video clip mode , you can enable /disable GPS functional , press "right/GPS" button will enable or disable GPS function .

If the GPS switch is on , the GPS icon and LED will flash when GPS searching the GPS information , after fixed the

GPS information , the GPS icon and LED will fix ON

Beep

Used to voice output of on/off on the button

MENU Button【Beep】【On】/【Off】

LED

Select On or Off, you can control button LED display.

MENU Button【LED】【On】/【Off】

TimeZone

Set the time zone to the local code can be automatically synchronized to GPS time

MENU 【TimeZone】【-12】/【-11】/【-10】/【-9】/【-8】/【-7】/【-6】/【-5】【-4】/【-3】/【-2】/【-1】/

【0】/【+1】/【+2】/【+3】/【+4】/【+5】/【+6】/【+7】/【+8】/【+9】/【+10】/【+11】/【+12】

License plate

After you set up your own license plate number, this number can be attached to the recorded video.

Screen save

The DVR time no operating, the screen automatically turns off, press any key to open

MENU 【Screen save】Off/3 Min /5 Min

Auto Power Off

DVR is powered on but there is no record of the case, will shut down automatically after some time

MENU 【auto power off】Off/3 Min /5 Min/10 min

Format

This function will delete all data in the memory card including protected data. When the memory card is used for a long time,

too

much data will reduce the access efficiency. This function will optimize the access speed of the memory card.

MENU Button【Format 】【No】【Yes】Press OK Button to process

Default Setting

This function will reset all settings on the drive recorder to default factory settings.

MENU Button【Default Setting】【No】【Yes】

Version

View the firmware version of the drive recorder.

MENU Button【Version】

The version number during factory shipment will be considered as the original version.

Preview

Left Previous Clip; Right Next Clip ; OK Play Video

Play

If “EV” is adjusted to + side, you can avoid under-exposure, or dark objects as shooting against a bright background.

If “EV” is adjusted to – side, then you can avoid over exposure, or bright objects as shooting against a dark background or at

night.

At video clip mode , press "down/EV" button change the EV setting , the EV value will be change loop .

【EV】【-2.0】/【-1.7】/【-1.3】/【-1.0】/【-0.7】/【-0.3】/【0】/【+0.3】/【+0.7】/【+1.0】/【+1.7】/【+2.0】

Mute

At video clip mode , you can disable the audio functional using press "Up/Mute" key .

Playback

Press "Mode" swicht to play back mode .

Thumbnail View

Left/Right/Up/Down to select video files

"OK" Buttion ------- Play Video

"Menu" button ------Delete files/ Copy to nandFlash

Delete files :Delete the single video clip currently selected.

Connecting to PC

Step 1 : Insert the memory card into drive recorder , and take out the short USB cable provided.

Step 2 : Connect the USB cable with the drive recorder, and connect the other end to the USB port of PC. The red light will

start blinking.

Step 3 : Press and hold the USB switch on the host device for 2~3 seconds to change to USB mode, now the red and blue lights

will start blinking simultaneously.

Step 4 : The computer will show a removable disk, you can use this disk for data access in the memory card.
