Eelink Virgo Manuel utilisateur

ISTRUZIONI D'USO E DI INSTALLAZIONE

INSTALLATION AND USER'S MANUAL

INSTRUCTIONS D'UTILISATION ET D'INSTALLATION

INSTALLATIONS-UND GEBRAUCHSANLEITUNG

INSTRUCCIONES DE USO Y DE INSTALACION

INSTRUÇÕES DE USO E DE INSTALAÇÃO

D811415 ver. 03 02-04-04

VIRGO

Via Lago di Vico, 44

36015 Schio (VI)

Tel.naz. 0445 696511

Tel.int. +39 0445 696533

Fax 0445 696522

Internet: www.bft.it

E-mail: [email protected]

AUTOMAZIONI A BRACCIO PER CANCELLI A BATTENTE

ARM AUTOMATIONS FOR SWING GATES

AUTOMATIONS A BRAS POUR PORTAILS BATTANTS

ARM AUTOMATIONEN FUER FLUGELGITTERTIRE

AUTOMATIZACIONES A BRAZO PARA PORTONES CON BATIENTE

AUTOMATIZAÇÕES DE BRAÇO PARA PORTÕES DE BATENTE

8 027908 228680

-VIRGO Ver. 03

D811415_03

USER’S MANUALENGLISH

Thank you for buying this product. Our company is sure that you will be

more than satisfied with the product’s performance. Carefully read the

“WARNINGS”pamphlet and the “INSTRUCTION BOOKLET”which are

supplied together with this product, since they provide important information

regarding the safety, installation, use and maintenance of the product. This

productcomplieswithrecognisedtechnicalstandardsandsafetyregulations.

We declare that this product is in conformity with the following European

Directives: 73/23/ EEC, 89/336/EEC, 98/37/EEC and subsequent

amendments.

1) GENERAL OUTLINE

Low-voltage operator (24Vdc) suitable for residential use. Designed for

swing gates having small-sized pillars. The operating arm, with its special

antishearing shape, allows the leaves to be manoeuvred even when the

operator is positioned well away from their fulcrum. The irreversible

electromechanical gearmotor keeps the gate locked in the closing and

opening positions.

The release lever, fitted to the outside of each operator, allows the manual

manoeuvre to be carried out very easily.

WARNING! The installation, the maintenance and the repair should be

done by responsible and qualified persons with an updated knowledge of

the current safety standards. It’s strictly forbidden to service the automation

when the power is on.

ATTENTION!The VIRGO model controller is not equipped with mechanical

torque adjustment. It is compulsory to use a control panel of the same

manufacturer, in compliance with the basic safety requirements of directives

73/23/CEE, 89/336/CEE, 98/37/CEE equipped with appropriate electric

adjusment of the torque.

2) EMERGENCY MANOEUVRE (Fig. 1)

In the case where the power supply is off, or any faults are present, the

manual emergency manoeuvre can be carried out by operating the external

release lever (Fig.1 ref.”S”).

1) Insert the release key and turn it clockwise (Fig.1 ref.”1”).

2) Move lever “S”until the lock is released (Fig.1 ref.”2”).

3) Keep the lever in the release position by turning the key clockwise (Fig.1

ref.”3”).

4) Push the leaf slowly to open or close the gate.

To reactivate motor-driven operation, turn the key clockwise to free the

lever from its released position, then return it to its initial position for normal

operation.

SCRAPPING

WARNING!Thisoperation should only be carried outby qualified personnel.

Materials must be disposed of in conformity with the current regulations.

In case of scrapping, the automation devices do not entail any particular

risks or danger. In case of materials to be recycled, these should be sorted

out by type (electrical components, copper, aluminium, plastic etc.).

DISMANTLING

WARNING! Thisoperation should only be carried outby qualified personnel.

When the automation system is disassembled to be reassembled on

another site, proceed as follows:

•Disconnect the power supply and the entire external electrical installation.

•In the case where some of the components cannot be removed or are

damaged, they must be replaced.

WARNINGS

Correct controller operation is only ensured when the data contained

in the present manual are observed. The company is not to be held

responsible for any damage resulting from failure to observe the

installation standards and the instructions contained in the

present manual.

The descriptions and illustrations contained in the present manual

arenotbinding.TheCompanyreservestherighttomakeanyalterations

deemed appropriate for the technical, manufacturing and commercial

improvement of the product, while leaving the essential product

features unchanged, at any time and without undertaking to update

the present publication.

Fig. 1

-VIRGO Ver. 03

D811415_03

INSTALLATION MANUALENGLISH

Thank you for buying this product. Our company is sure that you will be

more than satisfied with the product’s performance.

Carefully read the “WARNINGS”pamphlet and the “INSTRUCTION

BOOKLET”which are supplied together with this product, since they

provide important information regarding the safety, installation, use and

maintenanceof the product. This product complies with recognised technical

standards and safety regulations. We declare that this product is in

conformity with the following European Directives: 73/23/ EEC, 89/336/

EEC, 98/37/EEC and subsequent amendments.

1) GENERAL SAFETY

WARNING! An incorrect installation or improper use of the product

can cause damage to persons, animals or things.

•The “Warnings”leaflet and “Instruction booklet”supplied with this

product should be read carefully as they provide important information

about safety, installation, use and maintenance.

•Scrap packing materials (plastic, cardboard, polystyrene etc) according

to the provisions set out by current standards. Keep nylon or polystyrene

bags out of children’s reach.

•Keep the instructions together with the technical brochure for future

reference.

•This product was exclusively designed and manufactured for the use

specified in the present documentation. Any other use not specified in

this documentation could damage the product and be dangerous.

•The Company declines all responsibility for any consequences resulting

from improper use of the product, or use which is different from that

expected and specified in the present documentation.

•Do not install the product in explosive atmosphere.

•The construction components of this product must comply with the

following European Directives:89/336/CEE, 73/23/EEC, 98/37/EEC and

subsequent amendments. As for all non-EEC countries, the above-

mentioned standards as well as the current national standards should

be respected in order to achieve a good safety level.

•The Company declines all responsibility for any consequences resulting

from failure to observe GoodTechnical Practice when constructing closing

structures (door, gates etc.), as well as from any deformation which might

occur during use.

•The installation must comply with the provisions set out by the following

European Directives: 89/336/CEE, 73/23/EEC, 98/37/EEC and

subsequent amendments.

•Disconnect the electrical power supply before carrying out any work on

the installation. Also disconnect any buffer batteries, if fitted.

•Fit an omnipolar or magnetothermal switch on the mains power supply,

having a contact opening distance equal to or greater than 3mm.

•Check that a differential switch with a 0.03A threshold is fitted just before

the power supply mains.

•Check that earthing is carried out correctly: connect all metal parts for

closure (doors, gates etc.) and all system components provided with an

earth terminal.

•Fit all the safety devices (photocells, electric edges etc.) which are needed

to protect the area from any danger caused by squashing, conveying

and shearing, according to and in compliance with the applicable

directives and technical standards.

•Position at least one luminous signal indication device (blinker) where it

can be easily seen, and fix a Warning sign to the structure.

•The Company declines all responsibility with respect to the automation

safety and correct operation when other manufacturers’components are

used.

•Only use original parts for any maintenance or repair operation.

•Do not modify the automation components, unless explicitly authorised

by the company.

•Instruct the product user about the control systems provided and the

manual opening operation in case of emergency.

•Do not allow persons or children to remain in the automation operation

area.

•Keep radio control or other control devices out of children’s reach, in

order to avoid unintentional automation activation.

•The user must avoid any attempt to carry out work or repair on the

automation system, and always request the assistance of qualified

personnel.

•Anything which is not expressly provided for in the present instructions,

is not allowed.

2) GENERAL OUTLINE

Low-voltage operator (24Vdc) suitable for residential use. Designed for

swing gates having small-sized pillars. The operating arm, with its special

antishearing shape, allows the leaves to be manoeuvred even when the

operator is positioned well away from their fulcrum. The irreversible

electromechanical gearmotor keeps the gate locked in the closing and

opening positions.

The release lever, fitted to the outside of each operator, allows the manual

manoeuvre to be carried out very easily.

WARNING! The installation, the maintenance and the repair should be

done by responsible and qualified persons with an updated knowledge of

the current safety standards. It’s strictly forbidden to service the automation

when the power is on.

ATTENTION!The VIRGO model controller is not equipped with mechanical

torque adjustment. It is compulsory to use a control panel of the same

manufacturer, in compliance with the basic safety requirements of directives

73/23/CEE, 89/336/CEE, 98/37/CEE equipped with appropriate electric

adjusment of the torque.

3) TECHNICAL SPECIFICATIONS

3.1) VIRGO OPERATOR

Motor: ............................................................................24Vd.c. 2500 min-1

Power: ..................................................................................................40W

Insulation class: ........................................................................................ F

Lubrication: ................................................................... Permanent grease

Reduction ratio: ............................................................................... 1-1224

Output shaft revolutions: ......................................................... 2 min-1 MAX

Opening time 90°: ................................................................................. 14s

Torque supplied: ............................................................................ 170 Nm

Max leaf weight and length: .................. 2000N (~200kg) for 2m long leaf

Impact reaction: ................................................... Integrated torque limiter

................................................................................. on LINX control panel

Motion drive: ...............................................................................Lever arm

Stop:................. Incorporated electrical limit switches + mechanical locks

Manual manoeuvre: ....................................... Release lever with CLS key

Number of manoeuvres in 24h: .............................................................. 60

Environmental conditions: ............................................ from -15 to +60 °C

Degree of protection: ......................................................................... IP 44

Operator weight: ................. VIRGO:80N (~8kg) - VIRGO SQ:60N (~6kg)

Dimensions: .................................................................................. see fig.1

3.2) LINX CONTROL PANEL

Power supply: ......................................................... 230Va.c. ±10% 50Hz*

Mains/low voltage insulation: ....................................... > 2MOhm 500Vdc

Working temperature ............................................................. : -10 / +55°C

Dielectric strength:................................ mains/l.v. 3750Va.c. for 1 minute

Motor output current: ......................................................... 3.5A+3.5A max

Motor relay commutation current: ........................................................10A

Maximum motor power: ....................................................... 40W (24Vd.c.)

Power supply for accessories: ............. 24Va.c. (180mA max absorption)

....................................................... 24Va.c.safe (180mA max absorption)

Gate-open warning light: .......................... N.O. contact (24Va.c./1A max)

Blinker: ........................................................................... 24Va.c. 25W max

Dimensions: ............................................................................. see figure 1

Fuses: ...................................................................................... see figure 2

(*other voltages available on request)

3.3) VIRGO BAT BATTERY KIT (OPTIONAL - Fig.14)

Allows operation to continue even when the mains power supply is off for

a short time.

Charge voltage: ...........................................................................27.2Vd.c.

Charge current:............................................................................... 130mA

Data detected with external temperature of:...................................... 25°C

Battery capacity: .................................................................2x (12V 1.2Ah)

Exhausted battery protection threshold: .....................................20.4Vd.c.

Battery recharge time: .................................................................... 12/14 h

NOTE: In case of operation with battery back up, the outputs to terminals

8-9 (Vsafe 24Va.c.) and 10-11 (Vsafe 24Va.c.) show a voltage of 24Vd.c.

polarised as indicated in Fig.13.

At the time of installing the VIRGO BAT Kit, check that the safety devices

are connected correctly.

4) OPERATOR INSTALLATION

4.1) Preliminary checks

Check that:

•The gate structure is sufficiently sturdy and rigid.

The fixing position must be worked out according to the leaf structure.In

any case, the manoeuvring arm must push against a reinforced leaf

point (fig. 2).

•The leaves can be moved manually along their entire stroke.

If the gate has not been installed recently, check the wear condition of all

its components. Repair or replace defective and worn parts.

Operator reliability and safety are directly affected by the condition of

the gate structure.

VIRGO Ver. 03 -

D811415_03

5) SUPPORT PLATE FIXING (Fig.2)

The operator is supplied with a fixing bracket and lever arm.

Having identified the leaf reinforcement point, with the gate closed, trace an

imaginary horizontal line from the centre of the reinforcement point to the

pillar (fig. 3-4).

Fig. 2 illustrates the most common types of installation:

- with the leaf hinge pivot not aligned with the fixing plate

(90°opening –maximum distance between hinge pivot and plate:

210mm)

- with the hinge pivot aligned with the fixing plate

Position the anchoring bracket observing the dimensions shown in fig.3 for

opening up to 90°, or in fig.4 for opening over 90°up to a max of 120°.

The pillar surface, where the bracket is fixed, must be flat and parallel to the

leaf. Use screws and expansion plugs adequate for the type of pillar. In the

case where the pillar surface is irregular, use expansion plugs with studs,

in order to be able to adjust the fixing bracket parallel to the leaf (fig.5).

•Assemble the lever arm as in fig.7.

DX = fitting to right leaf

SX = fitting to left leaf

Choose the most suitable position for fixing bracket “F”to the leaf.

•Insert lever L into the gearmotor output shaft, and fix it using appropriate

pivot P and self-locking nut D (fig.7).

•Release the operator by activating the release lever to allow the arm to

move easily (see paragraph “EMERGENCY MANOEUVRE”).

•Open the gearmotor cover and fix it to the plate as indicated in Fig.8.

•Fix towing angle bar “F”to the leaf.

•The correct position for the operator arm is illustrated in fig.6. The leaf

attachment point can be identified by positioning the arm according to

the dimension indicated in fig.6.

•With the operator released, check the arm for correct movement.

•Repeat the same procedure for the other leaf.

6) BACKSTOP FIXING

The VIRGO operator is provided with mechanical end-of-stroke backstops,

which make the installation of ground stop plates redundant.

With reference to Fig. 10 proceed as follows:

- Identifytheopeningandclosingend-of-strokepointsandfixthebackstops

accordingly.

- Fix protection cover C.

7) ELECTRICAL INSTALLATION SET-UP

Arrange the electrical installation as shown in fig.11.

The power supply connections must be kept separate from the auxiliary

connections (photocells, sensitive edge, etc.).

For this purpose, the operator is provided with appropriate fittings, indicated

in Fig.9, for a spiral flexible raceway with an inside diameter of 20:

- P1 input for mains power supply + GND.

- P2/P3 inputs for safety devices and accessories.

For the mains power supply, use the appropriate cable clamp (Fig.9 -”S”),

the terminal bar with an incorporated protection fuse (Fig.9 -”L-N”) and the

GND terminal.

8Fig.11 shows the cross-section and the number of connections.

8) TERMINAL BAR CONNECTIONS (Fig.16)

NOTE: The VIRGO operators provided with incorporated LINX control

panels are preset for fitting to the left leaf, whereas the operators

without panels (VIRGO-SQ) are preset for fitting to the right leaf, as

illustrated by the example given in Fig.11.

Should it be necessary to reverse the operator opening direction, proceed

as follows:

1 –Reverse motor polarity (JP1 terminals 1-2)

2 –Reverse motor polarity (JP2 terminals 14-15)

WARNING –During the wiring and installation operations, refer to the

current standards as well as principles of good technical practice.

Wires powered at different voltages must be physically separated, or

suitably insulated with at least 1 mm extra insulation. T

he wires must be clamped by an extra fastener near the terminals, for

example by bands.

All the connection cables must be kept at an adequate distance from the

dissipator(Fig.14 “D”).

WARNING! For connection to the mains, use a multipolar cable with

a minimum of 3x1.5mm2cross section and complying with the

previously mentioned regulations. For example, if the cable is out side

(in the open), it has to be at least equal to H07RN-F, but if it is on the

inside (or outside but placed in a plastic cable cannel) it has to be or

at least egual to H05VV-F with section 3x1.5mm2.

JP1

1-2 Motor 2 connection (VIRGO with LINX panel):

3-5 Opening limit switch SWO M2 (N.C.)

4-5 Closing limit switch SWC M2 (N.C.)

6-7 24 Va.c. power supply input from the transformer

JP2

8-9 24Va.c. Vsafe 180mA max output –power supply for photocell

transmitters with check (Fig.14)

10-11 24Va.c. 180mA max output –power supply for photocells or other

devices

12-13 Blinker connection (24Va.c. 25W max)

14-15 Motor 1 connection (VIRGO-SQ –without LINX panel - Fig.13a):

16-18 Opening limit switch SWO M1 (N.C.)

17-18 Closing limit switch SWC M1 (N.C.)

19-24 Pedestrian opening button PED (N.O.). Controls partial opening

of Motor M2.

20-24 Fault input (N.O.). Input for photocells or safety devices provided

with an N.O. check contact (Fig.14).

21-24 Photocell input (N.C.). If not used, leave bridged.

22-24 STOP button (N.C.). If not used, leave bridged.

23-24 START button (N.O.).

25-26 Output for gate-open warning light (N.O. contact (24Va.c./1A

max) or alternatively for 2nd radio channel (see configuration -

“logics”menu)

27-28 Antenna input for incorporated radio-receiver board (27 braid - 28

signal).

9) PROGRAMMING

The control panel provided with a microprocessor is supplied with function

parameters preset by the manufacturer, suitable for standard installations.

The predefined parameters can be altered by means of either the

incorporated display programmer or UNIPRO.

In the case where programming is carried out by means of UNIPRO,

carefully read the instructions relating to UNIPRO, and proceed in the

following way.

Connect the UNIPRO programmer to the control unit through the UNIFLAT

and UNIDA accessories (See fig. 18). The LINX control unit does not supply

the UNIPRO programmer with power, and therefore requires an appropriate

supply unit.

Enter the “CONTROL UNITS”menu, and the “PARAMETERS”submenu,

then scroll the display screenfuls using the up/down arrows to set the

numerical values of the parameters listed below.

For the function logics, refer to the “LOGIC”submenu.

In the case where programming is carried out by means of the incorporated

programmer, refer to Fig. A and B and to the paragraph on “Configuration”.

10) CONFIGURATION

The display programmer is used to set all the LINX control panel functions.

The programmer is provided with three pushbuttons for menu scrolling and

function parameter configuration:

+ menu scrolling/value increment key

- menu scrolling/value reduction key

OK Enter (confirm) key

The simultaneous pressure of the + and - keys is used to exit the active

menu and move to the preceding menu.

The modifications made are only set if the OK key is subsequently pressed.

When the OK key is pressed for the first time, the programming mode is

entered.

The following pieces of information appear on the display at first:

- Control unit software version

- Number of total manoeuvres carried out (the value is expressed in

thousands, therefore the display constantly shows 0000 during the first

thousand manoeuvres)

- Number of manoeuvres carried out since the latest maintenance

operation (the value is expressed in thousands, therefore the display

constantly shows 0000 during the first thousand manoeuvres)

- Number of memorised radio control devices.

When the OK key is pressed during the initial presentation phase, the first

menu can be accessed directly.

Herefollows alistof themainmenus andtherespective submenusavailable.The

predefined parameter is shown between square brackets [ 0 ].

The writing appearing on the display is indicated between round brackets.

INSTALLATION MANUAL ENGLISH

-VIRGO Ver. 03

D811415_03

INSTALLATION MANUALENGLISH

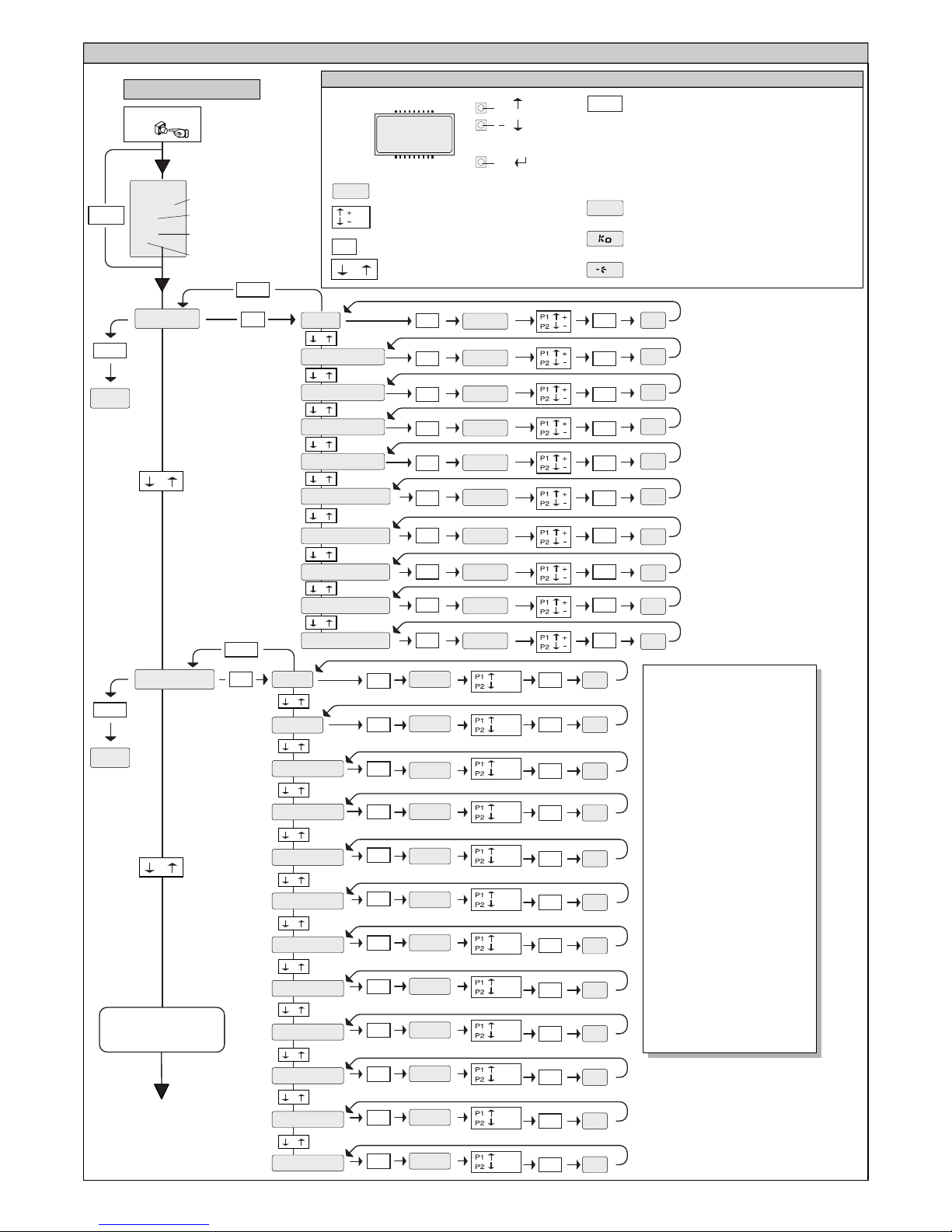

Refer to Figures A and B for the configuration procedure.

10.1) PARAMETER MENU (PARAm)

- Automatic Closing Time (TCA) [ 10s ]

Set the numerical value of the automatic closing time from 3 to 60

seconds.

-Motor 1 torque (m1 t) [ 50% ]

(UNIPRO

⇒

Advanced parameters

⇒

address 3)

Set the numerical value of the motor 1 torque between 1% and 99%.

-Motor 2 torque (m2 t) [ 50% ]

(UNIPRO

⇒

Advanced parameters

⇒

address 4)

Set the numerical value of the motor 2 torque between 1% and 99%.

- Motor 1 slow-down torque (m1 t slow) [ 45% ]

(UNIPRO _ Advanced parameters _ address 8)

Set the numerical value for slow-down torque of motor 1 between 1%

and 99%.

- Motor 2 slow-down torque (m2 t slow) [ 45% ]

(UNIPRO _ Advanced parameters _ address 9)

Set the numerical value for slow-down torque of motor 2 between 1%

and 99%.

NOTES: In case of obstacle detection, the Ampere-stop function stops

the leaf movement, reverses the motion for 1 sec. and then halts in the

STOP status. The motor slow-down torque represents the maximum

torque supplied to the motor during the slow-down phase. It must be set

to a lower value with respect to the motor torque, in order to allow the

Ampere-stop function to be also activated during the slow-down phase.

WARNING: Check that the impact force value measured at

the points established by the EN 12445 standard is lower

than that specified in the EN 12453 standard.

Incorrect sensitivity setting can cause injuries to persons or

animals, or damage to things.

- Opening delay time (open delay time) [ 1s ]

Set the opening delay time for motor 2 relative to motor 1, between 1

and 10 seconds.

- Closing delay time (cls delay time) [ 1s ]

Set the closing delay time for motor 1 relative to motor 2, between 1 and

10 seconds.

- Motor 1 Normal Speed Time (m1 fast time) [ 5s ]

(UNIPRO ﬁAdvanced parameters ﬁaddress 6)

Set the time to normal speed (not slowed down), ranging from 1 to 30

seconds.

- Motor 2 Normal Speed Time (m2 fast time) [ 5s ]

(UNIPRO ﬁAdvanced parameters ﬁaddress 7)

Set the time to normal speed (not slowed down), ranging from 1 to 30

seconds.

Note: The slow-down time, on closing and on opening, is obtained by

timing one manoeuvre, and setting a lower value within this parameter.

If, for example, one manoeuvre lasts 25 seconds, set “normal speed

time”to 20s to obtain 5s of slow-down time, both on closing and on

opening.

- Slow-down speed (slov speed) [ 2 ]

(UNIPRO

⇒

Advanced parameters

⇒

address 5)

Set the slow-down speed by choosing from the following values:

0 –slow-down disabled

1 –slow-down to 50% of normal speed

2 –slow-down to 33% of normal speed.

3 –slow-down to 25% of normal speed.

10.2) LOGIC MENU (logic.)

- TCA (TCA) [ OFF ]

ON Activates automatic closing

OFF Excludes automatic closing

- 3 Steps (3 step) [ OFF ]

ON Enables 3-step logic. A Start impulse has the following effects:

door closed: opens

on opening: stops and enters TCA (if configured)

door open: closes

on closing: stops and reopens

OFF Enables 4-step logic. A Start impulse has the following effects:

door closed:opens

on opening: stops and enters TCA (if configured)

door open: closes

on closing: stops and does not enter TCA (stop)

after stopping: opens

- Impulse lock (ibl open) [ OFF ]

ON The Start impulse has no effect during the opening phase.

OFF The Start impulse becomes effective during the opening or closing

phase.

- Rapid closing (fast cls) [ OFF ]

ON Closes the gate after photocell disengagement, before waiting for

the end of the TCA set.

OFF Command not entered.

- Photocells on opening (photc. open) [ OFF ]

ON: In case of obscuring, this excludes photocell operation on opening.

During the closing phase, it immediately reverses the motion.

OFF: In case of obscuring, the photocells are active both on opening and

on closing. When a photocell is obscured on closing, it reverses the

motion only after the photocell is disengaged.

- Photocell test (test phot) [ OFF ]

(UNIPRO

⇒

Advanced logics

⇒

address 14)

ON Activates photocell check

OFF Deactivates photocell check

If this setting is not activated (OFF), it inhibits the photocell checking

function, allowing connection of devices not provided with additional

checking contact.

- Gate-open or 2nd radio channel warning light (SCA 2ch) [ OFF ]

ON The output between terminals 25 and 26 is configured as Gate-open

warning light, in this case the 2nd radio channel controls pedestrian

opening.

OFF The output between terminals 25 and 26 is configured as 2nd radio

channel.

- Motors in operation (1 mot ON) [ OFF ]

ON Only motor 2 is in operation (terminals 1 and 2).

With this configuration, the pedestrian input is disabled.

OFF Both motors are in operation.

- Lock hold (bloc persist) [ OFF ]

ON To be used when opening and closing mechanical backstops are

fitted.

This function activates leaf pressure on the backstop, without this

being considered as an obstacle by the ampere-stop sensor.

Then the leaf continues its stroke for another 0,5s, after intercepting

the limit switches. Therefore the limit switches are triggered slightly

in advance, and the leaves will stop perfectly on the end stop plate.

OFF To be used when no mechanical backstops are fitted.

Movementis exclusively stopped by the limit switches beingtriggered;

in this case it is necessary to set the opening and closing limit switch

triggering point with precision.

- Prealarm (preal) [ OFF ]

ON The blinker comes on about 3s before the motors start.

OFF The blinker comes on at the same time as the motors start

- Fixed code (fixed code) [ OFF ]

(UNIPRO

⇒

Advanced logics

⇒

address 13)

ON The receiver is configured for operation in fixed-code mode, see

paragraph on “Radio Transmitter Cloning”.

OFF The receiver is configured for operation in rolling-code mode, see

paragraph on “Radio Transmitter Cloning”.

- Radio transmitter programming (radio prog) [ OFF ]

(UNIPRO

⇒

Advanced logics

⇒

address 15)

ON This enables transmitter storage via radio:

1 –First press the hidden key (P1) and then the normal key (T1, T2,

T3 or T4) of a transmitter already memorised in standard mode by

means of the radio menu.

2 –Within 10s press the hidden key (P1) and the normal key (T1, T2,

T3 or T4) of a transmitter to be memorised.

The receiver exits the programming mode after 10s, other new

transmitters can be entered before the end of this time.

This mode does not require access to the control panel.

OFF This disables transmitter storage via radio.

The transmitters can only be memorised using the appropriate Radio

menu.

10.3) RADIO MENU (RADIO)

-Add

Allows you to add one key of a radio control device to the receiver memory;

after storage it displays a message showing the receiver number in the

memory location (from 01 to 64).

Add Start button (add start)

associates the required key to Start command

Add 2ch button (add 2ch)

associates the required key to 2nd radio channel

- Read (read)

Checks one key of a receiver; if stored it displays a message showing

the receiver number in the memory location (from 01 to 64), and the key

number (T1, T2, T3 or T4).

- Eliminate list (erease 64)

WARNING! Completely removes all memorised radio control devices

VIRGO Ver. 03 -

D811415_03

INSTALLATION MANUAL ENGLISH

from the receiver memory.

-Receiver code reading (RX code)

This displays the code entered in the receiver.

Consult paragraphs 12-13-14-15 for further information concerning

the advanced functions of the Clonix incorporated receiver.

10.4) LANGUAGE MENU (language)

Allows you to set the language on the display programmer.

- ITALIAN (ITA)

- FRENCH ( RA)

- GERMAN (DEU)

- ENGLISH (ENG)

- SPANISH (ESP)

10.5) DEFAULT MENU (default)

Restores the preset default values on the control unit. After restoring, a new

autoset operation must be carried out.

10.6) DIAGNOSTICS AND MONITORING

The display on the LINX panel shows some useful information, both during

normal operation and in the case of malfunctions.

Diagnostics:

In the case of malfunctions, the display shows a message indicating which

device needs to be checked:

PED = PED input activation

STRT = START input activation

STOP= STOP input activation

PHOT= PHOT input activation

FLT = FAULT input activation for checked photocells

In the case where an obstacle is found, the LINX panel stops the door and

activates a reverse manoeuvre; at the same time the display shows the

“AMP”message.

Monitoring:

During the opening and closing phases, the display shows four digits

separated by a dot, for example 35.40. The digits are constantly updated

during the manoeuvre, and represent the maximum torque reached by

motor 1 (35) and motor 2 (40).

These values allow the torque setting to be corrected.

If the maximum torque value reached during the manoeuvre gets sensibly

close to the value set in the parameter menu, malfunctions may occur in the

future following wear or slight door deformation.

It is therefore advisable to check the maximum torque reached during some

of the manoeuvres carried out in the course of installation, and if necessary

set a value about 15-20 percent points higher in the parameter menu.

10.7) AUTOSET MENU (autoset)

Allows you to automatically set the Motor torque.

WARNING!! The autoset operation is only to be carried out after checking

the exact leaf (opening/closing) movement, and correct limit-switch

activation.

As soon as the OK pushbutton is pressed, the “.... ....”message is

displayed, and the control unit executes an opening manoeuvre followed by

a closing manoeuvre, during which the minimum torque value needed for

leaf movement is automatically set.

During this phase, it is important to avoid obscuring the photocells, as well

as using the START, STOP or PED commands and the display.

After this, if autosetting has been successfully completed, the control unit

displays the “OK”message and, after pressing any key, returns to the

Autoset menu.

If, on the other hand, the control unit displays the “KO”message, it means

that the autoset procedure has not been successfully completed; it is thus

necessary to check the wear condition of the gate and the regular movement

of the leaves before proceeding to a new autoset operation.

WARNING! During the autoset phase, the obstacle detection function is not

active, therefore the installer must control the automation movement and

prevent persons and things from approaching or standing within the

automation working range.

In the case where buffer batteries are used, autosetting must be carried out

with the control panel supplied by mains power voltage.

WARNING: Check that the impact force value measured at the

points established by the EN 12445 standard is lower than that

specified in the EN 12453 standard.

Incorrect sensitivity setting can cause injuries to persons or

animals, or damage to things.

11) STATISTICS

Having connected the UNIPRO programmer to the control unit, enter the

CONTROL UNIT / STATISTICS menu and scroll the screenful showing the

statistical parameters:

- Board microprocessor software version.

- Number of cycles carried out. If motors are replaced, count the number

of manoeuvres carried out up to that time.

- Number of cycles carried out from the latest maintenance operation.

It is automatically set to zero after each self-diagnosis or parameter writing.

- Date of latest maintenance operation.To be updated manually from the

appropriate menu “Update maintenance date”.

- Installation description. 16 characters can be entered for installation

identification.

12) INTEGRATED RECEIVER TECHNICAL SPECIFICATION

Receiver output channels:

- output channel 1, if activated, controls a START command.

- output channel 2, if activated, controls the excitation of the 2nd radio

channel relay for 1s.

Transmitter versions which can be used:

all Rolling Code transmitters compatible with

ANTENNA INSTALLATION

Use an antenna tuned to 433MHz.

For Antenna-Receiver connection, use RG8 coaxial cable.

The presence of metallic masses next to the antenna can interfere with

radio reception. In case of insufficient transmitter range, move the antenna

to a more suitable position.

13) RECEIVER CONFIGURATION

The on-board receiver combines characteristics of utmost safety in copying

variable code (rolling code) coding with the convenience of carrying out

transmitter “cloning”operations thanks to an exclusive system.

Cloningatransmittermeanscreatingatransmitterwhichcanbeautomatically

included within the list of the transmitters memorised in the receiver, either

as an addition or as a replacement of a particular transmitter.

Cloning by replacement is used to create a new transmitter which takes the

place of the one previously memorised in the receiver; in this way a specific

transmitter can be removed from the memory and will no longer be usable.

Therefore it will be possible to remotely program a large number of

additional transmitters or, for example, replacement transmitters for those

which have been lost, without making changes directly to the receiver.

When coding safety is not a decisive factor, the on-board receiver allows

you to carry out fixed-code additional cloning which, although abandoning

the variable code, provides a high number of coding combinations, therefore

keeping it possible to “copy”any transmitter which has already been

programmed .

PROGRAMMING

Transmitter storage can be carried out in manual mode or by means of the

UNIRADIO programmer which allows the complete installation database to

be managed through the Eedbase software.

In this second case, receiver programming takes place through the

connection of UNIRADIO to the LINX control panel, using the UNIFLAT and

UNIDA accessories as indicated in Fig. 15.

14) MANUAL PROGRAMMING

In the case of standard installations where advanced functions are not

required, you can proceed to manual storage of the transmitters, making

reference to fig. B for basic programming.

- If you wish the transmitter to activate output 1 (START) by means of

key1, key2, key3 or key4, enter the transmitter in menu “Start key”, as

in fig. B.

- If you wish the transmitter to activate output 2 (2nd radio channel relay)

by means of key1, key2, key3 or key4, enter the transmitter in menu “2nd

ch. key”, as in fig. B.

Note: Hidden key P1 appears differently depending on the transmitter model.

For transmitters with hidden key, press hidden key P1 (fig. B1). For

transmitters without hidden key, the key P1 function corresponds to

simultaneously pressing the 4 transmitter keys or, after opening the

battery compartment, bridging the two P1 points by means of a

screwdriver (fig. B2).

-VIRGO Ver. 03

D811415_03

INSTALLATION MANUALENGLISH

IMPORTANT NOTE: ATTACH THE ADH ESIVE KEY LABEL TO THE

FIRST MEMORISED TRANSMITTER (MASTER).

In the case of manual programming, the first transmitter assigns the key

code to the receiver; this code is necessary in order to carry out subsequent

cloning of the radio transmitters.

11) RADIO-TRANSMITTER CLONING

Rolling-code cloning / Fixed-code cloning

MakereferencetotheUNIRADIOInstructionsandtheCLONIXProgramming

Guide.

11.1) ADVANCED PROGRAMMING: COLLECTIVE RECEIVERS

MakereferencetotheUNIRADIOInstructionsandtheCLONIXProgramming

Guide.

16) LIMIT SWITCH ADJUSTMENT (Fig.12)

•Identify the opening and closing limit switches (FC1 and FC2) taking into

account that:

FC1 corresponds the CLOSING limit switch

FC2 corresponds the OPENING limit switch.

•With the gate completely closed or opened, rotate the corresponding

cam until the relevant limit microswitch is heard being tripped, then lock

the cam into position by means of the appropriate screws.

•Check that the limit switches are triggered correctly, by initiating a few

complete motor-driven opening and closing cycles.

•If the “lock hold”logic is set to ON in the LINX panel, the leaf continues

its stroke for about 0,5 seconds, in order to ensure stability and perfect

leaf stopping against the end-of-stroke backstops.

17) EMERGENCY MANOEUVRE (Fig.19)

In the case where the power supply is off, or any faults are present, the

manual emergency manoeuvre can be carried out by operating the external

release lever (Fig.1 ref.”S”).

1) Insert the release key and turn it clockwise (Fig.19 ref.”1”).

2) Move lever “S”until the lock is released (Fig.19 ref.”2”).

3) Keep the lever in the release position by turning the key clockwise

(Fig.19 ref.”3”).

4) Push the leaf slowly to open or close the gate.

To reactivate motor-driven operation, turn the key clockwise to free the

lever from its released position, then return it to its initial position for normal

operation.

18) MANUAL WIRE RELEASE DEVICE (Fig.13)

The manual emergency release can be operated by a wire device:

- Take all the metal cable out of the sheath and insert it into the release

lever (Fig.13 - “L”).

- Lock the sheath and suitably adjust its position by means of the

appropriate screw (Fig.13 - “V”).

- The cover is provided with a section to be torn off for the sheath to go

through.

- For further information, refer to the specific instructions for the release

device.

19) VIRGO BAT KIT INSTALLATION

- Fix the SBS board on the back of the panel box by means of a screw, as

indicated in Fig.14.

- Fix the board protection box (Fig.14 - “C”) supplied with the kit.

- Position the two batteries on the supports, as indicated in Fig.14 (“A”).

- Secure the batteries using the bracket and screws supplied.

- Proceed to wire the SBS board with reference to the diagram in Fig.14.

20) AUTOMATION CHECK

Before allowing the automation to be used normally, carry out the following

procedure very carefully:

•Check the correct functioning of all safety devices (limit microswitches,

photocells, sensitive edges etc.).

•Check that the thrust (anti-squash) force of the leaf is within the limits

set by current regulations.

•Check the manual opening command.

•Check the opening and closing operations with the control devices in

use.

•Check the standard and customised electronic functioning logic.

21) AUTOMATION OPERATION

Since the automation can be remote-controlled by means of a remote

control device or a start button, and so out of sight, the good working order

of all the safety devices should be checked regularly. In the event of any

anomalousfunctioningof the safety devices, consult a specialised technician

immediately.Keep children at a safe distance from the automation operation

area.

22) CONTROL

The automation is used for the power-operated opening and closing of the

gate. The control can be of a number of types (manual, remote-controlled,

magnetic badge access control, etc.) depending on requirements and the

characteristics of the installation. See the specific instructions for the

various control systems. Users of the automation must be instructed about

its control and operation.

23) MAINTENANCE

Disconnectthepowersupplywhencarryingout any maintenance operations.

•Lubricate the VIRGOs of the manoeuvring arm regularly.

•Clean the lenses of the photocells every so often.

•Have a qualified person (installer) check correct motor torque setting.

•In the event of any anomalous functioning which cannot be resolved,

disconnect the power supply and contact a specialised technician

(installer). Whilst the automation is out of order, activate the manual

release to allow manual opening and closing.

24) SCRAPPING

WARNING!Thisoperation should only be carried outby qualified personnel.

Materials must be disposed of in conformity with the current regulations.

In case of scrapping, the automation devices do not entail any particular

risks or danger. In case of materials to be recycled, these should be sorted

out by type (electrical components, copper, aluminium, plastic etc.).

25) DISMANTLING

WARNING! Thisoperation should only be carried outby qualified personnel.

When the automation system is disassembled to be reassembled on

another site, proceed as follows:

•Disconnect the power supply and the entire external electrical installation.

•In the case where some of the components cannot be removed or are

damaged, they must be replaced.

WARNINGS

Correct controller operation is only ensured when the data contained

in the present manual are observed. The company is not to be held

responsible for any damage resulting from failure to observe the

installation standards and the instructions contained in the

present manual.

The descriptions and illustrations contained in the present manual

arenotbinding.TheCompanyreservestherighttomakeanyalterations

deemed appropriate for the technical, manufacturing and commercial

improvement of the product, while leaving the essential product

features unchanged, at any time and without undertaking to update

the present publication.

VIRGO Ver. 03 -

D811415_03

Fig. A

Press the OK key

B T

LINX 1.0

0000

PARAM

LOGIC.

+/-

ACCESS TO MENUS

FOLLOWING MENUS

FIG. B

8888

Control unit software version

No. total manoeuvres

(in thousands)

No. manoeuvres since latest

maintenance(in thousands)

No. radio control devices

memorised

LEGENDA

[ 00 ] Preset value

Parameter increment/reduction

or ON/OFF commutation

Menu scrolling

(+ = preceding - = following)

Press OK key (Enter/confirm)

Message: Programming in progress

PRG

+/-

/ON

/OFF

Message: KO! (value or function error)

Simultaneously press the + and - keys.

Simultaneous pressure of the + and –keys

allows you to exit the active menu and return

to the preceding menu; if this takes place at

the main menu level, programming is exited

and the display switched off.

The modifications made are only confirmed if

the OK key is subsequently pressed.

+/-

END

+/-

END

Message: “Wait”(enter value or function)

TCA

OFF

[o ]

PRG

3 step

OFF

[off]

PRG

ibl open

OFF

[off]

PRG

fast cls

OFF

[off]

PRG

otoc. open

OFF

[off]

PRG

TEST PHOT

OFF

[off]

PRG

SCA 2ch

OFF

[off]

PRG

i Mot ON

OFF

[off]

PRG

BLOC persist

OFF

[off]

PRG

Preal

OFF

[off]

PRG

radio prog

OFF

[off]

PRG

fixed code

OFF

[off]

PRG

OK OK

TCA [0010]

PRG

OK OK

[0050]

PRG

m1 t

OK OK

[0050]

PRG

m2 t

OK OK

[0045]

PRG

m1 t slow

OK OK

[0045]

PRG

m2 t slow

OK OK

[0010]

PRG

open delay time

OK OK

cls delay

time

[0010]

PRG

OK OK

m1 fast time

[0050]

PRG

OK OK

[0050]

PRG

OK OK

slow speed [0002]

PRG

PARAMETER MENU

TCA (automatic closing time)

value expressed in seconds

(default 10=10s, min 3=3s, max 90=90s)

Motor 1 torque value expressed in %

(default 50%, min 1%, max 99%)

Motor 2 torque value expressed in %

(default 50%, min 1%, max 99%)

Motor 1 torque slow-down

value expressed in %

(default 45%, min 1%, max 99%)

Motor 2 torque slow-down

value expressed in %

(default 45%, min 1%, max 99%)

Opening phase-difference Time

value expressed in tenths of a second

(default 10=1s, min 10=1s, max 100=10s)

Closing phase-difference Time

value expressed in tenths of a second

(default 10=1s, min 10=1s, max 10=10s)

Motor 1 slow-down speed time

value expressed in seconds

(default 5=5s, min 1=1s, max 30=30s)

Motor 2 slow-down speed time

value expressed in seconds

(default 5=5s, min 1=1s, max 30=30s)

Slow-down speed

0= Slow-down disabled

1= 50% of normal speed

2= 33% of normal speed

3= 25% of normal speed

m2 fast time

-VIRGO Ver. 03

D811415_03

Fig. B

DE AULT

12 3

T1 T2 T1 T2

T3 T4

RADIO

AUTOSET MENU

It automatically sets the motor torque.

WARNING!

During the autoset phase, the obstacle

detection function is not active, therefore the installer

must control the automation movement and prevent

persons and things from approaching or standing

within the automation working range.

PRECEDING MENUS

FIG. A

OK OK

END

. . . . . .

AUTOset

END

language

ITA

DEU

ENG

esp

OK OK

END

PRG

Press P1 (pushbutton) on radio

control device

Press the required T (key) on

radio control device Ð see Fig. B3

Press the required T (key) on

radio control device Ð see Fig. B3

Release P1 on radio

control device

ADD start

hidden button release

desired button

PRG.

READ

ERASE 64

Press P1 (pushbutton) on radio

control device

Press the required T (key) on

radio control device Ð see Fig. B3

Release P1 on radio

control device

ADD 2ch hidden button release

desired button

01 t1

COD RX

1A9C

22 D

RADIO MENU

ADD

- Allows you to add one key of a radio control

device to the receiver memory; after storage it displays

a message showing the receiver number in the

memory location (from 01 to 64).

Add Start button

Ð associates the required key to

Start command

Add 2ch button

Ð associates the required key to 2nd

radio channel

READ

- Checks one key on a receiver, if stored it

displays a message showing the receiver number in

the memory location (from 01 to 64), and the key

number (T1, T2, T3 or T4).

ERASE 64

WARNING! Completely removes all memorised radio

control devices from the receiver memory.

COD RX

Displays the receiver code.

Make reference to paragraph 11.

P1P1

VIRGO Ver. 03 -

D811415_03

Fig. 1

Fig. 3

Fig. 2

Fig. 5

Fig. 6

300 MIN

123

180

215

635

230

Fig. 4

300 MIN

135123

335 120

90˚

390

230

120˚

390

230

120˚

90˚

Max. 210

335

Autres manuels pour Virgo

Table des matières

Autres manuels Eelink ouvre-porte

Eelink

Eelink Virgo Manuel utilisateur

Manuels ouvre-porte populaires d'autres marques

Elite

Elite CSW200UL Manuel utilisateur

CAME

CAME FROG-PM4 Manuel utilisateur

SOMFY

SOMFY FX230 Manuel utilisateur

Aprimatic

Aprimatic ONDA 500 Manuel utilisateur

Turnstiles

Turnstiles FSW 900 Manuel utilisateur

Erreka

Erreka BUL BL33 Mode d'emploi

Erreka

Erreka VULCAN S Manuel utilisateur

Beninca

Beninca R1-2 WBV Manuel utilisateur

Erreka

Erreka VULCAN D Manuel utilisateur

Motorline professional

Motorline professional FORT Mode d’emploi

Beninca

Beninca BOB5024 Manuel utilisateur

AGA

AGA GATEMASTER 900 HD Manuel utilisateur

Chamberlain

Chamberlain MotorLift HC280ML Manuel utilisateur

SOMFY

SOMFY Dexxo RTS Pro Manuel utilisateur

Cardin

Cardin BL Series Manuel utilisateur

Westfalia

Westfalia 85 27 06 Manuel utilisateur

CAME

CAME F500 Manuel utilisateur

Extel

Extel VERA Manuel utilisateur
