USER MANUAL
Model: EP-DB1305
Brand: EDUP
EDUP USB Wireless Adapter Quick Installation Guide
Note：This Manual based on WindowsXP & Windows7
1.WindowsXP
01. Once the wireless USB adapter be plugged into an USB port, the following message will
appear on screen. Click “Cancel”, As the following picture shows.(If it do not pop-up,Skip this step)
02. Please insert the disc into your CD-ROM drive. The disc should auto start, dispaying the
follwing window, If it does not start due to the system setting, open the browser window, find the
Setup.exe file in your CD-ROM folder, click to run it.If you do not have CD-ROM Drive,you can
download at EDUP official website:www.szedup.com
03. Double click Setup.exe file, Software begin to initialization,then click the “next”.There shows
the installation progress.
04. Do not interrupt installation , Click “finish” to finish the driver installation.The computer
automatically restart.
Wireless Connection （two ways to realize）
Wireless Connetion 1:
05. Click Icon in the Windows system tray, which locates in the bottom-right corner of your
computer screen or double click , and pops up a message and click”Available Network”
Double-click the utility icon or right click the icon and then select “View Available Wireless
Networks” to launch the utility. the Wireless Network Connection window appears and displays
your wireless network listed with the SSID you chose.
If the network security key hasn’t been inputted before, enter the network’s security key to
access the wanted SSID. Type the encryption key that you wrote down earlier in both the
Network key and Confirm network key boxes, and then click “ok”.
Wireless Connection 2
06. Click Icon in the Windows system tray, which locates in the bottom-right corner of your
computer screen or double click , pops up a message and click”Windows Zero
Config”(Figure1),pay attention to the change of figure2.Click “Ok”on the pop up page as figure3
07. Double Click Icon and then select the your preferred network, and then Double click,
enter the network’s security key to access the wanted SSID. Type the encryption key and then
click “Connect”.Or choose your wifireless signal and click connect as figure1,and enter the
password and then click”connect as figure Now the Internet now is available.
2.Windows7
Please do as the following steps to setup:

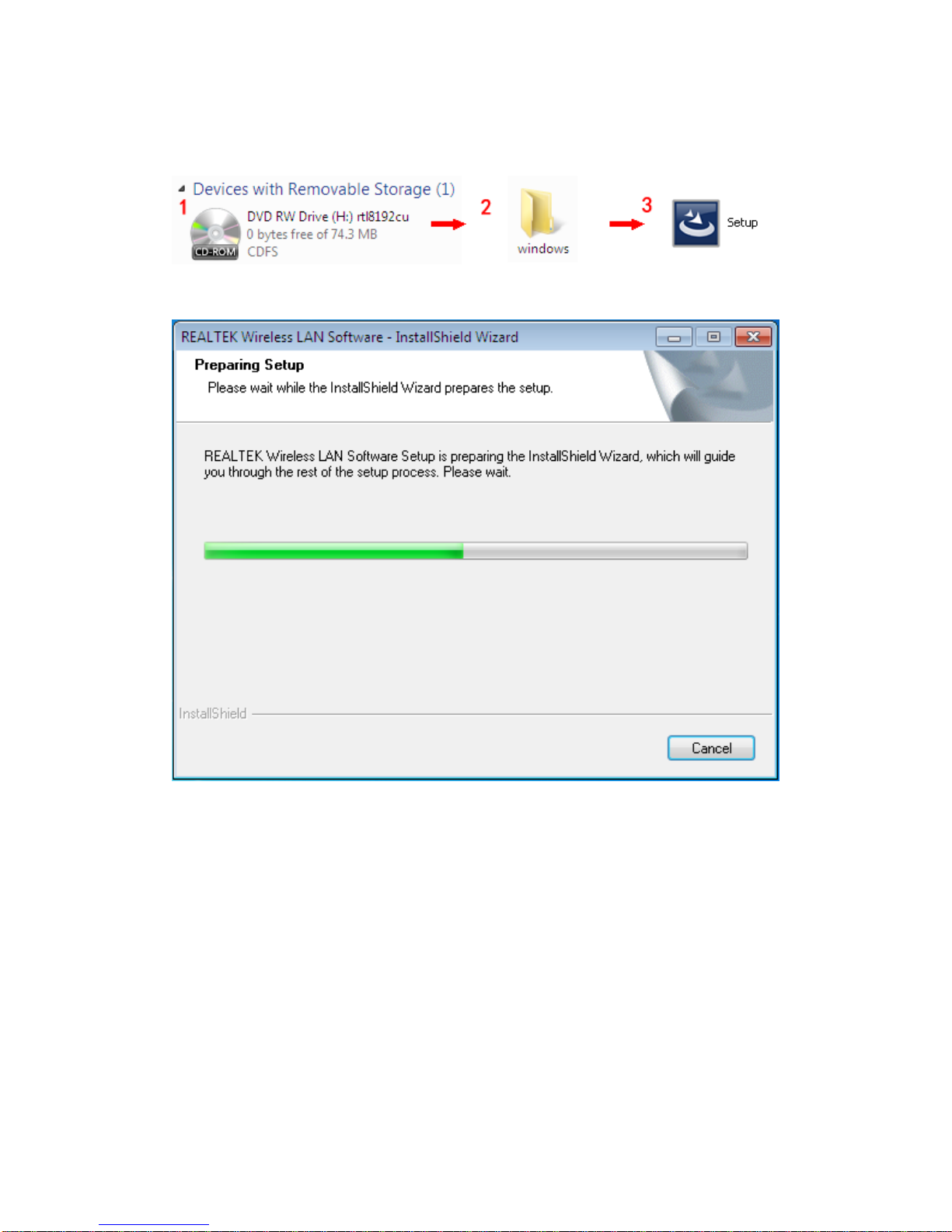

01. Once the wireless USB adapter be plugged into an USB port (If do not have CD-ROM.please
download on www.szedup.com), put in the CD and find windows file and Setup.exe.
02. Double click Setup.exe file, Software begin to initialization,then click the “next”.There shows
the installation progress.
