OWNER’S MANUAL
8PALLET LEVELER PL 2002
surface area.
7. If you have any questions about the steps in
the installation process, please call EdmoLift.
Set-Up and Instructions
The PL 2002 can be setup to handle pallet loads
of any weight within the unit's capacity range.

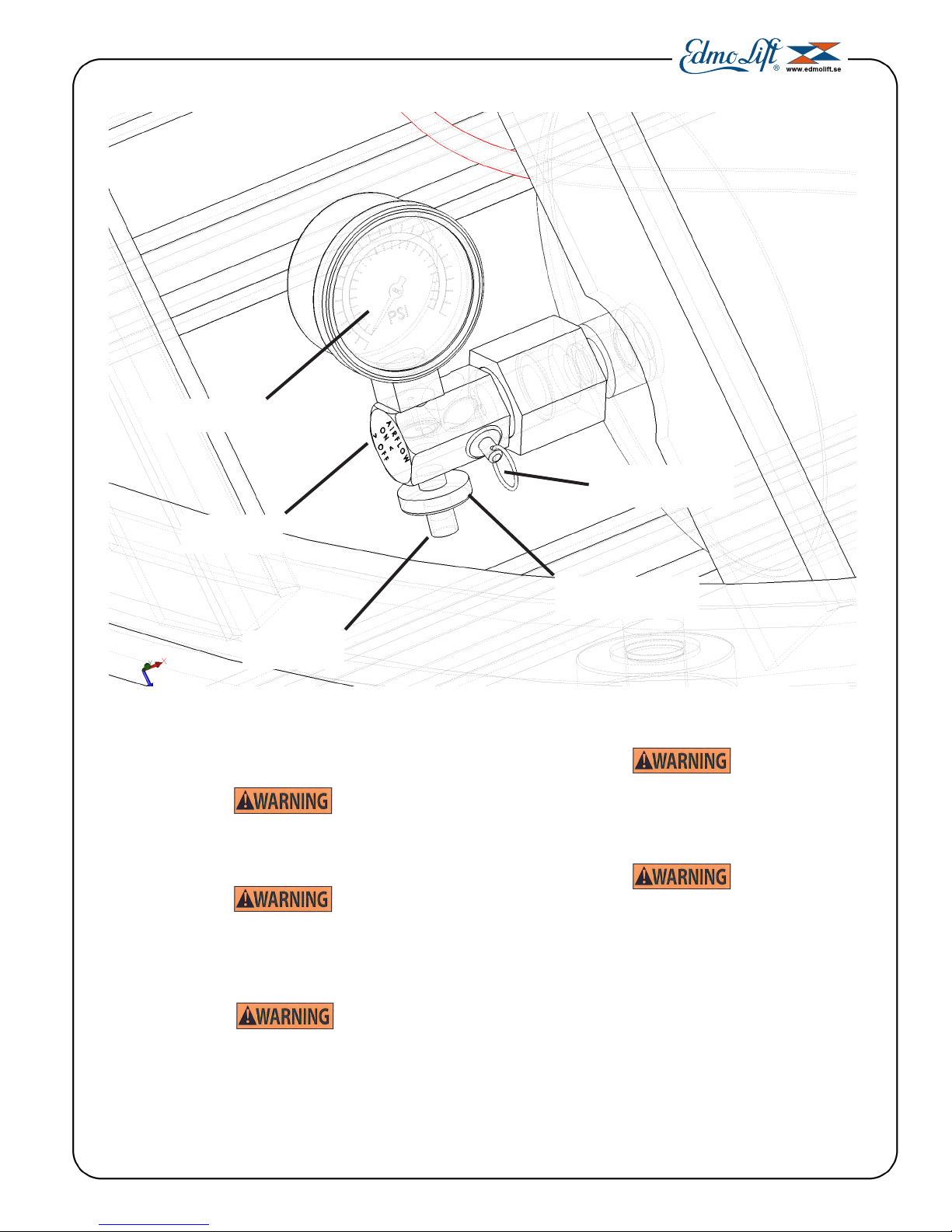

Load capacity depends on the initial actuator
pressure. The actuator pressure can be set from
0.41 bar to 4,21 bar to achieve capacities ranging
from approximately 180 kg to 2000 kg. Once
air is inated into unit's air actuation system, a
corresponding load capacity can be set. The unit
will then lower or rise as the load is being added
or removed from the unit, and thus works as an
automatic pallet leveler. A rule of thumb for setting
up the unit is that the amount of air inated into the
air actuator should allow the unit to be lowered to
its compressed height with load equal to 75% of
the set capacity (including the weight of the pallet).
INSTALLATION INSTRUCTIONS
Unpacking the Unit
1. Before you start to install the unit, check for
local codes and ordinances that may apply. It is
your responsibility to obtain any necessary permits.
2. Please read all of these instructions carefully.
Be sure to read and understand all of the warnings.
3. Inspect the shipping pallet carefully for any
damage which may have affected the unit. If
you see signs of damage, notify the shipper
immediately. Also make a note of this on the
shipping papers that you are asked to sign.
4. Choose the place where you want to set
the unit. It is very important that the PL 2002 be
located on a smooth and at surface. Check the
oor surface carefully and make sure that it is free
of all loose debris and dirt.
WARNING!
The unit is attached to the skid using
metal bands. These bands are under
high tension. The edges are sharp.
Wear safety glasses and gloves when
you handle or cut the banding.
5. Remove the metal banding that secures the
unit to the pallet. Remove all packing material.
Shift the unit to the oor. Support the base as you
do this.
6. Check to see that the base frame of the unit
is sitting rmly on the oor. Try to move or rock
the frame of the unit. The base frame should be
stable, and should not move. Check to see that
the base frame is level. If any part of the base
frame is more than 13 mm out of level in relation
to any other part, reposition to a atter, more level
SET-UP REFERENCE TABLE
Capacity kg <320 450 680 900 1100 1350 1600 1800 2000
Capacity kg X 75% - 340 510 650 850 1020 1190 1360 1530
Initial Pressure (bar)
(no load on unit) 0,49 0,76 1,24 1,8 2,35 2,9 3,38 3,86 4,27
