Edimax EW-7126 Manuel utilisateur

User Manual

Version: 3.0

(June, 2004)

publication may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language or computer language, in any form or

by any means, electronic, mechanical, magnetic, optical, chemical, manual or

otherwise, without the prior written permission of this company

This company makes no representations or warranties, either expressed or

implied, with respect to the contents hereof and specifically disclaims any

warranties, merchantability or fitness for any particular purpose. Any software

described in this manual is sold or licensed "as is". Should the programs

prove defective following their purchase, the buyer (and not this company, its

distributor, or its dealer) assumes the entire cost of all necessary servicing,

repair, and any incidental or consequential damages resulting from any defect

in the software. Further, this company reserves the right to revise this

publication and to make changes from time to time in the contents hereof

without obligation to notify any person of such revision or changes.

All brand and product names mentioned in this manual are trademarks and/or registered

trademarks of their respective holders.

Federal Communication Commission

Interference Statement

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

4. Consult the dealer or an experienced radio technician for help.

FCC Caution

This equipment must be installed and operated in accordance with provided

instructions and a minimum 20 cm spacing must be provided between

computer mounted antenna and person’s body (excluding extremities of

hands, wrist and feet) during wireless modes of operation.

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible

for compliance could void the authority to operate equipment.

Federal Communication Commission (FCC) Radiation Exposure Statement

This equipment complies with FCC radiation exposure set forth for an

uncontrolled environment. In order to avoid the possibility of exceeding the

FCC radio frequency exposure limits, human proximity to the antenna shall

not be less than 20cm (8 inches) during normal operation.

The antenna(s) used for this transmitter must not be co-located or operating

in conjunction with any other antenna or transmitter.

R&TTE Compliance Statement

This equipment complies with all the requirements of DIRECTIVE 1999/5/EC

OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on

radio equipment and telecommunication terminal Equipment and the mutual

recognition of their conformity (R&TTE)

The R&TTE Directive repeals and replaces in the directive 98/13/EEC

(Telecommunications Terminal Equipment and Satellite Earth Station

Equipment) As of April 8,2000.

Safety

This equipment is designed with the utmost care for the safety of those who

install and use it. However, special attention must be paid to the dangers of

electric shock and static electricity when working with electrical equipment. All

guidelines of this and of the computer manufacture must therefore be allowed

at all times to ensure the safe use of the equipment.

EU Countries Intended for Use

The ETSI version of this device is intended for home and office use in Austria,

Belgium, Denmark, Finland, France,Germany, Greece, Ireland, Italy,

Luxembourg, the Netherlands, Portugal, Spain, Sweden,and the United

Kingdom.

The ETSI version of this device is also authorized for use in EFTA member

states:Iceland, Liechtenstein, Norway,and Switzerland.

EU Countries Not intended for use

None.

CONTENTS

1INTRODUCTION ...................................................................1

1.1 FEATURES..............................................................................................1

1.2 SPECIFICATIONS......................................................................................1

1.3 PACKAGE CONTENTS...............................................................................2

2INSTALLATION PROCEDURE...............................................3

2.1 INSTALL THE DRIVER...............................................................................3

2.2 INSTALL THE UTILITY..............................................................................5

2.3 USING UTILITY IN WINDOWS XP ...............................................................7

2.3.1 Using the Windows XP’s Utility................................................................................ 7

2.3.2 Using the Utility of this Card.................................................................................... 7

3CONFIGURATION UTILITY................................................ 10

3.1 UTILITY OVERVIEW...............................................................................10

3.2 CONNECT TO THE WIRELESS NETWORK ....................................................11

3.3 CONNECTION STATUS............................................................................12

3.4 PROFILE LIST .......................................................................................13

3.4.1 Configure the Profile ...............................................................................................14

3.4.2 Enable WPA in Windows XP ...................................................................................16

3.5 ADVANCED CONFIGURATION ..................................................................19

3.6 STATUS...............................................................................................21

3.7 STATISTICS..........................................................................................22

3.8 SOFTWARE AP......................................................................................23

3.8.1 AP Connection Setting.............................................................................................23

3.8.2 AP Advanced Setting...............................................................................................24

3.8.3 Statistics .................................................................................................................25

4TROUBLESHOOTING.......................................................... 27

1Introduction

Thank you for purchasing the Wireless LAN PCI Card. This card features the latest

innovation wireless technology. For WLAN security issues, this card supports 64/128-bit

WEP data encryption that protects your wireless network from eavesdropping. It also

supports WPA (Wi-Fi Protected Access) feature that combines IEEE 802.1x and TKIP

(Temporal Key Integrity Protocol)technologies. Client users are required to authorize before

accessing to APs or AP Routers, and the data transmitted in the network is

encrypted/decrypted by a dynamically changed secret key. This card has built-in AES

engine which ensure the highest degree of security and authenticity for digital information

and it is the most advanced solution defined by IEEE 802.11i for the security in the wireless

network. It also supports 32-bit PCI interface which enables higher transmission

performance. Furthermore, this card provides several kinds of power saving modes allowing

user customizes the way of saving the power from his/her portable or handheld devices.

This card is cost-effective, together with the versatile features, it is the best solution for you

to build your wireless network.

1.1 Features

•Complies with the IEEE 802.11b (DSSS) 2.4GHz standard.

•High-speed transfer data rate -up to 11Mbps.

•Supports 64/128-bit WEP, WPA (TKIP with IEEE 802.1x)* and AES*functions for high level

of security.

•Automatic fallback increases data security and reliability.

•Supports Software AP mode, which turns your card to a Wireless AP.

•Supports the most popular operating systems: Windows 98SE/Me/NT/2000/XP/Server 2003

and Linux*.

•Supports 32-bit PCI interface.

*Note:

1. WPA andAES functions are available in Windows XP.

2. Support Linux Kernel 2.4.18 (gcc version 2.96) and Kernel 2.4.20 (gcc version 3.2.2).

1.2 Specifications

•Standard: IEEE 802.11b

•Interface: PCI V2.2/2.1

•Frequency Band: 2.4000 ~ 2.4835GHz (Industrial Scientific Medical Band)

•Modulation: CCK@11/5.5Mbps, DQPSK@2Mbps, DBPSK@1Mbps

•Radio Technology: Direct Sequence Spread Spectrum (DSSS)

•Data Rate: 11/5.5/2/1Mbps auto fallback

•Security: 64/128-bit WEP Data Encryption, WPA (IEEE 802.1x with TKIP) and AES

•Antenna: External detachable dipole antenna (Cable Length: 94cm, Connector: RP-SMA

connector)

•Drivers: Windows 98SE/Me/NT/2000/XP/Server 2003 and Linux

•LEDs: TX/RX, Link

•Power Voltage: 3.3V

•Transmit Power: 16dBm~18dBm

•Receive Sensitivity: -83dBm (Typical)

•Dimension: 19(H) x 135(W) x 121(D) mm

•Temperature: 32~131°F (0 ~55°C)

•Humidity: 0-95% (NonCondensing)

•Certification: FCC, CE, C-Tick, DGT

1.3 Package Contents

Before you begin the installation, please check the items of your package. The package

should include the following items:

•One Wireless PCI Card

•One Antenna

•One CD (Driver/Utility/User’s Manual.)

•One Quick Guide

If any of the above items is missing, contact your supplier as soon as possible.

2Installation Procedure

Before you proceed with the installation, please notice following descriptions.

Note1: The following installation was operatedunder WindowsXP.(Procedures will be the

same for Windows98SE/Me/NT/2000/Server 2003.)

Note2: If you have installed the Wireless PC Card driver & utility before, please uninstall the old

version first.

2.1 Install the Driver

1. Turn off your PC.

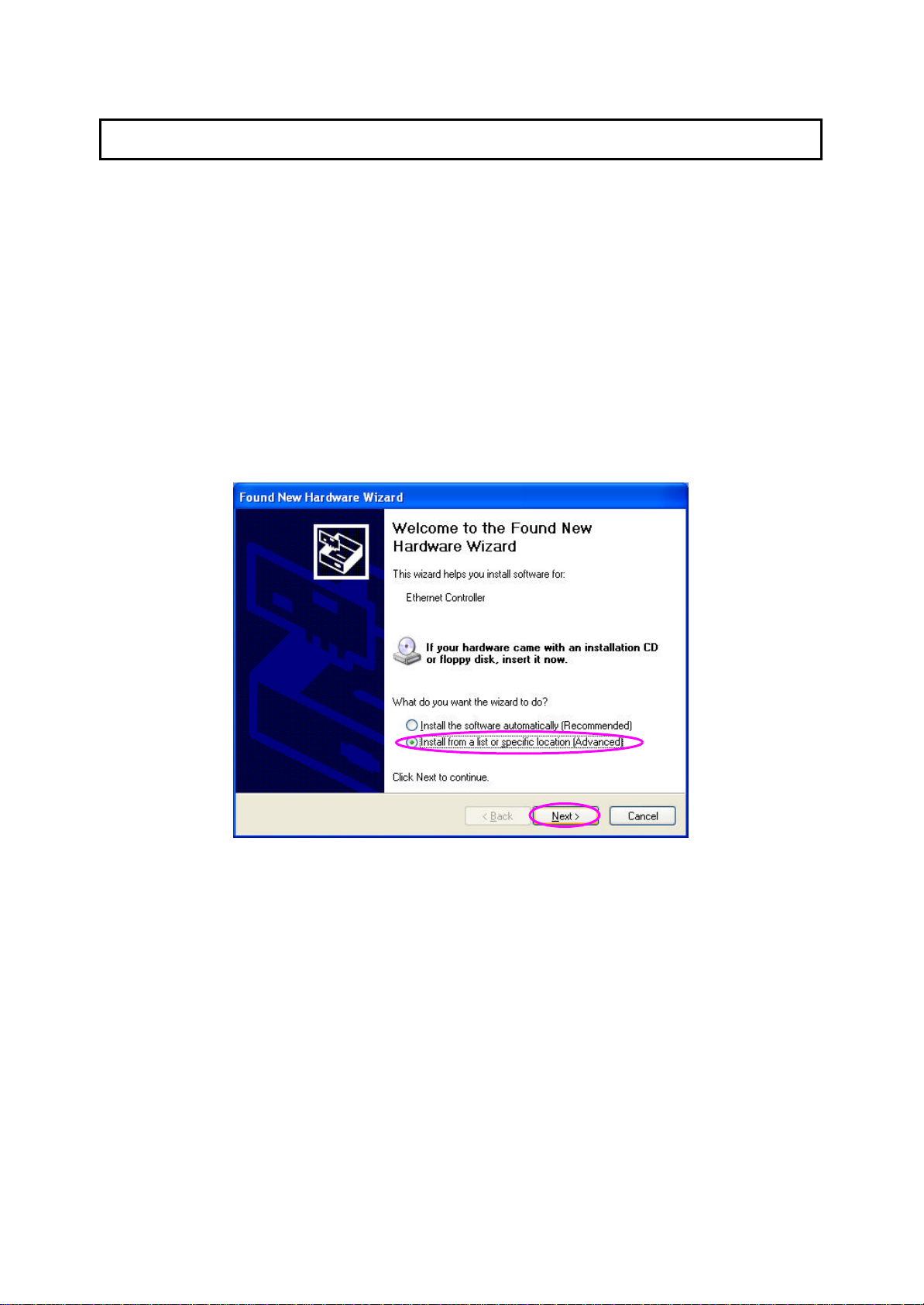

2. Insert the card into the PCI slot of your PC, the system will automatically find the device.

Select “Install from a list or specific location (Advanced), then click“Next“.

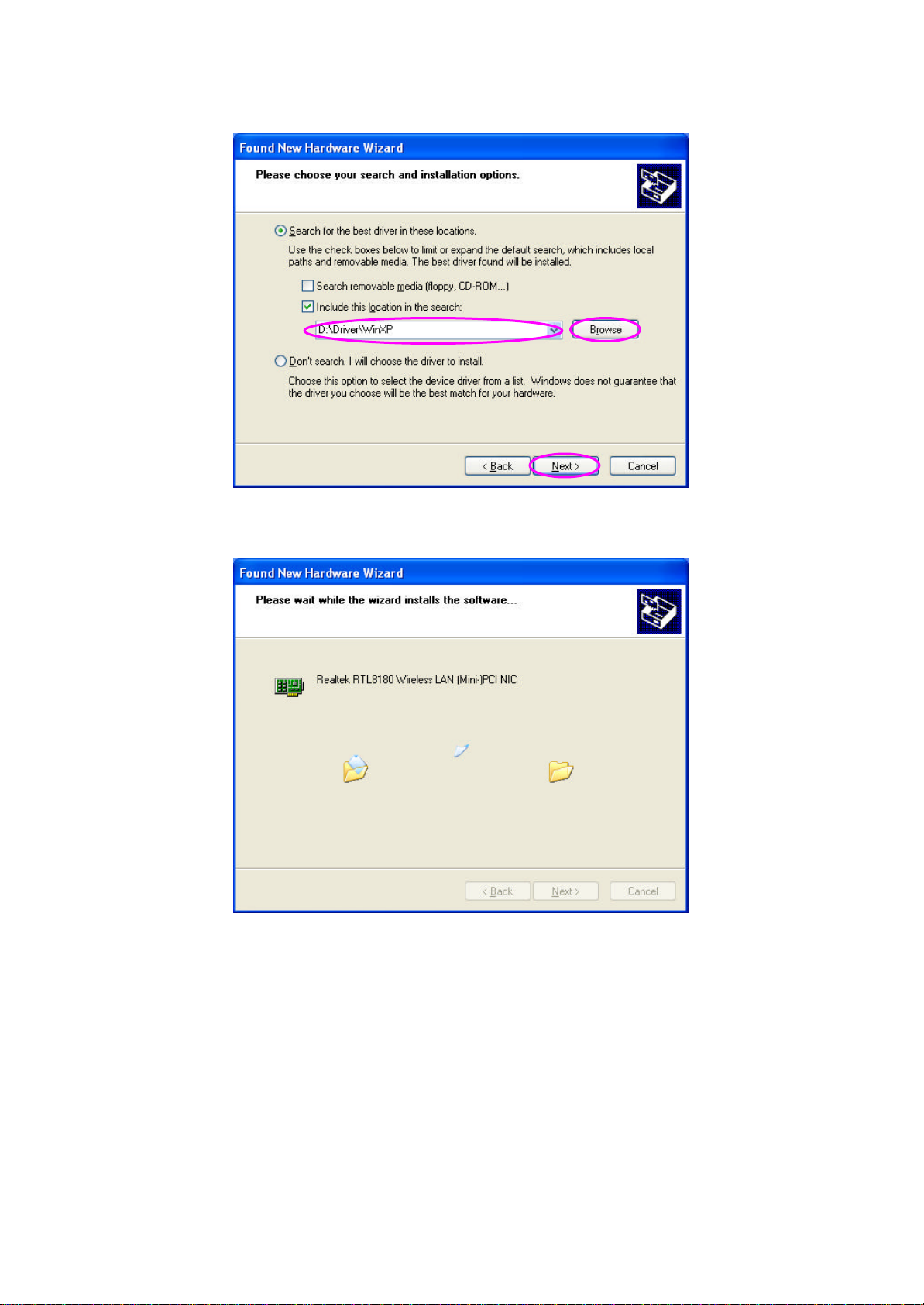

3. Click “Browser“to specify the driver from the CD attached with the card. For example,

specify “D:\Driver\WinXP”folder (where “D”specifies your CD-ROM, the folder name is

selected corresponding to your computer’s OS system from the “Driver“folder of the CD).

Click “Next“.

4. The system starts installing the driver for the card.

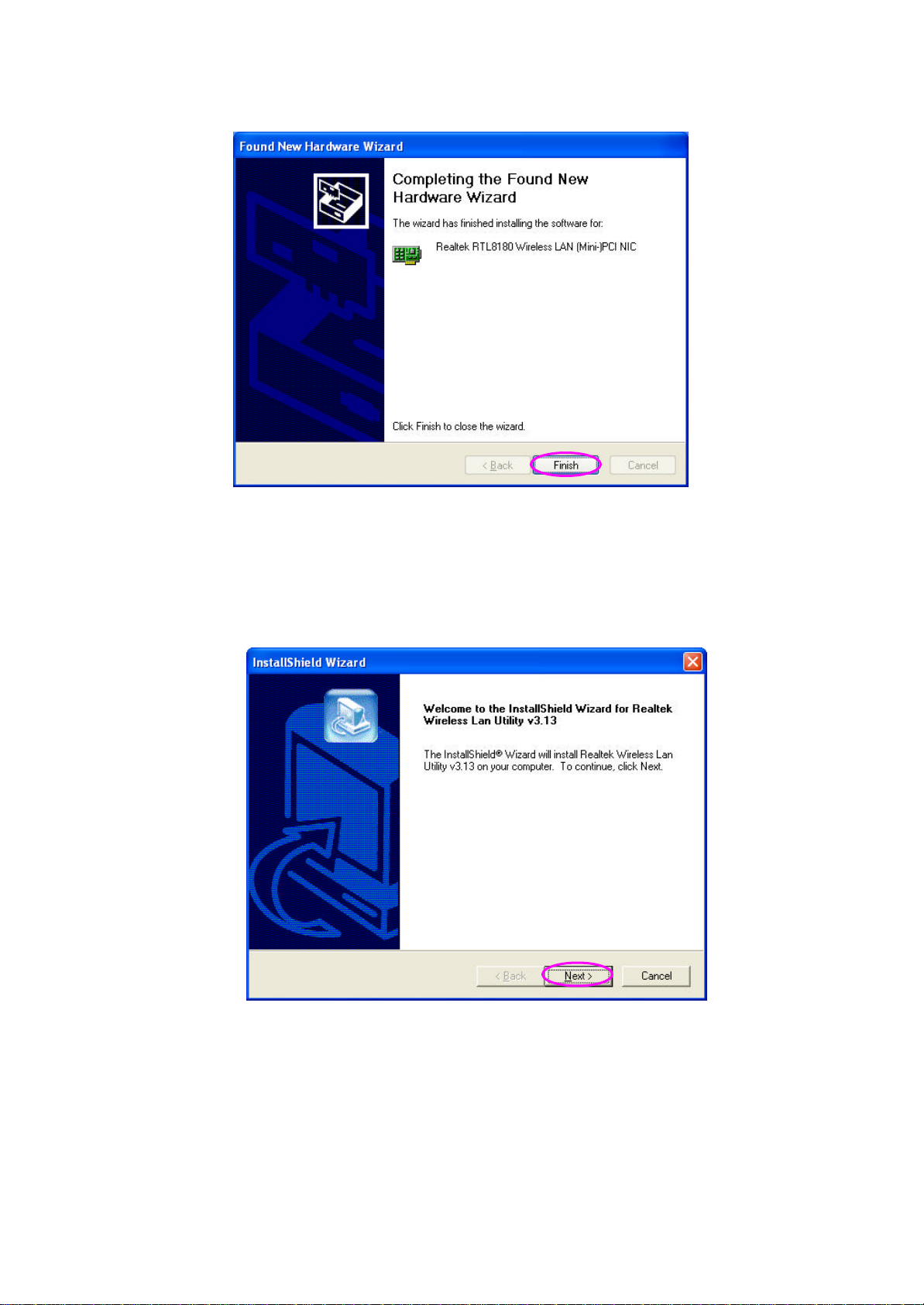

5. Click “Finish“when the installation is finished.

2.2 Install the Utility

1. Insert the CD into the CD-ROM device and execute the "Utility\setup.exe" program. The

InstallShield Wizard box will appear,click "Next" to continue.

2. Click “Yes“if you accept all the terms of preceding License Agreement.
