EDIFIER X100 Manuel utilisateur

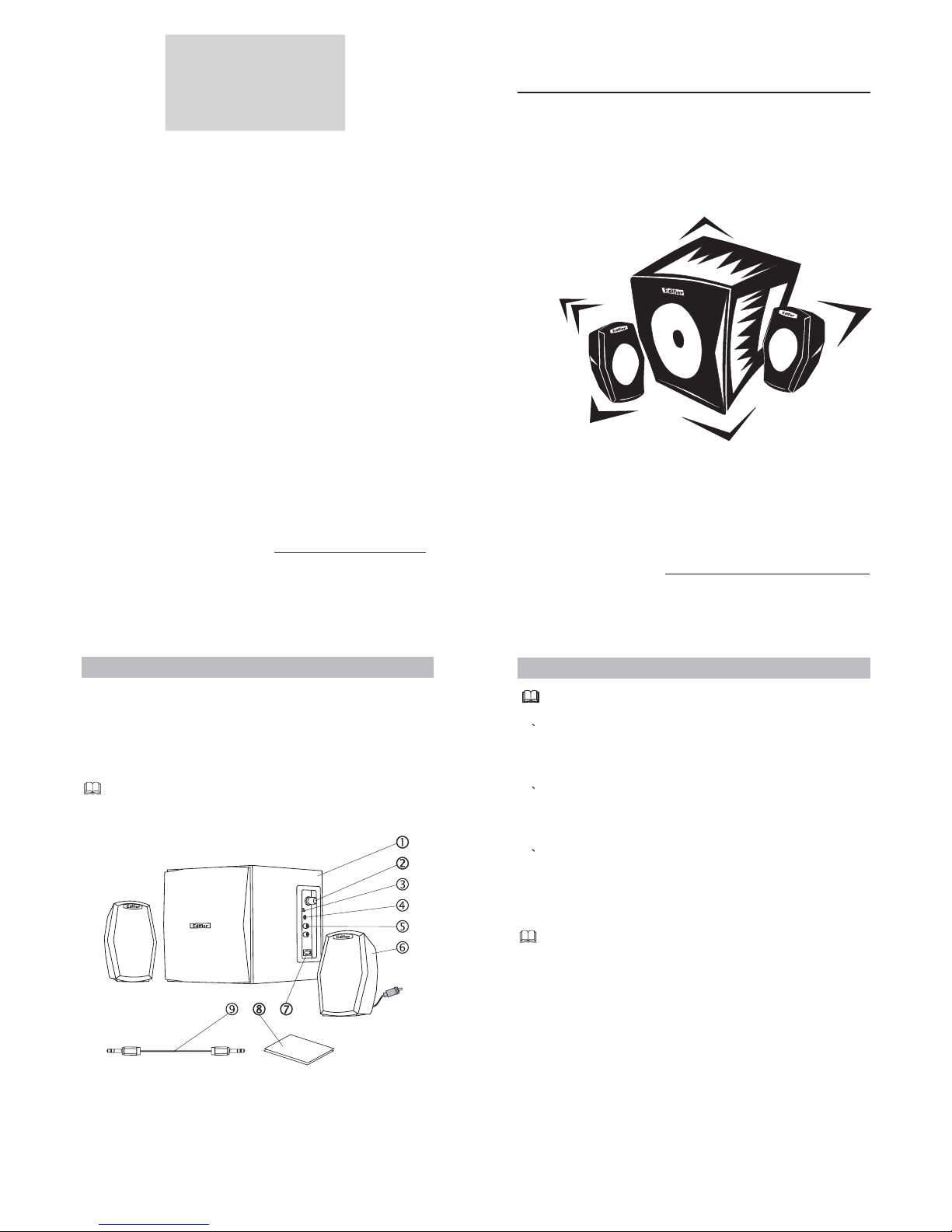

1 Sub Woofer 2 Volume Control

3 Bass Adjusting Switch

5 Speaker Out Splint 6 Power Switch

7 Satellite Speakers (left and right) 8 User's Manual

4 Line In Port

Audio connecting cord

X100

Multimedia Speaker

Designed and Engineered in Canada

Edifier Enterprises Canada Inc.

User's Manual

Notice

Edifier and Edifier logo are owned by

and may be registered. And other brand names and trademarks are

the property of their owners.

Edifier Enterprises Canada Inc.

Overview

Welcome !

Very thanks for choosing Edifier multimedia speaker,it can

provide good sound for multimedia computer and home theater.

Before operating the system, please read this manual thoroughly

and retain it for future reference.

Operating

Overview

Notice

Edifier assumes no responsibility for any errors that may appear

in this manual. Information contained herein is subject to change

without notice.

Operating

SPECIFICATIONS

3 Playing the audio device

CONNECTING

Connect the satellite speakers to the output RCA on the

back panel of the Sub-woofer. Please note to match the color,

red to red and white to white.

Connect the subwoofer to the Audio device.

Using Audio connecting cord , connect the Line-input port

of the subwoofer to Line-out of the Audio Device (Such as the

computer, Discman, etc).

Plug the AC power plug into the wall outlet and turn on the

power switch, Now your speaker system is ready for Use.

Adjusting the volume control and Bass adjusting switch, then

you can enjoy the music.

Total P Output :

Input Impedance:

Input Sensitive: 45

Bass Unit: 4

Tweeter :

Dimension(Subwoofer): 191

Dimension(Satellite): 83

Gross Weight:

ower RMS 2.5W x 2 + 5W(THD=10%)

10K Ohm

0mV

" Aluminum coil, 4 Ohm

Unit " Paper coil, 4 Ohm

(W) x 183(H) x 222(D)mm

(W) x 108(H) x 80(D)mm

About 3.1 Kg

23/4

WARNING

To reduce the risk of electric shock ,Do not expose this apparatus

to rain or moisture.

Manual Edition 1.1, Nov 2003

Printed in CHINA

X200

Designed and Engineered in Canada

Edifier Enterprises Canada Inc.

User's Manual

Notice

Edifier and Edifier logo are owned by

and may be registered. And other brand names and trademarks are

the property of their owners.

Edifier Enterprises Canada Inc.

Overview

1Operating

Welcome !

Very thanks for choosing Edifier multimedia speaker,it can

provide good sound for multimedia computer and home theater.

Before operating the system, please read this manual thoroughly

and retain it for future reference.

1 Sub Woofer 2 Volume Control

3 Bass Adjusting Switch

5 6 Satellite Speakers

7 Power Switch 8 User's Manual

¢ ¢

Speaker Out

4 Line In Port

Audio connecting cord

Operating

3 Playing the audio device

CONNECTING

Connect the satellite speakers to the output RCA on the

back panel of the Sub-woofer. Please note to match the color,

red to red and white to white.

Connect the subwoofer to the Audio device.

Using Audio connecting cord , connect the Line-input port

of the subwoofer to Line-out of the Audio Device (Such as the

computer, Discman, etc).

Plug the AC power plug into the wall outlet and turn on the

power switch, Now your speaker system is ready for Use.

Adjusting the volume control and Bass adjusting switch, then

you can enjoy the music.

Total P Output :

Input Impedance:

Input Sensitive: 52

Bass Unit:

Tweeter :

Dimension(Subwoofer):

Dimension(Satellite):

Gross Weight:

ower RMS 4W x 2 + 10W(THD=10%)

10K Ohm

0mV

5" Aluminum coil, 4 Ohm

Unit " Paper coil, 4 Ohm

200(W) x 192(H) x 220(D)mm

98(W) x 142(H) x 100(D)mm

About 3.7 Kg

23/4

SPECIFICATIONS

Notice

Edifier assumes no responsibility for any errors that may appear

in this manual. Information contained herein is subject to change

without notice.

Overview

WARNING

To reduce the risk of electric shock ,Do not expose this apparatus

to rain or moisture.

Multimedia Speaker

Manual Edition 1.1, Nov 2003

Printed in CHINA

1 Sub Woofer 2 Volume Control

3 Bass Control

5 Power Indicator 6 Speaker Out

7 Power Switch 8 Satellite Speakers

9 User's Manual 10

¢ ¢

4 Line In Port

Audio connecting cord

X300

Designed and Engineered in Canada

Edifier Enterprises Canada Inc.

User's Manual

Notice

Edifier and Edifier logo are owned by

and may be registered. And other brand names and trademarks are

the property of their owners.

Edifier Enterprises Canada Inc.

Overview

1Operating

Welcome !

Very thanks for choosing Edifier multimedia speaker,it can

provide good sound for multimedia computer and home theater.

Before operating the system, please read this manual thoroughly

and retain it for future reference.

Operating

3 Playing the audio device

CONNECTING

Connect the satellite speakers to the output RCA on the

back panel of the Sub-woofer. Please note to match the color,

red to red and white to white.

Connect the subwoofer to the Audio device.

Using Audio connecting cord , connect the Line-input port

of the subwoofer to Line-out of the Audio Device (Such as the

computer, Discman, etc).

Plug the AC power plug into the wall outlet and turn on the

power switch, Now your speaker system is ready for Use.

Adjusting the volume control and Bass control , then you can

enjoy the music.

Total P Output :

Input Impedance:

Input Sensitive:

Bass Unit:

Tweeter :

Dimension(Subwoofer):

Dimension(Satellite): 84

Gross Weight:

ower RMS 6W x 2 + 12W(THD=10%)

10K Ohm

450 mV

5.5" Aluminum coil, 4 Ohm

Unit " Paper coil, 4 Ohm

221(W) x 207(H) x 249(D)mm

(W) x 158(H) x 85(D)mm

About 5.1 Kg

23/4

SPECIFICATIONS

Notice

Edifier assumes no responsibility for any errors that may appear

in this manual. Information contained herein is subject to change

without notice.

Overview

WARNING

To reduce the risk of electric shock ,Do not expose this apparatus

to rain or moisture.

Manual Edition 1.1, Nov 2003

Printed in CHINA

Multimedia Speaker

X400

Designed and Engineered in Canada

Edifier Enterprises Canada Inc.

User's Manual

Notice

Edifier and Edifier logo are owned by

and may be registered. And other brand names and trademarks are

the property of their owners.

Edifier Enterprises Canada Inc.

Overview

Welcome !

Very thanks for choosing Edifier multimedia speaker,it can

provide good sound for multimedia computer and home theater.

Before operating the system, please read this manual thoroughly

and retain it for future reference.

Overview

Operating

3 Playing the audio device

CONNECTING

Connect the satellite speakers to the output RCA on the

back panel of the Sub-woofer. Please note to match the color,

red to red and white to white.

Connect the subwoofer to the Audio device.

Using Audio connecting cord , connect the Line-input port

of the subwoofer to Line-out of the Audio Device (Such as the

computer, Discman, etc).

Plug the AC power plug into the wall outlet and turn on the

power switch, Now your speaker system is ready for Use.

Adjusting the volume control and Bass control , then you can

enjoy the music.

Total P Output :

Input Impedance:

Input Sensitive:

Bass Unit:

Tweeter : 3

Dimension(Subwoofer):

Dimension(Satellite): 91

Gross Weight:

ower RMS 6W x 2 + 12W(THD=10%)

10K Ohm

450 mV

5.5" Aluminum coil, 4 Ohm

Unit " Paper coil, 4 Ohm

221(W) x 207(H) x 249(D)mm

(W) x 173(H) x 116(D)mm

About 6 Kg

SPECIFICATIONS

Notice

Edifier assumes no responsibility for any errors that may appear

in this manual. Information contained herein is subject to change

without notice.

1 Sub Woofer 2 Volume Control

3 Bass Control

5 Power Indicator 6 Speaker Out

7 Power Switch 8 Satellite Speakers

9 User's Manual 10

¢ ¢

4 Line In Port

Audio connecting cord

Operating

WARNING

To reduce the risk of electric shock ,Do not expose this apparatus

to rain or moisture.

Multimedia Speaker

Manual Edition 1.1, Nov 2003

Printed in CHINA
