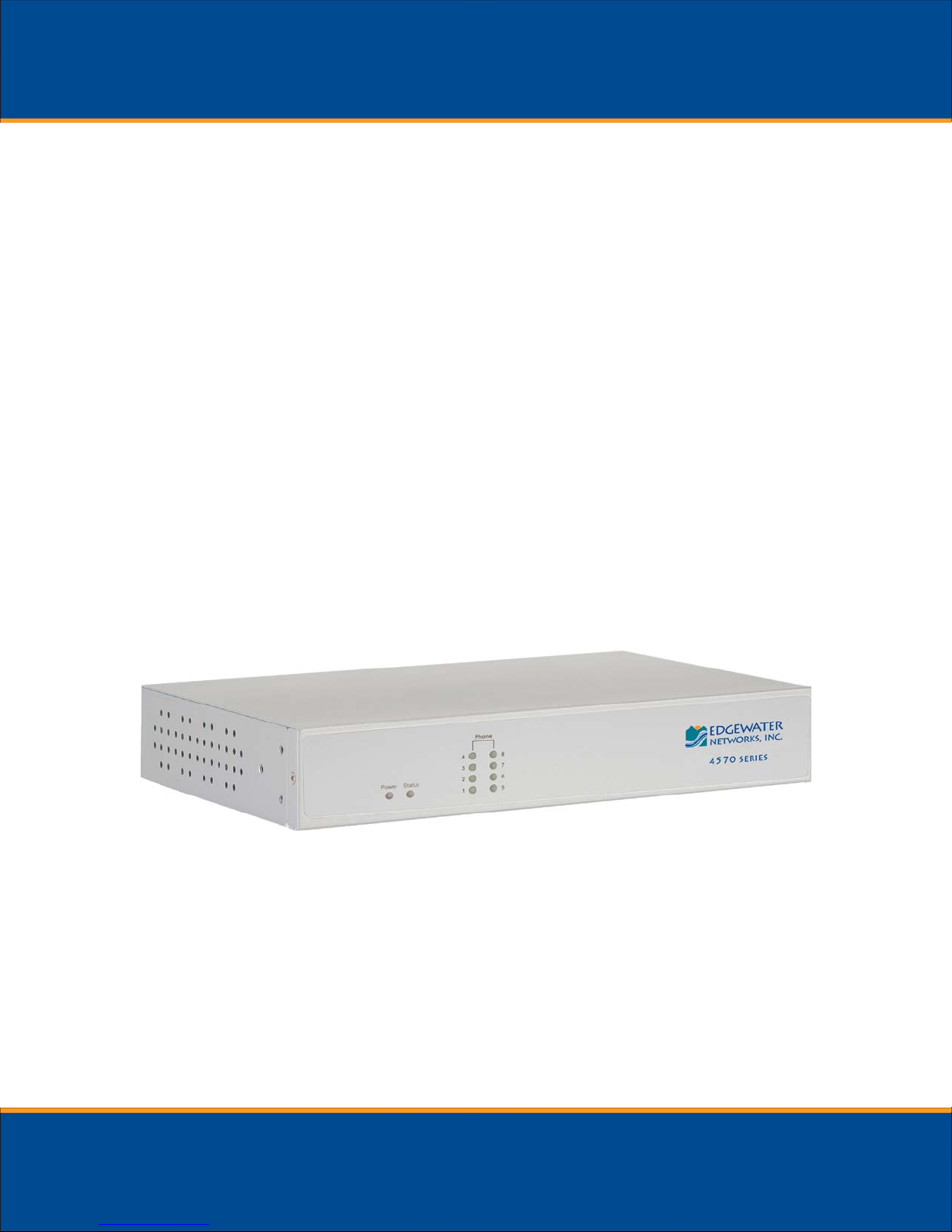

EdgeMarc 4570
Enterprise Session Border
Controller
Quick Start Guide
Version 1.0
Before You Start
Please read this guide thoroughly as it describes the basic installation of
the device. Additional configuration needed to deploy the device in a
specific environment can be performed with the help of online help.
This guide also provides an example of a typical 4570 deployment that
can be used as a guideline for your installation.
Requirements for Installation
•A computer with a web browser such as Microsoft Internet Explorer or
Mozilla Firefox or any other browser of your choice
•At least 1 Ethernet cable
•Following information supplied by the Internet Service Provider:
oIP address of the WAN interface
Instructions
Step 1 Connecting the Cables
1. Connect one end of an Ethernet cable to local LAN port 1 of the 4570. This port can be
seen in the "B" of the above diagram. Connect the other end of the cable to your
computer’s Ethernet port.
2. Connect an Ethernet cable between the Ethernet WAN port of the 4570, shown in the
above diagram as "C" and the Ethernet port on a router or a modem.
3. Plug one end of the power adapter into an AC outlet and the other end into the power
receptacle on the 4570, shown in the above diagram as "A".
Make sure that the power and status LEDs, shown in the diagram below as "A" and "B"
are solid green after a short while.
Step 2 Configuring the EdgeMarc
1. Launch a web browser on the PC and enter the following URL: http://192.168.1.1 and hit
enter
2. The following login window should appear:
3. Enter “root” in the “User name” field and “default” in the “Password” field.
4. The “System” page should appear next. If you should see the "message of the day"
instead, just click on the System link under “Configuration Menu” to get to the “System”
page.
5. From the “Configuration Menu” on the left configure the following:
•“Network” – To configure WAN and LAN ports
•Optionally configure “DHCP Server” to suit your needs.
Step 3 Plan Your Configuration
The EdgeMarc 4570 can be deployed as a Session Border Controller in a network. It can also
be deployed in a network behind an existing firewall. For more information about deploying your
EdgeMarc behind a firewall, visit our support knowledgebase at
http://www.edgewaternetworks.com/kb
Note: When deploying VoIP services, all connected LAN switches or routers must support full
duplex.
Based on your deployment criteria, consult the following documents for further configuration:
•EdgeMarc 4570 Enterprise Session Border Controller Hardware Installation Guide
•VoIP Operating System (VOS) for EdgeMarc User Manual
Edgewater Networks, Inc.
2895 Northwestern Parkway
Santa Clara, CA 95051
Phone: (408) 351-7200
Copyright © 2011 Edgewater Networks, Inc. All rights reserved.
Converged Networking. Simplified.
